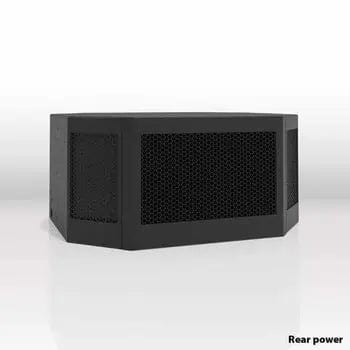

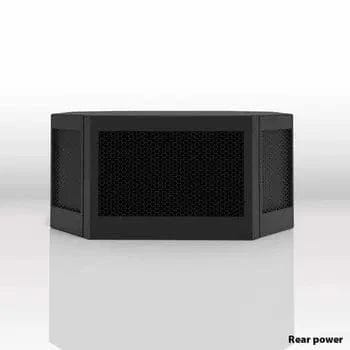

WhisperKOOL Slimline 3300 Wine Cellar Cooling Unit

The WhisperKOOL Slimline 3000 Wine Cellar Cooling Unit is one of the quietest and most compact through-the-wall wine cellar cooling units (self-contained), specifically designed to fit into the often unused space between the cellar door and the ceiling. This allows the unit to fit snugly above the cellar door, providing efficient cooling without taking up much space and having a low visual profile.

The system has a WhisperKOOL Platinum Series controller with Advanced System Protection Technology. This ensures effective performance and a long cooling unit lifespan through several carefully placed monitoring probes. The Slimline is energy-efficient and can cool wine cellars up to 650 cubic feet while using less power than traditional units.

The most economical and easiest to install are through-the-wall wine cellar cooling units(self-contained). They are designed to mount between the studs of an existing wall and do not need to be installed by a licensed HVACR technician. Cool air is blown into the cellar from one end of the system, while the other end exhausts heat into an adjacent room.

Want to see wine cooler units in this installation type? Check out Self Contained Through-The-Wall Wine Cooling Units. You can also browse all our WhisperKOOL Wine Cellar Cooling Systems.

Looking for the best wine racks? Check out Ultra Wine Racks & Cellars for unique and modern wine racks for your wine cellar!

WHY BUY FROM US: Luxury Appliances Direct is a trusted dealer of specialty wine cellar air conditioners, commercial wine cellar refrigeration units, and residential wine cellar coolers. More WhisperKOOL wine cellar cooling unit reviews can be found on our Customer Reviews page.

Contact us for any questions or concerns. For information on order processing, shipping options, and delivery times, please visit our Shipping Policy.

WhisperKOOL Slimline 3000 is Discontinued. Replaced by WhisperKOOL's Newest Luxury Series. Buy the WhisperKOOL Slimline LS Cooling Unit today!

Features

Features:

• Through-the-wall installation.
• Quiet and efficient operation.
• Advanced electronic display.
• Liquid-temperature-measuring bottle probe.
• Can be mounted in the often-unused space above a door 30°F temperature differential.

Manuals

Manuals:

• WhisperKOOL Slimline Wine Cellar Cooling Unit Owner's Manual
• WhisperKOOL Slimline Wine Cellar Cooling Unit Features & Specification Sheet
• WhisperKOOL Slimline Series Warranty Information

Specifications

Specifications:

• Model: Slimline 3300
• Cellar Size: Approx. 650 cu.ft. when wine cellar is fully insulated and sealed with a proper vapor barrier
• BTU/h (85°F condenser air intake temperature): 2049
• Dimensions (L x W x H): 19" x 22" x 10.25"
• Refrigerant: R-134a
• HP: 1/6
• Voltage Rating: 115V (20-amp dedicated circuit required); 230V (subject to availability)
• Weight: 54 lbs
• Amps: 3.5 (running amps)
• Drain Line: 3/8” ID clear plastic tubing (NOT PROVIDED)
• Installation: Through the wall (above a doorway)
• Thermostat: Advanced digital controller, liquid-temperature-measuring bottle probe (retractable cable)
• Temp. Delta: Can maintain a 55°F cellar temperature with up to 85°F condenser air intake temperature
• Ducting Options: Exhaust air can be ducted using the OPTIONAL ducting kit
• WhisperKOOL Warranty: Two-year limited warranty (parts and labor) / Five-year limited warranty (compressor)

*NOTE: WhisperKOOL wine cooling units work best in a well-insulated and sealed room with a proper vapor barrier. Every wine cellar is different and has its own cooling needs. It's important to perform heat load calculations before choosing a cooling system for wine cellars.

BTU/h

BTU/h

2049

The BTU/h value range shown here is an estimate and not a guarantee. There may be instances where a cellar design requires a larger unit due to variables not included in the calculation. These variables can be building materials (such as glass, stone, concrete, etc.) that do not provide enough insulation to maintain the ideal wine cellar environment.

We recommend purchasing a unit with a higher capacity to compensate for these unforeseen variables. Choosing an undersized unit may result in premature failure and may not be able to achieve your desired wine cellar temperature.
