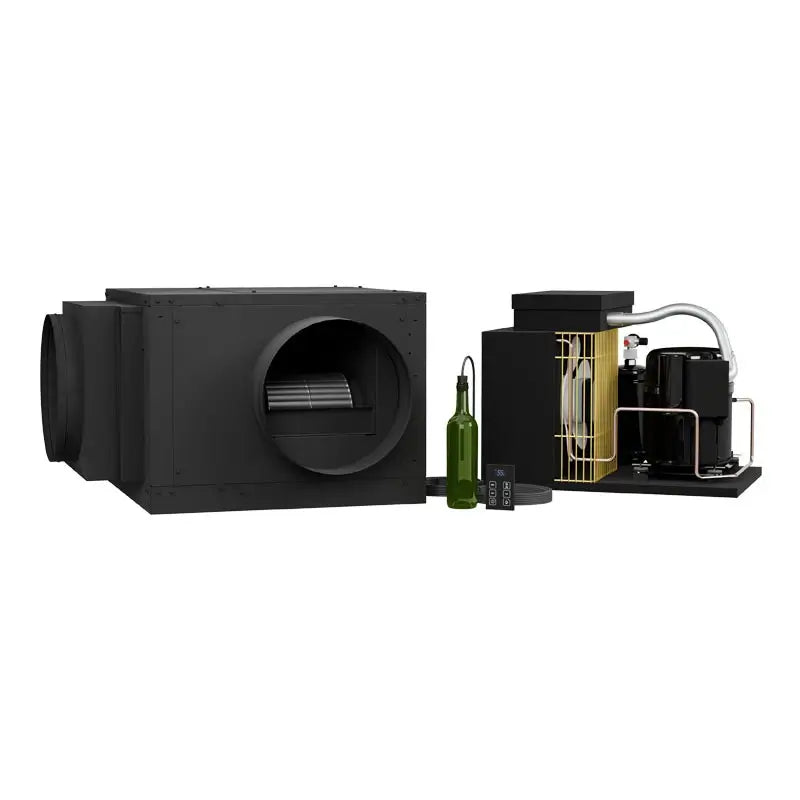

WhisperKOOL Quantum SS9000 Ducted Split System Review
Searching for the ultimate solution to your wine cellar challenges? The WhisperKOOL Quantum SS9000 Ducted Split Wine Cellar Cooling System is the best one for you!
NOTE: A qualified HVAC-R technician is required for the installation of your WhisperKOOL Quantum SS9000 Ducted Split System. Failure to adhere to this requirement will void the warranty.
PLEASE NOTE: We will be phasing out the 9000 and 12000 110V condensers on 10/01/2023 or sooner. We will continue to support controllers through the two-year warranty period. All other replacement part requests will be directed to Copeland.
The Quantum Series of WhisperKOOL Wine Cellar Cooling Systems are specifically engineered to handle larger wine cellars and challenging cooling requirements. The WhisperKOOL Quantum SS9000 Ducted Split Wine Cellar Cooling System is one of the highest-capacity wine cellar coolers that feature multiple ducting options for easy installation and accessibility.
With interchangeable evaporator airflow panels, a pump system to remove excess condensation, and both standard and 24V thermostat options, this unit can be customized to fit your specific needs. The coils are also coated with electro-fin to protect against corrosion and outgassing which commonly occurs in cellars. And for added convenience, the condensing unit can be placed outdoors with the purchase of exterior housing. The wine cooler unit’s air handler can be ducted up to 25 feet for a quiet wine cellar environment.
The Quantum SS9000 Wine Room Cooler is built to operate in ambient temperatures as low as -15 degrees and is made with professional-grade components for durability and efficiency, keeping your wine collection at the perfect temperature.
Available in WhisperKOOL Quantum SS9000 220V High-Efficiency Condenser for 3000 cu.ft wine cellar storage.
Other Size: WhisperKOOL Quantum SS12000 for 4000 cu.ft wine cellar room & WhisperKOOL Quantum SS12000 220V High-Efficiency Condenser for 4000 cu.ft wine cellar.
Do you want to check other options? You can browse our other Ducted Split Wine Cooling Units. You can also see all our WhisperKOOL Wine Cooling Units.
Looking for the best wine racks? Check out Ultra Wine Racks & Cellars for unique and modern wine racks for your wine cellar!
WHY BUY FROM US: Luxury Appliances Direct is a trusted dealer of specialty wine cellar air conditioners, commercial wine cellar refrigeration units, and residential wine cellar coolers. More WhisperKOOL wine cellar cooling unit reviews can be found on our Customer Reviews page.
Contact us for any questions or concerns. For information on order processing, shipping options, and delivery times, please visit our Shipping Policy.
Buy the WhisperKOOL Quantum SS9000 Ducted Split System today and enjoy your amazing wines at their best temperature!
Features
Features:
-
TOUCH DISPLAY
The KDT Digital Touch Display can be placed as far as 50 feet from the unit and features Advanced System Protection including alarm notifications for when certain conditions are not met.
-
BOTTLE PROBE
WhisperKOOL cooling units precisely measure the temperature of the wine in the cellar with the WhisperKOOL Bottle Probe. This liquid temperature measuring probe gives a more accurate reading of the temperature of the wines stored in the cellar as compared to measuring the air temperature.
-
LOW NOISE LEVELS
The Quantum wine cooling systems are fully ducted. WhisperKOOL Fully Ducted Systems give you endless ducting options, keeping the unit out of sight and significantly reducing noise in the wine cellar.
Manuals
Manuals:
Please click below to read and download the WhisperKOOL Quantum manual.
Please click below to view all product specifications for the WhisperKOOL Quantum SS9000 Ducted Split Wine Cooling Units.
A limited 2-year limited warranty (parts & labor) is offered with all WhisperKOOL Split Systems.
New 24-volt thermostat conversion kit for WhisperKOOL Split Systems.
Is this a right-sized unit for your wine cellar? Talk to an Expert at +1 (800) 583-0045 or email: support@luxuryappliancesdirect.com to ensure that this cooling system is best suited for your needs.
BTU/h
BTU/h
9,572 - 10,786
The BTU/h value range shown here is an estimate and not a guarantee. There may be instances where a cellar design requires a larger unit due to variables not included in the calculation. These variables can be building materials (such as glass, stone, concrete, etc.) that do not provide enough insulation to maintain the ideal wine cellar environment.
We recommend purchasing a unit with a higher capacity to compensate for these unforeseen variables. Choosing an undersized unit may result in premature failure and may not be able to achieve your desired wine cellar temperature.
Specifications
Specifications:
-
Cellar Size: Approx. 3000 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier
-
Dimensions: Evaporator: 29.5”L x 30.9”W x 19.8”H | Condenser: 24”L x 18.98″W x 16.16″H
-
Drain Line: 3/4” ID CPVC
-
BTU/h: 9,572
-
WhisperKOOL Warranty: Limited 2-year product warranty is offered with all split systems.
Please click below for the full specification of the WhisperKOOL Quantum Series.
24V THERMOSTAT CONVERSION KIT (OPTIONAL)
24V THERMOSTAT CONVERSION KIT (OPTIONAL)
Introducing our new 24-volt thermostat conversion kit for WhisperKOOL split systems! Utilize industry-leading technology from major manufacturers to monitor the environment of your cellar.
- Connect your thermostat to Wi‑Fi to control the temperature from your phone, tablet, or laptop.
- Monitor run time and energy usage.
- Set alarm notifications.
- View your cellar conditions from your mobile device.
*PLEASE NOTE: WhisperKOOL does not provide smart thermostats. If you choose the 24V Thermostat Conversion Kit, you acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will need to purchase your own 24V smart thermostat to operate the equipment. The WhisperKOOL Customer Satisfaction Team will not provide support for issues related to smart thermostats.
For more information, check out 24V Thermostat Conversion Kit.
WhisperKOOL Accessories
WhisperKOOL Accessories (Optional)
You may add WhisperKOOL replacement parts and accessories to enhance the performance and longevity of your wine cooling systems. These add-ons include items that upgrade and protect the system. Check out the other WhisperKOOL Parts & Accessories.
Exterior Protective Housing for WhisperKOOL Split Systems
The Exterior Protective Housing protects the condenser part of WhisperKOOL split systems from the weather and elements when installed outdoors. Exterior Condenser Housing is used with all WhisperKOOL Ducted Split Systems and WhisperKOOL Ductless Split Systems.
- Galvanized steel base and steel cabinet embossed — 20 GA, hinged access for easier servicing
- Easily assembled in the shop or on the job
- Rain Trough under hinge to catch moisture that might seep through the hinge
- WhisperKOOL® provides fasteners
-
Dimensions (W x H x D): 20” x 20” x 27”
Condenser Coil Coating
The Condenser Coil Coating is a protective coating applied to a WhisperKOOL wine cellar cooling system's condenser coil to protect it from salt air. This coating helps to extend the lifespan of the cooling unit, especially in areas near the coast or beach where salt air can be a problem.
