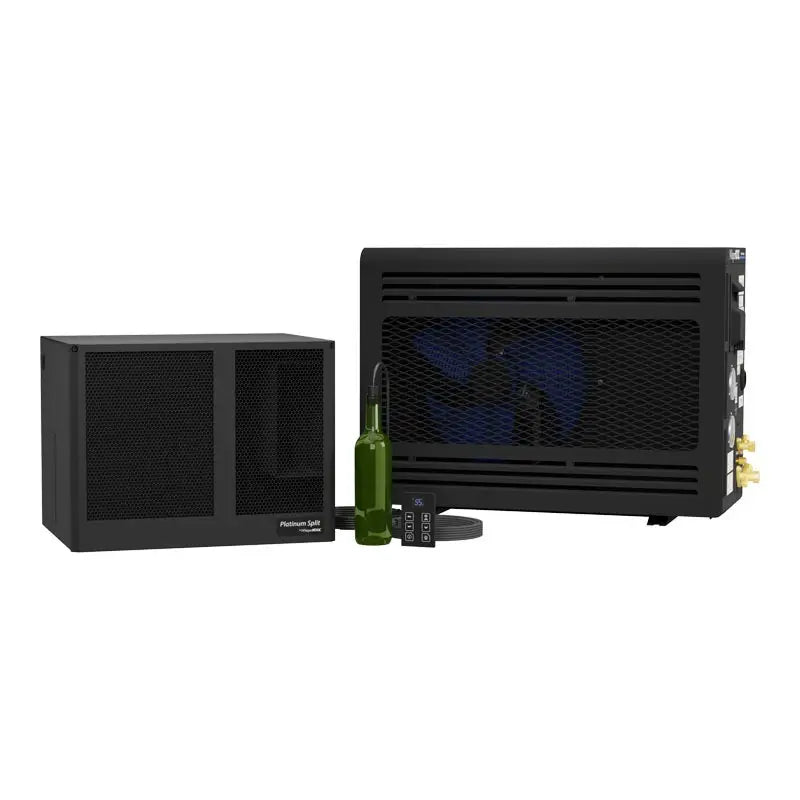

WhisperKOOL Platinum Split 4000 Ductless Cooling System 220V High-Efficiency

Features:

• TOUCH DISPLAY
  The KDT Digital Touch Display can be installed up to 50 ft. away from the unit. The KDT is equipped with Advanced System Protection that has alarms to alert you if certain parameters are not met.



• BOTTLE PROBE
  The unit accurately measures the temperature of wine in the cellar using a liquid temperature measuring probe. Measuring the temperature of a liquid is a more direct and accurate reflection of the temperature of the wines stored in the cellar than measuring the ambient cellar air.



• HIGH-EFFICIENCY CONDENSER
  The 220V system is highly energy-efficient, it uses 50% less energy to operate, resulting in lower energy costs. Additionally, it can adapt to changing temperature conditions and maintain ideal wine storage conditions in extreme temperatures, as low as -20°F (cold winter temperatures) and as high as 120°F (hot summer temperatures.)



Manuals:

• Owner Manual for WhisperKOOL Platinum Split 4000 Ductless Cooling System 220V High-Efficiency

• H.E. Owner Manual for WhisperKOOL Platinum Split 4000 Ductless Cooling System 220V High-Efficiency
• 220V High-Efficiency Product Sheets for WhisperKOOL Platinum Split 4000 Ductless Cooling System 220V High-Efficiency
• High Efficiency 220 Warranty Registration for WhisperKOOL Platinum Split 4000 Ductless Cooling System 220V High-Efficiency

Not sure if the Platinum Split 4000 is right for your wine cellar? Talk to an Expert at +1 (800) 583-0045 or email: support@luxuryappliancesdirect.com to find the right cooling system for your needs.

BTU/h

3650 - 4315

The BTU/h value range shown here is an estimate and not a guarantee. There may be instances where a cellar design requires a larger unit due to variables not included in the calculation. These variables can be building materials (such as glass, stone, concrete, etc.) that do not provide enough insulation to maintain the ideal wine cellar environment.

We recommend purchasing a unit with a higher capacity to compensate for these unforeseen variables. Choosing an undersized unit may result in premature failure and may not be able to achieve your desired wine cellar temperature.

Specifications:

• Cellar Size: Approx. 1000 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier
• Dimensions: Evaporator: 20”L x 20.5”W x 15.5”H
• Drain Line: ti: 1/2” ID tubing, tiR: 3/8″ ID tubing
• BTU/h: 3650 - 4315
• WhisperKOOL Warranty: Limited 2-year product warranty is offered with all split systems.

Platinum Split 4000

Please click below for the full specification of WhisperKOOL Platinum Split Ductless Series.

• 220V High-Efficiency Product Sheets for WhisperKOOL Platinum Split 4000 Ductless Cooling System 220V High-Efficiency

24V THERMOSTAT CONVERSION KIT (OPTIONAL)

Introducing our new 24-volt thermostat conversion kit for WhisperKOOL split systems! Utilize industry-leading technology from major manufacturers to monitor the environment of your cellar.

• Connect your thermostat to Wi‑Fi to control the temperature from your phone, tablet, or laptop.
• Monitor run time and energy usage.
• Set alarm notifications.
• View your cellar conditions from your mobile device.

*PLEASE NOTE: WhisperKOOL does not provide smart thermostats. If you choose the 24V Thermostat Conversion Kit, you acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will need to purchase your own 24V smart thermostat to operate the equipment. The WhisperKOOL Customer Satisfaction Team will not provide support for issues related to smart thermostats.

For more information, check out 24V Thermostat Conversion Kit.

WhisperKOOL Accessories (Optional)

You may add WhisperKOOL replacement parts and accessories to enhance the performance and longevity of your wine cooling systems. These add-ons include items that upgrade and protect the system. Check out the other WhisperKOOL Parts & Accessories.

UV-C Light Technology

Adding UV-C Light Technology to WhisperKOOL wine cellar coolers enhances the overall indoor air quality inside the wine cellar and improves the system's performance. The UV-C light bulb inside the cooling system will protect it from mold and bacterial growth, extending the lifespan of the unit.

Exterior Protective Housing for WhisperKOOL Split Systems

The Exterior Protective Housing protects the condenser part of WhisperKOOL split systems from the weather and elements when installed outdoors. Exterior Condenser Housing is used with all WhisperKOOL Ductless Split Systems and WhisperKOOL Ducted Split Systems.

• Galvanized steel base and steel cabinet embossed — 20 GA, hinged access for easier servicing
• Easily assembled in the shop or on the job
• Rain Trough under hinge to catch moisture that might seep through the hinge
• WhisperKOOL® provides fasteners
• Dimensions (W x H x D): 20” x 20” x 27”

Condenser Coil Coating

The Condenser Coil Coating is a protective coating applied to a WhisperKOOL wine cellar cooling system's condenser coil to protect it from salt air. This coating helps extend the cooling unit's lifespan, especially in areas near the coast or beach where salt air can be a problem.
