FORNO Ambassador Collection · Valente Series

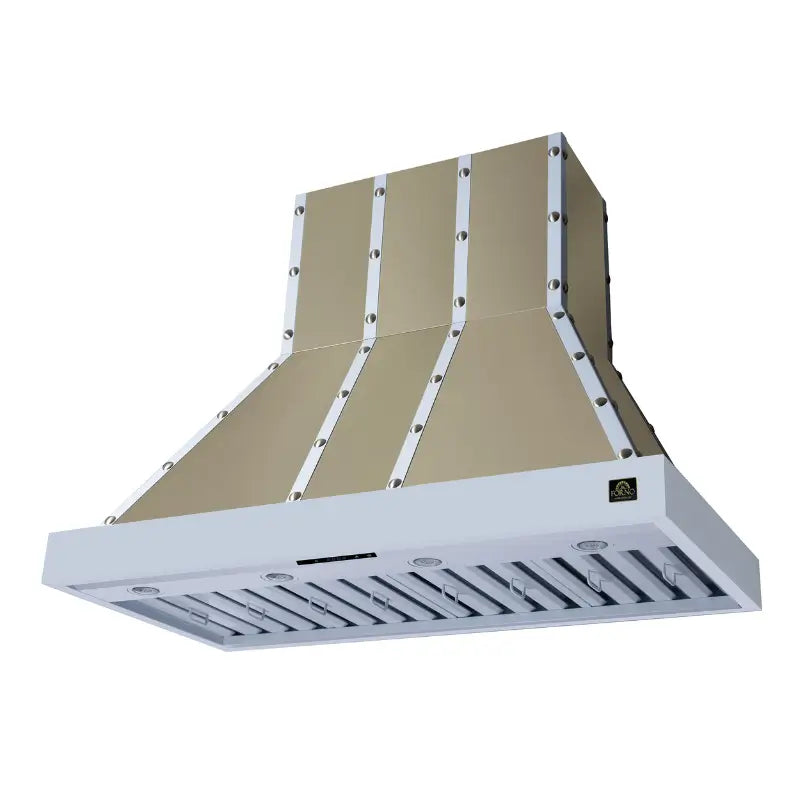

FORNO Valente FRHWM5099-48CPWHT 48-Inch Wall Mount Range Hood with 304 CFM, 3 Speeds & Baffle Filters – White with Copper Rivet Trim
The FORNO Valente FRHWM5099-48CPWHT is a 48-inch residential wall-mounted range hood designed for externally ducted kitchen ventilation. Three fan settings provide 225, 268, and up to 304 CFM of airflow for adjustable exhaust performance.
The hood uses a 6-inch round metal duct connection with vertically upward discharge and is designed to move cooking air outside the home. Removable stainless steel baffle filters help capture cooking residue and are dishwasher safe for easier routine maintenance.
A fingerprint-resistant white exterior with decorative Copper Rivet trim gives the hood a distinctive architectural appearance. Touch controls, an LED display, integrated clock, remote operation, and GU10 LED cooktop lighting add everyday convenience.
FORNO FRHWM5099-48CPWHT: Quick Decision Summary
Choose the FORNO Valente FRHWM5099-48CPWHT when you need the visual scale of a 48-inch decorative wall hood together with moderate residential airflow, external ducting, reusable baffle filters, touch controls, remote operation, and white-and-copper styling.
| Best For | Residential kitchens requiring a 48-inch wall-mounted hood with an exterior exhaust route. |
|---|---|
| Ventilation Type | External / ducted. |
| Airflow | 225 / 268 / 304 CFM across three fan speeds. |
| Duct Connection | 6-inch round metal duct with vertically upward discharge. |
| Key Advantage | Dishwasher-safe stainless steel baffle filters, touch controls, remote control, clock, LED lighting, and White with Copper styling. |
| Primary Planning Requirement | Verify that 304 CFM is appropriate for the planned cooking appliance and confirm the external duct path, mounting height, electrical supply, and wall support before purchase. |
Things to Know Before Ordering
- This is an externally ducted wall-mounted range hood.
- Maximum rated airflow is 304 CFM.
- Three fan settings provide 225, 268, and 304 CFM.
- The hood uses a 6-inch round metal duct.
- Air exhausts vertically upward from the top of the hood.
- Charcoal filters are not specified.
- Stainless steel baffle filters are dishwasher safe.
- Touch controls and remote-control operation are included.
- The supplied product information identifies this model for residential use.
- Width alone should not be used to determine ventilation suitability.
Quick Product Facts
| Brand | FORNO |
|---|---|
| Collection | Ambassador |
| Series | Valente |
| Model / SKU | FRHWM5099-48CPWHT |
| UPC | 686136950299 |
| Product Type | 48-Inch Wall-Mounted Range Hood |
| Application | Residential |
| Finish | White with Copper Rivet Trim |
| Primary Material | Stainless Steel |
| Maximum Airflow | 304 CFM |
| Minimum Airflow | 225 CFM |
| Fan Speeds | 3 |
| CFM by Speed | 225 / 268 / 304 CFM |
| Noise by Speed | 55 / 60 / 64 dB |
| Vent Style | External |
| Vent Type | Ducted |
| Duct Size | 6-in. Round |
| Air Discharge | Vertically Upward |
| Filter Type | Stainless Steel Baffle |
| Dishwasher-Safe Filters | Yes |
| Controls | Touch Controls |
| Remote Control | Yes |
| Clock | Yes |
| Lighting | LED GU10 |
| Fingerprint Resistant | Yes |
| Dimensions | 48 in. W × 24 in. D × 37.7 in. H |
| Product Weight | 71.9 lb. |
| Installation Manual Electrical Requirement | 120V / 60Hz / 15A |
| Receptacle Type | NEMA 5-15P |
| Safety Listing | cETLus |
| Warranty | 2-Year Limited Parts & Labor Warranty |
Key Features of the FORNO Valente FRHWM5099-48CPWHT
Three-Speed Ventilation
Select among 225, 268, and 304 CFM depending on the ventilation level required for the cooking activity.
External Ducted Exhaust
The hood is designed to exhaust cooking air outdoors using a 6-inch round metal duct.
White with Copper Rivet Trim
A fingerprint-resistant white exterior is paired with decorative Copper Rivet detailing for a distinctive architectural appearance.
Dishwasher-Safe Baffle Filters
Removable stainless steel baffle filters help capture airborne cooking residue and can be cleaned in a dishwasher.
Touch Controls with Clock
Front-mounted touch controls provide access to fan speeds, lighting, power functions, and the integrated digital clock.
Remote-Control Operation
Remote operation provides another way to control the hood without relying exclusively on the front control panel.
GU10 LED Cooktop Lighting
Integrated GU10 LED lighting helps illuminate the cooking surface.
Included Decorative Chimney
A range hood chimney is included as part of the wall-mounted configuration.
Three-Speed Airflow, Motor & Noise Performance
The FRHWM5099-48CPWHT uses a single metal blower with three selectable operating levels.
| Fan Speed | Airflow | Motor Speed | Noise Level | Sones |
|---|---|---|---|---|
| Speed 1 | 225 CFM | 803 RPM | 55 dB | 2.8 |
| Speed 2 | 268 CFM | 971 RPM | 60 dB | 4.1 |
| Speed 3 | 304 CFM | 1,173 RPM | 64 dB | 5.3 |

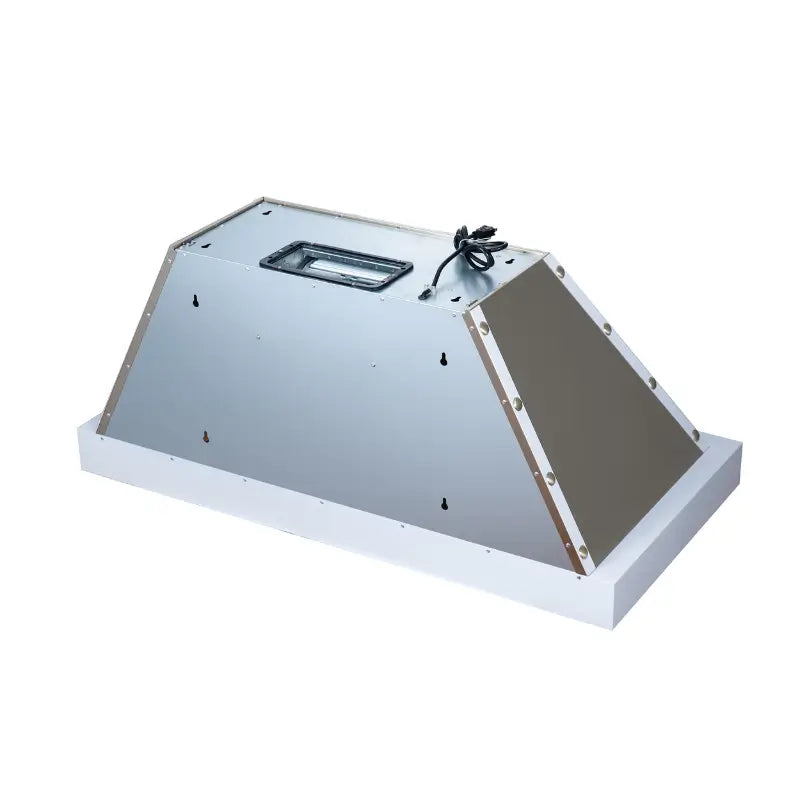

External Ventilation with 6-Inch Round Duct
The FRHWM5099-48CPWHT is designed to route cooking exhaust outside the building through a 6-inch round duct system.
Ventilation Configuration
- External vent style
- Ducted ventilation
- 6-inch round duct
- Top exhaust location
- Vertically upward discharge
- One exhaust vent
- One metal blower
- 6-inch round damper
Not Designed for Ductless Use
The supplied specifications identify charcoal filters as unavailable. Do not use this model when a recirculating-only installation is required.
Mounting Height, Ductwork & Electrical Requirements
Recommended Mounting Height
FORNO's supplied installation instructions recommend approximately 24 to 32 inches between the stovetop and bottom of the range hood for efficient and quiet operation.
Ductwork Requirements
- External ducted ventilation is required.
- Use a 6-inch round duct.
- Use metal ductwork.
- Do not use plastic ventilation ducting.
- Vertical roof venting is recommended where practical.
- Minimize unnecessary transitions and turns.
- Use no more than three 90-degree elbows in the duct run.
- Maintain at least 24 inches of straight vent between elbows when more than one elbow is used.

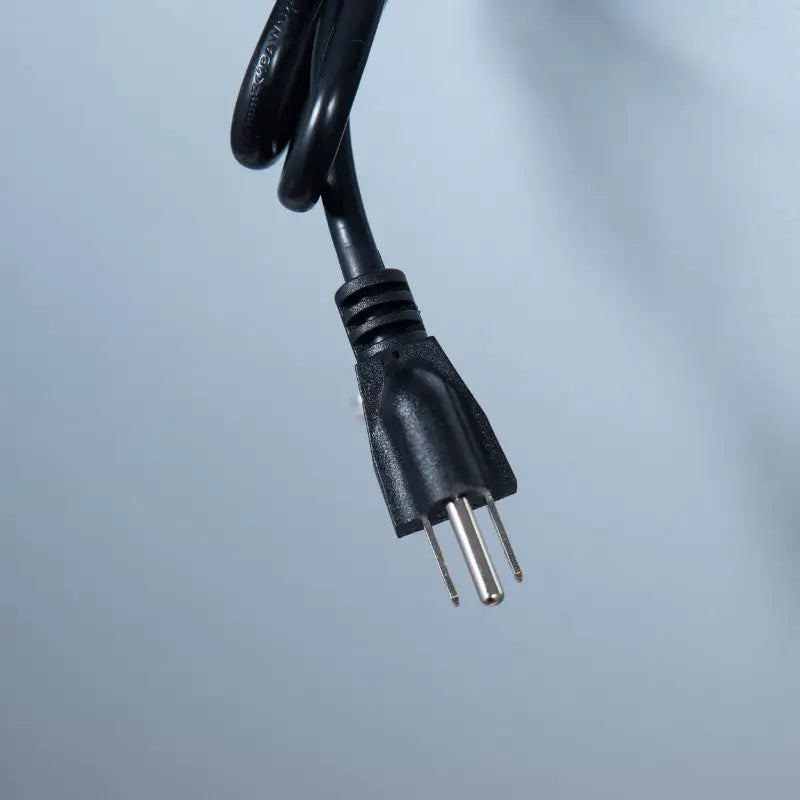

Electrical Requirements
| Installation Manual Requirement | 120V / 60Hz / 15A |
|---|---|
| Specification Sheet Rating | 110V / 60Hz / 15A |
| Receptacle Type | NEMA 5-15P |
| Power Cord Length | 3 ft. |
| Power Cord Location | Top |
| Motor Power | 165 W |
FORNO FRHWM5099-48CPWHT Dimensions
| Overall Width | 48 in. |
|---|---|
| Overall Depth | 24 in. |
| Overall Height | 37.7 in. |
| Product Weight | 71.9 lb. |
| Carton Dimensions | 52.5 in. W × 29.7 in. D × 27 in. H |
| Shipping Weight | 100.1 lb. |
| Recommended Mounting Height | 24–32 in. above cooking surface |

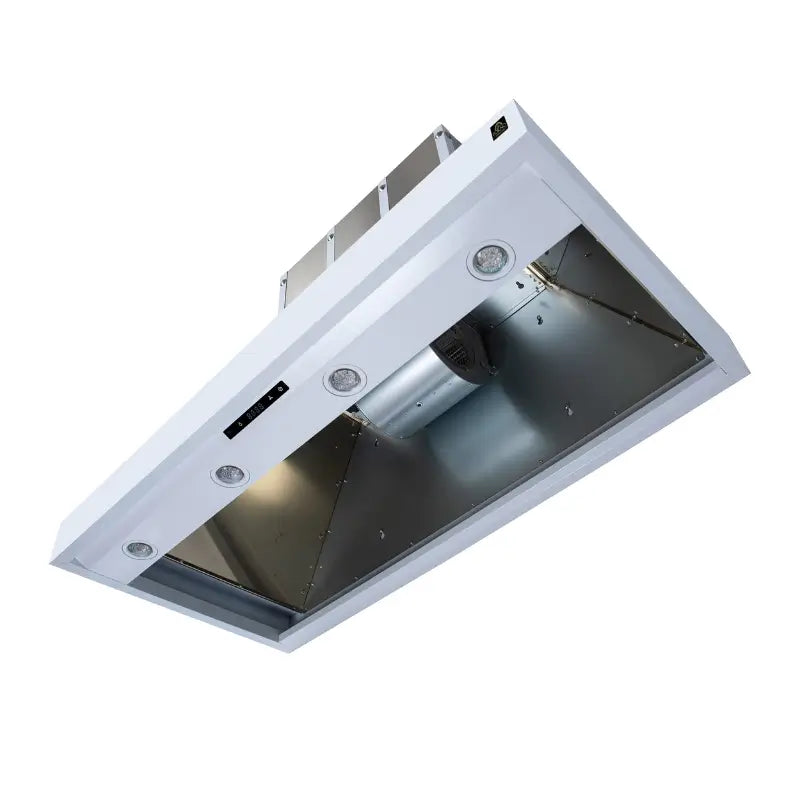

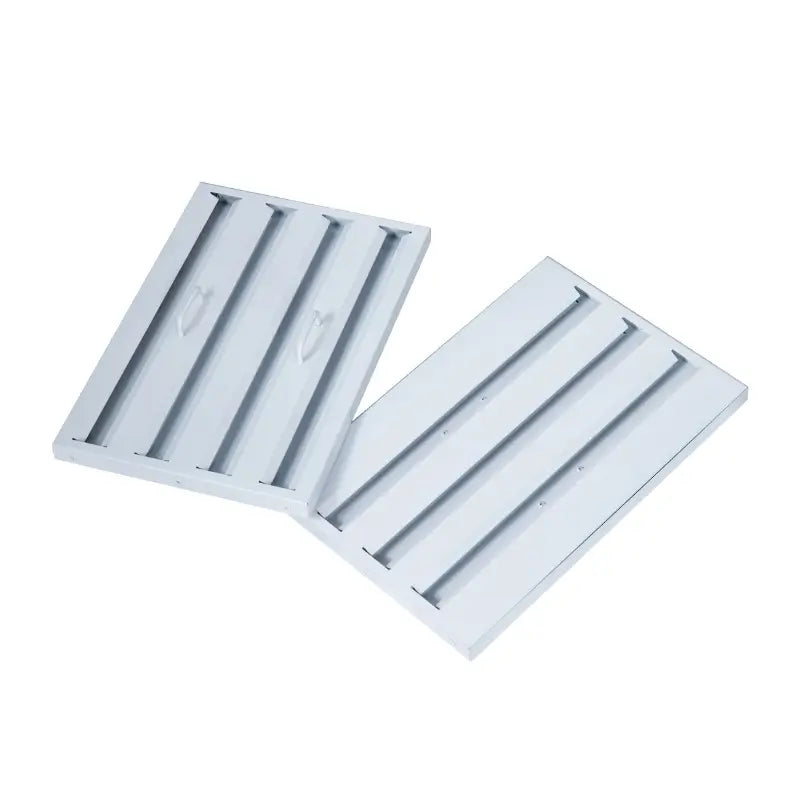

Dishwasher-Safe Stainless Steel Baffle Filters
The FRHWM5099-48CPWHT uses removable stainless steel baffle filters to capture cooking residue before it reaches the blower and ductwork.
Filter Features
- Baffle filter design
- Stainless steel construction
- Removable grease filters
- Dishwasher safe
- No charcoal filters specified
Cleaning Guidance
FORNO states that the filters should be kept free from accumulated cooking residue and recommends cleaning them after approximately 30 hours of use.

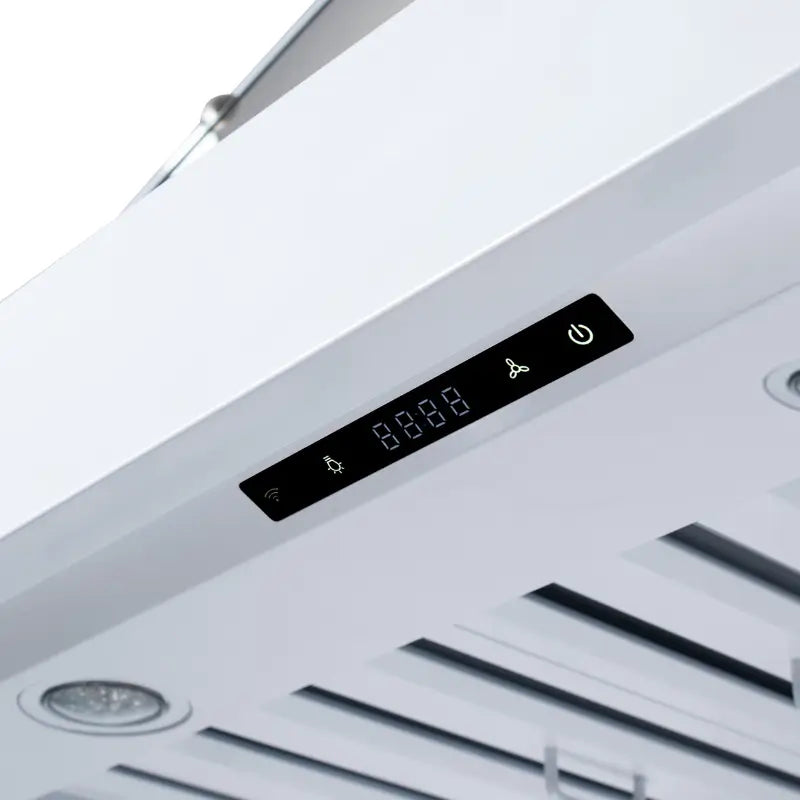

Touch Controls, Clock, Remote & Delayed Shutdown
Fan Control
Three operating levels are available, identified in the manual as F1, F2, and F3.
Lighting Control
The touch interface controls the integrated cooktop lighting.
Digital Clock
The touch-control interface includes adjustable hour and minute settings.
Remote Operation
Remote-control functionality is included.
LED Display
The front control system includes an LED display.
Delayed Shutdown
The operating instructions document a delayed shutdown function with a default three-minute delay while the fan is operating.

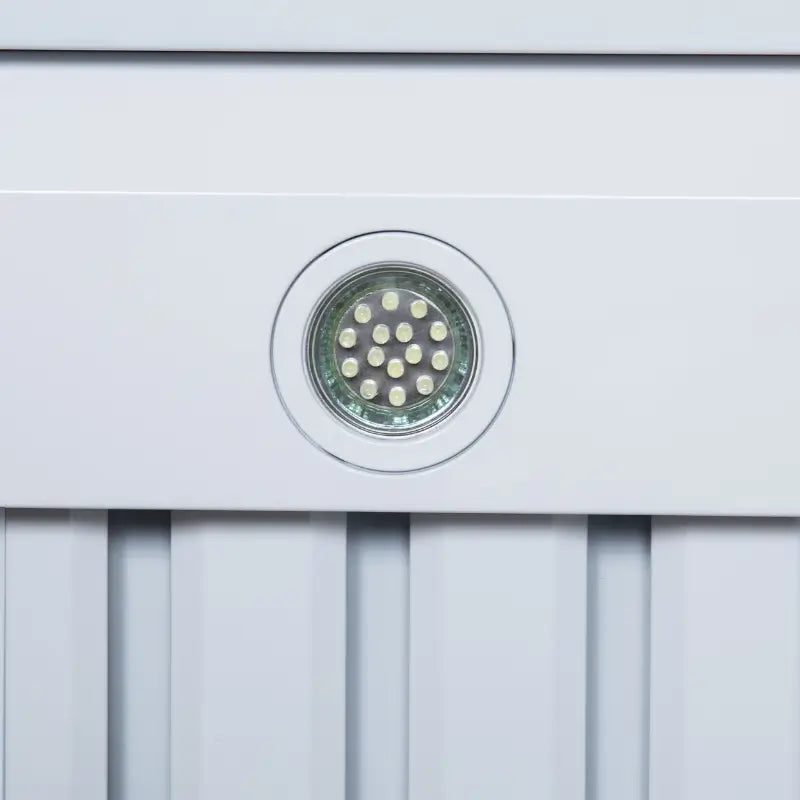

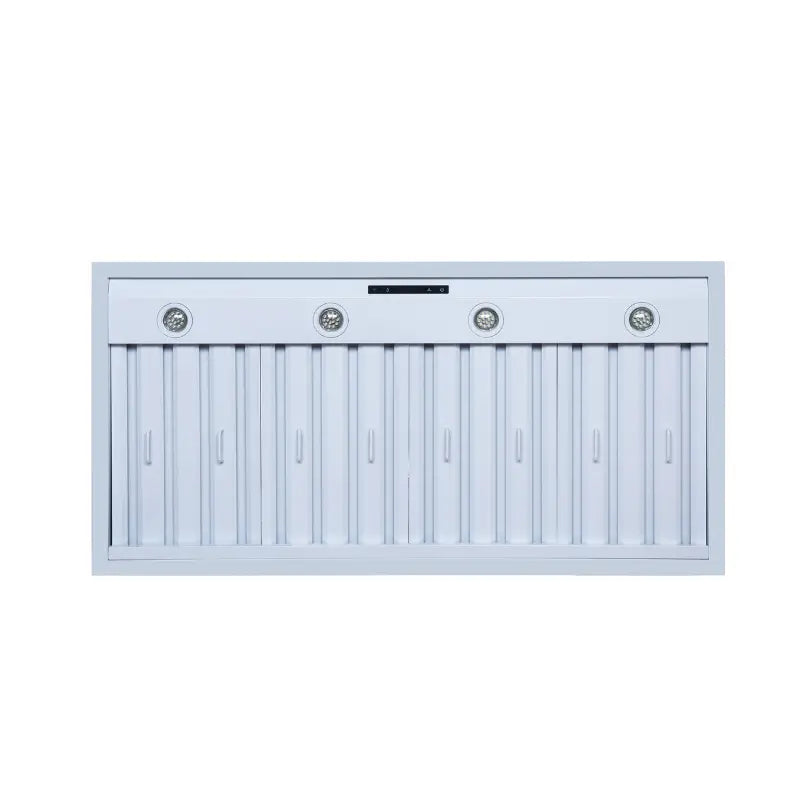

GU10 LED Lighting
Integrated GU10 LED lighting helps illuminate the cooking surface, and the manufacturer documentation provides guidance for GU10 bulb replacement.
| Bulb Type | LED GU10 |
|---|---|
| Bulb Wattage | 1 W |
| Number of Light Settings | 1 |
| Heating Lamps | No |
| Heating Lamp Wattage | 0 W |

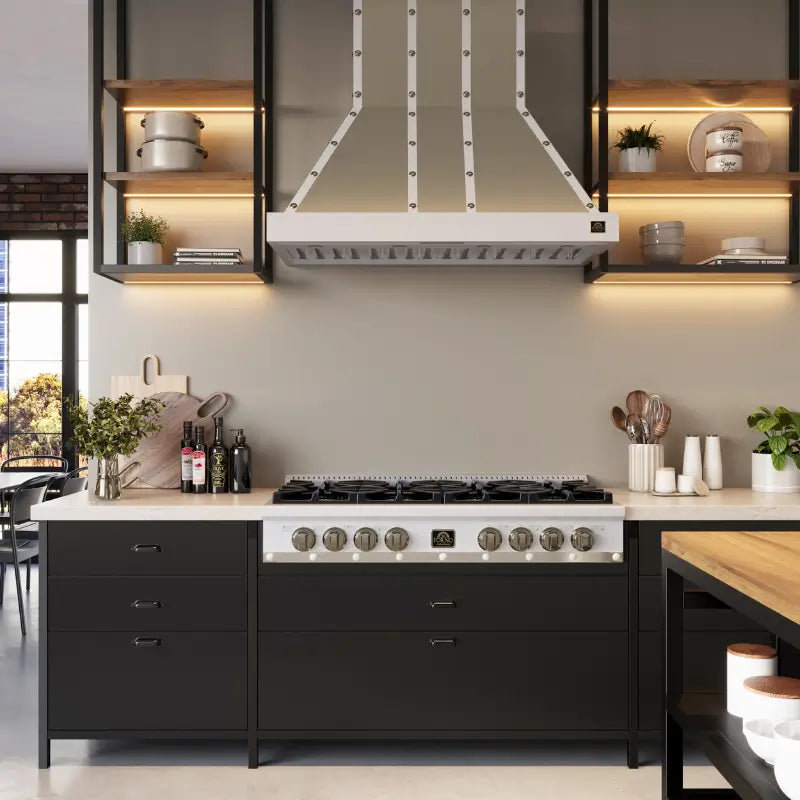

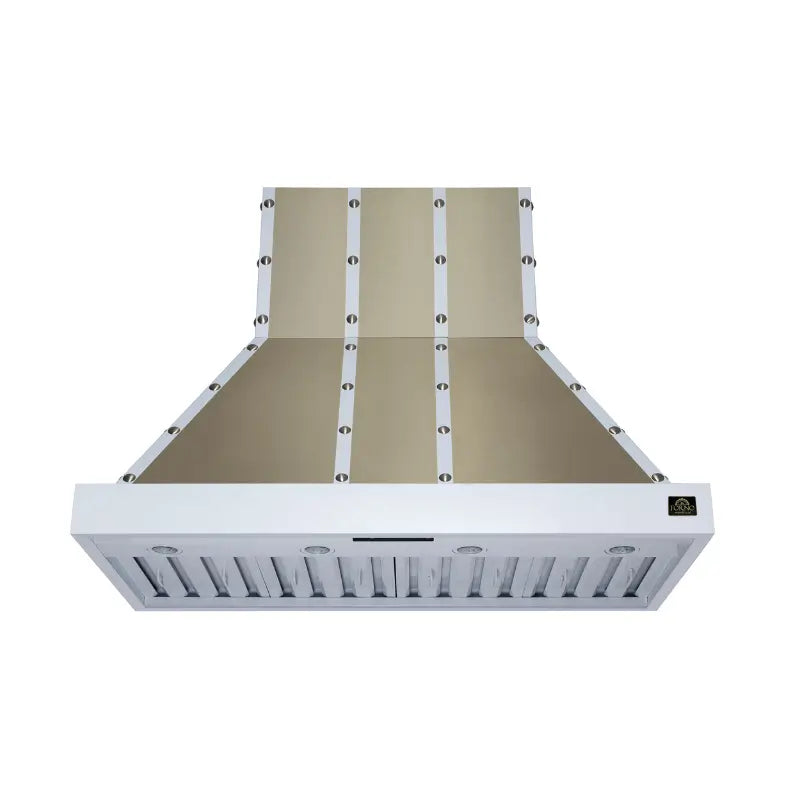

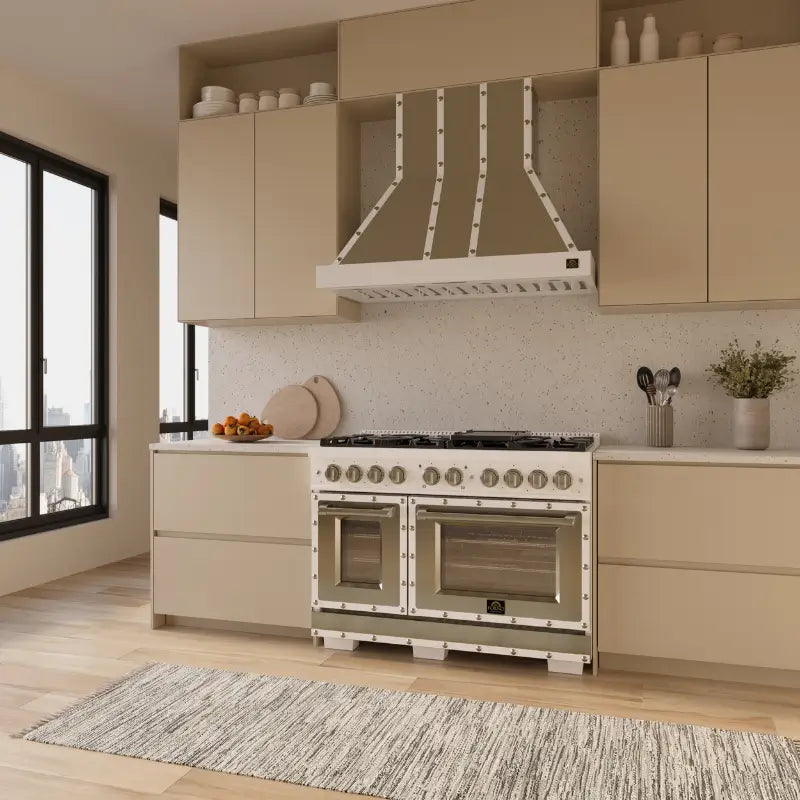

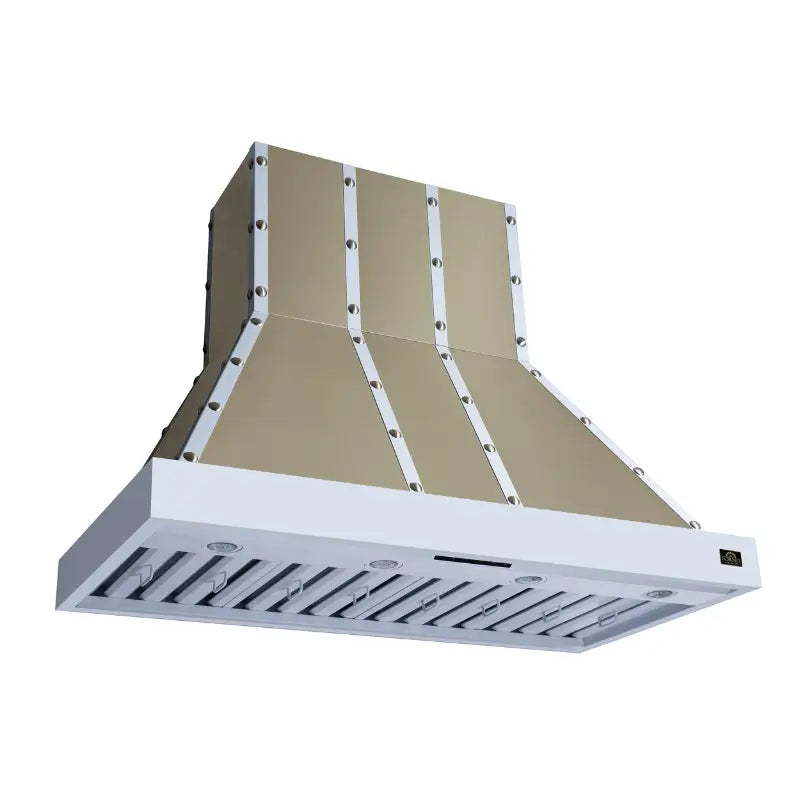

White Finish with Copper Rivet Detailing
The FRHWM5099-48CPWHT is designed as a visible architectural feature rather than a concealed ventilation appliance.
Exterior Styling
- White exterior finish
- Decorative Copper Rivet trim
- Rectangular wall-mounted profile
- Stainless steel primary construction
- Decorative chimney included
Convenience Details
- Fingerprint-resistant finish
- Touch controls
- LED display
- Remote operation
- Integrated clock
- No heating lamps
Who Is the FORNO FRHWM5099-48CPWHT Best For?
48-Inch Wall-Mount Installations
This hood is suited to larger residential kitchens planned around a 48-inch wall-mounted ventilation appliance.
Externally Ducted Kitchens
The strongest fit is an installation where a 6-inch round metal duct can be routed from the hood to the exterior.
Moderate Residential Airflow Requirements
The hood provides 225 to 304 CFM. Buyers who require substantially higher airflow should choose another ventilation system.
Reusable Filter Buyers
Dishwasher-safe stainless steel baffle filters simplify regular grease-filter maintenance.
White & Warm-Metal Kitchen Designs
The fingerprint-resistant white finish and Copper Rivet detailing make this model especially relevant to kitchens using white appliances or warm metallic accents.
Choose Another Range Hood If
- You require ductless or recirculating ventilation.
- You cannot provide an exterior exhaust path.
- Your cooking appliance requires substantially more than 304 CFM.
- You cannot accommodate a 48-inch wall-mounted hood.
- You require a reversible blower.
- You require charcoal filtration.
- You need commercial-use warranty coverage.
What's Included with the FRHWM5099-48CPWHT?
Main Hood Components
- 48-inch range hood body
- Decorative chimney / cover
- Metal blower assembly
- Air outlet
- Stainless steel baffle filters
- Oil collector / cup
Controls & Electrical Components
- GU10 lighting system
- Power cord
- Remote-control functionality
- Touch-control system
- LED display
Complete FORNO FRHWM5099-48CPWHT Specifications
General
| Brand | FORNO |
|---|---|
| Model Number | FRHWM5099-48CPWHT |
| UPC | 686136950299 |
| Series | Valente |
| Collection | Ambassador |
| Product Type | Range Hood |
| Installation Type | Wall Mounted |
| Market | USA / Canada |
| Application | Residential |
| Color / Finish | White & Copper |
| Hardware Finish | White with Copper Rivet Trim |
| Primary Material | Stainless Steel |
| Range Hood Shape | Rectangle |
| Fingerprint Resistant | Yes |
| Commercial Warranty | No |
Ventilation
| Vent Style | External |
|---|---|
| Vent Type | Ducted |
| Maximum CFM | 304 |
| Minimum CFM | 225 |
| Number of Speeds | 3 |
| CFM Speed 1 | 225 |
| CFM Speed 2 | 268 |
| CFM Speed 3 | 304 |
| Duct Type | 6-in. Round |
| Air Discharge Direction | Vertically Upward |
| Exhaust Vent Location | Top |
| Number of Exhaust Vents | 1 |
| Number of Blowers | 1 |
| Blower Material | Metal |
| Damper | Yes |
| Damper Type | 6-in. Round |
| Reversible Blower | No |
| Charcoal Filters | No |
Motor & Noise
| Specification | Speed 1 | Speed 2 | Speed 3 |
|---|---|---|---|
| CFM | 225 | 268 | 304 |
| Noise | 55 dB | 60 dB | 64 dB |
| Sones | 2.8 | 4.1 | 5.3 |
| RPM | 803 | 971 | 1,173 |
Motor Power: 165 W
Controls & Convenience
| Control Type | Touch |
|---|---|
| Control Location | Front Bottom Panel |
| Display Type | LED |
| Remote Control | Yes |
| Clock | Yes |
| Speed Control | 3 |
| Clean Filter Alert | No |
| Heat Sensors | No |
| Power-Off Function | No |
The supplied raw technical data lists "Power Off Function" as No, while the manufacturer's operating manual separately documents normal power control and a delayed shutdown function.
Lighting
| Bulb Type | LED GU10 |
|---|---|
| Bulb Wattage | 1 W |
| Number of Light Settings | 1 |
| Heating Lamps | No |
| Heating Lamp Wattage | 0 W |
The supplied raw technical feed lists two lights, while the manufacturer's 48-inch model parts illustration and circuit diagram show four GU10 lamp positions. This page does not present a definitive lamp count because the supplied sources conflict.
Filters
| Filter Type | Baffle |
|---|---|
| Filter Material | Stainless Steel |
| Removable Grease Filter | Yes |
| Dishwasher-Safe Filters | Yes |
| Charcoal Filters | No |
Dimensions & Weight
| Overall Width | 48 in. |
|---|---|
| Overall Depth | 24 in. |
| Overall Height | 37.7 in. |
| Product Weight | 71.9 lb. |
| Carton Dimensions | 52.5 × 29.7 × 27 in. |
| Shipping Weight | 100.1 lb. |
| Recommended Mounting Height | 24–32 in. above cooking surface |
Electrical
| Installation Manual Requirement | 120V / 60Hz / 15A |
|---|---|
| Specification Sheet Rating | 110V / 60Hz / 15A |
| Receptacle Type | NEMA 5-15P |
| Power Cord Length | 3 ft. |
| Power Cord Location | Top |
| Motor Power | 165 W |
Certification
| Safety Listing | cETLus |
|---|---|
| Certification / File Number | 4002621 |
| UL Standard | UL STD. 507 |
| CSA Standard | CSA STD. C22.2 No. 113 |
| ENERGY STAR Certified | No |
| ADA Compliant | No |
| CEE Tier Qualified | No |
| TAA Compliant | No |
| ISTA 6A | Yes |
2-Year Limited Parts & Labor Warranty
The FRHWM5099-48CPWHT is backed by a 2-year limited residential warranty covering parts and labor, subject to FORNO's complete warranty terms and exclusions.
| Warranty Type | Limited |
|---|---|
| Warranty Length | 2 Years |
| Parts | 2 Years |
| Labor | 2 Years |
| Commercial Warranty | No |
FORNO FRHWM5099-48CPWHT Manuals & Specifications
Review the manufacturer documentation before installation for detailed dimensions, venting requirements, electrical information, operating instructions, cleaning guidance, troubleshooting, and warranty terms.
Frequently Asked Questions About the FORNO FRHWM5099-48CPWHT
Is the FORNO FRHWM5099-48CPWHT a ductless range hood?
No. The FRHWM5099-48CPWHT is designed for external ducted ventilation through a 6-inch round duct. The supplied specifications do not list charcoal filters.
How much airflow does the FRHWM5099-48CPWHT provide?
The three fan settings provide 225, 268, and 304 CFM, with 304 CFM as the maximum rated airflow.
How high should the FRHWM5099-48CPWHT be installed above the cooktop?
FORNO's supplied installation guidance recommends 24 to 32 inches between the stovetop and bottom of the hood.
What size duct does the FRHWM5099-48CPWHT require?
It uses a 6-inch round metal duct with vertically upward discharge from the top of the hood.
Can the FRHWM5099-48CPWHT be installed without exterior ventilation?
No. This model is specified for external ducted ventilation and does not list charcoal filters for recirculating operation.
Are the FRHWM5099-48CPWHT filters dishwasher safe?
Yes. The removable stainless steel baffle filters are identified as dishwasher safe.
How often should the filters be cleaned?
FORNO's supplied maintenance guidance recommends cleaning the filters after approximately 30 hours of use.
Does the FRHWM5099-48CPWHT include a remote control?
Yes. Remote-control functionality is provided in addition to the front-mounted touch controls.
What are the dimensions of the FRHWM5099-48CPWHT?
The hood measures approximately 48 in. W × 24 in. D × 37.7 in. H and weighs 71.9 lb.
How loud is the FRHWM5099-48CPWHT?
Manufacturer data lists 55 dB at Speed 1, 60 dB at Speed 2, and 64 dB at Speed 3.
What electrical connection does the FRHWM5099-48CPWHT require?
The supplied installation manual specifies 120V / 60Hz / 15A, while the separate manufacturer specification sheet lists 110V / 60Hz / 15A. Installation planning should follow the current manufacturer instructions.
Does the FRHWM5099-48CPWHT use charcoal filters?
No. The supplied specifications list charcoal filters as unavailable.
Can the FRHWM5099-48CPWHT be used in a commercial kitchen?
The supplied product information identifies the model for residential use, and commercial warranty coverage is listed as No.
What warranty comes with the FRHWM5099-48CPWHT?
FORNO provides a 2-year limited residential warranty covering parts and labor, subject to the manufacturer's complete terms and exclusions.
Expert Buying Guidance
The FORNO Valente FRHWM5099-48CPWHT is best suited to buyers who want the physical scale and decorative impact of a 48-inch wall hood without requiring a high-output commercial ventilation system.
Its strongest practical combination is the three-speed 225–304 CFM ventilation system, 6-inch round external duct connection, reusable stainless steel baffle filters, touch controls, remote operation, digital clock, and GU10 LED lighting.
The fingerprint-resistant white finish and Copper Rivet detailing also make this model particularly relevant to kitchens using white appliances and warm metallic accents.
The most important purchasing check is ventilation compatibility. Confirm that 304 CFM is appropriate for the planned cooking appliance, then verify the 48-inch mounting area, external duct route, 6-inch duct size, recommended mounting height, electrical connection, and wall structure before ordering.
By buying from us you qualify for the full manufacturer warranty, save time and money!
We ship directly to your door from the manufacturer's warehouse.
