FORNO Rivestito Series
FORNO Rivestito FFRBI1794-42 42-Inch Panel Ready Bottom Freezer Refrigerator, 16.9 cu. ft.
The FORNO Rivestito FFRBI1794-42 is a 42-inch panel-ready bottom freezer refrigerator system designed for integrated kitchens where refrigeration needs to coordinate with custom cabinetry. With 16.9 cu. ft. of total storage capacity, a 22-inch counter-depth design, custom-panel compatibility, and 3D door panel adjustment, the Rivestito combines concealed styling with practical refrigerator and freezer organization.
Inside, the FFRBI1794-42 provides dedicated fresh-food and frozen-food storage supported by digital touch controls with independent temperature management. Fast Cool and Fast Freeze functions help rapidly restore temperatures when needed, while Total No-Frost operation helps prevent ice buildup and eliminates routine manual freezer defrosting.
For everyday organization, the refrigerator incorporates dual wire wine racks, spill-proof shelving, humidity-controlled storage, four refrigerator drawers, six door bins, and six freezer drawers. An automatic ice maker completes the refrigeration system.
FORNO FFRBI1794-42: Quick Decision Summary
Choose the FORNO Rivestito FFRBI1794-42 when the project calls for a 42-inch integrated refrigerator that visually coordinates with custom cabinetry rather than presenting a conventional exposed appliance finish. The system combines panel-ready construction, counter-depth integration, refrigerator and bottom-freezer storage, automatic ice production, wine storage, and independent temperature management.
| Best For | Luxury kitchens, custom cabinetry projects, built-in residential installations, and homeowners who want refrigeration to visually integrate with the surrounding millwork. |
|---|---|
| Product Type | 42-inch panel-ready built-in bottom freezer refrigerator with four-door / double-bottom-freezer configuration. |
| Capacity | 16.9 cu. ft. total: 12.3 cu. ft. refrigerator and 4.6 cu. ft. freezer. |
| Key Advantage | Integrated panel-ready design with 3D door-panel adjustment, organized freezer drawers, automatic ice maker, dedicated wine racks, and independent refrigerator/freezer temperature control. |
| Installation | Built-in / integrated installation requiring coordinated cabinetry, decorative panels, ventilation, two electrical connections, and a household water connection. |
Things to Know Before Ordering
- This is a panel-ready refrigerator intended for installation with compatible decorative cabinetry panels.
- FORNO specifies a maximum wood-panel thickness of 19 mm / 3/4 inch.
- Do not determine the cabinet opening from the nominal 42-inch width alone.
- Required cabinet ventilation must remain unobstructed.
- The documentation specifies 115 V, 60 Hz, and 15 A for each side with two NEMA 5-15P receptacles.
- A household water connection is required for the automatic ice maker.
- The manufacturer's official cutout documentation should be reviewed before cabinetry or panels are fabricated.
Quick Product Facts
| Brand | FORNO |
|---|---|
| Collection | Alta Qualita |
| Series | Rivestito |
| Model | FFRBI1794-42 |
| UPC | 686136917711 |
| Product Type | Bottom Freezer Refrigerator |
| Configuration | 4 Doors / Double Bottom Freezer |
| Width Class | 42 Inch |
| Installation | Built-In / Integrated |
| Exterior | Panel Ready |
| Total Capacity | 16.9 cu. ft. |
| Refrigerator Capacity | 12.3 cu. ft. |
| Freezer Capacity | 4.6 cu. ft. |
| Ice Maker | Yes |
| Defrost Type | Automatic / Frost Free |
| Compressor | Inverter Compressor |
| Controls | Touch |
| Noise Level | 42 dB |
| Market | USA & Canada |
Key Features of the FORNO Rivestito FFRBI1794-42

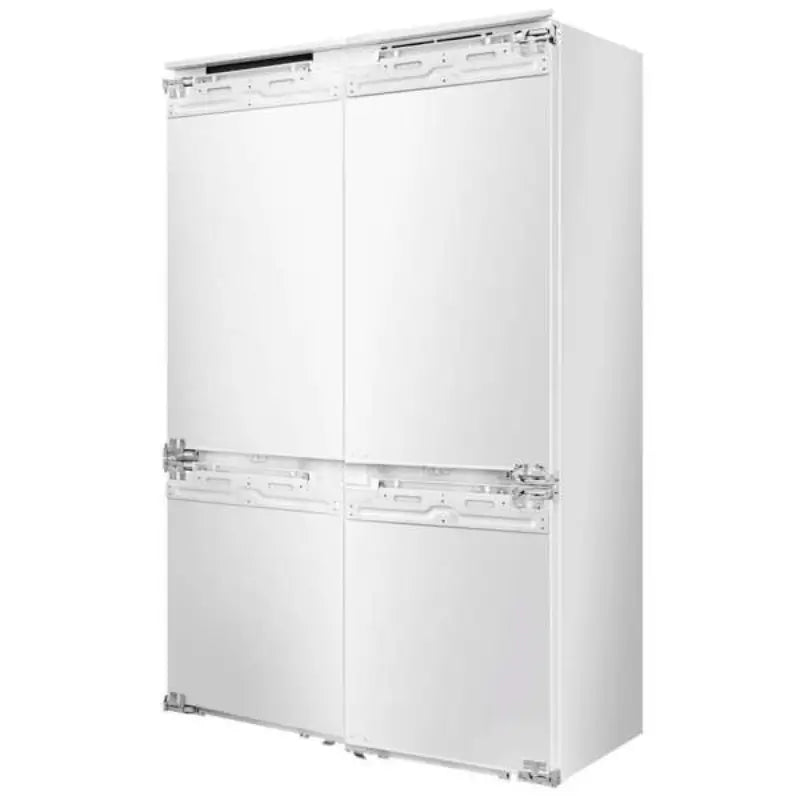

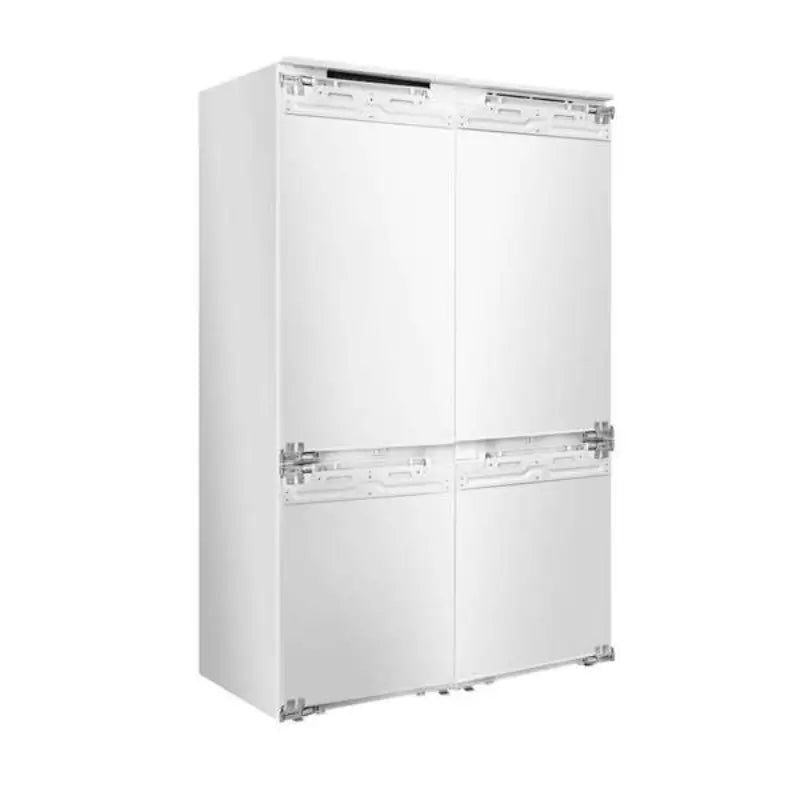

Panel-Ready Design for an Integrated Kitchen
The defining characteristic of the FORNO Rivestito FFRBI1794-42 is its panel-ready exterior. Rather than relying on a conventional exposed appliance finish, the refrigerator is designed to accept decorative panels that coordinate with surrounding cabinetry.
This allows the refrigeration system to become part of the overall kitchen design and is particularly useful in premium installations where appliance integration and clean cabinetry lines are design priorities.

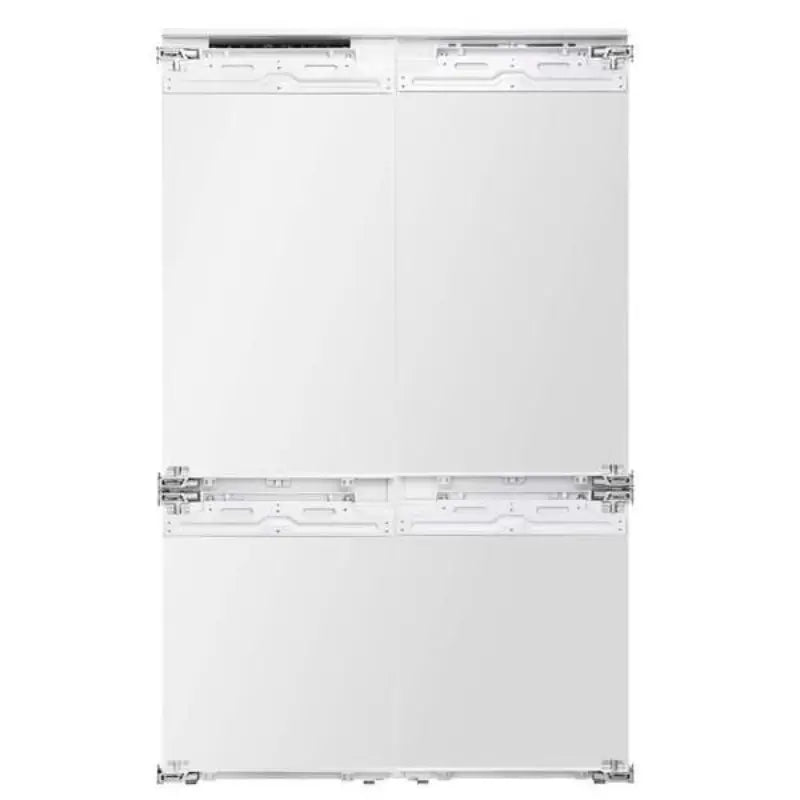

3D Door Panel Adjustment
The 3D door panel adjustment system gives installers additional control over decorative-panel alignment. Panel positioning can be adjusted vertically, horizontally, and front-to-back to support more precise coordination with surrounding cabinetry.
Counter-Depth Built-In Configuration
The Rivestito uses a 22-inch counter-depth design intended to support an integrated installation with compatible cabinetry. This configuration is particularly useful where excessive refrigerator projection would interfere with the intended cabinetry lines.
Because the final appearance depends on cabinetry dimensions, decorative panels, clearances, and installation conditions, FORNO's cutout documentation should be reviewed before the surrounding cabinets are finalized.

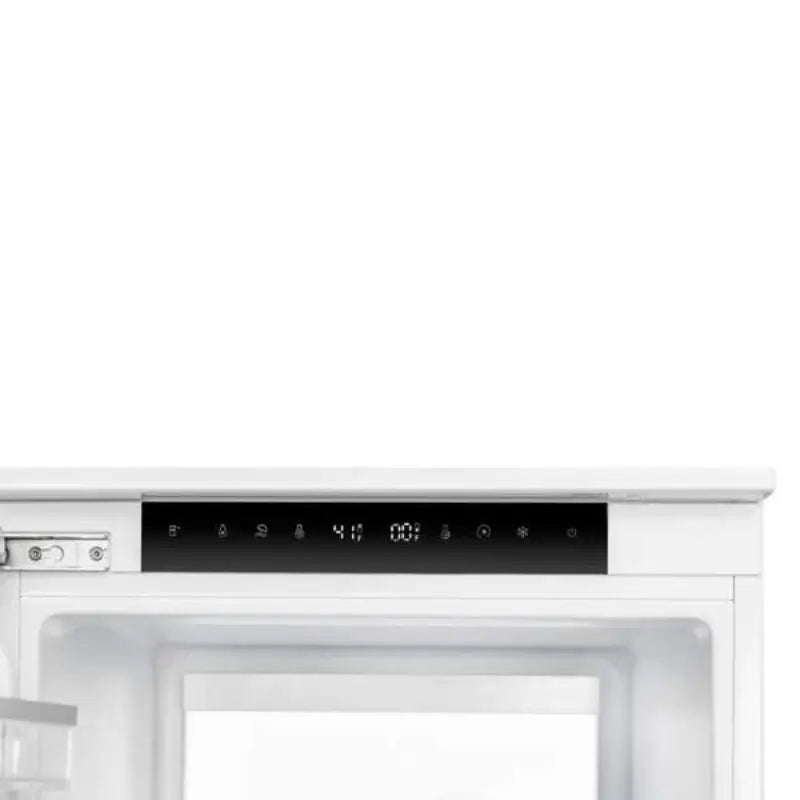

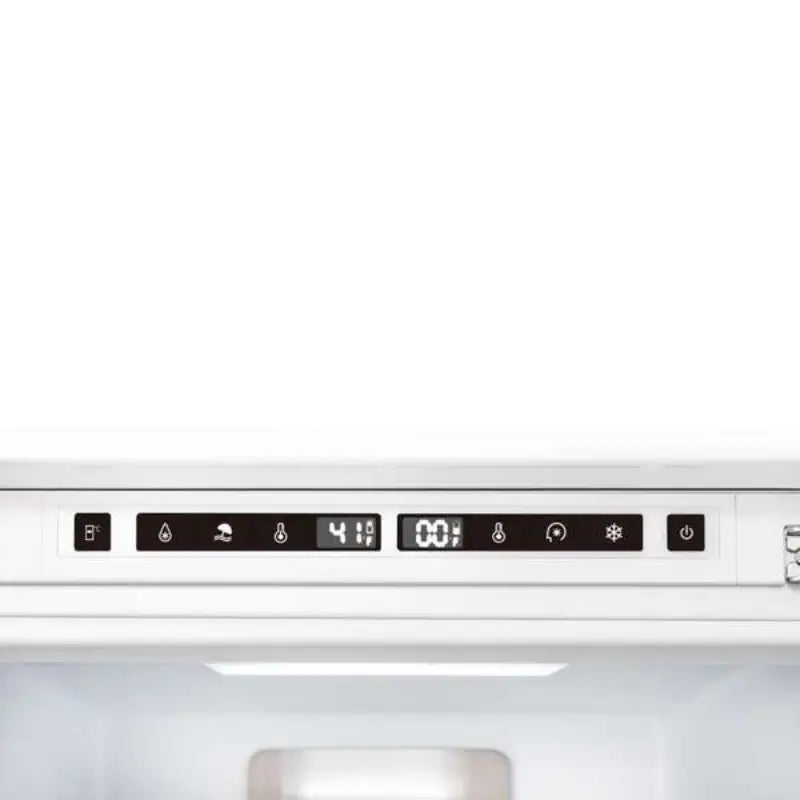

Digital Touch Temperature Controls
The FFRBI1794-42 uses digital touch controls that allow temperature management across the refrigerator and freezer compartments. Independent temperature control allows fresh-food and frozen-food storage to operate within their respective temperature ranges.
Fast Cool and Fast Freeze
Fast Cool and Fast Freeze provide rapid temperature adjustment when additional cooling or freezing performance is needed. Fast Cool operates the refrigerator at a lower temperature setting for rapid cooling, while Fast Freeze lowers the freezer temperature for accelerated freezing.
According to the manufacturer manual, both functions automatically end after 24 hours.
Total No-Frost Operation
The FFRBI1794-42 uses an automatic frost-free / Total No-Frost system designed to prevent heavy ice buildup in the freezer. Under normal operation, routine manual freezer defrosting is not required.

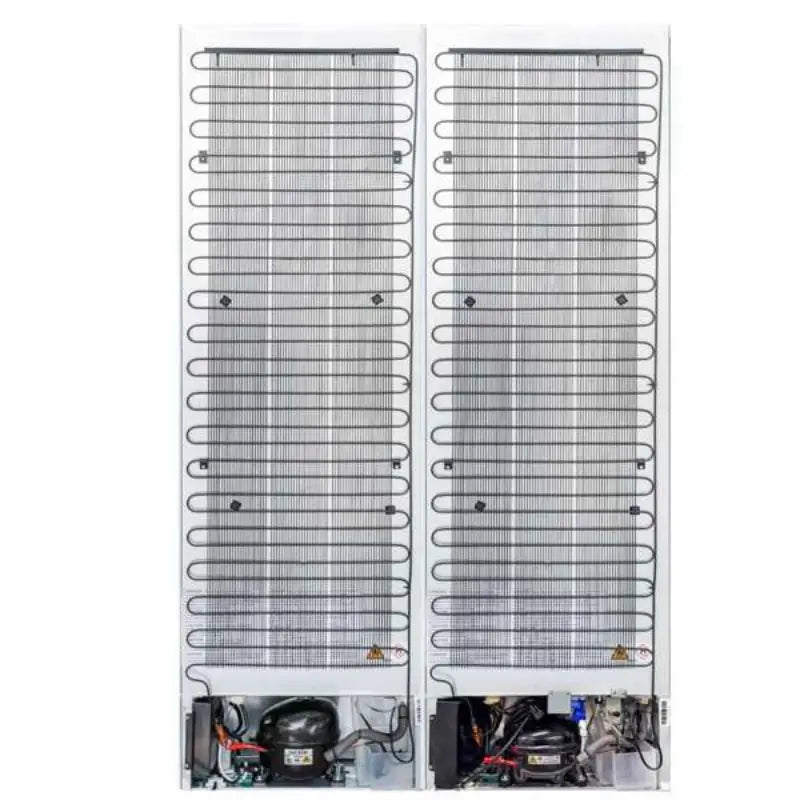

Inverter Compressor
An inverter compressor supports the refrigeration system and works together with the appliance's electronic controls, separate temperature zones, and rapid-cooling functions.

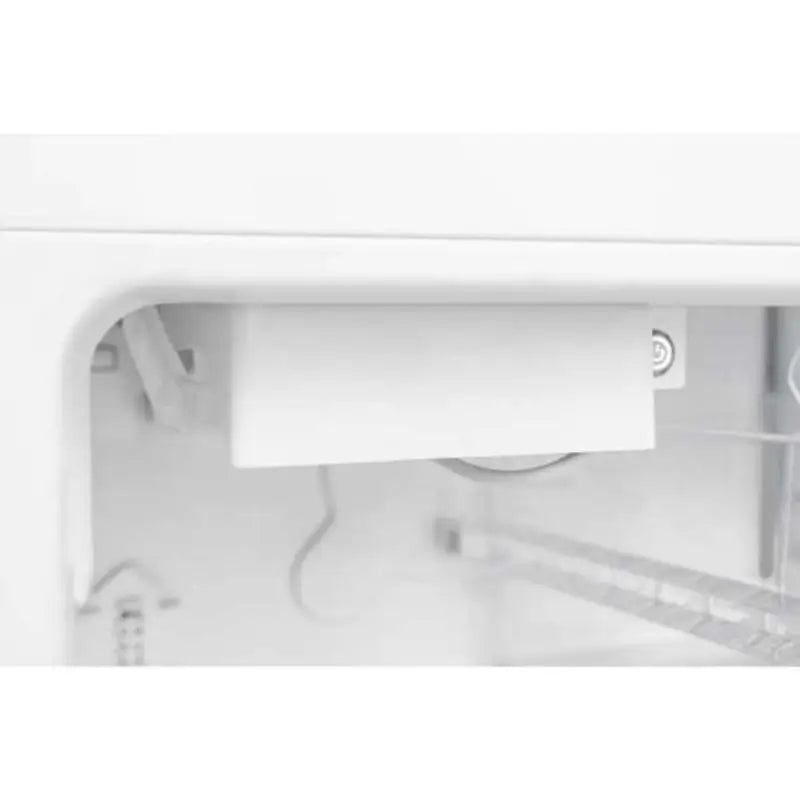

Automatic Ice Maker
The FORNO FFRBI1794-42 includes a built-in automatic ice maker. Because automatic ice production requires a water supply, the household water connection should be incorporated into the kitchen utility plan before installation.
42 dB Published Sound Rating
FORNO's specification sheet lists a 42 dB sound rating for the FFRBI1794-42. Published sound information can be useful when planning integrated refrigeration in kitchens that connect directly to dining or living spaces.
Who Is the FORNO FFRBI1794-42 Best For?
Luxury and Custom Kitchen Projects
The FFRBI1794-42 is designed for kitchens where refrigeration is planned together with the surrounding cabinetry rather than treated as a freestanding appliance added after construction.
Homeowners Who Want Panel-Ready Refrigeration
Buyers who prefer an integrated appearance can use compatible decorative panels to visually coordinate the refrigerator with the surrounding cabinetry.
Buyers Who Prefer Bottom-Freezer Organization
The refrigerator combines fresh-food storage above with six freezer drawers below, making it useful for buyers who prefer divided frozen-food storage rather than one large freezer cavity.
Households Wanting Automatic Ice Production
The built-in automatic ice maker provides ice production without requiring a separate freestanding ice appliance, provided that the necessary household water connection is available.
Buyers Who Want Dedicated Wine Storage
Two wire wine racks provide dedicated horizontal bottle storage inside the refrigerator compartment.
When This Refrigerator May Not Be the Right Choice
- You specifically want a conventional freestanding refrigerator.
- You do not intend to install compatible decorative cabinetry panels.
- Your cabinetry cannot accommodate FORNO's documented cutout and panel requirements.
- Your installation cannot provide the required cabinet ventilation path.
- The project cannot provide the required electrical connections.
- A compatible water connection cannot be provided for the automatic ice maker.
- You want an appliance that can be installed without coordinating cabinetry, utilities, panels, and ventilation.

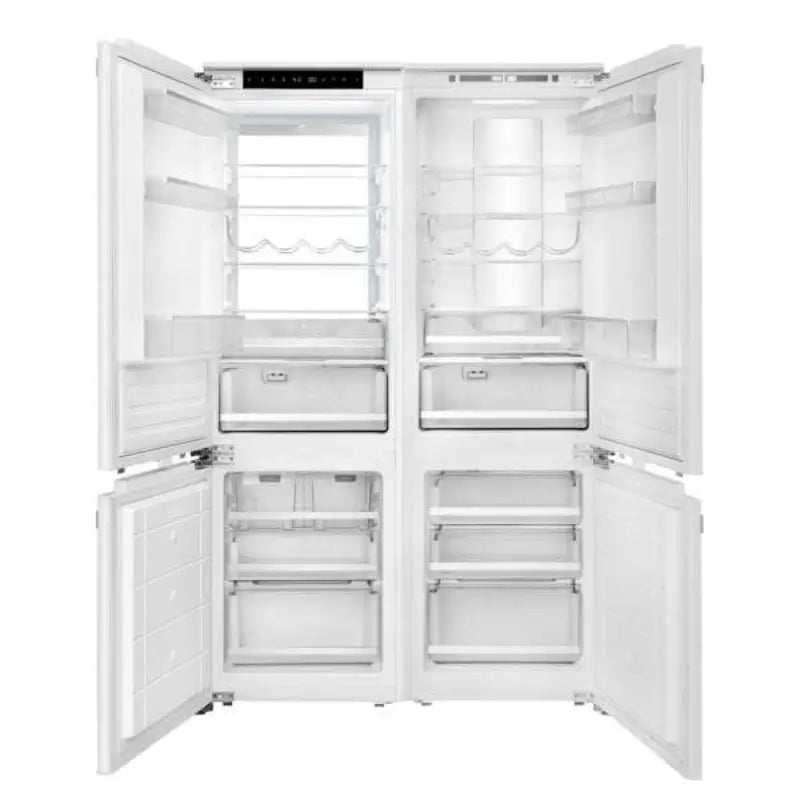

16.9 cu. ft. of Organized Refrigerator and Freezer Storage
The FFRBI1794-42 provides 16.9 cu. ft. of combined refrigerated and frozen-food storage.
| Storage Area | Capacity |
|---|---|
| Refrigerator | 12.3 cu. ft. |
| Freezer | 4.6 cu. ft. |
| Total | 16.9 cu. ft. |
8 Refrigerator Shelves
The manufacturer specification sheet lists 8 refrigerator shelves for organizing fresh foods and beverages.
Spill-Proof Shelving
Spill-proof shelving supports everyday food storage while helping contain accidental spills.

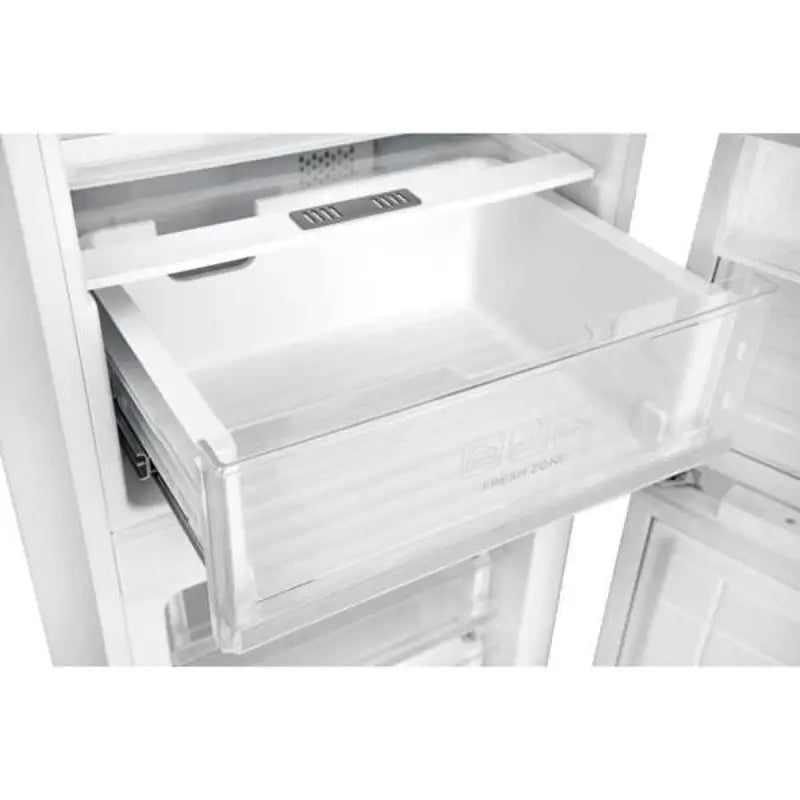

Humidity-Controlled Storage
Humidity-controlled storage provides dedicated space for produce and foods that benefit from controlled humidity.

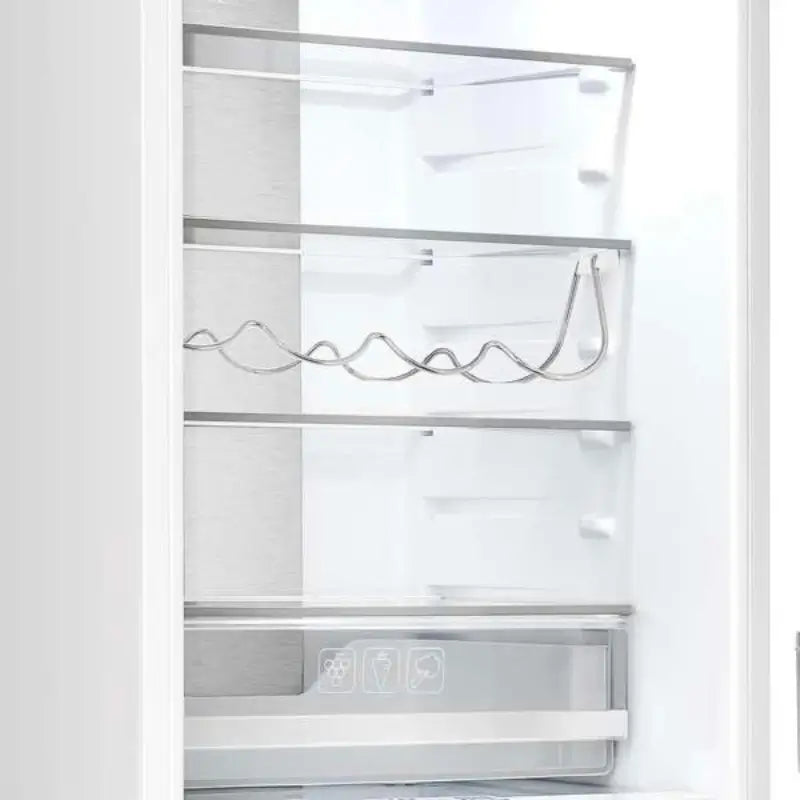

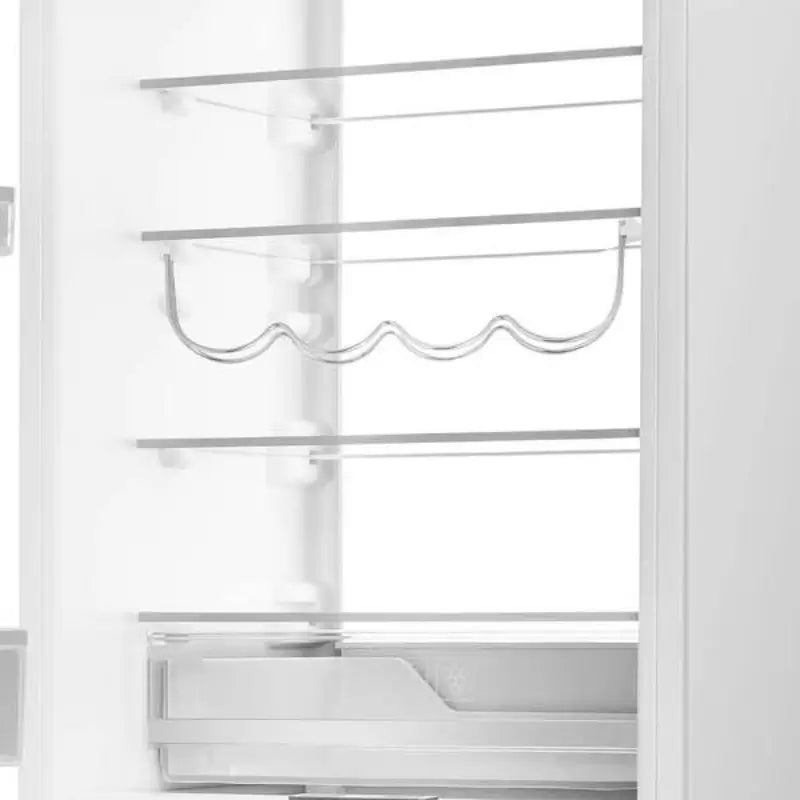

Dual Wine Racks
Two dedicated wire wine racks provide horizontal bottle storage within the refrigerator compartment.
4 Refrigerator Drawers
The specification sheet lists 4 refrigerator drawers for additional organized fresh-food storage.
6 Door Bins
The refrigerator includes 6 door bins according to the manufacturer specification sheet.
Six-Drawer Bottom Freezer
Instead of relying on a single large freezer cavity, the FFRBI1794-42 uses a six-drawer freezer configuration. The drawers divide the 4.6 cu. ft. freezer capacity into accessible storage areas for separating different categories of frozen foods.
Cooling Performance and Operating Modes
Temperature Ranges
| Cooling Zone | Temperature Range |
|---|---|
| Refrigerator | 34°F–43°F |
| Freezer | -9°F–5°F |
Additional Operating Modes
Sabbath Mode
The appliance includes a Sabbath Mode that disables lighting functions according to the operating instructions.
Vacation Mode
Vacation Mode adjusts appliance operation for periods when normal fresh-food refrigeration requirements are reduced.
Eco Mode
Eco Mode uses predetermined refrigerator, freezer, and adjustable-zone settings identified in the operating manual.
Installation Requirements and Planning Considerations
Built-In Panel-Ready Installation
The FFRBI1794-42 should be treated as part of the kitchen cabinetry and utility plan rather than simply as an appliance placed into an opening after construction.
Before ordering or installation, verify the documented cabinet opening, decorative-panel dimensions and thickness, required ventilation, electrical connections, water supply, operating clearances, leveling, panel alignment, and future service access.
Cabinet Cutout and Decorative Panel Requirements
Because the FFRBI1794-42 is panel ready and designed for built-in installation, its cabinet cutout and decorative panels must be incorporated into the kitchen cabinetry plan.
FORNO's cutout documentation specifies a maximum wooden panel thickness of 19 mm / 3/4 inch and provides dedicated panel dimensions for the upper refrigerator doors and lower freezer doors.
Electrical Requirements
| Voltage | 115 V |
|---|---|
| Frequency | 60 Hz |
| Amperage | 15 A each side |
| Receptacle Type | NEMA 5-15P × 2 |
| Power Cord Length | 5.9 ft. × 2 |
Water and Ice Maker Requirements
The automatic ice maker requires a household water connection. The installation manual instructs installers to connect the water pipe at the rear of the cabinet to the home's water supply before completing installation.
Water-supply placement should be coordinated with the cabinet opening, appliance location, and installation access before the refrigerator is installed.
Cabinet Ventilation Requirements
Proper ventilation is a critical part of the integrated installation. FORNO's installation manual explains that heat removed from the refrigerated compartments must be dissipated and warns that incorrect ventilation can contribute to premature compressor failure, excessive power consumption, or system failure.
The installation diagrams show a lower ventilation opening in the plinth and an unobstructed air path above the refrigerator. The manual also identifies a typical rear ventilation channel depth of approximately 40–50 mm.
| Ventilation Area | Documented Planning Dimension |
|---|---|
| Upper Vent Opening | Approx. 500 × 30 mm |
| Rear Condenser Airflow Area | Approx. 500 × 35 mm |
Installation Checklist
- Manufacturer-specified cabinet opening
- Correct decorative-panel dimensions and thickness
- Required cabinetry ventilation
- Two appropriate electrical connections
- Compatible household water supply for the automatic ice maker
- Required installation and operating clearances
- Proper leveling of both refrigerator sections
- Correct door and decorative-panel alignment
- Access for installation and future servicing
Planning Recommendation
For new construction and major remodeling projects, provide the product specification sheet, cutout drawing, and installation manual to the cabinet designer, contractor, or installer before the surrounding cabinetry is finalized.
Product Dimensions and Weight
The FFRBI1794-42 system is made up of left-side and right-side refrigeration units. The manufacturer specification sheet identifies the following individual dimensions.
| Component | Dimensions (W × D × H) |
|---|---|
| Left Side | 21.25" × 21.62" × 69.93" |
| Right Side | 21.25" × 21.62" × 69.64" |
| Combined Product Weight | 255 lbs. |
|---|---|
| Carton Dimensions — Box 1 | 22.56" × 22.96" × 72.43" |
| Carton Dimensions — Box 2 | 22.56" × 22.96" × 72.43" |
Complete Product Specifications
Product Overview
| Brand | FORNO |
|---|---|
| Collection | Alta Qualita |
| Series | Rivestito |
| Model Number | FFRBI1794-42 |
| UPC | 686136917711 |
| Model Type | Double Bottom Freezer |
| Configuration | 4 Doors |
| Exterior | Panel Ready |
Capacity and Storage
| Total Capacity | 16.9 cu. ft. |
|---|---|
| Refrigerator Capacity | 12.3 cu. ft. |
| Freezer Capacity | 4.6 cu. ft. |
| Refrigerator Shelves | 8 |
| Refrigerator Drawers | 4 |
| Freezer Drawers | 6 |
| Refrigerator Door Bins | 6 |
| Freezer Door Bins | None |
Cooling and Controls
| Compressor Type | Inverter Compressor |
|---|---|
| Defrost Type | Automatic / Frost Free |
| Special Modes | Sabbath, Vacation, Eco |
| Ice Maker | Yes |
| Dispenser | No |
| Control Type | Touch |
| Refrigerator Temperature Range | 34°F–43°F |
| Freezer Temperature Range | -9°F–5°F |
| Sound Rating | 42 dB |
Electrical Specifications
| Voltage | 115 V |
|---|---|
| Frequency | 60 Hz |
| Amperage | 15 A each side |
| Receptacle Type | NEMA 5-15P × 2 |
| Power Cord Length | 5.9 ft. × 2 |
Important Buyer Considerations
Decorative Panels Require Planning
This refrigerator is panel ready. Custom decorative panels must conform to FORNO's documented dimensions and maximum thickness requirement.
Ice Production Requires Water
The automatic ice maker requires an appropriate household water connection that should be planned before installation.
Ventilation Is Required
Integrated cabinetry must provide the ventilation specified by FORNO. Do not seal the appliance inside an enclosure that blocks the documented airflow path.
Electrical Planning Is Required
The documentation specifies 115 V, 60 Hz, and 15 A for each side with two NEMA 5-15P receptacles.
Verify Dimensions Before Fabrication
Do not use the nominal 42-inch designation as a substitute for the manufacturer's official cutout and decorative-panel drawings.
Plan for Future Service Access
The surrounding installation should preserve the access required for appliance installation, alignment, and future servicing.
Is the FORNO Rivestito FFRBI1794-42 Right for Your Kitchen?
The FORNO Rivestito FFRBI1794-42 is best considered when the goal is to create a custom kitchen where refrigeration visually integrates with the cabinetry.
Its strongest combination of features is the integration of panel-ready construction, counter-depth installation, 3D panel adjustment, independent temperature control, six-drawer freezer organization, automatic ice production, and dedicated wine storage.
It is particularly appropriate for homeowners, designers, and builders who are planning the refrigerator, cabinetry, utilities, and ventilation together.
Buyers wanting a refrigerator that can simply be placed into an existing opening without cabinetry, decorative-panel, ventilation, electrical, and water-supply planning should carefully consider whether an integrated panel-ready model is the correct configuration.
FORNO FFRBI1794-42 Manuals and Documentation
Review the official FORNO documentation before finalizing cabinetry, decorative panels, electrical service, water-supply placement, or installation.
Frequently Asked Questions About the FORNO FFRBI1794-42
Is the FORNO FFRBI1794-42 panel ready?
Yes. The FFRBI1794-42 accepts compatible custom cabinetry panels, and FORNO specifies a maximum wood-panel thickness of 19 mm / 3/4 inch; use the official cutout guide for exact panel dimensions.
What is the capacity of the FORNO FFRBI1794-42?
The FFRBI1794-42 provides 16.9 cu. ft. of total capacity: 12.3 cu. ft. of refrigerator storage and 4.6 cu. ft. of freezer storage.
Does the FORNO FFRBI1794-42 have an ice maker?
Yes. The FFRBI1794-42 includes an automatic ice maker and requires a compatible household water connection.
Is the FORNO FFRBI1794-42 frost free?
Yes. The FFRBI1794-42 uses an automatic frost-free / Total No-Frost system, so routine manual freezer defrosting is not required under normal operation.
What are the temperature ranges of the FFRBI1794-42?
The refrigerator operates from 34°F to 43°F, while the freezer operates from -9°F to 5°F.
Does the FFRBI1794-42 require special electrical planning?
Yes. FORNO specifies 115 V, 60 Hz, and 15 A for each side with two NEMA 5-15P receptacles; confirm the electrical layout before installation.
Does the FFRBI1794-42 require cabinet ventilation?
Yes. The appliance requires a clear cabinetry ventilation path; do not block the lower intake or upper exhaust airflow specified by FORNO.
Can I determine the cabinet opening from the 42-inch product width?
No. The 42-inch designation is not a substitute for FORNO's cutout dimensions; use the official FFRBI1794-42 cutout guide before fabricating cabinetry or decorative panels.
Does the FORNO FFRBI1794-42 have wine storage?
Yes. The refrigerator includes two dedicated wire wine racks for horizontal bottle storage.
How is the freezer organized?
The FFRBI1794-42 provides 4.6 cu. ft. of freezer capacity across six freezer drawers for separated frozen-food storage.
Does the FFRBI1794-42 have Fast Cool and Fast Freeze?
Yes. Fast Cool and Fast Freeze provide rapid temperature adjustment, and both functions automatically end after 24 hours according to the manufacturer manual.
What should be planned before installing the FORNO FFRBI1794-42?
Confirm the cabinet cutout, decorative-panel specifications, ventilation, electrical connections, water supply, and required clearances before installation. Do not finalize cabinetry without reviewing FORNO's official specification, cutout, and installation documents.
Plan Your Integrated Refrigeration Project With Confidence
The FORNO Rivestito FFRBI1794-42 combines custom-panel integration, dedicated fresh and frozen-food storage, wine storage, automatic ice production, and organized bottom-freezer drawers for thoughtfully designed residential kitchens.
Before ordering, verify the current FORNO specification sheet, cutout drawings, decorative-panel requirements, ventilation provisions, electrical connections, water supply, and installation instructions against the requirements of your project.
By buying from us you qualify for the full manufacturer warranty, save time and money!
We ship directly to your door from the manufacturer's warehouse.
