FORNO Rivestito Collection
FORNO Rivestito FFRBI1704-21 22-Inch Panel Ready Built-In Bottom Freezer Refrigerator, 8.3 Cu. Ft. with Ice Maker
The FORNO Rivestito FFRBI1704-21 is a 22-inch panel-ready built-in bottom freezer refrigerator designed for compact luxury kitchens where refrigeration performance and cabinetry integration are equally important. Its narrow built-in format combines a stated 8.3 cu. ft. capacity with Total No Frost cooling, an automatic ice maker, Fast Cool, Fast Freeze, temperature-controlled storage, dedicated wine bottle storage, and three freezer drawers.
The panel-ready exterior is intended for compatible custom cabinetry panels, helping the refrigerator visually integrate with surrounding millwork rather than appear as a separate appliance. At approximately 21.65 inches wide, the Rivestito is particularly relevant for premium kitchens where full-size refrigeration is not practical.
Electronic controls provide access to refrigerator, freezer, and Chiller Zone temperature adjustment along with Eco, Holiday, Sabbath, Fast Cool, and Fast Freeze modes. FORNO lists a published sound level of 39 dBA.
FORNO FFRBI1704-21: Quick Decision Summary
Choose the FORNO Rivestito FFRBI1704-21 when your project requires a narrow built-in refrigerator that can integrate into custom cabinetry while still providing separate fresh-food and bottom-freezer storage, automatic ice production, a temperature-controlled Chiller Zone, and dedicated wine-bottle storage.
| Best For | Compact luxury kitchens, apartments, condominiums, butler's pantries, guest suites, secondary kitchens, and custom cabinetry projects. |
|---|---|
| Installation Type | Built-in, panel-ready, counter-depth refrigeration. |
| Stated Capacity | 8.3 cu. ft. used throughout the detailed product information supplied for this page. |
| Key Advantage | Compact built-in format with Total No Frost cooling, automatic ice maker, Chiller Zone, wine rack, Fast Cool, Fast Freeze, and three freezer drawers. |
| Primary Planning Requirement | Cabinet dimensions, ventilation paths, custom panels, door clearance, and water connection should be verified before installation. |
Things to Know Before Ordering
- This is a built-in refrigerator, not a standard freestanding appliance.
- Compatible custom cabinetry panels are required for the panel-ready exterior.
- The cabinet must provide dedicated upper, lower, and rear ventilation.
- The automatic ice maker requires a household water connection.
- The refrigerator provides compact rather than conventional full-size capacity.
- The manufacturer installation instructions include a door-reversal procedure.
- FORNO instructs users to let the refrigerator stand upright for 24 hours before connecting it to power.
Quick Product Facts
| Brand | FORNO |
|---|---|
| Collection | Rivestito |
| Model / SKU | FFRBI1704-21 |
| Product Type | Bottom Freezer Refrigerator |
| Installation Type | Built-In |
| Design | Panel Ready |
| Depth Style | Counter Depth |
| Nominal Width | 22 in. |
| Actual Width | 21.65 in. / 550 mm |
| Overall Height | 69.92 in. / 1776 mm |
| Body Depth | 21.52 in. / 540 mm |
| Stated Capacity | 8.3 cu. ft. |
| Cooling Type | Total No Frost |
| Ice Maker | Yes |
| Fast Cool | Yes |
| Fast Freeze | Yes |
| Temperature-Controlled Drawer | Yes |
| Wine Storage | Dedicated Wire Wine Rack |
| Freezer Storage | 3 Drawers |
| Controls | Electronic |
| Display | LED |
| Noise Level | 39 dBA |
| Voltage | 115 V |
| ADA Compliant | No |
Key Features of the FORNO Rivestito FFRBI1704-21

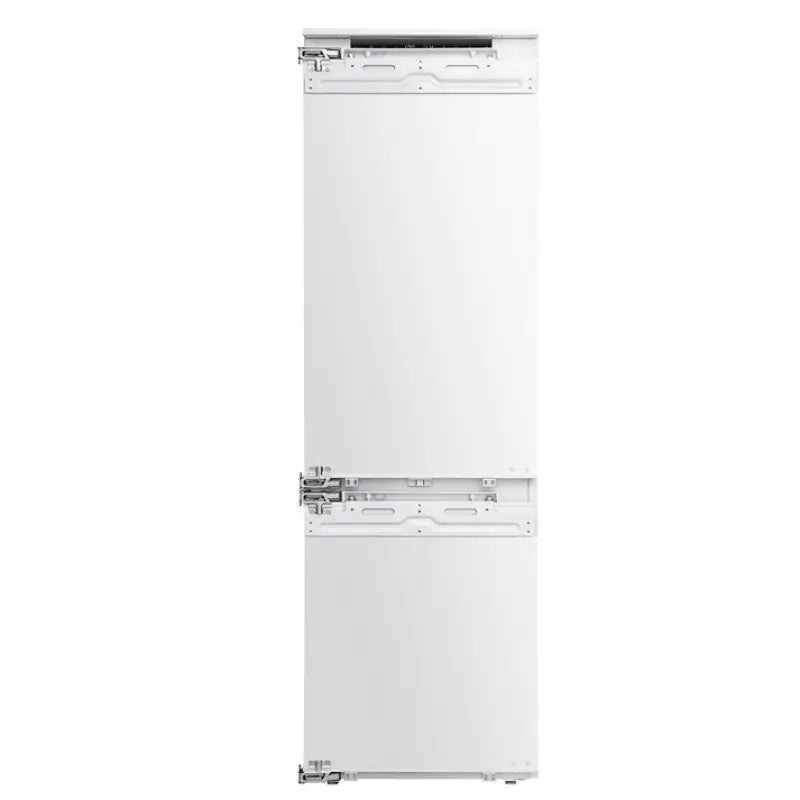

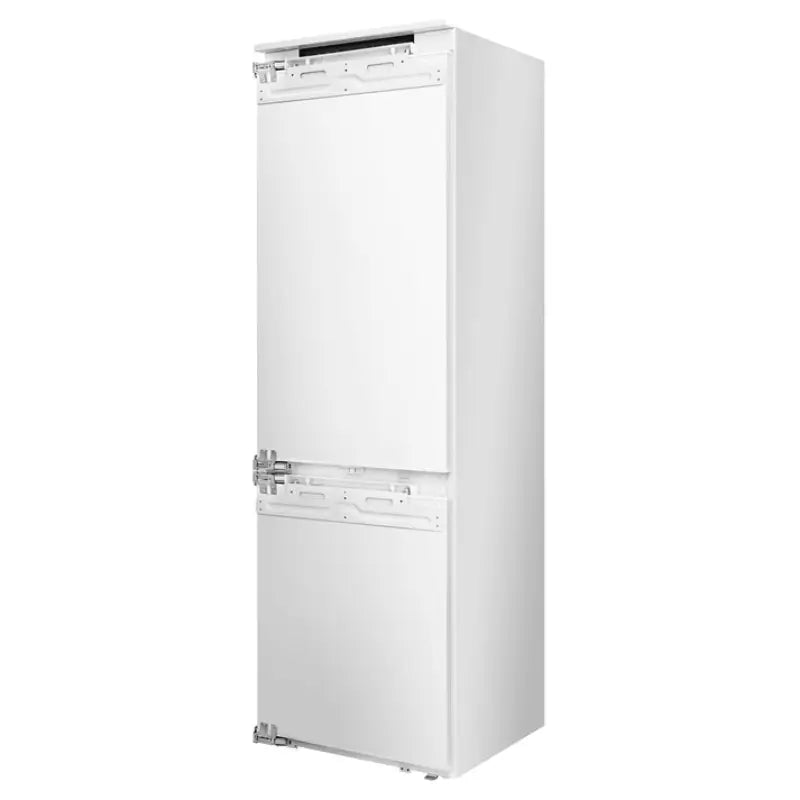

Panel-Ready Built-In Integration
The FFRBI1704-21 is designed for installation behind compatible custom cabinetry panels, allowing the appliance to visually coordinate with surrounding cabinet fronts.
Unlike a standard freestanding refrigerator, final fit depends on accurate cabinet preparation, ventilation, panel dimensions, door alignment, and securing the appliance according to the manufacturer's instructions.
Compact 22-Inch Format
The appliance measures approximately 21.65 inches wide, making it suitable for projects where a conventional 30- or 36-inch refrigerator is too large.
8.3 Cu. Ft. Stated Capacity
The detailed product information supplied for this page identifies 8.3 cu. ft. of storage capacity, providing separate refrigerator and bottom-freezer compartments within its compact footprint.
Total No Frost Cooling
Total No Frost operation is designed to limit heavy ice accumulation. Under normal conditions, routine manual freezer defrosting should not be required.

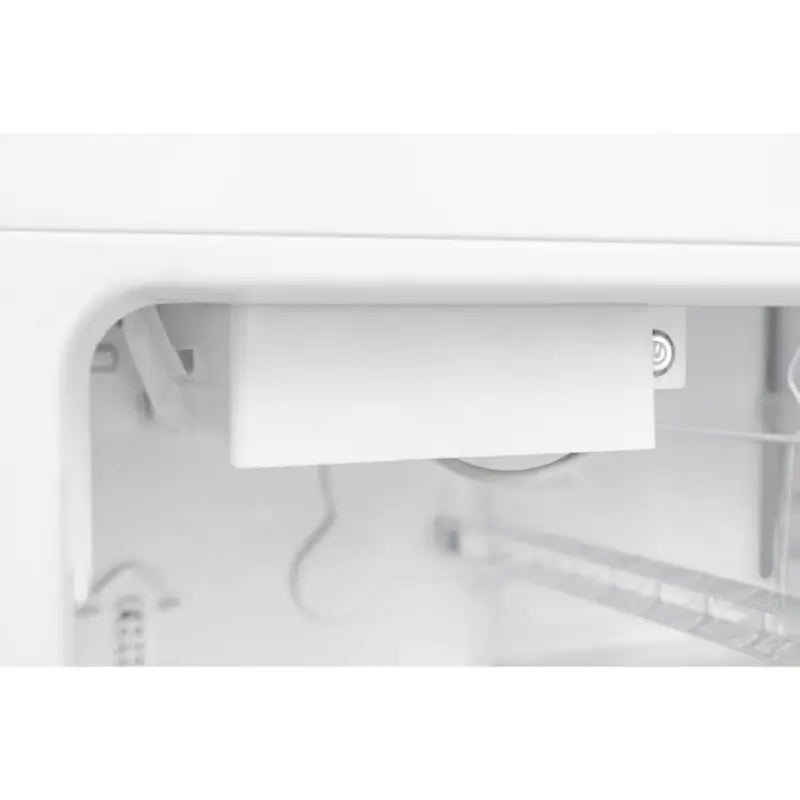

Automatic Ice Maker
An integrated automatic ice maker provides built-in ice production. A compatible household water connection must be planned before final installation.

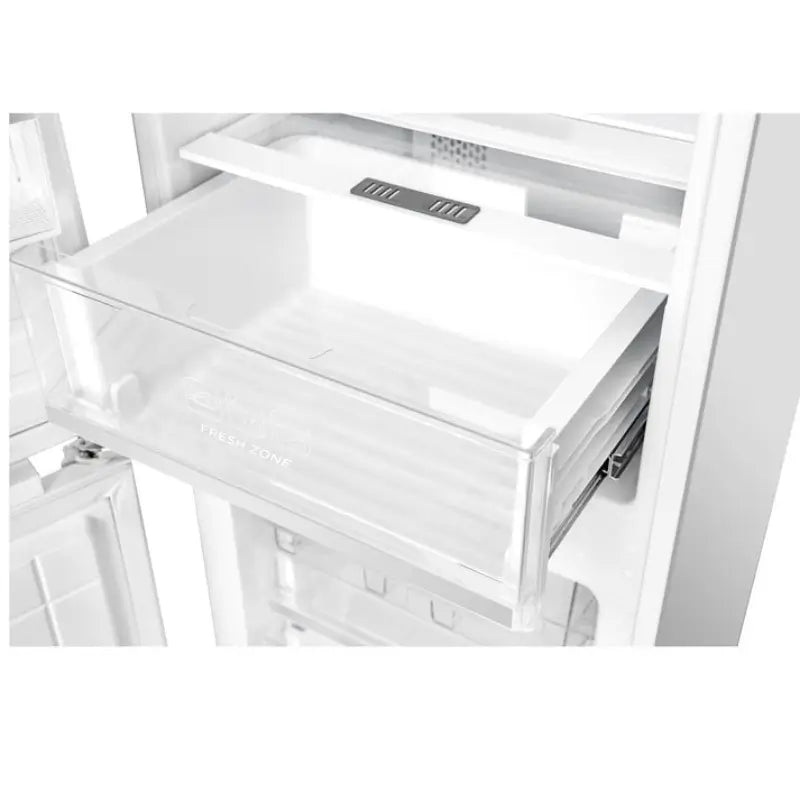

Temperature-Controlled Chiller Zone
The dedicated Chiller Zone drawer can be adjusted from approximately 37°F to 27°F / 3°C to -3°C. FORNO identifies the zone as suitable for foods such as meat and fish.

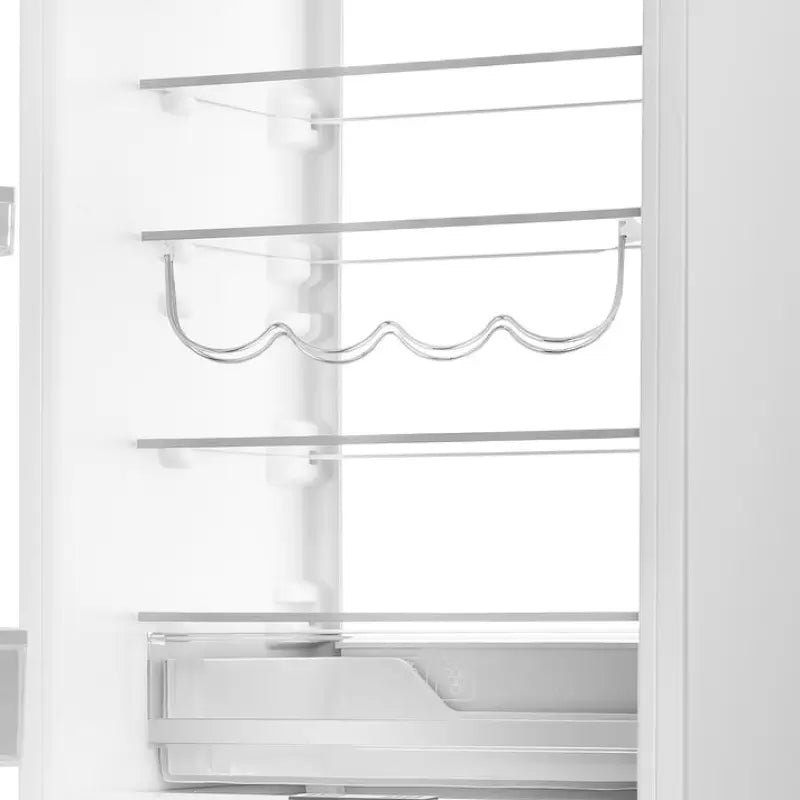

Dedicated Wine Bottle Storage
A wire wine rack provides a defined location for refrigerated bottle storage instead of requiring bottles to occupy general refrigerator shelving.
39 dBA Published Noise Level
The supplied product specifications list a sound level of 39 dBA, an important consideration for kitchens connected directly to living, dining, or entertaining areas.
Cooling Performance and Temperature Management
Refrigerator Temperature
Adjustable from approximately 34°F to 43°F / 1°C to 6°C.
Freezer Temperature
Adjustable from approximately 5°F to -9°F / -15°C to -23°C.
Chiller Zone
Adjustable from approximately 37°F to 27°F / 3°C to -3°C.
Fast Cool
Fast Cool operates at approximately 36°F / 2°C and automatically ends after 24 hours.
Fast Freeze
Fast Freeze operates at approximately -13°F / -25°C and automatically ends after 24 hours.
Total No Frost
Designed to reduce heavy frost accumulation and minimize the need for routine manual freezer defrosting.
Organized Fresh and Frozen Food Storage

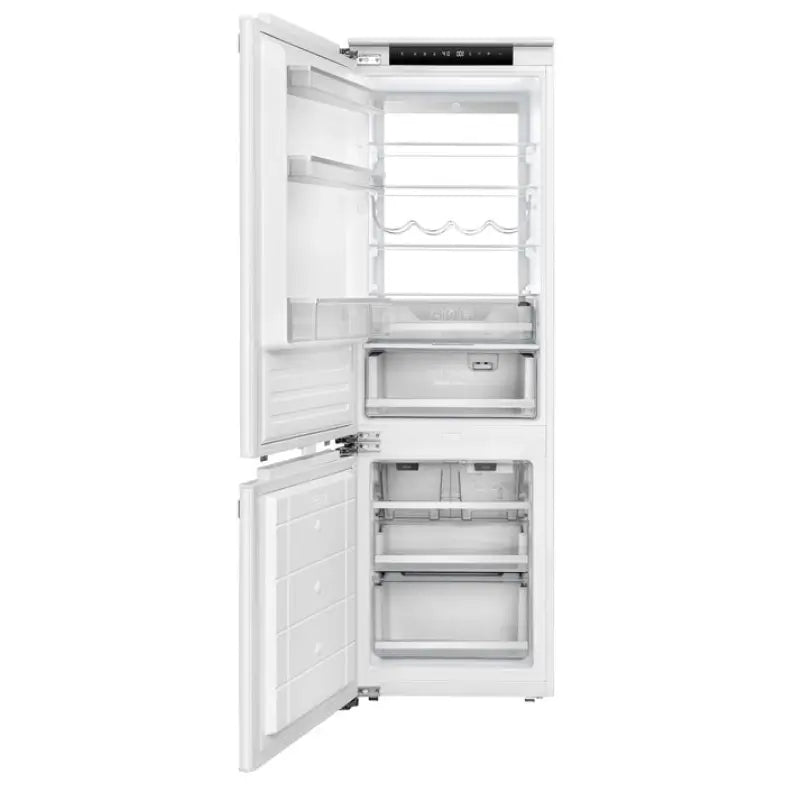

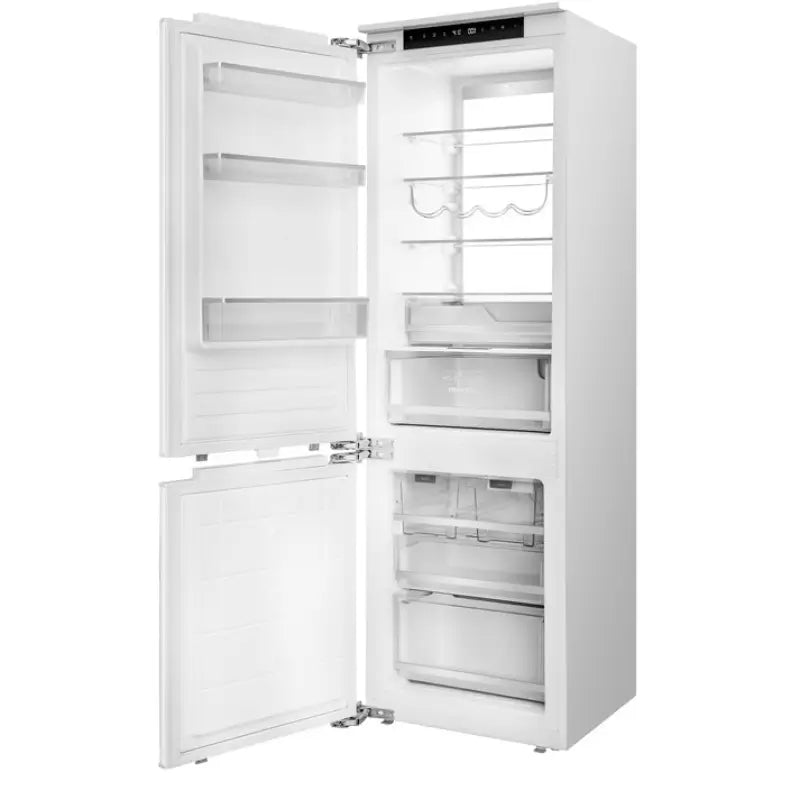

The FFRBI1704-21 combines adjustable refrigerator shelving, door storage, dedicated bottle storage, temperature-controlled refrigeration, and drawer-based freezer organization within its narrow built-in format.
Adjustable Refrigerator Shelves
Refrigerator shelves can be repositioned to accommodate foods, containers, and beverages of different heights.
Dedicated Wire Wine Rack
The integrated wire rack provides a defined storage position for refrigerated bottles.
Temperature-Controlled Drawer
The Chiller Zone creates a dedicated adjustable storage area for foods requiring cooler conditions.
Three Freezer Drawers
Three freezer drawers help separate frozen foods rather than requiring everything to be stacked inside one open compartment.
Door Storage
Refrigerator door storage provides additional organization for smaller frequently used refrigerated items.
Bottom-Freezer Layout
Everyday refrigerated foods remain above, while frozen foods are organized in dedicated drawers below.
Operating Modes and Control Functions

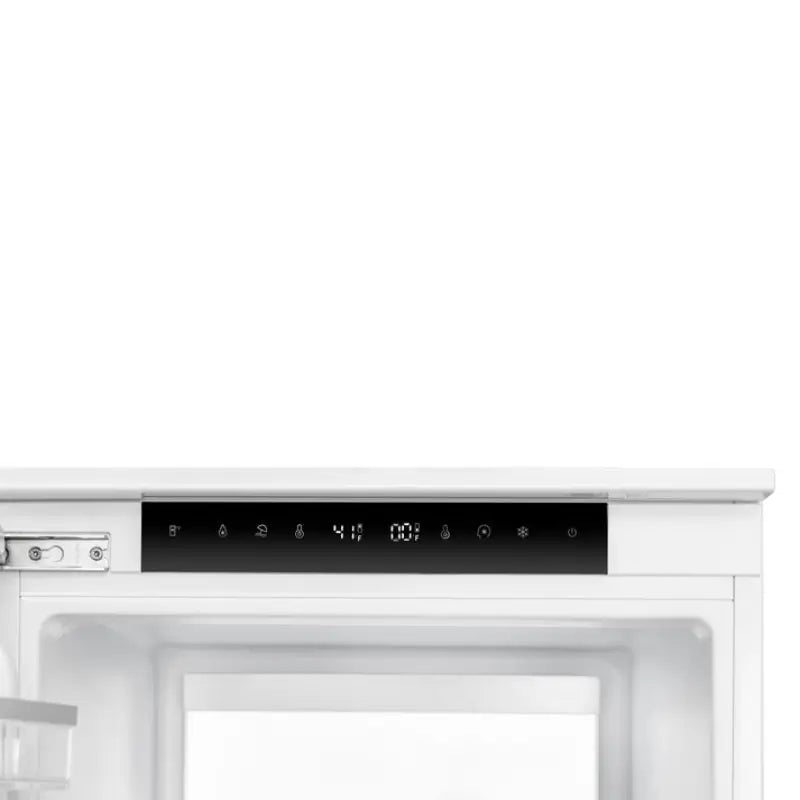

Electronic Temperature Control
Independent controls provide access to refrigerator, freezer, and Chiller Zone temperature settings.
Eco Mode
The manufacturer manual identifies Eco operation at approximately 41°F / 5°C for the refrigerator, 0°F / -18°C for the freezer, and 37°F / 3°C for the Chiller/Adapt Zone.
Holiday Mode
Holiday mode is available for periods when standard refrigerator operation is reduced.
Sabbath Mode
The supplied operating instructions include Sabbath Mode and describe modified appliance lighting behavior while it is active.
Fault Display
The electronic system can display specified sensor, communication, and fan faults.
Door-Open Alarm
The manufacturer's troubleshooting guidance states that an alarm sounds after a door has remained open for approximately 60 seconds.
Automatic Ice Maker and Water Connection
The FFRBI1704-21 includes an automatic ice maker. The manufacturer's instructions identify an ice-maker switch and a dedicated rear water connection.
Plumbing placement should be coordinated with the cabinet layout so the water connection remains compatible with the final built-in installation.
Who Is the FORNO FFRBI1704-21 Best For?
Custom Panel-Ready Kitchens
The appliance is particularly suited to kitchens where refrigeration should visually integrate with surrounding custom cabinetry.
Compact Luxury Kitchens
The 21.65-inch actual width makes it relevant to smaller premium kitchens where standard-width refrigeration would consume too much space.
Butler's Pantries and Secondary Kitchens
Its compact built-in footprint can work well as dedicated refrigeration in auxiliary food-preparation or entertaining spaces.
Buyers Wanting Automatic Ice
The integrated ice maker provides automatic ice production when connected to the required household water supply.
Buyers Who Want Bottom-Freezer Storage
Three freezer drawers keep frozen foods separated below the refrigerator compartment.
Choose Another Refrigerator If
- You need conventional full-size family refrigerator capacity.
- You want a standard freestanding installation.
- Your cabinetry cannot meet the manufacturer's cutout requirements.
- You cannot provide the required upper, lower, and rear ventilation.
- You do not want to install compatible custom cabinet panels.
- You cannot provide a water connection for automatic ice production.
- You require an ADA-compliant refrigerator.
Custom Cabinet Integration
The FFRBI1704-21 is designed specifically for built-in installation with compatible custom cabinetry panels. This requires more planning than placing a freestanding refrigerator inside a finished opening.
FORNO's installation documentation includes dedicated procedures for:
- Cabinet installation
- Appliance leveling
- Securing the refrigerator
- Refrigerator door-panel installation
- Freezer door-panel installation
- Vertical panel adjustment
- Horizontal panel adjustment
- Front-to-back panel adjustment
Product Dimensions
| Overall Width | 21.65 in. / 550 mm |
|---|---|
| Overall Height | 69.92 in. / 1776 mm |
| Body Depth | 21.52 in. / 540 mm |
| Approx. Depth Shown in Side View | 21.65 in. / 550 mm |
The manufacturer dimensional drawing also contains hinge, door-panel, and door-swing measurements that should be reviewed by the cabinet designer or installer.
Cabinet Cutout and Ventilation Requirements
Proper cabinet preparation is essential for this built-in refrigerator. The supplied manufacturer dimensional information specifies the following installation requirements.
| Minimum Cutout Width | 22.04 in. / 560 mm |
|---|---|
| Cutout Height | Approx. 70–70.11 in. / 1778–1781 mm |
| Minimum Rear Ventilation Gap | 1.18 in. / 30 mm |
| Minimum Upper Ventilation Area | 200 cm² |
| Minimum Lower Ventilation Area | 200 cm² |
| Recommended Upper Vent Opening | 500 × 30 mm / 19.68 × 1.18 in. |
| Recommended Rear / Lower Vent Provision | 500 × 35 mm / 19.68 × 1.37 in. |
| Door Positions Illustrated | 90° and 115° |
Do Not Install in a Sealed Cabinet
The cabinet must provide an appropriate air intake, rear airflow path, and upper exhaust route so heat from the refrigeration system can dissipate into the surrounding room.
Why Built-In Ventilation Matters
FORNO identifies ventilation as a primary requirement when the refrigerator is installed inside fitted cabinetry. Heat removed from the refrigerated compartments must be able to escape from the cabinet.
The manufacturer's supplied information warns that incorrect ventilation can contribute to:
- Premature compressor failure
- Excessive power consumption
- Total refrigeration-system failure
- Potential warranty implications
Installation Planning Checklist
Cabinet Preparation
- Confirm the finished opening against the official dimensional drawing.
- Provide the required rear ventilation space.
- Provide upper and lower ventilation openings.
- Keep the cabinet ventilation path unobstructed.
Panel Preparation
- Follow FORNO's panel-installation dimensions.
- Verify panel alignment before final tightening.
- Confirm refrigerator and freezer doors operate correctly.
Water Connection
- Plan household water service before final installation.
- Follow the manufacturer's ice-maker connection instructions.
- Keep the water connection serviceable after installation.
Leveling and Securing
- Level the refrigerator before final cabinet installation.
- Secure the appliance according to the manufacturer procedure.
- Verify stability after the custom panels are fitted.
Complete Technical Specifications
General
| Brand | FORNO |
|---|---|
| Collection | Rivestito |
| Model / SKU | FFRBI1704-21 |
| Category | Bottom Freezer Refrigerator |
| Installation Type | Built-In |
| Design | Panel Ready |
| Depth Style | Counter Depth |
| Nominal Width | 22 in. |
| Actual Width | 21.65 in. / 550 mm |
| Overall Height | 69.92 in. / 1776 mm |
| Body Depth | 21.52 in. / 540 mm |
| Stated Capacity | 8.3 cu. ft. |
| Color / Finish | White / Panel Ready |
| Primary Material | Metal / Plastic |
| ADA Compliant | No |
| Bluetooth Compatibility | No |
Cooling and Controls
| Cooling System | Compressor Based |
|---|---|
| Cooling Type | Total No Frost |
| Fast Cool | Yes |
| Fast Freeze | Yes |
| Temperature-Controlled Drawer | Yes |
| Control Type | Electronic |
| Control Location | Top |
| Control Lockout | No |
| Display Type | LED |
| Sabbath Mode | Yes |
| Eco Mode | Yes |
| Holiday Mode | Yes |
Storage and Convenience
| Wine Rack | Yes – Dedicated Wire Rack |
|---|---|
| Freezer Drawers | 3 |
| Automatic Ice Maker | Yes |
| Interior Light | Yes |
| Lighting Color | White |
Electrical and Performance
| Voltage | 115 V |
|---|---|
| Plug Included | Yes |
| Noise Level | 39 dBA |
| Refrigerator Temperature Range | 34°F–43°F / 1°C–6°C |
| Freezer Temperature Range | 5°F to -9°F / -15°C to -23°C |
| Chiller Zone Range | 37°F to 27°F / 3°C to -3°C |
Certification Information
The supplied FORNO user manual identifies model series FFRBI1704-21 as conforming to UL STD. 60335-1 and UL STD. 60335-2-24 and certified to CSA STD. C22.2 No. 60335-1 and No. 60335-2-24.
Capacity Information
Capacity Source Note
The product information supplied for this item contains two capacity references. One source line states 8.6 cu. ft., while the detailed product title and description state 8.3 cu. ft..
This page uses 8.3 cu. ft. because that is the capacity repeated in the detailed product information supplied for this optimization. Final published capacity should be reconfirmed if additional official commercial specification documentation becomes available.
Care and Operating Considerations
Maintain Air Circulation
Avoid excessively overfilling the refrigerator and maintain sufficient space around stored food for cooled air to circulate.
Cool Warm Foods First
Warm or hot foods should be allowed to cool before being placed inside the refrigerator or freezer.
Interior Cleaning
Disconnect the appliance from power before cleaning. The supplied manufacturer information recommends bicarbonate of soda and lukewarm water for interior cleaning.
Clean Shelves by Hand
Shelves and door-storage components should be cleaned separately by hand rather than placed in a dishwasher.
No Frost Maintenance
Routine manual freezer defrosting should not normally be required. Heavy ice buildup may indicate a door-sealing or installation issue.
Extended Non-Use
If the appliance will not be used for a prolonged period, disconnect and clean it, then leave the doors slightly open.
FORNO FFRBI1704-21 Manuals and Technical Documentation
Review the manufacturer documentation before finalizing cabinetry, custom panels, ventilation, plumbing, electrical access, or appliance installation.
Frequently Asked Questions About the FORNO FFRBI1704-21
Is the FORNO FFRBI1704-21 panel ready?
Yes. The FFRBI1704-21 is designed for built-in installation with compatible custom cabinetry panels. Panel dimensions and adjustment procedures should be verified against the manufacturer installation documentation before fabrication.
Is the FFRBI1704-21 built-in or freestanding?
It is designed as a built-in refrigerator. Do not treat it as a standard freestanding installation because its cabinetry must provide the required dimensions and ventilation.
How wide is the FORNO FFRBI1704-21?
The appliance is approximately 21.65 inches / 550 mm wide and is marketed as a nominal 22-inch refrigerator.
What cabinet opening does the FFRBI1704-21 require?
The supplied cutout documentation specifies a minimum width of approximately 22.04 inches / 560 mm and a height of approximately 70–70.11 inches / 1778–1781 mm. Review the complete dimensional document before cabinetry fabrication.
Does the FFRBI1704-21 require cabinet ventilation?
Yes. The installation requires an air-intake path, rear airflow, and upper ventilation. The refrigerator should not be installed inside a sealed cabinet.
How much ventilation space is required behind the refrigerator?
The manufacturer dimensional information calls for a minimum rear ventilation gap of approximately 30 mm / 1.18 inches. Upper and lower ventilation requirements must also be provided.
Does the FORNO FFRBI1704-21 have an ice maker?
Yes. It includes an automatic ice maker and requires an appropriate household water connection. Plan the water service before the refrigerator is installed into its cabinetry.
Does the FFRBI1704-21 require manual defrosting?
Under normal operation, routine manual freezer defrosting should not be required because the refrigerator uses a Total No Frost system.
Does the FFRBI1704-21 have Fast Cool and Fast Freeze?
Yes. Fast Cool and Fast Freeze provide accelerated refrigerator or freezer cooling and automatically end after the operating period specified by the manufacturer.
Does the FFRBI1704-21 have a temperature-controlled drawer?
Yes. The Chiller Zone can be adjusted from approximately 37°F to 27°F / 3°C to -3°C. FORNO identifies it as suitable for foods such as meat and fish.
Does the FFRBI1704-21 include a wine rack?
Yes. A dedicated wire rack provides refrigerated bottle storage. It should not be treated as a substitute for a purpose-built long-term wine-aging system.
How loud is the FORNO FFRBI1704-21?
The supplied product specification lists a noise level of 39 dBA. Actual perceived sound can vary according to installation, cabinetry, room acoustics, and operating conditions.
Is the FFRBI1704-21 counter depth?
Yes. The supplied product information identifies it as a counter-depth built-in appliance designed for integration into compatible cabinetry.
What is the capacity of the FORNO FFRBI1704-21?
The detailed product title and description supplied for this page state 8.3 cu. ft.. One supplied source line states 8.6 cu. ft., so the final published capacity should be reconfirmed if additional official commercial specification data becomes available.
Can the doors be reversed?
The FORNO user manual includes a dedicated door-reversal procedure. Follow the manufacturer's complete procedure when changing door orientation.
Does the FFRBI1704-21 have Sabbath Mode?
Yes. The manufacturer control instructions include Sabbath Mode. Follow the control sequence in the user manual when enabling or disabling the function.
Can the FFRBI1704-21 be installed without an upper cabinet vent?
No. The manufacturer specifies upper cabinet ventilation so heated air can escape. The upper ventilation path should not be blocked.
Should the refrigerator be plugged in immediately after delivery?
No. FORNO's installation-preparation instructions state that the refrigerator should stand upright and undisturbed for 24 hours before being connected to power.
Is the FORNO FFRBI1704-21 ADA compliant?
No. The supplied specifications identify the FFRBI1704-21 as not ADA compliant.
Is professional installation advisable for the FFRBI1704-21?
Because the project requires accurate cabinetry preparation, ventilation, custom-panel alignment, appliance securing, and an ice-maker water connection, installation should be planned carefully using the manufacturer documentation.
Expert Buying Guidance
The FORNO Rivestito FFRBI1704-21 is best suited to projects that need compact refrigeration without sacrificing the architectural appearance of integrated cabinetry.
Its combination of a panel-ready built-in format, bottom freezer, Total No Frost cooling, automatic ice maker, Fast Cool, Fast Freeze, dedicated wine rack, temperature-controlled Chiller Zone, and three freezer drawers provides substantially more functionality than a basic compact refrigerator.
The primary tradeoff is storage capacity. At the stated 8.3 cu. ft., this model is better suited to space-conscious kitchens, secondary refrigeration, and moderate storage requirements than buyers who need a conventional full-size family refrigerator.
Installation quality is critical. The cabinetry must accommodate the appliance, custom panels, required ventilation, door movement, electrical access, and the water connection for the ice maker. When those requirements are planned correctly, the FFRBI1704-21 provides a clean integrated refrigeration solution for premium kitchens with limited available width.
By buying from us you qualify for the full manufacturer warranty, save time and money!
We ship directly to your door from the manufacturer's warehouse.
