FORNO Custodia Collection

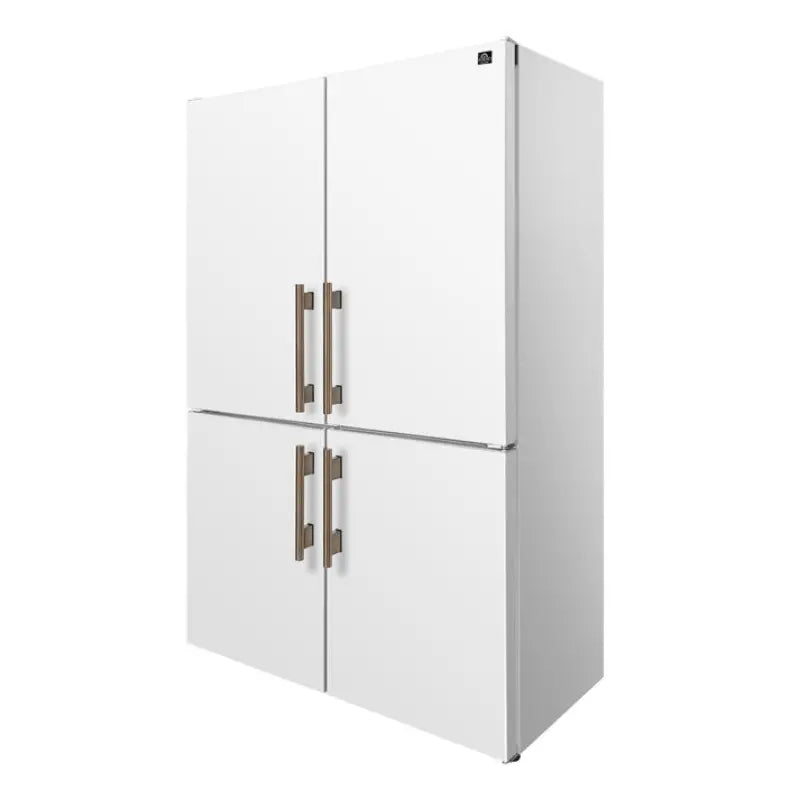

FORNO Custodia FFFFD1766-48WHT 48-Inch 20.6 Cu. Ft. Bottom Freezer Refrigerator Set with Ice Maker – White with Antique Brass Handles
The FORNO Custodia FFFFD1766-48WHT is a 48-inch-class paired bottom-freezer refrigeration system designed for kitchens where organized storage and visual symmetry are equally important. Rather than using one conventional wide refrigerator cabinet, the complete configuration pairs dedicated left- and right-side 24-inch units to create a balanced refrigeration layout.
Together, the two appliances provide 20.6 cu. ft. of combined capacity with fresh-food and freezer storage distributed across two slim refrigeration columns. The white exterior and Antique Brass handles give the set a distinctive premium appearance suited to design-conscious kitchens.
Total No Frost cooling is designed to reduce heavy ice buildup, while electronic controls provide refrigerator and freezer temperature adjustment plus Fast Cooling, Fast Freezing, Eco, Holiday, and Sabbath modes. An automatic ice maker provides ice production when connected to a compatible household water supply.
FORNO FFFFD1766-48WHT: Quick Decision Summary
Choose the FORNO Custodia FFFFD1766-48WHT when your kitchen is intentionally designed around two slim refrigerator/freezer columns rather than one continuous 48-inch interior cavity. The configuration combines 20.6 cu. ft. of storage, Total No Frost cooling, automatic ice production, electronic temperature management, and white-and-Antique-Brass styling.
| Best For | Premium residential kitchens, symmetrical refrigeration layouts, paired appliance installations, and kitchens using white finishes with warm metallic hardware. |
|---|---|
| Configuration | Paired left- and right-side 24-inch bottom-freezer refrigerator units. |
| Combined Capacity | 20.6 cu. ft. |
| Key Advantage | Two-column organization with Total No Frost cooling, automatic ice, six combined freezer drawers, electronic controls, and decorative Antique Brass handles. |
| Primary Planning Requirement | Cabinetry must be designed around the two individual refrigeration units, not simply the nominal 48-inch product name. |
Things to Know Before Ordering
- This is a paired two-unit refrigeration configuration.
- It does not provide one continuous 48-inch interior cavity.
- FORNO specifies individual cabinet openings for the two units.
- A household water connection is required for automatic ice production.
- Adequate ventilation must be maintained around the appliances.
- Door movement and surrounding cabinetry clearance should be verified.
- The appliances should stand upright and undisturbed for 24 hours before being connected to power.
Quick Product Facts
| Brand | FORNO |
|---|---|
| Collection | Custodia |
| Model | FFFFD1766-48WHT |
| Product Type | Bottom Freezer Refrigerator Set |
| Configuration | Paired Left + Right 24-Inch Units |
| Combined Capacity | 20.6 cu. ft. |
| Overall Width | 46.85 in. / 1190 mm |
| Overall Height | 73.2 in. / 1860 mm |
| Overall Depth | 22.8 in. / 580 mm |
| Color / Finish | White |
| Handle Finish | Antique Brass |
| Cooling System | Total No Frost |
| Ice Maker | Automatic |
| Water Connection | Required for ice-maker operation |
| Control Type | Electronic |
| Control Location | Interior Top |
| Display | LED |
| Interior Light | Yes |
| Lighting Color | White |
| Noise Level | 44 dBA |
| Voltage | 115 V |
| Plug Included | Yes |
| Primary Material | Metal / Plastic |
| Bluetooth Compatibility | No |
| Control Lockout | No |
| Temperature-Controlled Drawers | No |
| ADA Compliant | No |
| Intended Application | Residential / Household |
Key Features of the FORNO Custodia FFFFD1766-48WHT
Paired 24-Inch Slim-Column Design
The Custodia configuration combines dedicated left- and right-side 24-inch refrigerator/freezer units to create a coordinated wide refrigeration installation without relying on one conventional 48-inch cabinet.
20.6 Cu. Ft. Combined Capacity
The two refrigeration columns provide 20.6 cu. ft. of combined food-storage capacity, dividing fresh and frozen foods across separate storage zones.
Total No Frost Cooling
Total No Frost operation is designed to prevent heavy ice accumulation. Under normal operation, routine manual freezer defrosting should not be necessary.

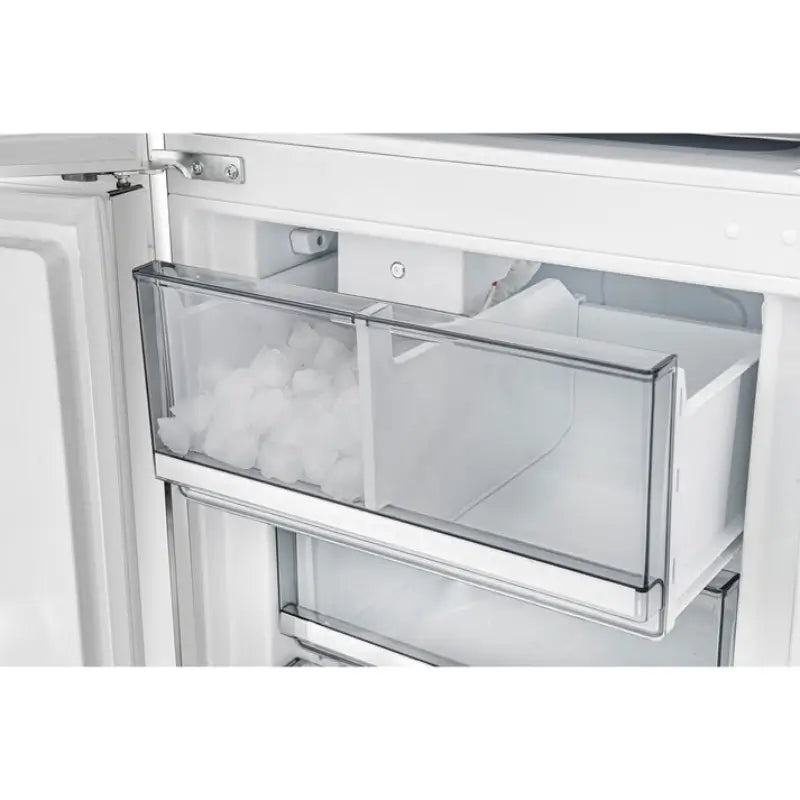

Automatic Ice Maker
An integrated automatic ice maker provides everyday ice production. A compatible household water connection is required for operation.

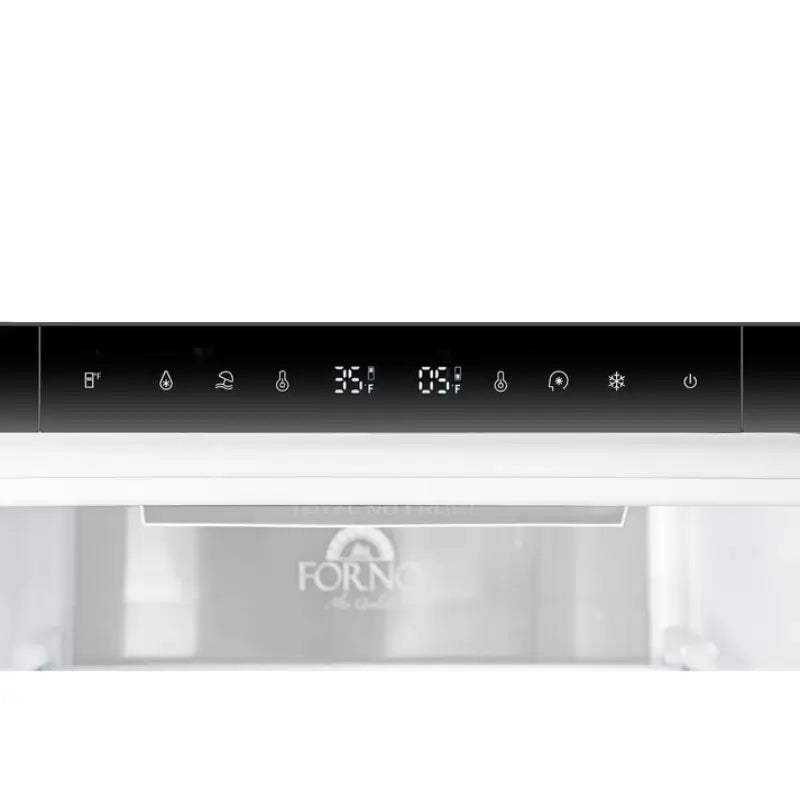

Independent Electronic Temperature Controls
Electronic controls allow refrigerator and freezer temperatures to be adjusted separately while also providing access to specialized operating modes.

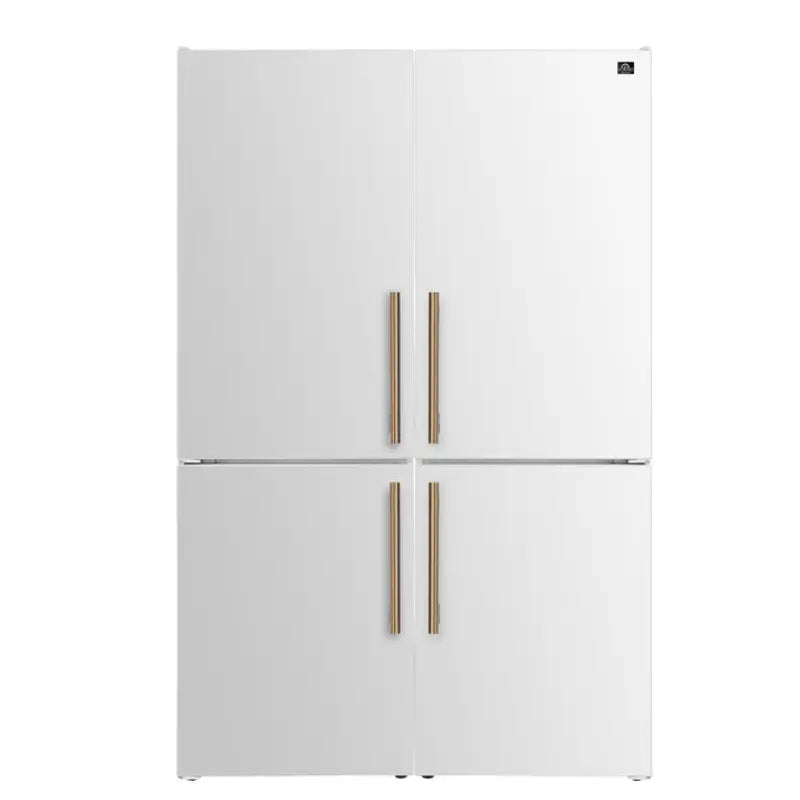

White Finish with Antique Brass Handles
The white exterior and Antique Brass handles create a distinctive decorative appearance for kitchens using white cabinetry, brass fixtures, or other warm-metal accents.
White LED Interior Lighting
Interior LED lighting helps illuminate refrigerated storage while keeping the external appliance faces visually clean.
44 dBA Published Noise Level
FORNO lists a 44 dBA published noise level for this paired configuration.

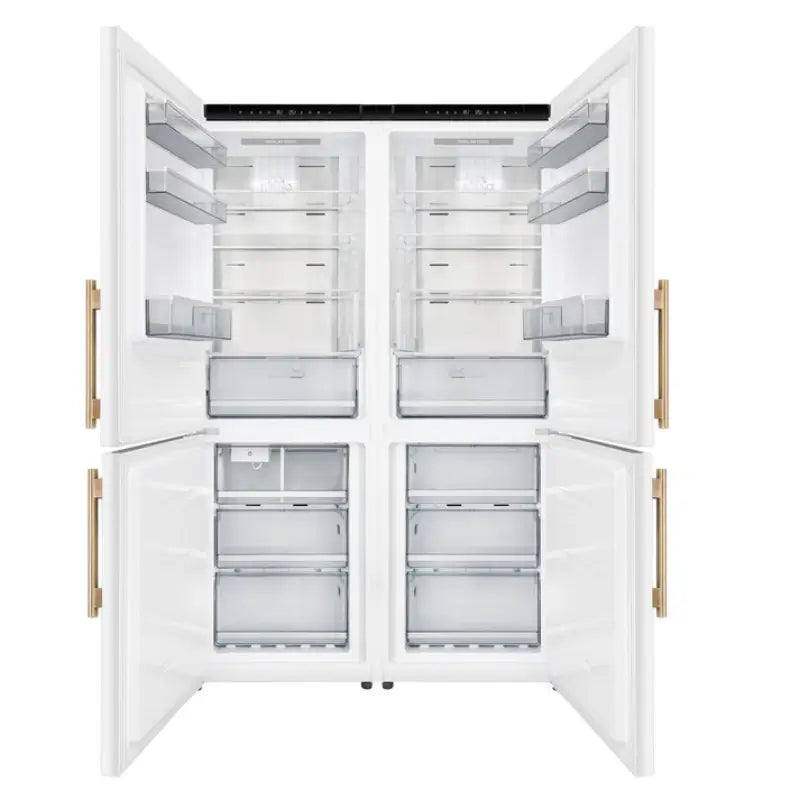

Flexible Refrigerator and Freezer Storage
The paired Custodia configuration provides multiple dedicated storage zones for fresh foods, bottles, produce, frozen foods, and ice.

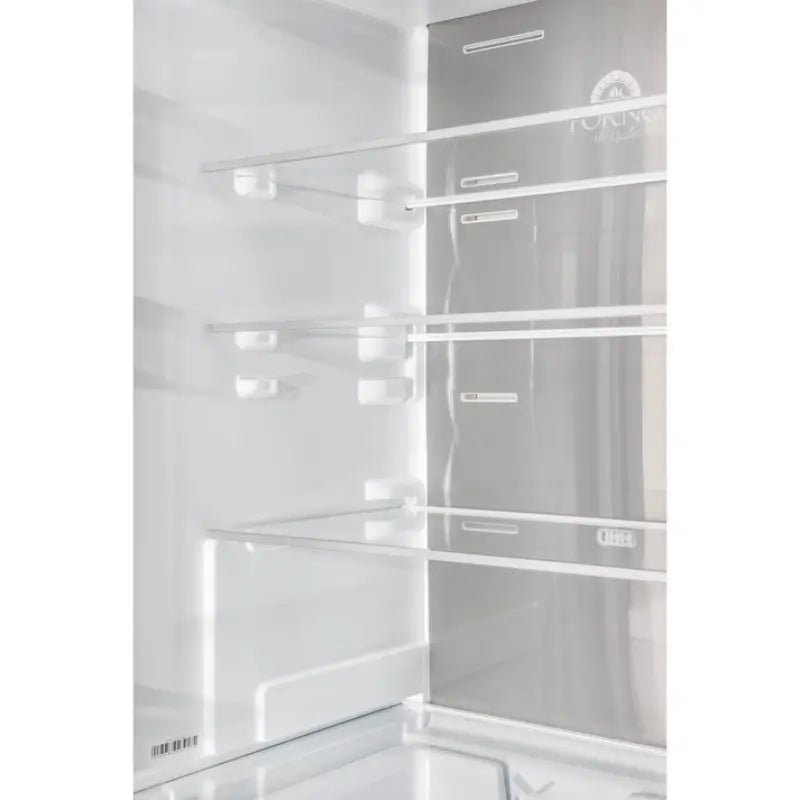

8 Glass Shelves
Eight combined glass shelves provide multiple storage levels for refrigerated foods, containers, and beverages.

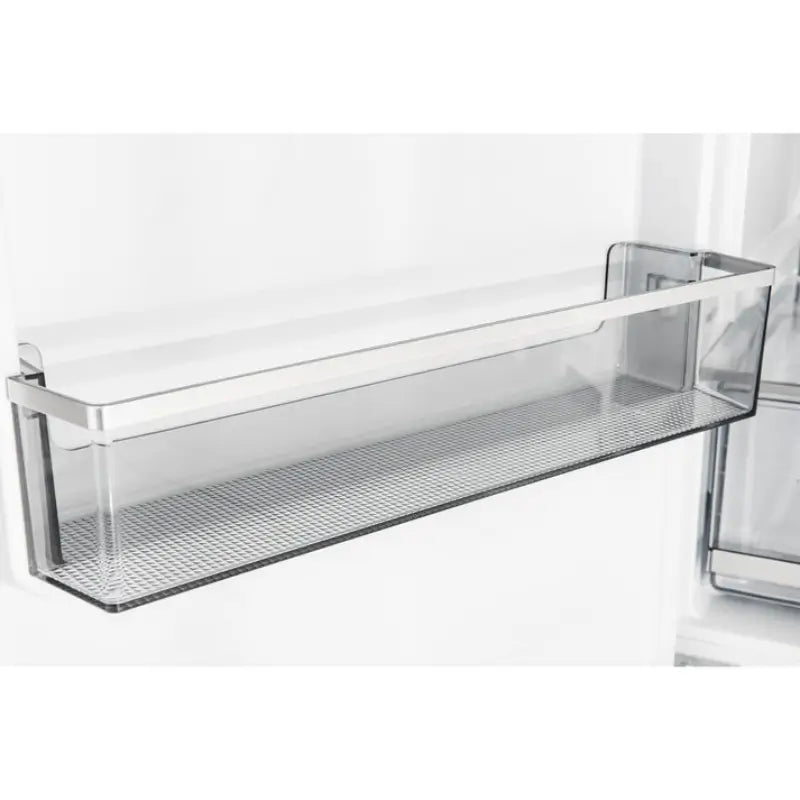

6 Door Bins
Six combined door bins provide dedicated storage for bottles, condiments, and smaller refrigerated items.
2 Dedicated Crispers
Two crisper compartments provide defined storage for fruits, vegetables, and other fresh produce.

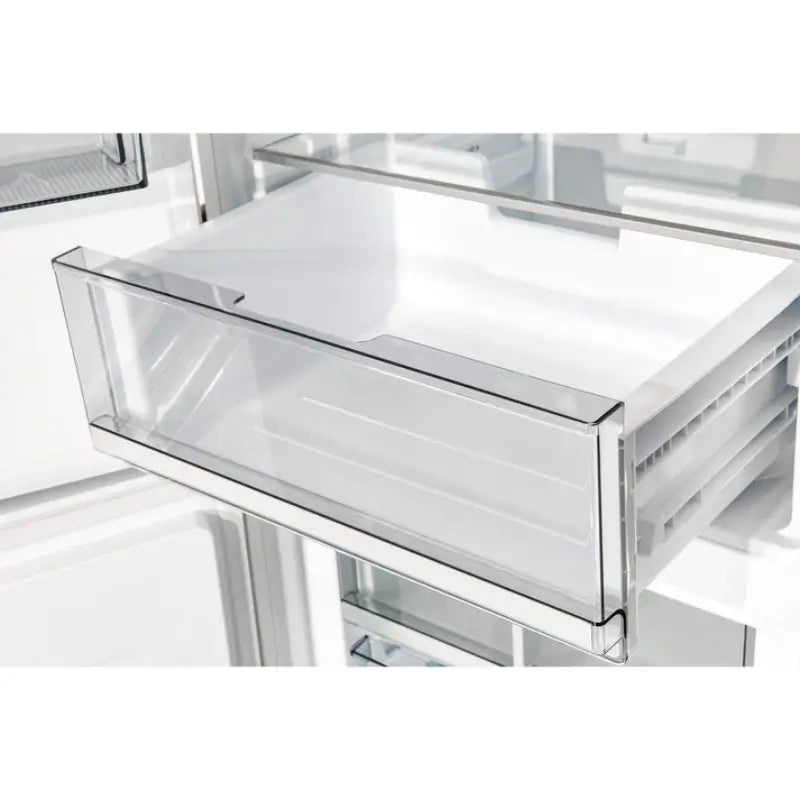

6 Clear Freezer Drawers
Six combined transparent freezer drawers help separate frozen foods into clearly organized storage zones.
Adjustable Refrigerator Storage
Adjustable shelving and flexible door-storage areas help accommodate foods and containers of different sizes.
Bottom-Freezer Organization
Frozen foods remain in the lower compartments while everyday fresh-food storage stays at a more convenient height.
Refrigerator and Freezer Temperature Management
Refrigerator Temperature Range
Adjustable from approximately 34°F to 43°F / 1°C to 6°C.
Freezer Temperature Range
Adjustable from approximately 5°F to -9°F / -15°C to -23°C.
Specialized Operating Modes
Fast Cooling
Fast Cooling temporarily operates the refrigerator at approximately 36°F / 2°C and automatically exits after 24 hours.
Fast Freezing
Fast Freezing temporarily operates the freezer at approximately -13°F / -25°C and automatically exits after 24 hours.
Eco Mode
Eco Mode operates the refrigerator at approximately 41°F / 5°C and the freezer at approximately 0°F / -18°C.
Holiday Mode
Holiday Mode operates the refrigerator at approximately 63°F / 17°C while maintaining freezer operation at approximately 0°F / -18°C.
Sabbath Mode
Sabbath Mode changes appliance lighting and display behavior according to the manufacturer operating instructions.
Fault & Temperature Alerts
The electronic control system can display fault conditions and includes a freezer over-temperature alarm for conditions requiring attention.
Automatic Ice Maker and Water Connection
The FFFFD1766-48WHT includes an internal automatic ice maker for everyday ice production.
Who Is the FORNO Custodia FFFFD1766-48WHT Best For?
Symmetrical Premium Kitchen Layouts
The paired refrigeration configuration is especially relevant for kitchens where balanced appliance symmetry is part of the overall design.
Buyers Wanting Two Refrigeration Columns
Instead of one continuous wide cabinet, the Custodia distributes food storage across two separate 24-inch refrigerator/freezer units.
White and Warm-Metal Kitchen Designs
The white finish and Antique Brass handles work particularly well with white cabinetry, brass fixtures, and other warm metallic hardware.
Buyers Who Want Automatic Ice
The integrated automatic ice maker provides built-in ice production when the appliance is connected to the required household water supply.
Drawer-Based Freezer Organization
Six combined freezer drawers provide divided frozen-food storage across the paired refrigeration system.
Choose Another Configuration If
- You need one continuous 48-inch refrigerator cavity.
- Your cabinetry is designed for only one conventional 48-inch appliance cabinet.
- You cannot accommodate the manufacturer cutout requirements for both units.
- You cannot maintain the required installation ventilation.
- You cannot provide a household water connection for automatic ice production.
- You require a commercial-use manufacturer warranty.
Important Installation Considerations
This Is a Two-Unit Configuration
The FFFFD1766-48WHT combines a left-side and right-side 24-inch appliance. Do not plan the surrounding cabinetry as though this were one conventional single-piece 48-inch refrigerator.
Verify Cabinet Dimensions
Confirm appliance dimensions, required openings, ventilation, door clearance, and surrounding cabinetry before installation.
Plan the Water Connection
The automatic ice maker requires connection to a household water supply. Water-line access should be coordinated before the appliances are placed.
Allow the Appliances to Stand Before Powering On
FORNO instructs installers to allow the refrigerators to stand upright and undisturbed for 24 hours before connecting them to power.
Product Dimensions and Cabinet Requirements
Overall Paired Dimensions
| Overall Width | 46.85 in. / 1190 mm |
|---|---|
| Overall Height | 73.2 in. / 1860 mm |
| Overall Depth | 22.8 in. / 580 mm |
Minimum Cabinet Openings
| Minimum Width Per Unit | 27.4 in. / 697 mm |
|---|---|
| Minimum Depth Per Unit | 22.4 in. / 571 mm |
| Minimum Opening Height | 77.1 in. / 1960 mm |
| Illustrated Upper Ventilation Clearance | 3 15/16 in. / 100 mm |
Cabinetry Planning Note
Review the complete manufacturer Product & Cutout Dimensions document before cabinetry fabrication. Additional spacing and door-opening considerations are illustrated in the supplied drawing.
Installation Requirements
Adequate Ventilation
Heat removed from the refrigerated compartments must be able to dissipate. Required ventilation areas should remain unobstructed.
Avoid Heat and Damp Locations
Do not install the refrigerators close to heat-producing appliances or in excessively damp locations.

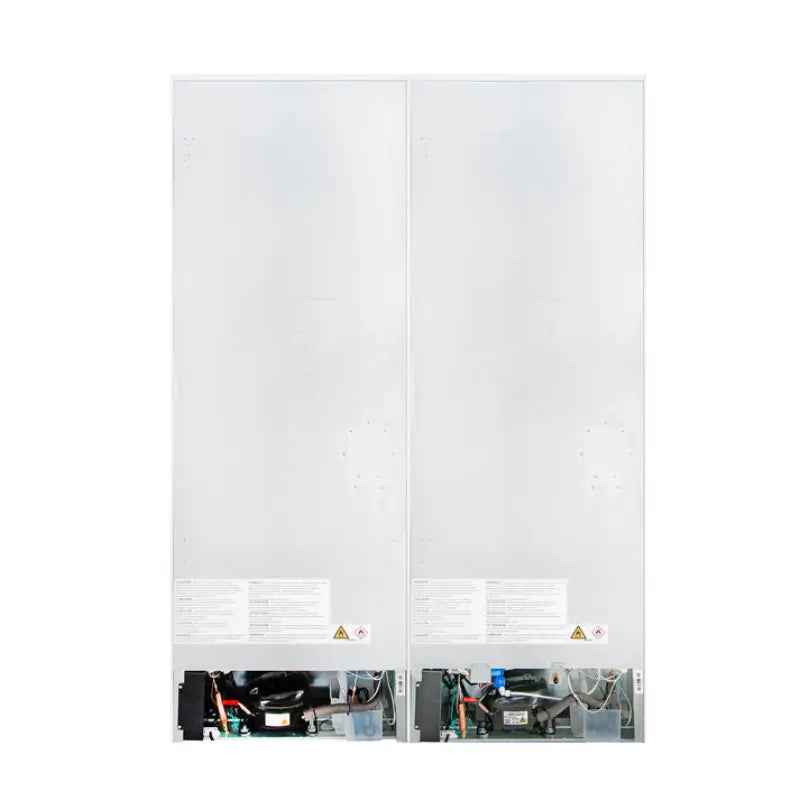

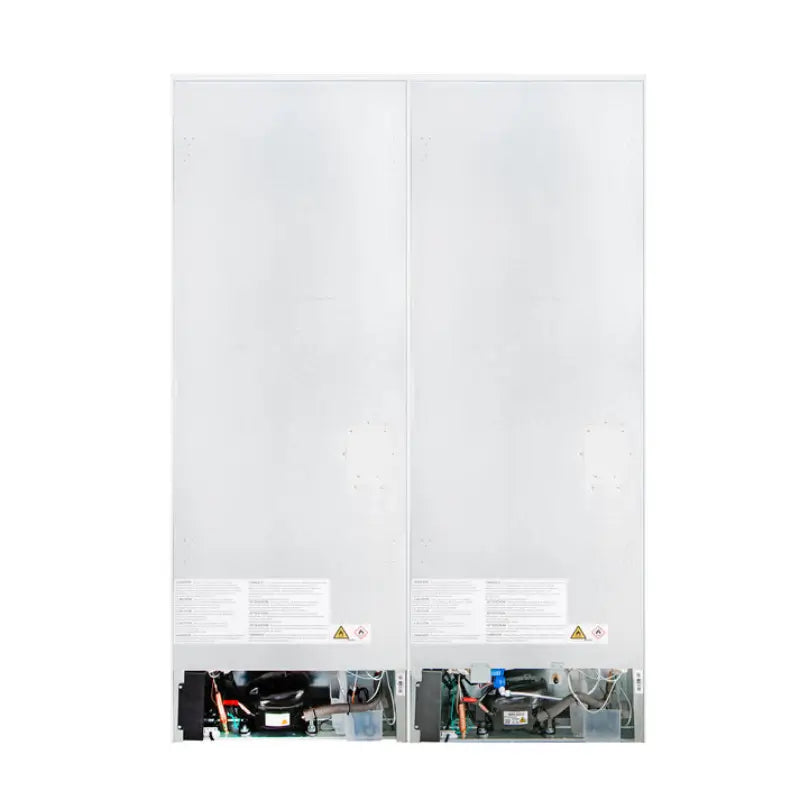

Maintain Rear Clearance
The refrigeration system at the rear should not contact the rear wall, and adequate airflow should be maintained.
Level the Appliances
Height-adjustable front feet are provided to support proper leveling and appliance alignment.
Water Connection
Connect the rear water line to the household supply if the automatic ice maker will be used.
Use Adequate Assistance
The manufacturer recommends assistance from another person or persons when moving and installing the refrigeration units.
Detailed Technical Specifications
General
| Brand | FORNO |
|---|---|
| Collection | Custodia |
| Model Number | FFFFD1766-48WHT |
| Category | Bottom Freezer Refrigerators |
| Configuration | Paired left- and right-side 24-inch units |
| Combined Capacity | 20.6 cu. ft. |
| Color / Finish | White |
| Handle Finish | Antique Brass |
| Primary Material | Metal / Plastic |
| Intended Application | Residential / Household |
| ADA Compliant | No |
| Bluetooth Compatibility | No |
Cooling and Controls
| Cooling System | Total No Frost |
|---|---|
| Cooling Type | Total No Frost |
| Control Type | Electronic |
| Control Location | Interior Top |
| Display Type | LED |
| Control Lockout | No |
| Fast Cooling | Yes |
| Fast Freezing | Yes |
| Eco Mode | Yes |
| Holiday Mode | Yes |
| Sabbath Mode | Yes |
| Temperature-Controlled Drawers | No |
Interior and Storage
| Glass Shelves | 8 combined |
|---|---|
| Door Bins | 6 combined |
| Crispers | 2 combined |
| Clear Freezer Drawers | 6 combined |
| Interior Lighting | Yes |
| Lighting Color | White |
| Automatic Ice Maker | Yes |
Electrical and Operating
| Voltage | 115 V |
|---|---|
| Plug Included | Yes |
| Noise Level | 44 dBA |
| Refrigerator Temperature Range | 34°F–43°F / 1°C–6°C |
| Freezer Temperature Range | 5°F to -9°F / -15°C to -23°C |
Care and Operating Considerations
Allow Air Circulation
Avoid overfilling the refrigerator. Maintain sufficient space between foods so cooled air can circulate properly.
Cool Food Before Storage
Hot or warm food should be allowed to cool before being placed inside the refrigerator or freezer.
Interior Cleaning
Disconnect the appliances from power before cleaning. FORNO recommends bicarbonate of soda and lukewarm water for interior cleaning.
Clean Shelves by Hand
Shelves and door-storage components should be cleaned separately by hand rather than placed in a dishwasher.
No Frost Maintenance
Routine freezer defrosting should not normally be required. Heavy ice buildup can indicate a sealing or installation issue.
Extended Non-Use
If the appliances will not be used for a prolonged period, disconnect and clean them, then leave the doors slightly open.
FORNO Limited Warranty
FORNO provides a two-year limited warranty beginning from the original retail purchase date for qualifying products sold to the purchaser and installed in the United States or Canada, provided the appliance remains within the original country of purchase.
Under the manufacturer's stated terms, qualifying component or part failures caused by defects in materials and/or workmanship are covered during the warranty period under ordinary residential, non-commercial use.
FORNO also specifies a 30-day cosmetic warranty, subject to the manufacturer's stated inspection requirements, limitations, and exclusions.
FORNO FFFFD1766-48WHT Manuals and Technical Documentation
Review the manufacturer documentation before installation, cabinetry fabrication, water-line preparation, electrical planning, operation, or service.
Frequently Asked Questions About the FORNO FFFFD1766-48WHT
Is the FORNO FFFFD1766-48WHT one 48-inch refrigerator or two units?
The FFFFD1766-48WHT is a paired configuration using separate left- and right-side 24-inch units. Cabinetry must accommodate both units rather than treating the product as one conventional 48-inch refrigerator.
What are the dimensions of the FORNO FFFFD1766-48WHT?
The paired configuration measures approximately 46.85 inches wide × 73.2 inches high × 22.8 inches deep. Use the manufacturer dimensional drawing when finalizing cabinetry.
What cutout is required for the FORNO FFFFD1766-48WHT?
FORNO's dimensional drawing shows two cabinet openings, each requiring approximately 27.4 inches minimum width × 22.4 inches minimum depth, with a minimum opening height of 77.1 inches.
Does the FORNO FFFFD1766-48WHT require a water connection?
Yes. A household water connection is required to operate the automatic ice maker.
Does the FORNO FFFFD1766-48WHT require manual defrosting?
Routine freezer defrosting should not normally be necessary because the appliance uses a Total No Frost system. Heavy ice buildup can indicate a door-sealing or installation issue.
Does the FORNO FFFFD1766-48WHT require ventilation clearance?
Yes. FORNO requires adequate ventilation and specifies 3 15/16 inches / 100 mm of upper ventilation clearance for the illustrated tall-housing installation.
What temperature range does the FORNO FFFFD1766-48WHT provide?
The refrigerator can be adjusted from approximately 34°F to 43°F, while the freezer can be adjusted from approximately 5°F to -9°F.
Is the FORNO FFFFD1766-48WHT intended for commercial use?
FORNO's supplied warranty applies under ordinary residential, non-commercial use and excludes non-residential commercial applications.
Expert Buying Guidance
The FORNO Custodia FFFFD1766-48WHT is particularly well suited to residential kitchen projects where the visual balance of paired refrigeration columns is as important as organized food storage. Its white finish and Antique Brass handles give the appliance a distinctive design identity, while the two-column configuration provides dedicated fresh-food and freezer storage across a combined 20.6 cu. ft. capacity.
The most important buying consideration is installation. This refrigerator set should not be planned as one conventional 48-inch appliance. Cabinetry dimensions, ventilation, door clearance, electrical access, and the household water connection for the ice maker should all be confirmed before installation is finalized.
For buyers whose kitchen can accommodate those requirements, the Custodia combines Total No Frost cooling, adjustable refrigerator and freezer temperatures, organized drawer storage, automatic ice production, multiple operating modes, and coordinated white-and-Antique-Brass styling in one paired refrigeration package.
