FORNO Custodia Collection

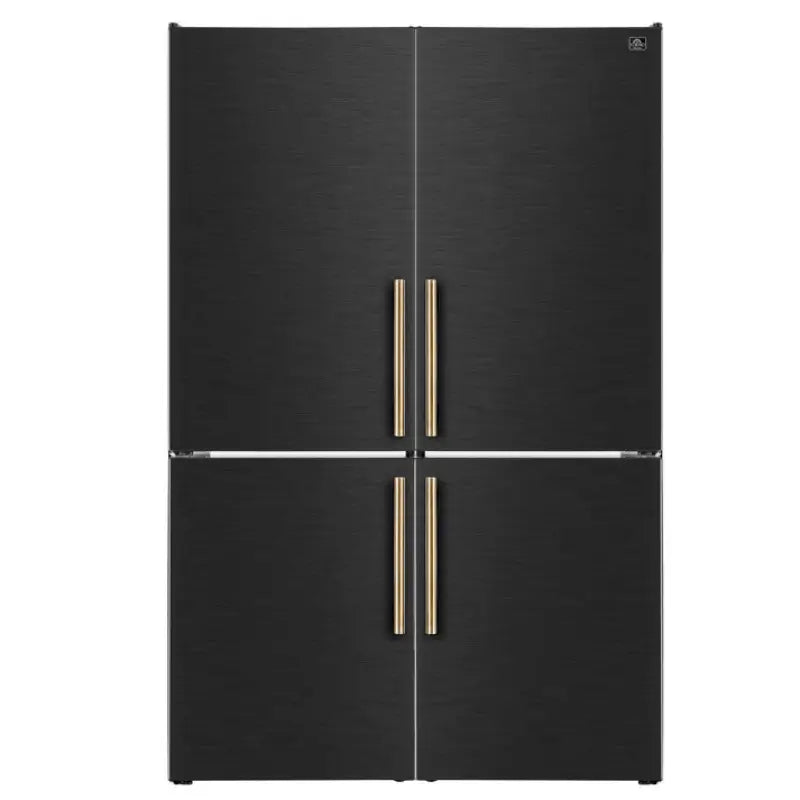

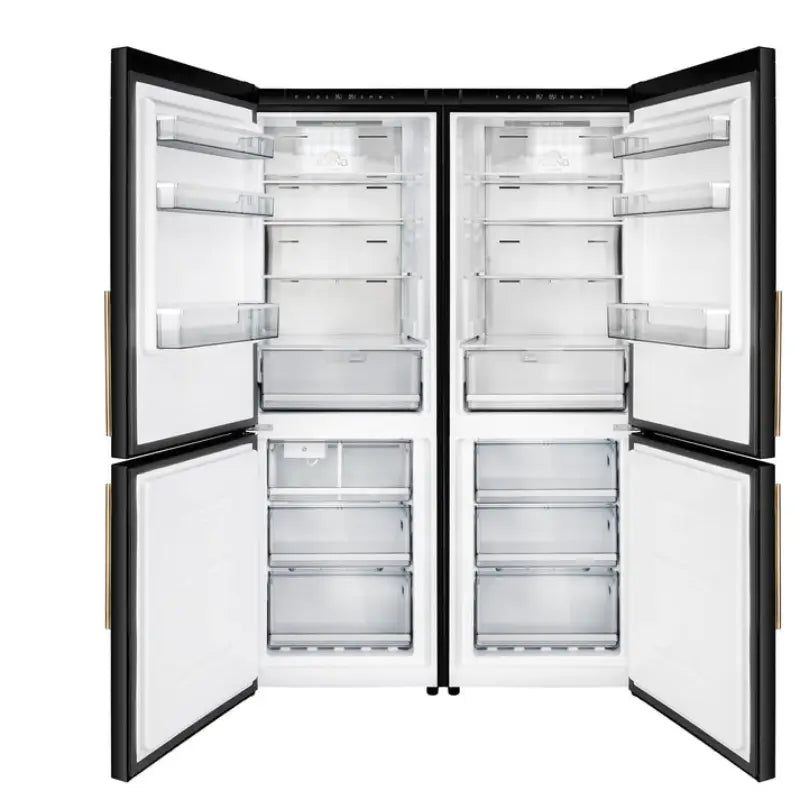

FORNO Custodia FFFFD1766-48BLK 48-Inch Bottom Freezer Refrigerator Set, 20.6 Cu. Ft. – Black with Antique Brass Handles
The FORNO Custodia FFFFD1766-48BLK is a 48-inch-class paired bottom-freezer refrigeration system that combines separate left- and right-hand 24-inch units to create a symmetrical kitchen layout. Together, the two appliances provide 20.6 cu. ft. of combined storage capacity with Total No Frost cooling, electronic controls, LED displays, dedicated refrigerator and freezer storage, and an automatic ice maker.
Unlike a conventional single-cabinet 48-inch refrigerator, the Custodia configuration uses two slim refrigeration columns installed side by side. Fresh-food and frozen-food storage are distributed across both refrigerator/freezer units, creating a balanced four-door appearance while maintaining separate storage zones.
The black exterior is paired with Antique Brass handles, giving the system a distinctive premium-kitchen aesthetic. Refrigerator temperature can be adjusted from approximately 34°F to 43°F, while freezer temperature can be adjusted from approximately 5°F down to -9°F.
FORNO FFFFD1766-48BLK: Quick Decision Summary
Choose the FORNO Custodia FFFFD1766-48BLK when the kitchen is intentionally designed around two slim bottom-freezer columns rather than one continuous wide refrigerator cavity. The configuration combines approximately 48 inches of paired refrigeration with Total No Frost cooling, automatic ice production, electronic temperature control, multiple operating modes, and black-and-Antique-Brass styling.
| Best For | Premium residential kitchens, symmetrical appliance layouts, paired refrigeration installations, and designs using black finishes with warm metallic accents. |
|---|---|
| Configuration | Two separate left- and right-hand 24-inch bottom-freezer refrigerator units. |
| Combined Capacity | 20.6 cu. ft. |
| Key Advantage | Symmetrical paired-column layout with Total No Frost cooling, automatic ice production, electronic controls, six combined freezer drawers, and decorative Antique Brass hardware. |
| Primary Planning Requirement | Cabinetry must be designed around the two individual appliance openings rather than the nominal 48-inch product designation. |
Things to Know Before Ordering
- This is a paired two-unit refrigeration system.
- It does not provide one continuous 48-inch interior cavity.
- FORNO specifies separate cabinet openings for the individual units.
- A household water connection is required for automatic ice production.
- Adequate ventilation must be maintained around the appliances.
- Door movement and surrounding cabinetry clearance must be verified.
- FORNO instructs users to allow the refrigerators to stand upright and undisturbed for 24 hours before connecting them to power.
Quick Product Facts
| Brand | FORNO |
|---|---|
| Collection | Custodia |
| Model | FFFFD1766-48BLK |
| Product Type | Bottom Freezer Refrigerator Set |
| Configuration | Paired Left + Right 24-Inch Units |
| Combined Capacity | 20.6 cu. ft. |
| Overall Width | 46.85 in. / 1190 mm |
| Overall Depth | 22.8 in. / 580 mm |
| Overall Height | 73.2 in. / 1860 mm |
| Cooling System | Total No Frost |
| Ice Maker | Automatic |
| Water Connection | Required for automatic ice maker operation |
| Control Type | Electronic |
| Control Location | Interior Top |
| Display Type | LED |
| Interior Lighting | Yes |
| Lighting Color | White |
| Finish | Black |
| Handle Finish | Antique Brass |
| Voltage | 115 V |
| Plug Included | Yes |
| Noise Level | 44 dBA |
| Bluetooth Compatible | No |
| Control Lockout | No |
| Temperature-Controlled Drawers | No |
| ADA Compliant | No |
| Primary Material | Metal / Plastic |
| Intended Application | Residential / Household |
Key Features of the FORNO Custodia FFFFD1766-48BLK

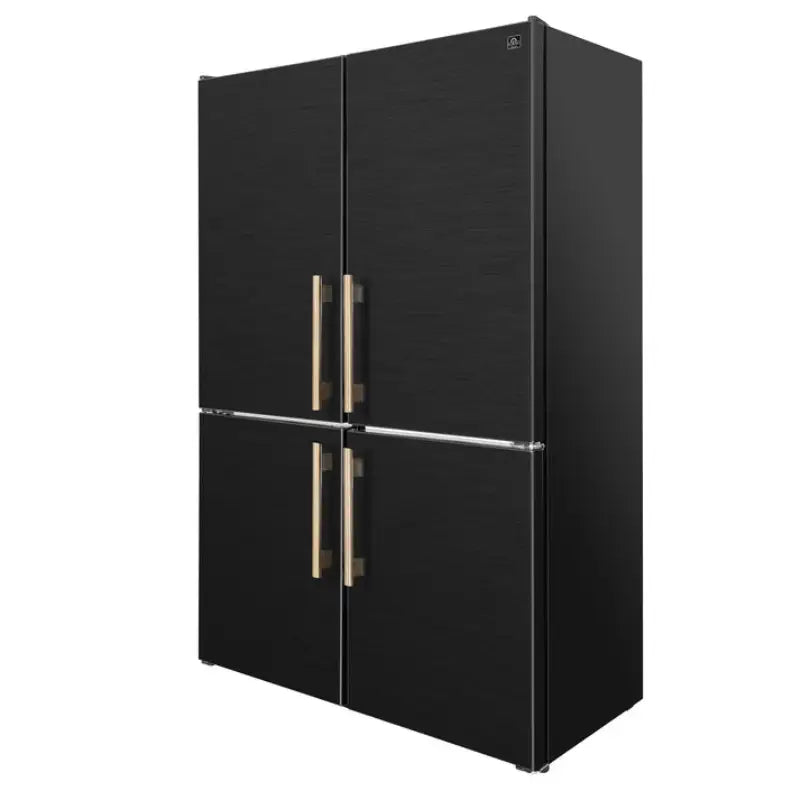

Paired Slim-Column Design
The Custodia set combines separate left- and right-hand 24-inch bottom-freezer units to create a wide, balanced refrigeration installation without using one conventional 48-inch cabinet.
The paired approach is especially useful when appliance symmetry and divided refrigerator/freezer storage are priorities in the kitchen design.
20.6 Cu. Ft. Combined Capacity
The two appliances provide 20.6 cu. ft. of combined refrigerator and freezer storage, distributing groceries across the individual columns.
Total No Frost Cooling
Total No Frost operation is designed to reduce heavy ice buildup and eliminate the need for routine manual freezer defrosting under normal operating conditions.
Automatic Ice Maker
An internal automatic ice maker provides ongoing ice production. A household water connection is required for ice-maker operation.

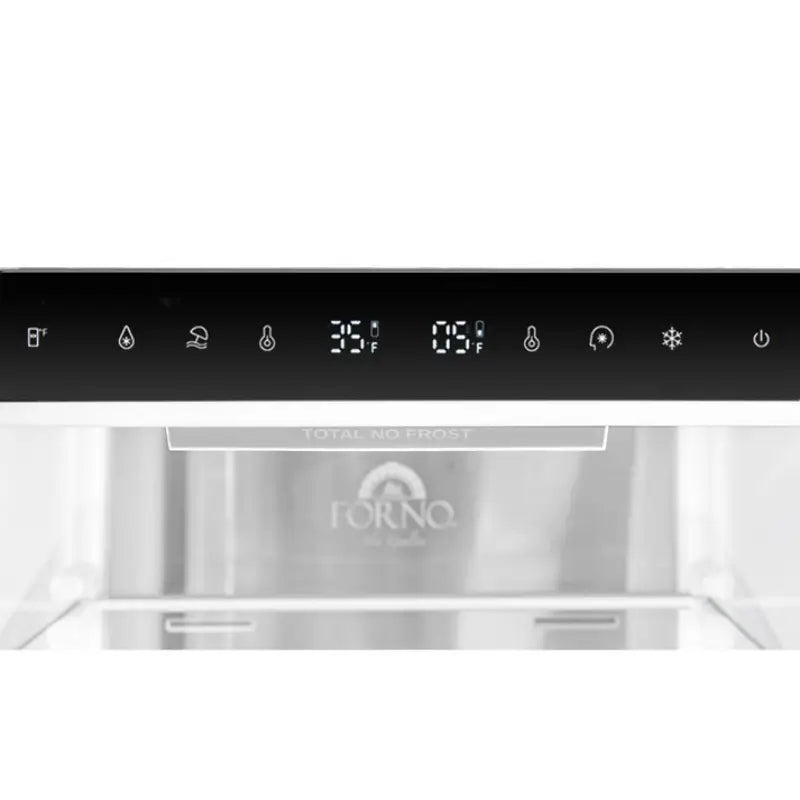

Electronic Temperature Controls
Interior electronic controls provide adjustable refrigerator and freezer temperatures together with Fast Cool, Fast Freeze, Eco, Holiday, and Sabbath operating modes.
Black Finish with Antique Brass Handles
The black exterior is paired with Antique Brass handles, making this configuration particularly suitable for kitchens using black cabinetry, warm metallic hardware, or brass accents.
White LED Interior Lighting
White LED lighting provides interior illumination while the controls remain positioned at the interior top of the refrigerator.
44 dBA Published Noise Level
FORNO lists a published 44 dBA noise level for the paired refrigeration configuration.
Combined Fresh-Food and Freezer Storage
The paired Custodia layout separates storage across two refrigerator and freezer units, giving buyers multiple dedicated zones for everyday grocery organization.

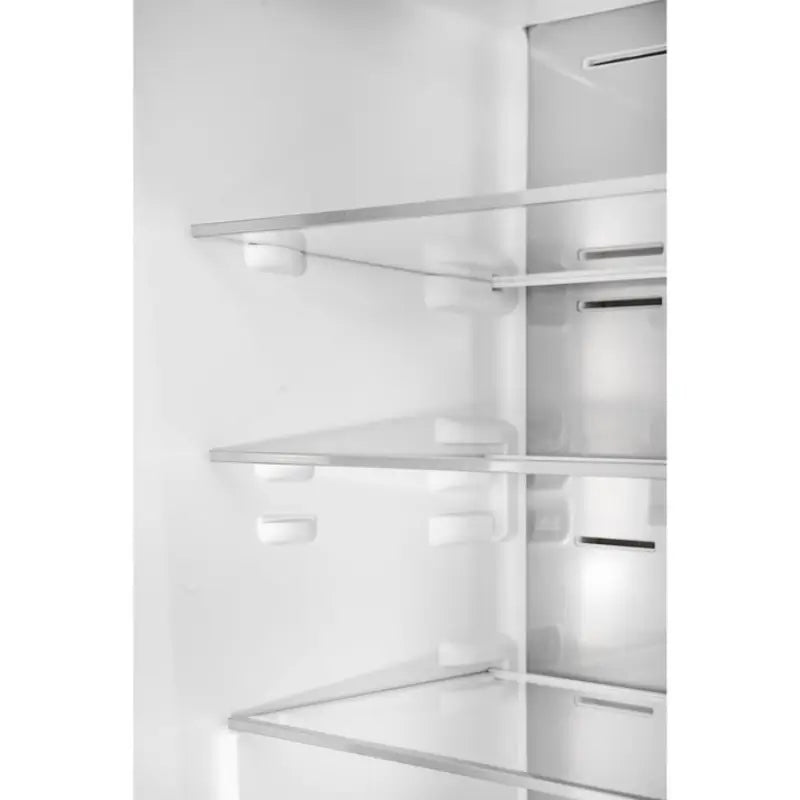

8 Glass Shelves
Eight glass shelves across the combined set provide multiple levels for food and beverage storage.

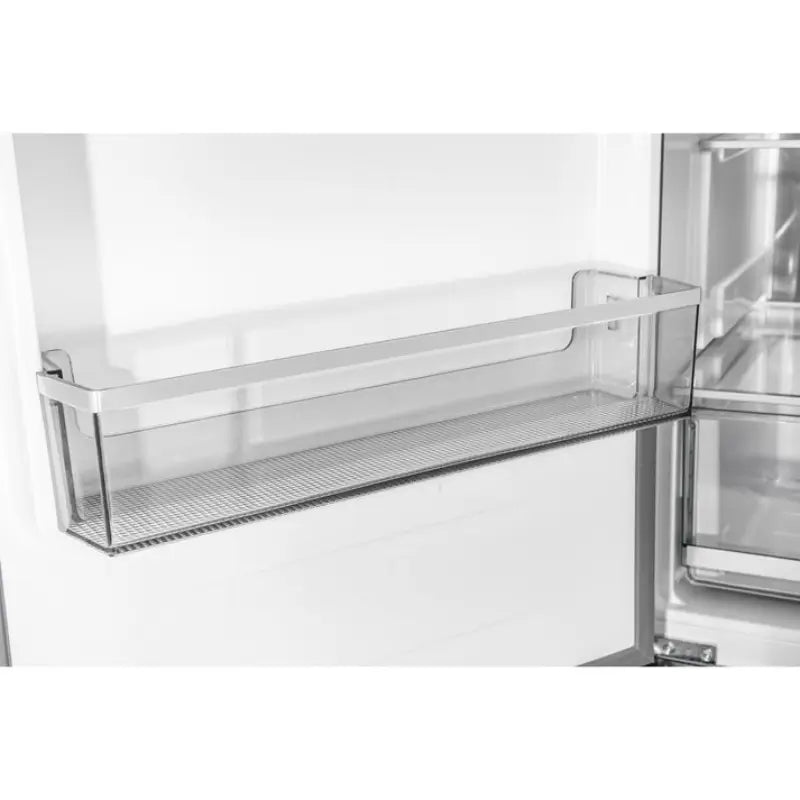

6 Door Bins
Six combined door bins provide additional refrigerator storage for smaller items.
2 Dedicated Crispers
Two crisper compartments provide separated storage for fresh foods.
FlexiLift Door Shelving
FlexiLift door shelving is identified in the supplied manufacturer manual for flexible door-storage organization.

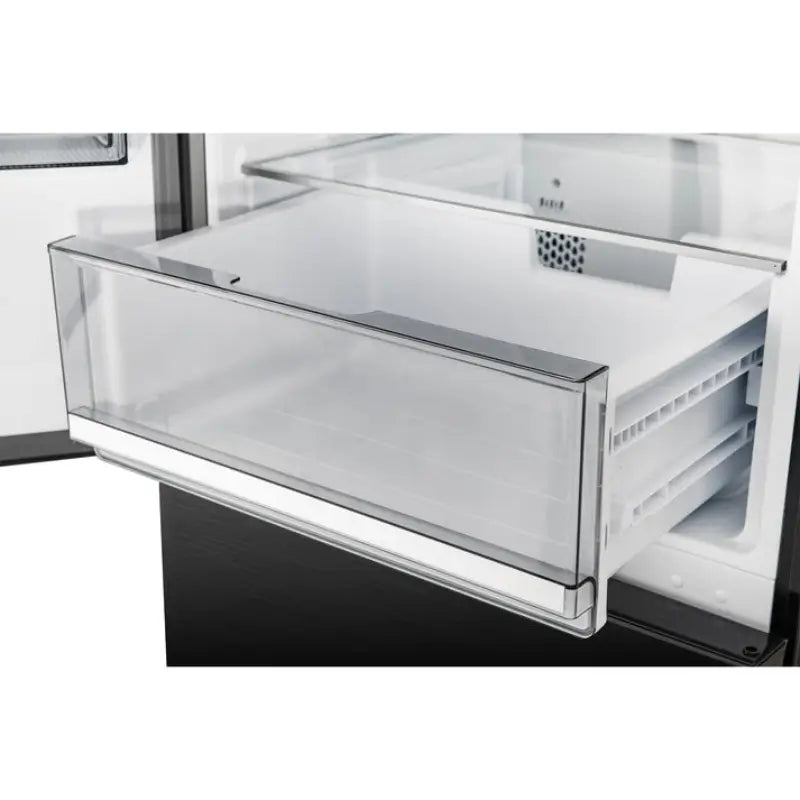

6 Freezer Drawers
Six clear freezer drawers across the paired configuration provide divided frozen-food storage.

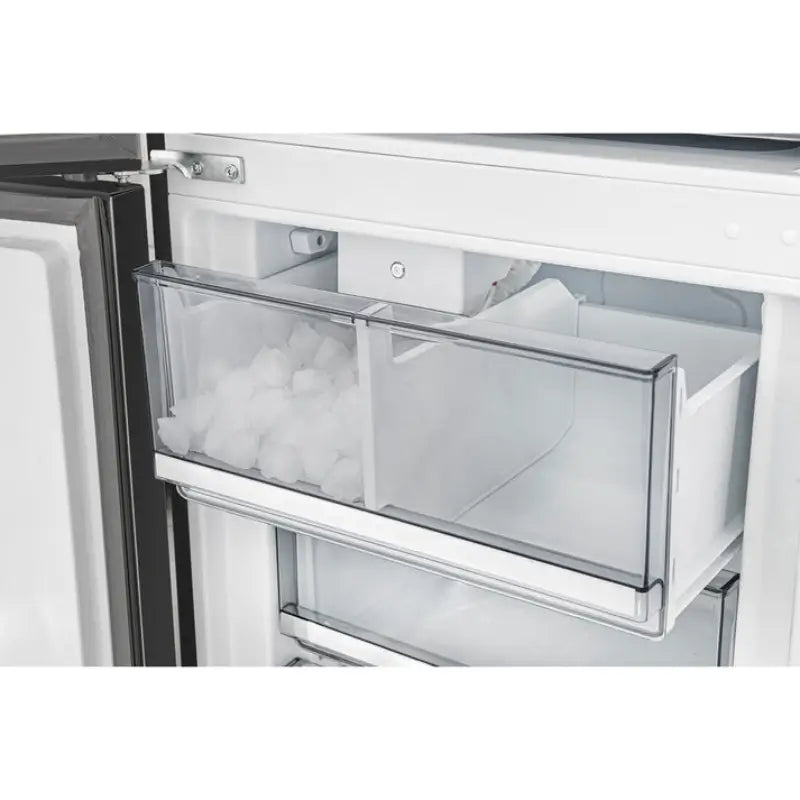

Automatic Ice Storage
The freezer configuration accommodates the internal automatic ice-maker system.
Refrigerator and Freezer Temperature Management
Refrigerator Temperature
Adjustable from approximately 34°F to 43°F / 1°C to 6°C.
Freezer Temperature
Adjustable from approximately 5°F to -9°F / -15°C to -23°C.
The manufacturer's instructions identify a normal/default setting of approximately 41°F / 5°C for the refrigerator and approximately 0°F / -18°C for the freezer.
Specialized Operating Modes
Fast Cool
Fast Cool operates the refrigerator at approximately 36°F / 2°C and automatically exits after approximately 24 hours.
Fast Freeze
Fast Freeze operates the freezer at approximately -13°F / -25°C and automatically exits after approximately 24 hours.
Eco Mode
Eco Mode operates the refrigerator at approximately 41°F / 5°C and the freezer at approximately -18°C.
Holiday Mode
Holiday Mode changes refrigerator operation to approximately 63°F / 17°C while maintaining freezer operation at approximately -18°C.
Sabbath Mode
Sabbath Mode changes appliance lighting and display behavior according to the manufacturer's operating instructions.
Fault & Temperature Alerts
The electronic system includes fault-display functionality and a freezer over-temperature alarm as described in the user manual.
Automatic Ice Maker and Water Connection
The FFFFD1766-48BLK includes an internal automatic ice maker. Its dedicated control allows the ice maker to be switched on or off, and the system includes status indications for operating condition, full-ice status, drawer removal, and ice-jam conditions.
The manufacturer documentation identifies an M11-size connecting water pipe in the water-connection arrangement.
Interior Lighting and Electronic Controls
White LED lighting illuminates the storage compartments while interior-top electronic controls keep the appliance exterior visually clean.
| Lighting Type | LED |
|---|---|
| Lighting Color | White |
| Manual LED Specification | 12 V / 2 W |
| User Replaceable | No; manufacturer instructions specify professional replacement |
| Control Type | Electronic |
| Control Location | Interior Top |
| Display | LED |
Who Is the FORNO Custodia FFFFD1766-48BLK Best For?
Symmetrical Premium Kitchen Layouts
The paired left- and right-hand configuration is particularly suited to kitchens where balanced appliance symmetry is a key design objective.
Buyers Wanting Two Independent Refrigeration Columns
Rather than providing one continuous cavity, this system distributes fresh-food and freezer storage across two dedicated 24-inch appliances.
Black and Warm-Metal Kitchen Designs
The black exterior with Antique Brass handles works especially well in kitchens featuring dark cabinetry, brass fixtures, or other warm metallic finishes.
Households Wanting Automatic Ice
The integrated ice-maker system provides automatic ice production when connected to a compatible household water supply.
Buyers Who Prefer Drawer-Based Freezer Storage
Six combined freezer drawers provide separated frozen-food storage across the two lower freezer compartments.
Choose Another Configuration If
- You need one continuous 48-inch refrigerator interior.
- Your cabinetry is designed for only one conventional 48-inch appliance cabinet.
- You cannot provide the required installation ventilation.
- You cannot provide a household water connection for the ice maker.
- Your installation cannot meet the manufacturer's individual appliance clearances.
- You require commercial-use manufacturer warranty coverage.
Product Dimensions
Overall Paired Dimensions
| Overall Width | 46.85 in. / 1190 mm |
|---|---|
| Overall Depth | 22.8 in. / 580 mm |
| Overall Height | 73.2 in. / 1860 mm |
| Upper Section Dimension Shown | 40.3 in. / 1025 mm |
| Lower Section Dimension Shown | 30.6 in. / 778.5 mm |
Cabinet Cutout Requirements
Because the Custodia configuration uses two individual 24-inch units, FORNO's dimensional drawing specifies separate cabinet openings.
| Minimum Opening Width — Each Unit | 27.4 in. / 697 mm |
|---|---|
| Minimum Opening Depth — Each Unit | 22.4 in. / 571 mm |
| Minimum Opening Height | 77.1 in. / 1960 mm |
| Clearances Shown in Manufacturer Drawing | 2 in. / 50.8 mm |
Cabinetry Warning
Do not construct cabinetry from the nominal “48-inch” description alone. Verify every cutout, clearance, ventilation, and door-opening dimension against the manufacturer's complete dimensional document.

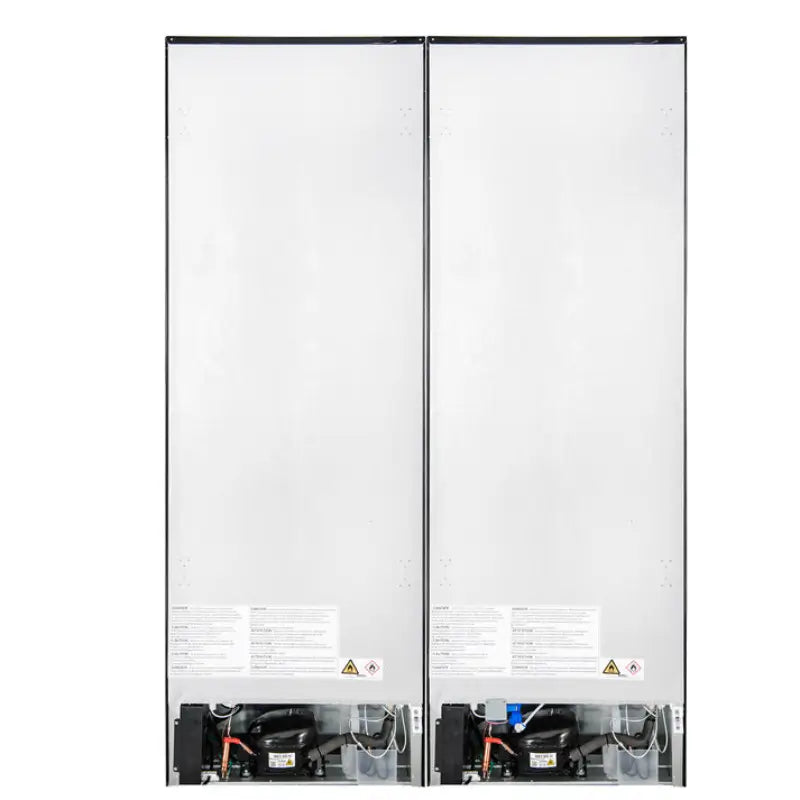

Ventilation Requirements
Adequate ventilation is essential when installing this paired refrigeration system into fitted cabinetry. Heat removed from the refrigerated compartments must be able to dissipate into the surrounding environment.
The manufacturer warns that inadequate ventilation can contribute to:
- Premature compressor failure
- Excessive power consumption
- Total system failure
- Potential warranty implications
Installation Preparation
Before Connecting Power
FORNO instructs users to allow the refrigerator to stand upright and undisturbed for 24 hours before connecting it to a power source.
Location
Do not install the appliances close to heat sources or in damp locations. Adequate rear and upper ventilation must be maintained.
Leveling
Use the height-adjustable front feet to level each appliance correctly during installation.
Moving & Positioning
The manufacturer's instructions recommend additional assistance when moving or installing the refrigeration units because of their size and weight.
Water Supply
Plan the household water connection required for the automatic ice maker before the appliances are positioned.
Electrical Access
Verify electrical access for the paired refrigeration configuration before cabinetry is completed.
Electrical Requirements
| Voltage | 115 V |
|---|---|
| Plug Included | Yes |
| Control Type | Electronic |
| Interior Lighting | LED |
| LED Specification in Manual | 12 V / 2 W |
Electrical installation should follow the manufacturer instructions and applicable electrical requirements.
Complete Technical Specifications
General Specifications
| Brand | FORNO |
|---|---|
| Collection | Custodia |
| Model | FFFFD1766-48BLK |
| Category | Bottom Freezer Refrigerators |
| Configuration | Paired Left + Right 24-Inch Units |
| Combined Capacity | 20.6 cu. ft. |
| Color / Finish | Black |
| Handle Finish | Antique Brass |
| Primary Material | Metal / Plastic |
| ADA Compliant | No |
| Bluetooth Compatible | No |
| Certificate of Conformity (GCC) | N/A |
| Intended Use | Household / Residential |
Cooling and Control Specifications
| Cooling System | Total No Frost |
|---|---|
| Cooling Type | Total No Frost |
| Control Type | Electronic |
| Control Location | Interior Top |
| Display Type | LED |
| Control Lockout | No |
| Temperature-Controlled Drawers | No |
| Refrigerator Temperature Range | 34°F to 43°F / 1°C to 6°C |
| Freezer Temperature Range | 5°F to -9°F / -15°C to -23°C |
| Fast Cool | Yes |
| Fast Freeze | Yes |
| Eco Mode | Yes |
| Holiday Mode | Yes |
| Sabbath Mode | Yes |
Storage Specifications
| Glass Shelves | 8 total across combined set |
|---|---|
| Door Bins | 6 total across combined set |
| Crispers | 2 total across combined set |
| Clear Freezer Drawers | 6 total across combined set |
| Maximum Shelf Load | 22 lb. / 10 kg |
| Bottle Storage | Yes |
| Automatic Ice Maker | Yes |
| Water Connection Required | Yes, for ice-maker operation |
Lighting and Performance
| Interior Light | Yes |
|---|---|
| Lighting Type | LED |
| Lighting Color | White |
| Noise Level | 44 dBA |
| Defrost System | No Frost |
| Voltage | 115 V |
| Plug Included | Yes |
Included Components
Left Refrigeration Unit
Left-hand 24-inch bottom-freezer refrigerator unit.
Right Refrigeration Unit
Right-hand 24-inch bottom-freezer refrigerator unit.
Antique Brass Handles
Antique Brass hardware is included with the black appliance configuration.
Interior Storage
Refrigerator glass shelving, door storage, crispers, and freezer drawers.
Automatic Ice Maker
Internal automatic ice-production capability is included.
Electronic Controls & LED Lighting
Electronic control systems and white LED interior lighting are included.
Care and Maintenance
Disconnect Power First
Disconnect the refrigerator from the power supply before cleaning or maintenance.
Use Mild Cleaning Methods
FORNO recommends bicarbonate of soda and lukewarm water for interior cleaning and advises against abrasive products or detergents.
Hand-Wash Storage Components
Shelves and door-storage components should be cleaned separately by hand rather than placed in a dishwasher.
FORNO Limited Warranty
FORNO's manufacturer documentation provides a two-year limited warranty for qualifying products sold to the original purchaser, installed in the United States or Canada, and remaining within the original country of purchase.
Under the manufacturer's stated terms, qualifying component or part failures resulting from defects in materials and/or workmanship are covered during the warranty period under ordinary residential, non-commercial use.
The manufacturer also provides a 30-day cosmetic warranty for specified manufacturing defects in materials and workmanship, subject to the stated exclusions and requirements.
FORNO FFFFD1766-48BLK Manuals and Documentation
Review the manufacturer documentation before installation, cabinetry construction, electrical planning, or water-line preparation.
Frequently Asked Questions About the FORNO FFFFD1766-48BLK
Is the FORNO FFFFD1766-48BLK one 48-inch refrigerator?
No. The FFFFD1766-48BLK combines separate left- and right-hand 24-inch bottom-freezer units to create the approximately 48-inch-wide configuration.
How much storage capacity does the FORNO FFFFD1766-48BLK provide?
The paired refrigeration set provides 20.6 cu. ft. of combined refrigerator and freezer capacity across the two individual appliances.
What are the dimensions of the FORNO FFFFD1766-48BLK?
The paired configuration measures approximately 46.85 inches wide × 22.8 inches deep × 73.2 inches high. Do not use these overall dimensions alone for cabinetry planning.
What cabinet opening does the FORNO FFFFD1766-48BLK require?
The manufacturer drawing specifies separate minimum openings of approximately 27.4 inches wide × 22.4 inches deep × 77.1 inches high for each unit. Follow the complete dimensional drawing before cabinetry is finalized.
Does the FORNO FFFFD1766-48BLK ice maker require a water line?
Yes. The automatic ice maker requires connection to the household water supply according to the manufacturer's installation instructions.
Does the FORNO FFFFD1766-48BLK require manual defrosting?
Routine manual freezer defrosting should not be required under normal operation because the refrigerator uses a No Frost system. Heavy ice buildup should be investigated as a possible sealing or installation issue.
What temperature range does the FORNO Custodia refrigerator provide?
The refrigerator adjusts from approximately 34°F to 43°F / 1°C to 6°C, while the freezer adjusts from approximately 5°F to -9°F / -15°C to -23°C.
Does the FORNO FFFFD1766-48BLK have Fast Cool and Fast Freeze?
Yes. Fast Cool operates at approximately 36°F / 2°C, while Fast Freeze operates at approximately -13°F / -25°C. Both are documented to exit automatically after approximately 24 hours.
Does the FORNO Custodia FFFFD1766-48BLK have Sabbath Mode?
Yes. Sabbath Mode changes the appliance lighting and control-display behavior according to the manufacturer's operating instructions.
Can the FORNO FFFFD1766-48BLK be used commercially?
Do not select this model for a commercial installation if manufacturer warranty coverage is required. FORNO's supplied warranty applies to ordinary residential, non-commercial use and excludes commercial applications.
Why is ventilation important when installing the FFFFD1766-48BLK?
Proper ventilation allows heat from the refrigeration system to dissipate. FORNO warns that inadequate ventilation can lead to excessive energy consumption, premature compressor failure, total system failure, and potential warranty implications.
Should cabinetry be planned from the 48-inch product name?
No. This product consists of two individual refrigeration units, so cabinetry must be planned from the manufacturer's actual product, cutout, clearance, ventilation, and door-opening dimensions.
Expert Buying Guidance
The FORNO Custodia FFFFD1766-48BLK is best suited to residential kitchens where the design calls for a broad, symmetrical refrigeration statement created from two slim bottom-freezer units rather than one conventional 48-inch refrigerator cabinet.
Its combination of 20.6 cu. ft. of combined storage, Total No Frost cooling, automatic ice production, electronic controls, bottom-freezer drawers, and black-and-Antique-Brass styling makes it particularly relevant for premium kitchen designs centered on symmetry and coordinated hardware finishes.
The most important purchasing consideration is installation. Do not order based on the nominal 48-inch description alone. Verify the separate cabinet openings, ventilation requirements, door movement, electrical supply, and household water connection against the final kitchen plans before purchase.
By buying from us you qualify for the full manufacturer warranty, save time and money!
We ship directly to your door from the manufacturer's warehouse.
