FORNO Custodia Collection

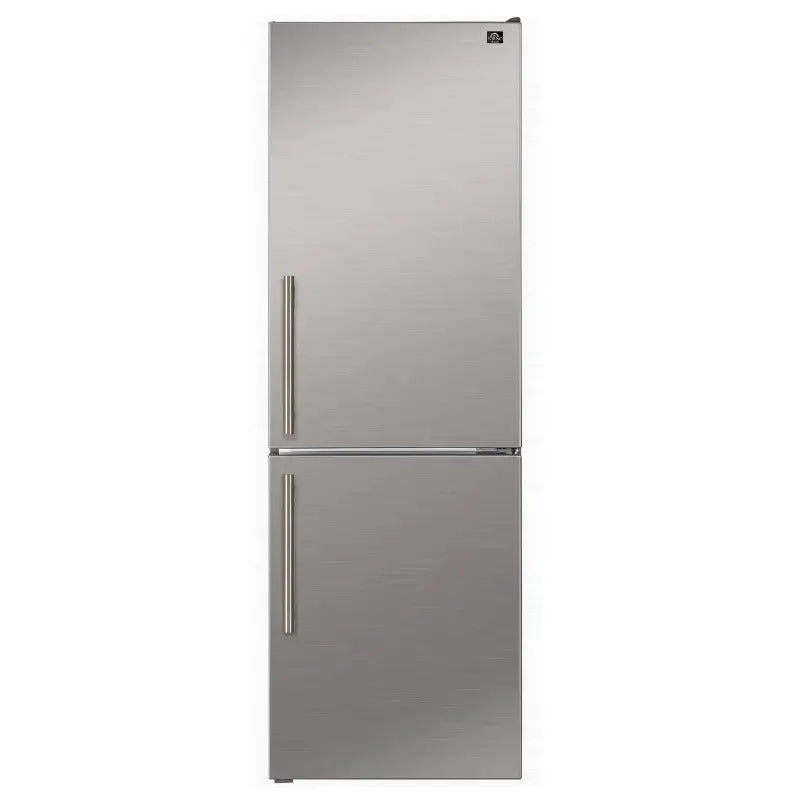

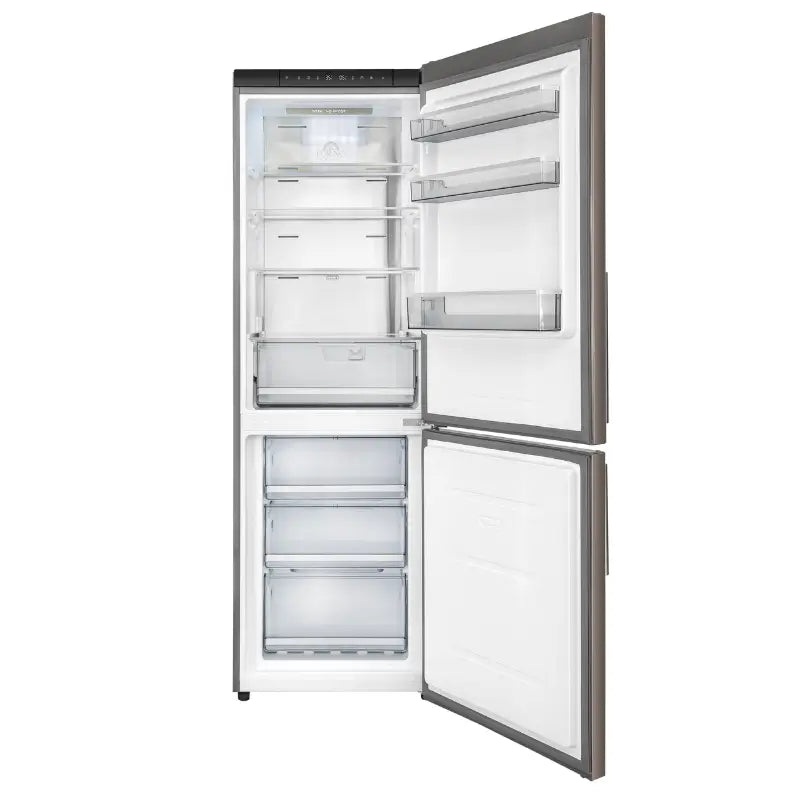

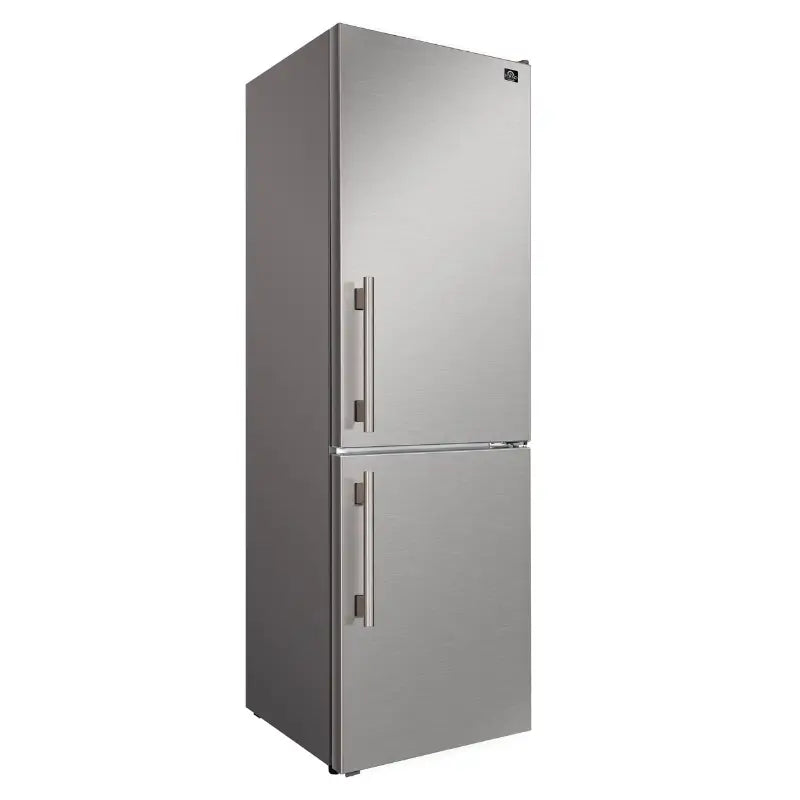

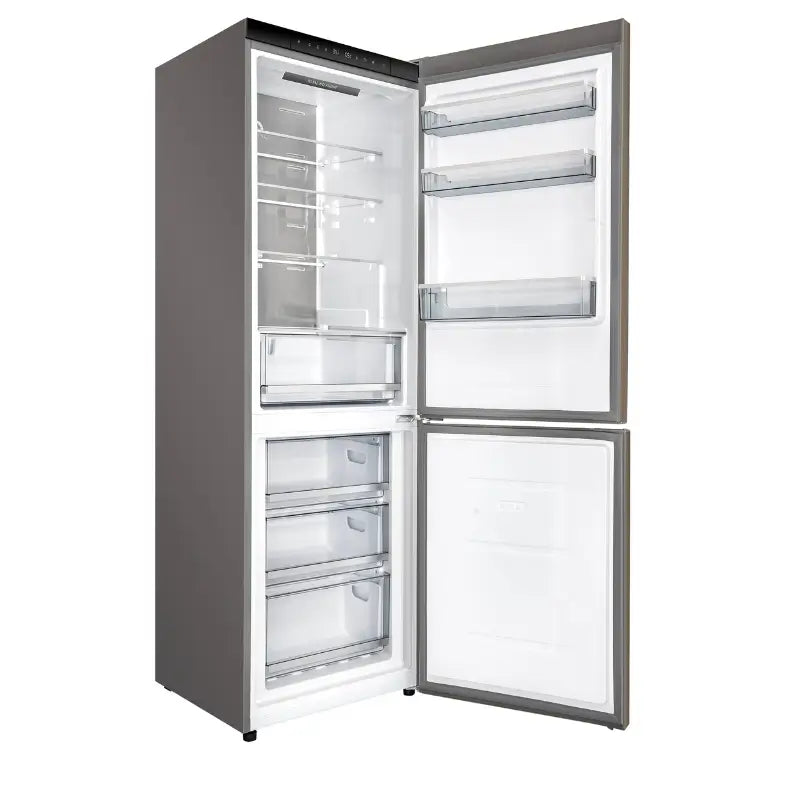

FORNO Custodia FFFFD1766-24RS 24-Inch Counter-Depth Bottom Freezer Refrigerator, 10.3 Cu. Ft., Right Swing – Stainless Steel
The FORNO Custodia FFFFD1766-24RS is a 24-inch counter-depth freestanding bottom-freezer refrigerator designed for kitchens where efficient use of space, organized food storage, and a streamlined stainless steel appearance are priorities. Its 10.3 cu. ft. total capacity is divided between a 7.3 cu. ft. fresh-food compartment and a 3.0 cu. ft. bottom freezer.
At just 23.43 inches wide, the Custodia provides a narrow refrigeration footprint while maintaining separate refrigerator and freezer compartments. The fresh-food area includes four glass shelves, three door bins, and a dedicated drawer, while the freezer uses three drawers for organized frozen-food storage.
Total No Frost cooling helps prevent heavy ice buildup, while Fast Cool and Fast Freeze provide temporary accelerated temperature control. Sabbath, Vacation/Holiday, and Energy Saver/Eco modes provide additional operating options, and the inverter compressor is rated by FORNO for 41 dB(A) operation.
FORNO FFFFD1766-24RS: Quick Decision Summary
Choose the FORNO Custodia FFFFD1766-24RS when your kitchen requires a narrow counter-depth refrigerator with a fixed right-hand door, bottom-freezer storage, and no need for automatic ice or water dispensing. Its compact footprint combines Total No Frost cooling, electronic controls, multiple operating modes, and organized refrigerator/freezer storage.
| Best For | Compact kitchens, narrow refrigerator openings, counter-depth layouts, apartments, secondary kitchens, and spaces requiring a fixed right-swing refrigerator door. |
|---|---|
| Product Type | Freestanding counter-depth bottom-freezer refrigerator. |
| Capacity | 10.3 cu. ft. total: 7.3 cu. ft. refrigerator and 3.0 cu. ft. freezer. |
| Door Configuration | Fixed right swing; non-reversible. |
| Key Advantage | Narrow counter-depth footprint with Total No Frost cooling, three-drawer bottom freezer, inverter compressor, Fast Cool, Fast Freeze, and multiple operating modes. |
Things to Know Before Ordering
- The refrigerator door is right-swing and non-reversible.
- This model is counter-depth but classified as freestanding, not built-in.
- The refrigerator does not include an ice maker.
- There is no external water dispenser.
- The freezer provides 3.0 cu. ft. of capacity across three drawers.
- Required ventilation and installation clearances must be maintained.
- Verify product dimensions and door-opening clearance before purchase.
Quick Product Facts
| Brand | FORNO |
|---|---|
| Collection | Alta Qualita |
| Series | Custodia |
| Model / SKU | FFFFD1766-24RS |
| UPC | 686136917773 |
| Product Type | Bottom Freezer Refrigerator |
| Installation Type | Freestanding |
| Depth Type | Counter-Depth |
| Advertised Width | 24" |
| Actual Width | 23.43" |
| Total Capacity | 10.3 cu. ft. |
| Refrigerator Capacity | 7.3 cu. ft. |
| Freezer Capacity | 3.0 cu. ft. |
| Door Swing | Right |
| Reversible Doors | No |
| Finish | Stainless Steel |
| Handle Finish | Stainless Steel |
| Cooling System | Total No Frost |
| Compressor | Inverter Compressor |
| Noise Rating | 41 dB(A) |
| Ice Maker | No |
| Water Dispenser | No |
| ENERGY STAR Certified | Yes |
| Safety Listing | cETLus |
| Warranty | 2-Year Limited Parts and Labor Warranty |
Key Features of the FORNO Custodia FFFFD1766-24RS
Space-Saving 24-Inch Width
Measuring 23.43 inches wide, the Custodia is designed for layouts where a narrower refrigerator footprint is required while still providing separate fresh-food and bottom-freezer compartments.
Counter-Depth Freestanding Design
FORNO classifies the FFFFD1766-24RS as counter-depth and freestanding. It offers a shallower profile without being classified as a built-in refrigerator.
Required ventilation and installation clearances should remain open rather than enclosing the appliance as if it were a fully integrated built-in model.
10.3 Cu. Ft. Total Capacity
The appliance provides 7.3 cu. ft. of refrigerator capacity and 3.0 cu. ft. of freezer capacity for a combined 10.3 cu. ft. of food-storage space.
Total No Frost Cooling
Total No Frost technology is designed to limit heavy ice buildup in the freezer. Under normal operation, regular manual freezer defrosting should not be necessary.
Fast Cool
Fast Cool temporarily sets the refrigerator compartment to 36°F (2°C). The function automatically exits after approximately 24 hours.
Fast Freeze
Fast Freeze temporarily operates the freezer at -13°F (-25°C) and automatically exits after approximately 24 hours.
Three-Drawer Bottom Freezer
Three freezer drawers separate frozen foods into individual storage areas instead of relying on one open freezer compartment.

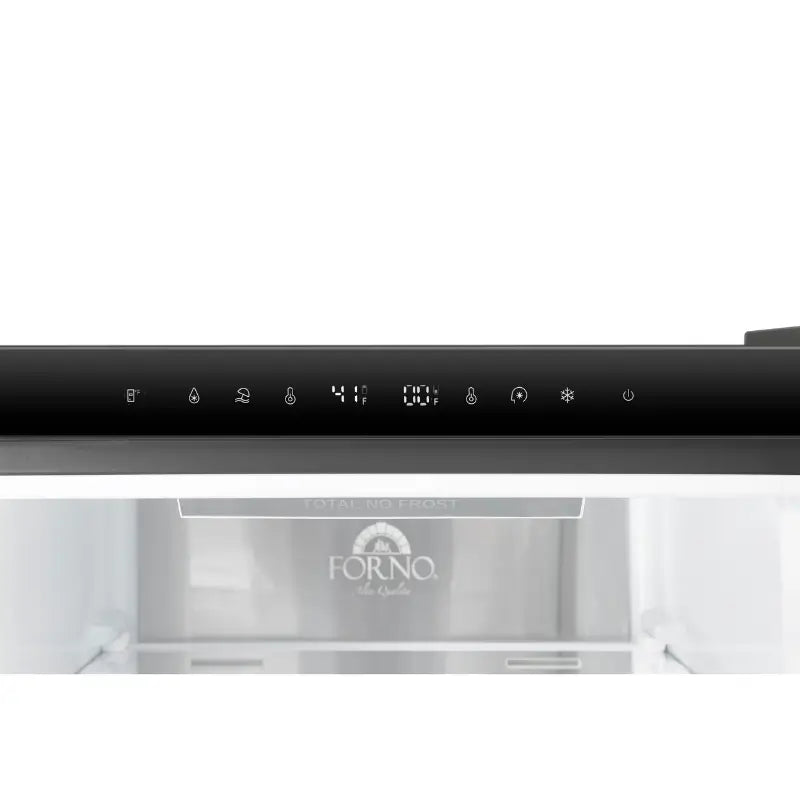

Electronic Touch Controls
Interior touch controls provide access to refrigerator and freezer temperature adjustment plus Fast Cool, Fast Freeze, Sabbath, Holiday/Vacation, and Energy Saver/Eco functions.
41 dB(A) Published Sound Rating
FORNO publishes a sound rating of 41 dB(A) for this model, providing a defined specification for buyers comparing refrigerator noise data.
Cooling and Operating Modes
Total No Frost
Designed to limit heavy ice buildup and reduce the need for routine manual freezer defrosting.
Fast Cool
Temporarily operates the refrigerator at 36°F (2°C) and automatically exits after approximately 24 hours.
Fast Freeze
Temporarily operates the freezer at -13°F (-25°C) and automatically exits after approximately 24 hours.
Sabbath Mode
Adjusts lighting and display operation according to the manufacturer's Sabbath Mode instructions.
Vacation / Holiday Mode
Provides an alternate operating configuration for periods when the refrigerator is not being used normally.
Energy Saver / Eco Mode
Operates the refrigerator at 41°F (5°C) and the freezer at approximately 0°F (-18°C) according to FORNO's control instructions.
Who Is the FORNO FFFFD1766-24RS Best For?
Narrow Kitchen Layouts
The 23.43-inch actual width makes this model appropriate for layouts where a conventional wider refrigerator does not fit.
Counter-Depth Installations
Its counter-depth configuration is suited to buyers who want a shallower refrigerator profile while retaining a freestanding appliance format.
Right-Swing Kitchen Configurations
This SKU is appropriate only where a fixed right-hand opening works with surrounding cabinetry, counters, walls, and traffic flow.
Bottom-Freezer Preference
The fresh-food compartment is positioned above the freezer, while three lower drawers provide separated frozen-food storage.
Buyers Who Do Not Need Ice or Water
This refrigerator does not include an ice maker or water dispenser, making it appropriate for buyers who do not require either feature.
When This Refrigerator May Not Be the Right Choice
- Your kitchen requires a left-hand-opening refrigerator.
- You need a reversible refrigerator door.
- You want a true built-in or fully integrated refrigerator.
- You require automatic ice production.
- You require an external water dispenser.
- You need substantially more than 10.3 cu. ft. of total storage.
- You need significantly more than 3.0 cu. ft. of freezer capacity.
Important Buyer Considerations
Door Swing Is Not Reversible
Do not choose FFFFD1766-24RS if your kitchen requires a left-hand-opening refrigerator. This SKU has a fixed right-hand swing and FORNO identifies the doors as non-reversible.
This Is a Freestanding Refrigerator
The refrigerator is counter-depth, but it is not classified as built-in. Required ventilation and installation space must be maintained.
No Ice Maker or Water Dispenser
This model does not contain an automatic ice maker or external water dispenser. Choose another refrigerator if either feature is required.
Confirm Storage Capacity
Total capacity is 10.3 cu. ft. Buyers requiring the storage volume of a conventional full-width refrigerator should compare usable capacity before ordering.
Residential Warranty Application
FORNO's supplied warranty applies to ordinary residential, non-commercial use and excludes non-residential commercial applications.

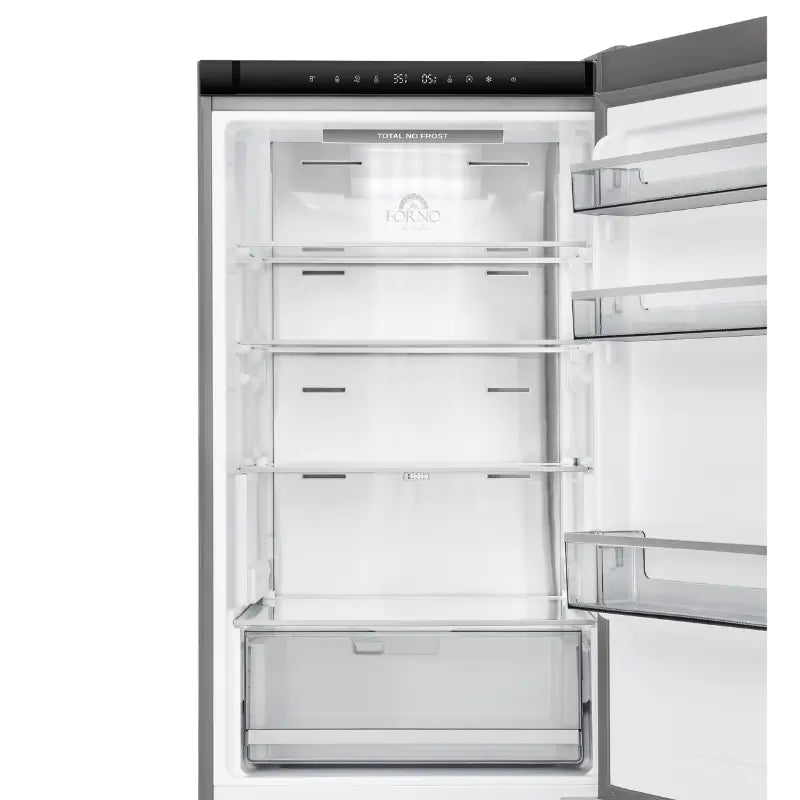

Refrigerator Compartment
The fresh-food compartment provides 7.3 cu. ft. of refrigerator capacity with four glass shelves, three standard door bins, one fresh-food drawer, adjustable storage, and LED interior lighting.
| Fresh Food Capacity | 7.3 cu. ft. |
|---|---|
| Temperature Range | 34°F to 43°F / 1°C to 6°C |

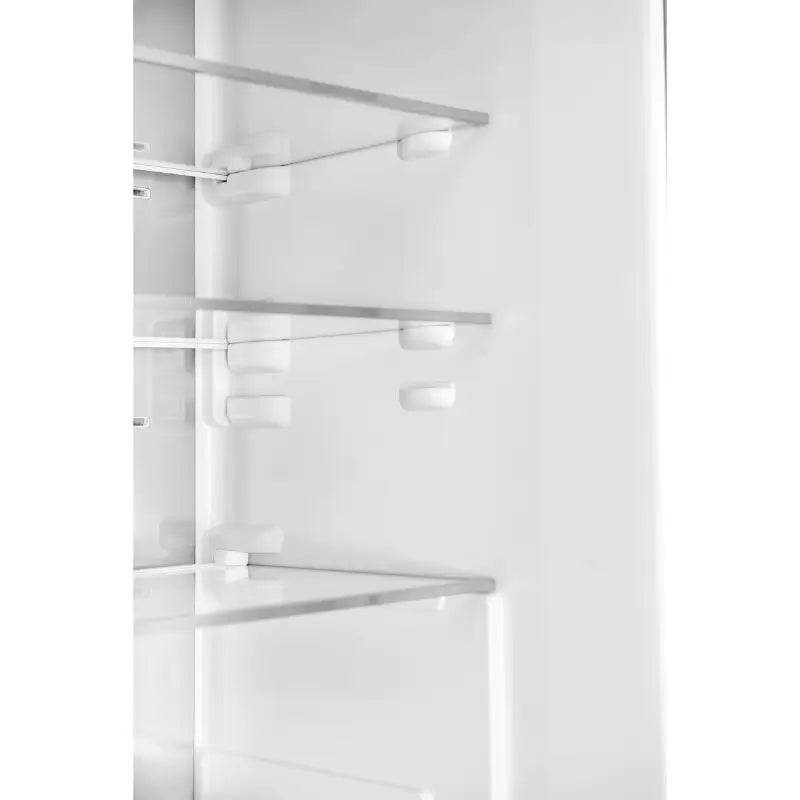

| Number of Shelves | 4 |
| Adjustable Shelves | 3 |
| Shelf Material | Glass with Silver Trim |
| Spill-Proof Shelves | Yes |
| Fresh Food Drawers | 1 |
| Fresh Food Drawer Size | 18.37" × 15" × 7.37" |
| Fresh Food Shelf Size | 19.68" × 11.62" |

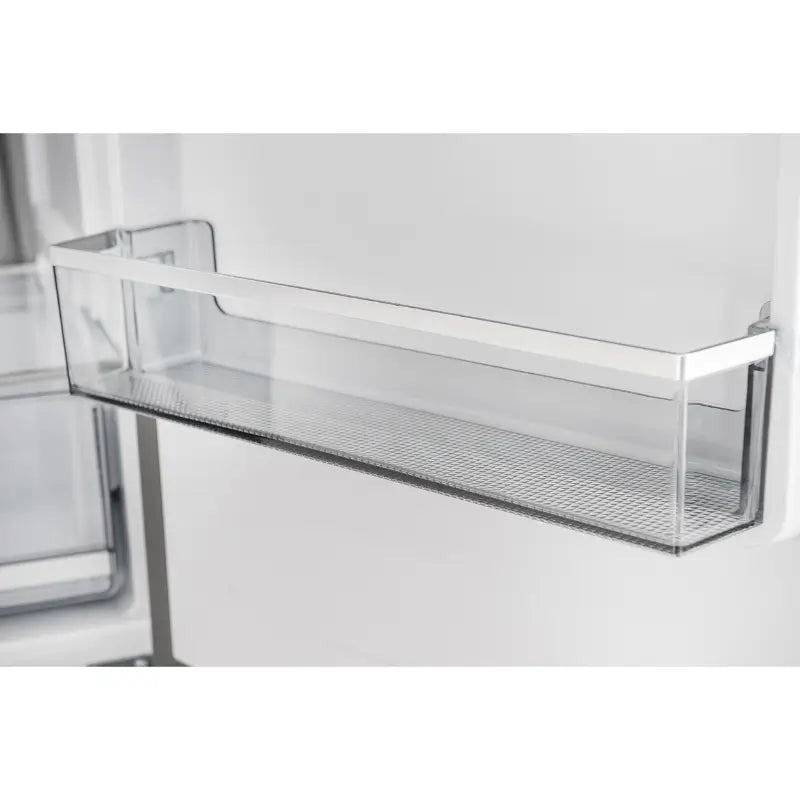

| Standard Door Bins | 3 |
| Door Bin Material | Plastic |
| Door Bin Color | Transparent Gray with Silver Trim |
| Adjustable Door Storage | Yes |
| Gallon / 4-Liter Door Bins | 0 |
| Interior Fresh Food Dimensions | 19.93"W × 18.12"D × 28.62"H |
| Interior Light | Yes |
| Lighting Type | LED |

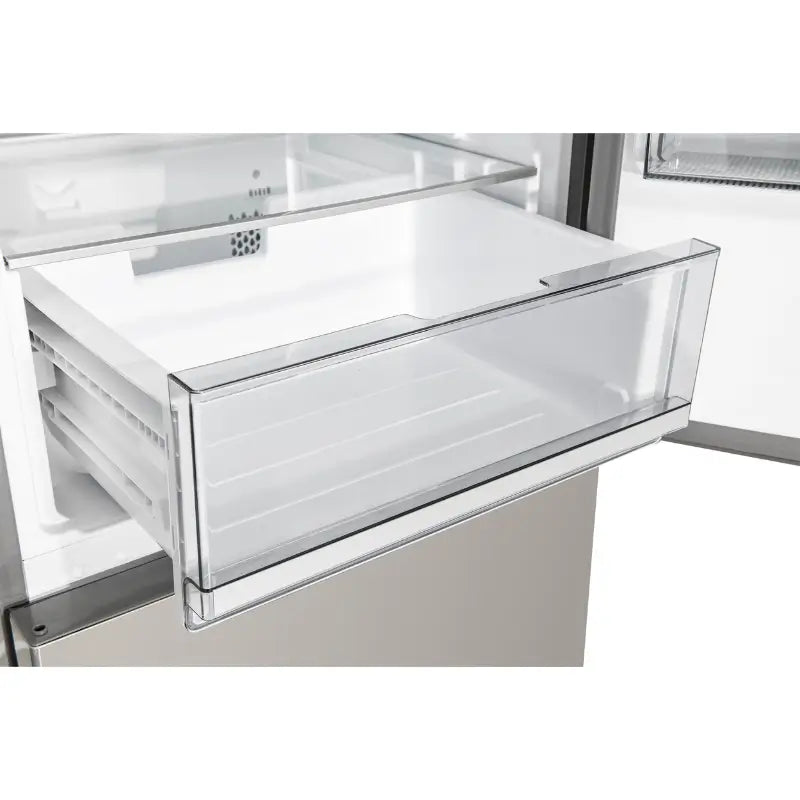

| Pantry Drawer | Yes |
| Humidity-Controlled Drawer | No |
| Temperature-Controlled Drawer | No |
Freezer Compartment
The bottom freezer provides 3.0 cu. ft. of capacity across three drawers, allowing frozen foods to be divided into separate storage areas.
| Freezer Capacity | 3.0 cu. ft. |
|---|---|
| Temperature Range | -9°F to 5°F / -23°C to -15°C |
| Freezer Layout | Freezer Drawers |
| Freezer Door Style | Swing Door |
| Number of Freezer Drawers | 3 |
| Upper Freezer Drawer Size | 16.62" × 12.18" × 7.75" |
| Lower Freezer Drawer Size | 16.62" × 9.18" × 9.31" |
| Interior Freezer Dimensions | 16.75"W × 13"D × 26.43"H |
| Freezer Door Storage | No |
| Freezer Light | No |
| Fast Freeze | Yes |
| Ice Maker | No |
| Ice Production | 0 lbs/day |
| Automatic Ice Level Control | No |
| Extra Freezer Tray | No |
Dimensions and Installation Specifications
Product Dimensions
| Product Dimensions | 23.43"W × 22.81"D × 73.25"H |
|---|---|
| Advertised Width | 24" |
| Product Depth with Handle | 25.25" |
| Depth Without Handles | 22.80" |
| Depth with Door Open 90° | 45" |
| Depth with Drawer(s) Open | 45.87" |
| Height to Top of Door | 71.37" |
| Height to Top of Door Hinge | 73.25" |
| Published Cutout Dimensions | 27.4"W × 22.46"D × 77.1"H |
| Product Weight | 141.5 lbs. |
| Packing Dimensions | 26.37"W × 26.75"D × 75.47"H |
| Shipping Weight | 159 lbs. |
| Shipping Method | LTL |
Required Clearances
| Minimum Top Clearance | 4" |
|---|---|
| Minimum Side Clearance | 2" on each side |
| Minimum Back Clearance | 2" |
Ventilation Is Required
Adequate ventilation must be maintained around the refrigerator. FORNO states that incorrect ventilation can contribute to excessive power consumption, premature compressor failure, or total system failure. Review the manufacturer installation manual before placing the appliance in fitted cabinetry or another constrained opening.
Electrical and Technical Requirements
| Voltage | 115V |
|---|---|
| Frequency | 60Hz |
| Amperage | 1.6A |
| Receptacle / Plug Type | NEMA 5-15P |
| Power Cord Length | 7.5 ft. |
| Number of Power Cords | 1 |

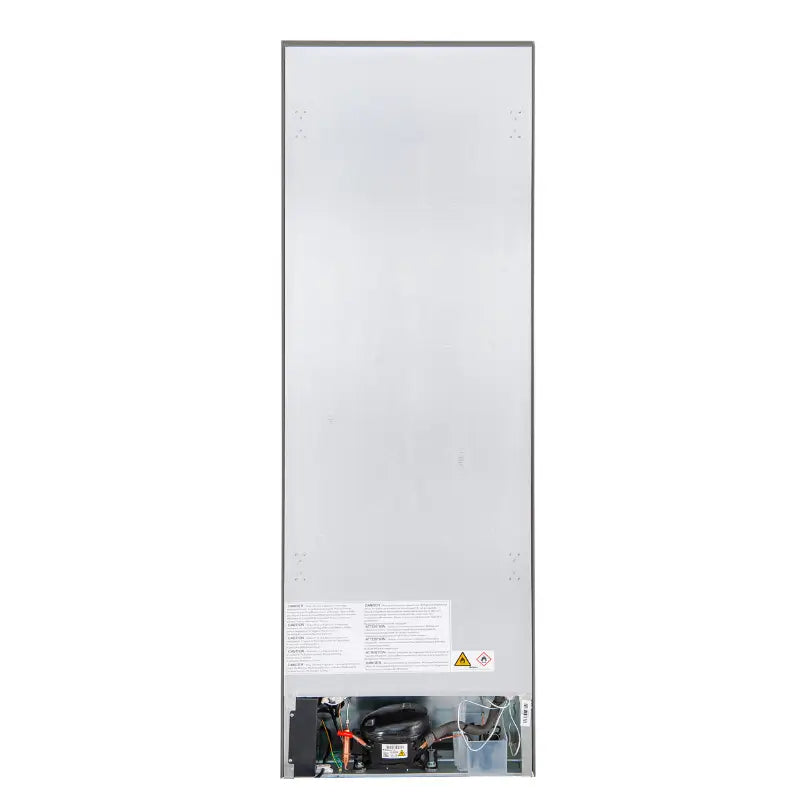

| Power Cord Location | Lower Back |
| Compressor Type | Inverter Compressor |
| Refrigerant | R600a |
| Cooling Wattage | 100W |
| Defrost Wattage | 160W |
| Annual Energy Consumption | 384 kWh/year |
| Estimated Annual Operating Cost | $54 |
| Noise Level | 41 dB(A) |
Complete Technical Specifications
General Features
| Brand | FORNO |
|---|---|
| Collection | Alta Qualita |
| Series | Custodia |
| Model Number | FFFFD1766-24RS |
| UPC | 686136917773 |
| Markets | USA, Canada |
| Product Type | Bottom Freezer Refrigerator |
| Built-In / Freestanding | Freestanding |
| Counter-Depth | Yes |
| Convertible Refrigerator / Freezer | No |
| Overall Capacity | 10.3 cu. ft. |
| Cooling Type | Total No Frost |
| Control Type | Touch Control |
| Control Location | Interior Top |
| Electronic Temperature Control | Yes |
| Temperature Memory Function | No |
| Fast Cool | Yes |
| Fast Freeze | Yes |
| Energy Saver Mode | Yes |
| Sabbath Mode | Yes |
| Vacation / Holiday Mode | Yes |
| Door Alarm | Yes |
| Flat Back Design | Yes |
| Air Filtration | No |
| See-Through Door | No |
| Water Dispenser | No |
| External Dispenser | No |
| Water Pipe Included | No |
| Water Pipe Length | 0 ft. |
| Ice Maker | No |
Appearance and Construction
| Color / Finish | Stainless Steel |
|---|---|
| Door Color | Stainless Steel |
| Handle Color / Finish | Stainless Steel |
| Door Texture | Smooth |
| Door Style | Flat |
| Fresh Food Door Type | Swing Door |
| Door Swing | Right |
| Reversible Doors | No |
| Cabinet Color | White |
| Cabinet Material | VCM |
| Door Liner Color | Gray |
| Door Liner Material | HIPS |
| Primary Material | Metal / Plastic |
| Fingerprint-Resistant | Yes |
| Shelf Material | Glass with Silver Trim |
| Door Bin Material | Plastic |
| Door Bin Color | Transparent Gray with Silver Trim |
| Toe Grille Color | N/A |
Cooling and Performance
| Refrigerator Temperature Range | 34°F to 43°F / 1°C to 6°C |
|---|---|
| Freezer Temperature Range | -9°F to 5°F / -23°C to -15°C |
| Total No Frost | Yes |
| Dual Evaporator Cooling System | No |
| Compressor Type | Inverter Compressor |
| Noise Rating | 41 dB(A) |
| Energy Consumption | 384 kWh/year |
| ENERGY STAR Certified | Yes |
Lighting
| Interior Light | Yes |
|---|---|
| Light Type | LED |
| Number of Lights | 1 |
| Freezer Light | No |
The manufacturer manual states that the LED light assembly is not intended to be replaced by the user and should be replaced by qualified professionals.
Certifications and Compliance
| ENERGY STAR Certified | Yes |
|---|---|
| Safety Listing | cETLus |
| ISTA 6A | Yes |
| NSF/ANSI 61 Certified | Does Not Apply |
| NSF/ANSI/CAN 372 Certified | Does Not Apply |
| CEE Tier Qualified | N/A |
| Star-K Certified | N/A |
| ADA Compliant | N/A |
| Certificate of Conformity (GCC) | N/A |
| Energy Policy Act 1992 Compliant | N/A |
| Title 20 – California Regulation | N/A |
| TAA Compliant | N/A |
| UPLR Compliant | N/A |
Care and Use Guidance
Interior Cleaning
Disconnect the appliance from power before cleaning or maintenance. FORNO recommends cleaning the refrigerator and freezer interiors using bicarbonate of soda and lukewarm water, then rinsing and drying thoroughly.
Avoid Abrasive Products
The manufacturer instructs users not to use abrasive products or detergents when cleaning the refrigerator interior.
Hand-Wash Shelves and Door Storage
Shelves and door-storage components should be cleaned separately by hand using a mild washing solution and should not be placed in a dishwasher.
Maintain Air Circulation
Do not excessively overfill the refrigerator. Sufficient space between stored foods is required to support cool-air circulation.
FORNO 2-Year Limited Warranty
FORNO provides warranty coverage for two years from the original retail purchase date for qualifying component or part failures resulting from defects in materials and/or workmanship under conditions of ordinary residential, non-commercial use in the United States or Canada.
According to the supplied warranty documentation, qualifying repair or replacement includes labor at standard rates when the product is reasonably accessible for service.
Warranty Limitations
The warranty does not cover every service situation. Listed exclusions include non-residential commercial use, improper installation, misuse, unauthorized repairs, improper maintenance, certain wear-and-tear components, and specified transportation or handling damage.
Retain proof of original purchase to establish the warranty period. Review the official FORNO user manual below for complete warranty terms, exclusions, and service procedures.
FORNO FFFFD1766-24RS Manuals and Documentation
Review the manufacturer documentation before finalizing appliance placement, door clearances, electrical service, ventilation, or installation.
Frequently Asked Questions About the FORNO FFFFD1766-24RS
Is the FORNO FFFFD1766-24RS door reversible?
No. The FFFFD1766-24RS has a fixed right-hand door configuration, so do not choose this SKU if your kitchen requires a left-hand opening.
Is the FORNO FFFFD1766-24RS built-in or freestanding?
The FFFFD1766-24RS is a counter-depth freestanding refrigerator, not a built-in refrigerator. Do not enclose it without maintaining FORNO's required ventilation and installation clearances.
How much capacity does the FORNO FFFFD1766-24RS have?
It provides 10.3 cu. ft. total capacity, consisting of 7.3 cu. ft. of refrigerator space and 3.0 cu. ft. of freezer space. Buyers needing full-size refrigerator capacity should compare storage volume before ordering.
Does the FORNO FFFFD1766-24RS have an ice maker?
No. The FFFFD1766-24RS does not include an ice maker, so choose another refrigerator if automatic ice production is required.
Does the FORNO FFFFD1766-24RS have a water dispenser?
No. This refrigerator has no external water dispenser and does not require a water supply for normal refrigeration operation.
Does the FORNO FFFFD1766-24RS require manual defrosting?
Under normal use, Total No Frost is designed to prevent heavy ice buildup, so routine freezer defrosting should not be necessary. Recurring heavy ice should be investigated for possible door-sealing or installation issues.
What are the dimensions of the FORNO FFFFD1766-24RS?
The refrigerator measures 23.43"W × 22.81"D × 73.25"H. Verify both appliance dimensions and required installation clearances before ordering.
What temperature range does the refrigerator compartment support?
The fresh-food compartment adjusts from 34°F to 43°F (1°C to 6°C). Use temperatures within the manufacturer's supported range.
What temperature range does the freezer support?
The freezer adjusts from -9°F to 5°F (-23°C to -15°C). Fast Freeze temporarily uses a lower setting and automatically exits after approximately 24 hours.
Is the FORNO FFFFD1766-24RS suitable for commercial use?
FORNO's supplied two-year limited warranty applies to ordinary residential, non-commercial use and excludes non-residential commercial applications. Do not rely on the residential warranty for a commercial installation.
Expert Buying Guidance

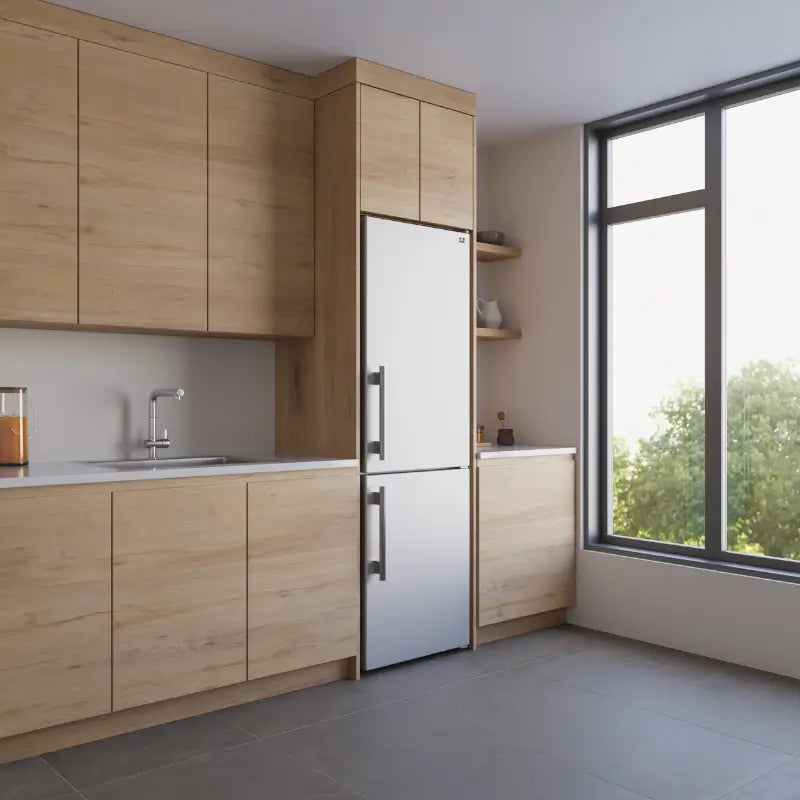

The FORNO Custodia FFFFD1766-24RS is best suited to buyers looking for a narrow, counter-depth refrigerator with a bottom-freezer layout and a fixed right-hand opening.
Its combination of a 23.43-inch width, 10.3 cu. ft. total capacity, three-drawer freezer, Total No Frost cooling, Fast Cool and Fast Freeze functions, inverter compressor, and published 41 dB(A) sound rating makes space-efficient refrigeration the central reason to consider this model.
Choose another configuration if your installation requires a left-hand or reversible door, built-in refrigeration, automatic ice production, a water dispenser, or substantially greater food-storage capacity.
By buying from us you qualify for the full manufacturer warranty, save time and money!
We ship directly to your door from the manufacturer's warehouse.
