FORNO Custodia Collection

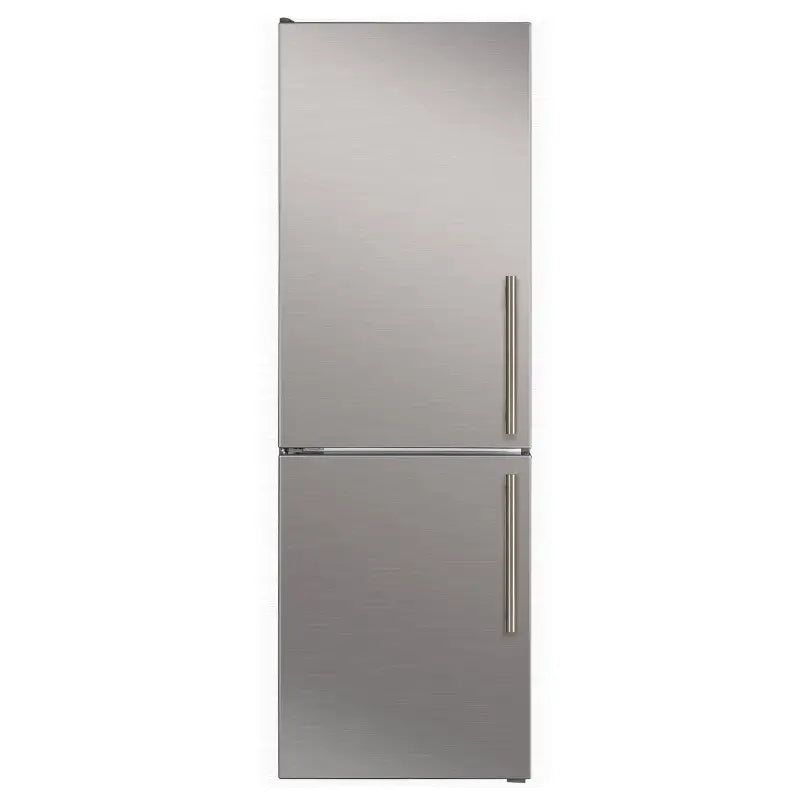

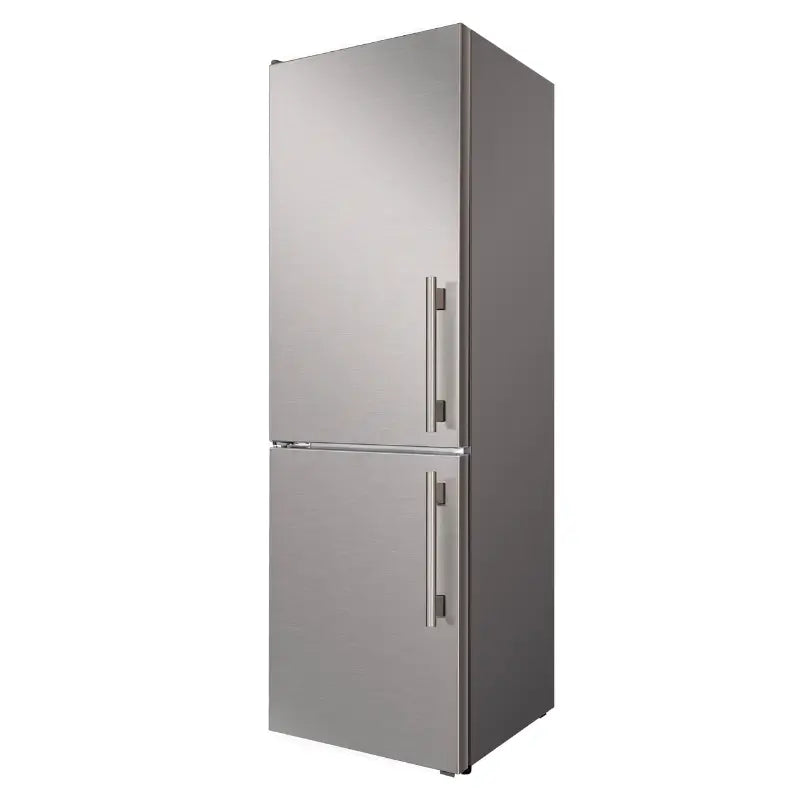

FORNO Custodia FFFFD1766-24LS 24-Inch Counter-Depth Bottom Freezer Refrigerator, 10.3 Cu. Ft., Left Swing, Ice Maker – Stainless Steel
The FORNO Custodia FFFFD1766-24LS is a 24-inch counter-depth freestanding bottom-freezer refrigerator designed for kitchen layouts that require a dedicated left-swing door configuration. Its narrow footprint provides 10.3 cu. ft. of total capacity, including 7.3 cu. ft. of fresh-food storage and a 3.0 cu. ft. bottom freezer.
Total No Frost cooling helps prevent heavy ice buildup, while an internal automatic ice maker supplies cube ice without an external through-the-door dispenser. Touch controls provide access to Fast Cool, Fast Freeze, Sabbath, Vacation/Holiday and Energy Saver functions.
Stainless steel doors and handles, LED interior lighting, an inverter compressor, and a manufacturer-rated 41 dB(A) sound level complete the design.
FORNO FFFFD1766-24LS: Quick Decision Summary
Choose the FORNO Custodia FFFFD1766-24LS when your kitchen requires a narrow counter-depth refrigerator, a dedicated left-swing door, and internal automatic ice production. It combines a freestanding footprint with bottom-freezer organization, Total No Frost cooling, touch controls, and stainless steel styling.
| Best For | Compact kitchens, narrow refrigerator openings, counter-depth layouts, apartments, secondary kitchens, and installations requiring a dedicated left-swing refrigerator door. |
|---|---|
| Product Type | Freestanding counter-depth bottom-freezer refrigerator. |
| Capacity | 10.3 cu. ft. total: 7.3 cu. ft. refrigerator and 3.0 cu. ft. freezer. |
| Door Configuration | Dedicated left swing; non-reversible. |
| Key Advantage | Narrow counter-depth footprint with internal automatic ice maker, Total No Frost cooling, bottom-freezer drawers, and multiple operating modes. |
Things to Know Before Ordering
- The refrigerator door is left-swing and non-reversible.
- This model is counter-depth but classified as freestanding, not built-in.
- The automatic ice maker requires a household water connection.
- There is no external water or ice dispenser.
- The freezer provides 3.0 cu. ft. of capacity across three drawers.
- Required ventilation and installation clearances must be maintained.
- Verify the appliance dimensions and door-opening clearance before purchase.
Quick Product Facts
| Brand | FORNO |
|---|---|
| Collection | Alta Qualita |
| Series | Custodia |
| Model | FFFFD1766-24LS |
| UPC | 686136917766 |
| Product Type | Bottom Freezer Refrigerator |
| Installation Type | Freestanding |
| Depth Classification | Counter-Depth |
| Advertised Width | 24" |
| Actual Width | 23.43" |
| Total Capacity | 10.3 cu. ft. |
| Refrigerator Capacity | 7.3 cu. ft. |
| Freezer Capacity | 3.0 cu. ft. |
| Door Swing | Left |
| Reversible Door | No |
| Finish | Stainless Steel |
| Cooling System | Total No Frost |
| Ice Maker | Internal Automatic Ice Maker |
| External Dispenser | No |
| Noise Level | 41 dB(A) |
| Electrical | 115V / 60Hz, 1.6A |
| Warranty | 2-Year Limited Parts & Labor |
Key Features of the FORNO Custodia FFFFD1766-24LS
Dedicated Left-Swing Door
The FFFFD1766-24LS is specifically configured for kitchens where the refrigerator door needs to swing to the left. The manufacturer specification sheet identifies this configuration as non-reversible.
This makes door orientation an important purchase decision rather than an installation adjustment that can be changed later.
24-Inch Counter-Depth Profile
With an actual width of 23.43 inches, this freestanding counter-depth refrigerator provides a narrow footprint for kitchens where a conventional full-width refrigerator would be too large.
The counter-depth profile helps limit front projection, but the appliance remains a freestanding refrigerator and must retain its required installation clearances and ventilation.
10.3 Cu. Ft. Total Capacity
The appliance combines 7.3 cu. ft. of refrigerator space with a 3.0 cu. ft. bottom freezer, providing clearly separated fresh and frozen-food storage within a space-conscious footprint.
Total No Frost Cooling
Total No Frost technology is designed to prevent heavy ice accumulation in the freezer. Under normal operation, regular manual freezer defrosting should not be necessary.

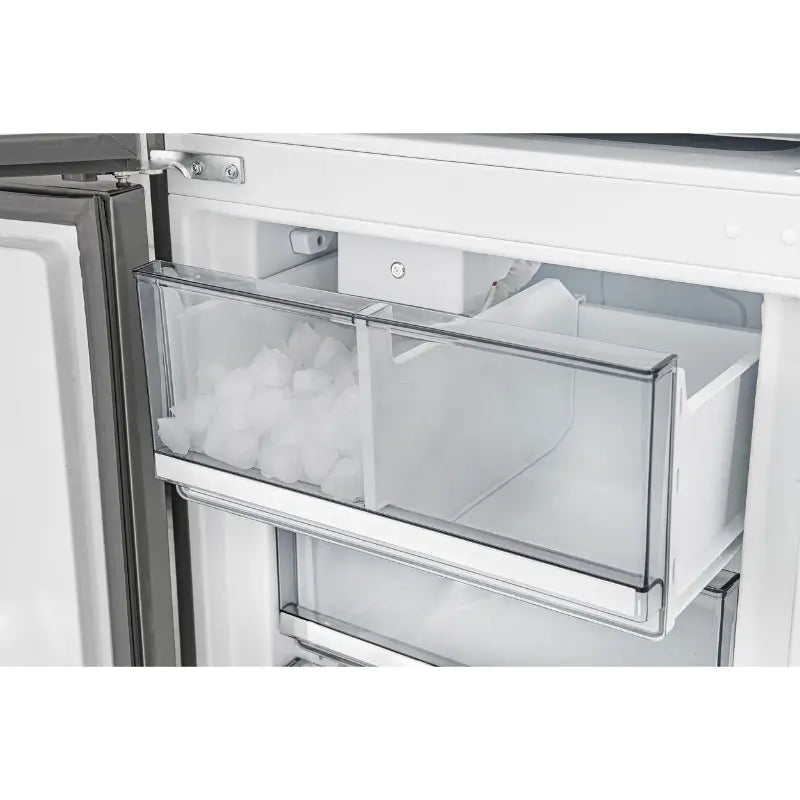

Internal Automatic Ice Maker
An internal automatic ice maker produces cube ice and includes automatic ice-level control and a removable ice bucket.
The ice maker requires connection to a household water supply. This model does not provide a through-the-door water or ice dispenser.
Fast Cool and Fast Freeze
Fast Cool and Fast Freeze functions provide accelerated temperature recovery when additional cooling or freezing performance is needed.
Multiple Operating Modes
Integrated controls include Sabbath Mode, Vacation/Holiday Mode, and Energy Saver/Eco Mode in addition to standard temperature adjustment.
41 dB(A) Published Sound Rating
FORNO specifies a sound rating of 41 dB(A), providing a manufacturer-published noise specification for comparison with other refrigerators.
LED Interior Lighting
LED lighting illuminates the refrigerator compartment. The manufacturer manual states that LED replacement should be performed by a professional rather than by the user.

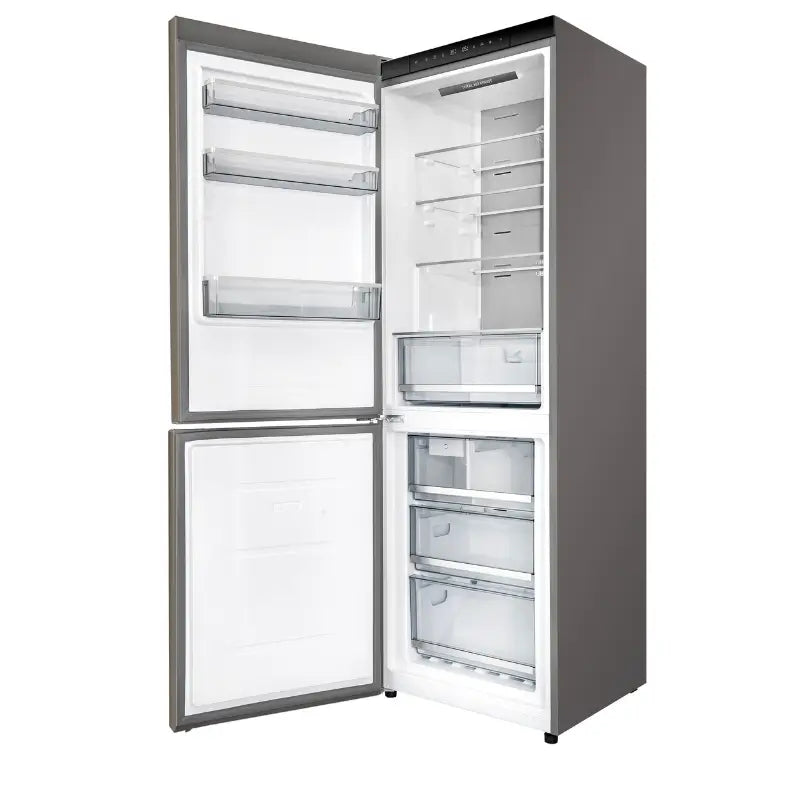

Refrigerator and Freezer Storage

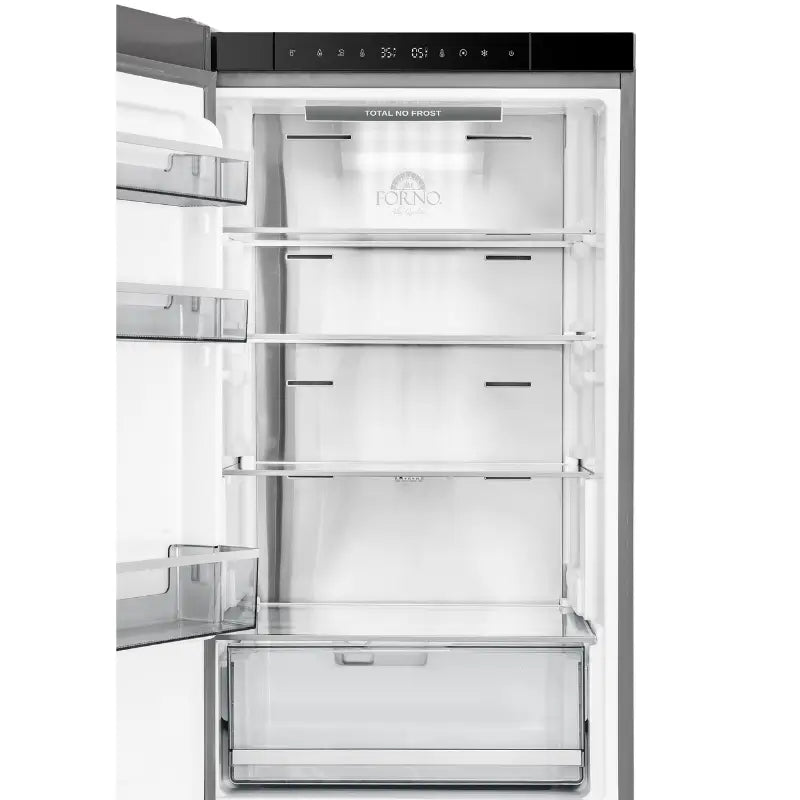

Fresh-Food Compartment
The fresh-food compartment provides 7.3 cu. ft. of refrigerator capacity with glass shelving, adjustable storage, dedicated door storage, and one fresh-food drawer.
| Fresh-Food Capacity | 7.3 cu. ft. |
|---|---|
| Temperature Range | 34°F to 43°F / 1°C to 6°C |
| Total Fresh-Food Shelves | 4 |
| Adjustable Shelves | 3 |
| Shelf Material | Glass with Silver Trim |
| Spill-Proof Shelves | Yes |
| Standard Door Bins | 3 |
| Adjustable Door Storage | Yes |
| Gallon Door Bins | None |
| Fresh-Food Drawers | 1 |
| Interior Light | LED |

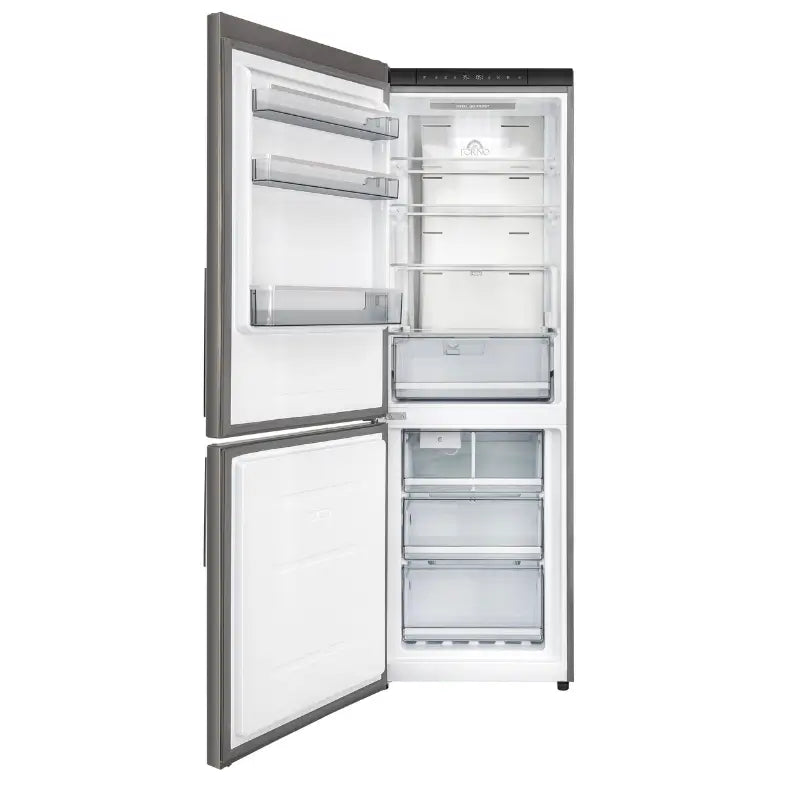

Three-Drawer Bottom Freezer
The bottom freezer provides 3.0 cu. ft. of capacity and uses three drawers to divide frozen foods into separate storage areas.
| Freezer Capacity | 3.0 cu. ft. |
|---|---|
| Temperature Range | -9°F to 5°F / -23°C to -15°C |
| Freezer Layout | Freezer Drawers |
| Number of Freezer Drawers | 3 |
| Freezer Door Storage | No |
| Freezer Light | No |
| Automatic Ice Maker | Yes |
| Ice Type | Cube |
| Removable Ice Bucket | Yes |
| Fast Freeze | Yes |
Cooling, Controls and Convenience
Total No Frost
Automatic frost-management technology helps prevent heavy freezer ice buildup during normal operation.

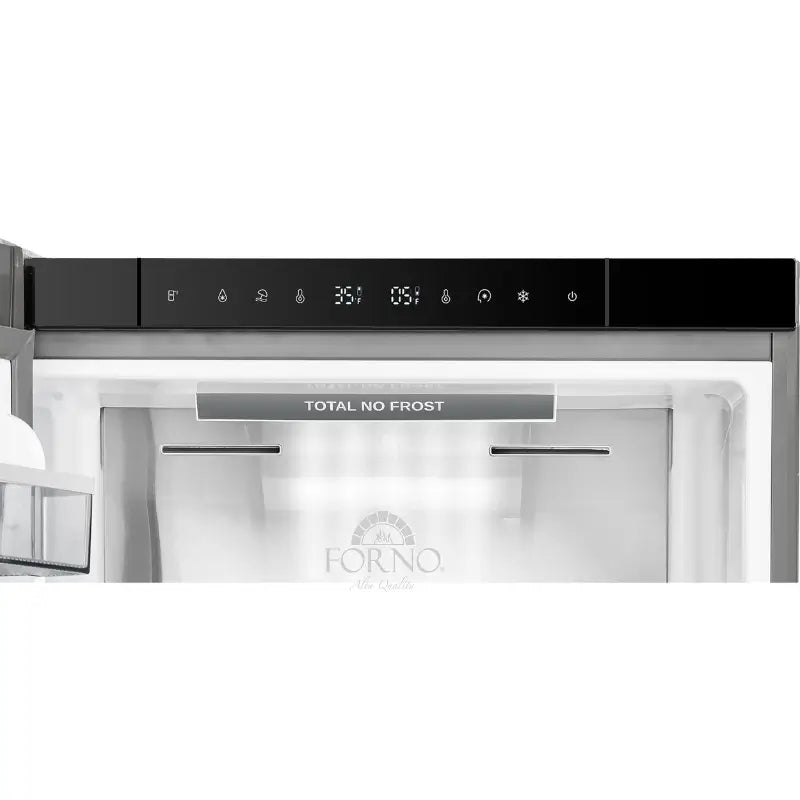

Touch Controls
Electronic touch controls are positioned at the interior top of the refrigerator for temperature and operating-mode adjustment.
Fast Cool
Fast Cool provides accelerated refrigerator cooling when faster temperature recovery is required.
Fast Freeze
Fast Freeze lowers freezer temperature for faster freezing and temperature recovery.
Sabbath Mode
Sabbath Mode provides an alternative appliance operating configuration identified in the manufacturer controls.
Vacation / Holiday Mode
Vacation/Holiday Mode adjusts appliance operation for periods when normal refrigerator use is reduced.
Energy Saver / Eco Mode
Energy Saver/Eco Mode provides an alternative energy-conscious operating configuration.
Door Alarm
The refrigerator includes a door alarm to alert users when the door remains open.
LED Lighting
LED lighting provides interior illumination in the fresh-food compartment.
Who Is the FORNO FFFFD1766-24LS Best For?

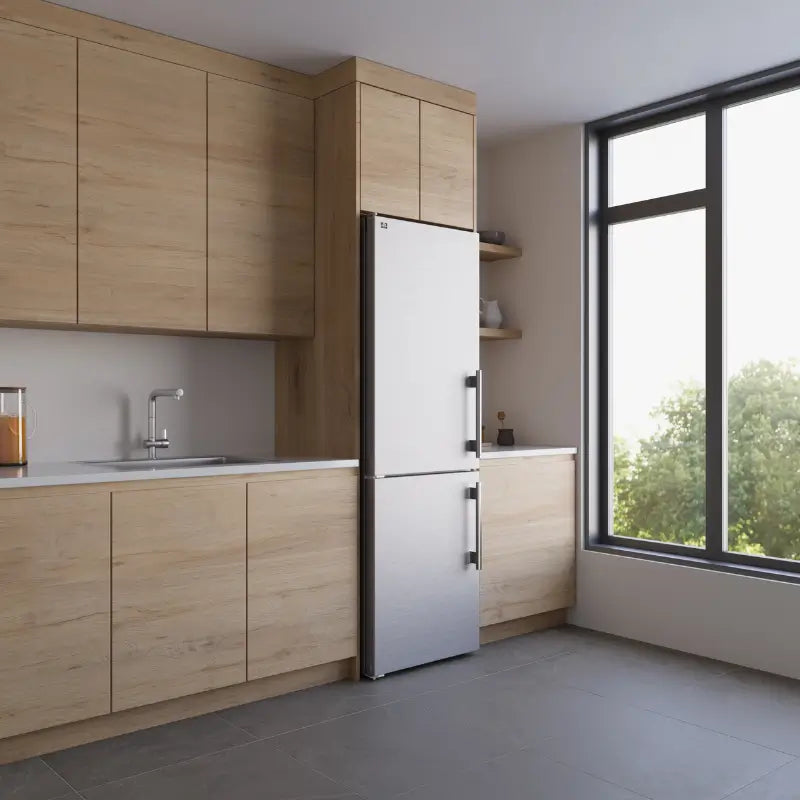

Narrow Kitchen Layouts
The 23.43-inch actual width makes this refrigerator relevant for kitchens that cannot accommodate a conventional 30-inch, 33-inch, or 36-inch refrigerator.
Layouts Requiring a Left-Swing Door
This model is specifically suited to installations where a left-swing refrigerator door works with the surrounding wall, cabinetry, and traffic flow.
Buyers Who Prefer Bottom-Freezer Storage
Fresh-food storage remains above, while three freezer drawers below divide frozen items into separate storage zones.
Buyers Who Want Automatic Ice Without a Door Dispenser
The internal ice maker provides automatic cube ice while maintaining a clean stainless steel door without an exterior water or ice dispenser.
When This Refrigerator May Not Be the Right Choice
- You need a right-swing refrigerator door.
- You require a reversible door configuration.
- You need a true built-in refrigerator.
- You want an external water dispenser.
- You want a through-the-door ice dispenser.
- You require substantially more than 3.0 cu. ft. of freezer capacity.
- Your installation cannot provide the required ventilation clearances.
Important Buyer Considerations
Left-Swing Door Is Not Reversible
The model-specific manufacturer specification sheet identifies the FFFFD1766-24LS as a left-swing refrigerator with non-reversible doors. Confirm that this door swing works with surrounding walls, cabinetry, counters, and traffic flow before ordering.
Counter-Depth Does Not Mean Built-In
FORNO classifies this refrigerator as counter-depth and freestanding. Do not treat it as a fully enclosed built-in appliance. Required ventilation and installation clearances must be maintained.
Automatic Ice Requires a Water Supply
The automatic ice maker requires connection to the home's water supply. The manufacturer manual shows the water connection at the rear of the refrigerator, and the supplied product information states that a water pipe is included.
No External Water or Ice Dispenser
This refrigerator makes ice internally but does not include a through-the-door water or ice dispenser. Choose another refrigerator if external dispensing is required.
Dimensions and Installation Requirements
Product Dimensions
| Overall Product Dimensions | 23.43"W × 22.81"D × 73.25"H |
|---|---|
| Product Weight | 146 lb. |
| Depth Without Handles | 22.80" |
| Depth With Handle | 25.25" |
| Depth With Door Open 90° | 45" |
| Height to Top of Door | 71.37" |
| Height to Top of Door Hinge | 73.25" |
| Manufacturer-Listed Cutout Dimensions | 27.4"W × 22.46"D × 77.1"H |
Minimum Installation Clearances
| Minimum Top Clearance | 4" |
|---|---|
| Minimum Side Clearance | 2" on each side |
| Minimum Back Clearance | 2" |
Ventilation Requirements
Adequate ventilation is required so that heat removed from the refrigerator can dissipate properly. The manufacturer manual warns that incorrect ventilation can contribute to excessive power consumption, premature compressor failure, or total system failure and may affect warranty coverage.
The rear cooling system should not touch the wall, and sufficient clearance must be maintained around the appliance. Follow FORNO's clearance instructions rather than enclosing this freestanding refrigerator as a built-in model.
Before First Use
The installation section of the manufacturer manual instructs users to allow the refrigerator to remain upright and undisturbed for 24 hours before connecting it to a power source.
Install the refrigerator away from excessive heat and damp locations. Use the height-adjustable front feet to level and stabilize the appliance.
Ice Maker and Water Connection
| Ice Maker | Yes |
|---|---|
| Ice Maker Type | Single |
| Ice Type | Cube Ice |
| Daily Ice Production | 1.76 lb. |
| Automatic Ice-Level Control | Yes |
| Removable Ice Bucket | Yes |
| Water Pipe Included | Yes |
| Water Pipe Length | 4.9 ft. |
| External Dispenser | No |
| Water Dispenser | No |
| Filtered Ice | No |
| Matching Replacement Water Filter | None specified |
Electrical and Mechanical Specifications
| Voltage / Frequency | 115V / 60Hz |
|---|---|
| Amperage | 1.6A |
| Receptacle Type | NEMA 5-15P |
| Power Cord Length | 7.5 ft. |
| Power Cord Location | Lower Back |
| Compressor Type | Inverter Compressor |
| Refrigerant | R600a |
| Cooling Wattage | 100W |
| Defrost Wattage | 160W |
| Sound Rating | 41 dB(A) |
| Energy Consumption | 468 kWh/year |
| Estimated Annual Operating Cost | $66 |
Estimated operating cost is supplied manufacturer/product data and will vary according to local utility rates, operating conditions, and actual usage.
Complete Product Specifications
General
| Brand | FORNO |
|---|---|
| Model | FFFFD1766-24LS |
| UPC | 686136917766 |
| Collection | Alta Qualita |
| Series | Custodia |
| Market | USA, Canada |
| Product Type | Bottom Freezer Refrigerator |
| Installation | Freestanding |
| Counter-Depth | Yes |
| Convertible Refrigerator / Freezer | No |
| Overall Capacity | 10.3 cu. ft. |
| Refrigerator Capacity | 7.3 cu. ft. |
| Freezer Capacity | 3.0 cu. ft. |
Appearance
| Door Color / Finish | Stainless Steel |
|---|---|
| Handle Color / Finish | Stainless Steel |
| Door Texture | Smooth |
| Door Style | Flat |
| Fresh-Food Door Type | Swing Door |
| Freezer Door Style | Swing Door |
| Door Swing | Left |
| Reversible Doors | No |
| Fingerprint-Resistant | Yes |
| Cabinet Color | White |
| Cabinet Material | VCM |
| Door Liner Color | Gray |
| Door Liner Material | HIPS |
| Flat-Back Design | Yes |
Fresh-Food Compartment
| Capacity | 7.3 cu. ft. |
|---|---|
| Temperature Range | 34°F to 43°F / 1°C to 6°C |

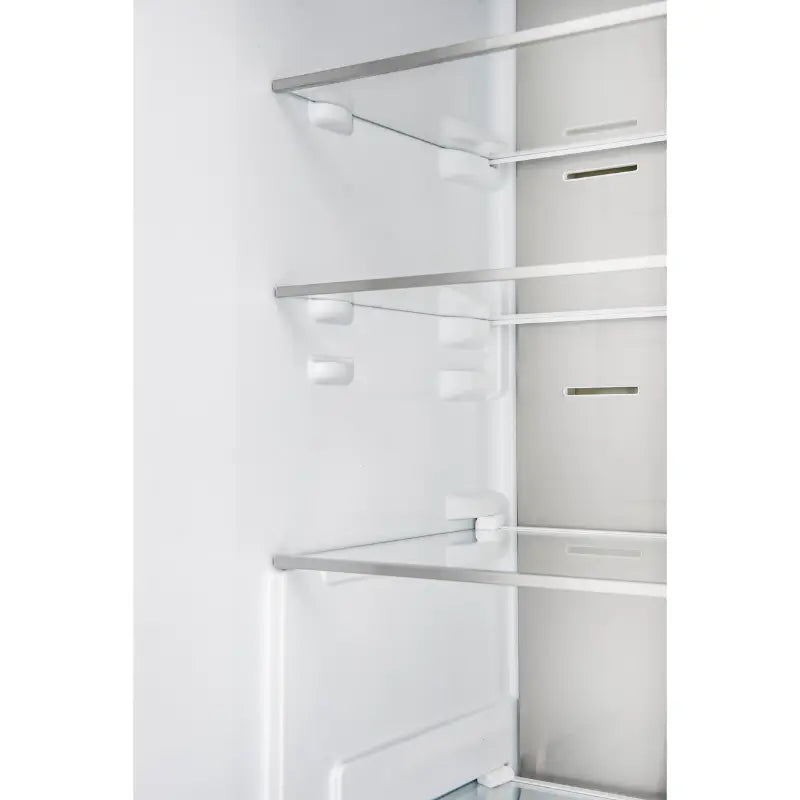

| Number of Shelves | 4 |
| Number of Adjustable Shelves | 3 |
| Shelf Material | Glass with Silver Trim |
| Fresh-Food Shelf Size | 19.68" × 11.62" |
| Spill-Proof Shelves | Yes |

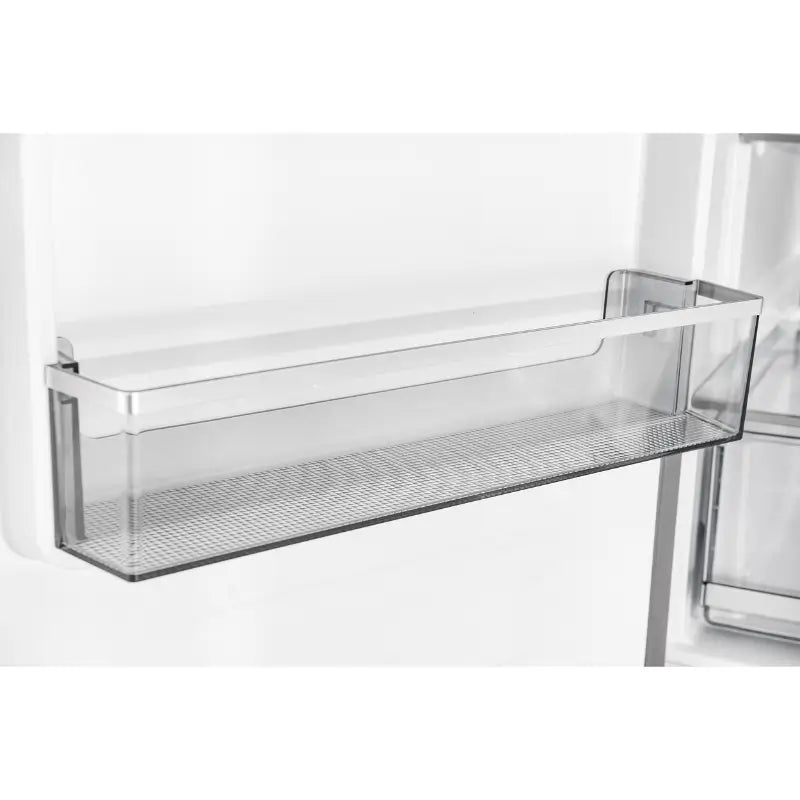

| Standard Door Bins | 3 |
| Standard Door Bin Size | 19.12" × 4.18" × 1.93" as supplied in product data |
| Door Bin Material | Plastic |
| Door Bin Color | Transparent Gray with Silver Trim |
| Adjustable Door Storage | Yes |
| Gallon Door Bins | 0 |

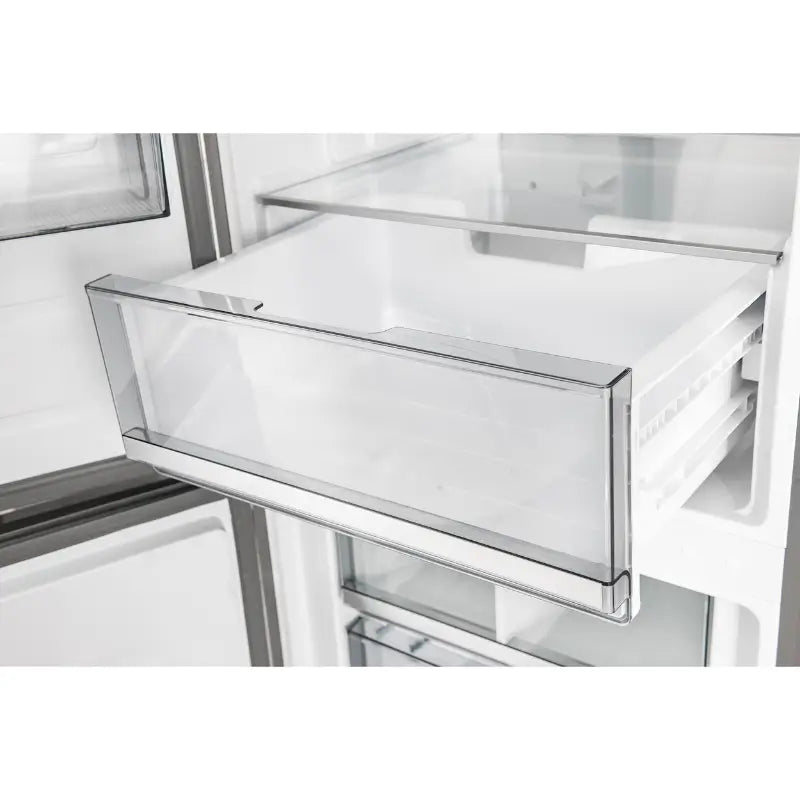

| Fresh-Food Drawers | 1 |
| Fresh-Food Drawer Size | 18.37" × 15" × 7.37" |
| Humidity-Controlled Drawer | No |
| Temperature-Controlled Drawer | No |
| Interior Light | Yes |
| Light Type | LED |
Freezer Compartment
| Capacity | 3.0 cu. ft. |
|---|---|
| Temperature Range | -9°F to 5°F / -23°C to -15°C |
| Layout | Freezer Drawers |
| Number of Freezer Drawers | 3 |
| Upper Freezer Drawer Size | 16.62" × 12.18" × 7.75" |
| Lower Freezer Drawer Size | 16.62" × 9.18" × 9.31" |
| Freezer Baskets | 0 |
| Freezer Door Storage | No |
| Extra Freezer Tray | No |
| Freezer Light | No |
| Fast Freeze | Yes |
Cooling and Controls
| Cooling Type | Total No Frost |
|---|---|
| Dual Evaporator Cooling | No |
| Electronic Temperature Control | Yes |
| Control Type | Touch Control |
| Control Location | Interior Top |
| Fast Cool | Yes |
| Fast Freeze | Yes |
| Energy Saver Mode | Yes |
| Sabbath Mode | Yes |
| Vacation / Holiday Mode | Yes |
| Door Alarm | Yes |
| Air Filtration | No |
| Temperature Memory Function | No |
Ice and Water
| Ice Maker | Yes |
|---|---|
| Ice Maker Type | Single |
| Ice Type | Cube Ice |
| Daily Ice Production | 1.76 lb. |
| Automatic Ice-Level Control | Yes |
| Removable Ice Bucket | Yes |
| Water Pipe Included | Yes |
| Water Pipe Length | 4.9 ft. |
| External Dispenser | No |
| Water Dispenser | No |
| Filtered Ice | No |
| Replacement Water Filter | None specified |
Important Measurement Note
The supplied manufacturer/product sources contain conflicting values for certain interior compartment dimensions and cabinet-depth measurements. Those conflicting measurements are not presented as installation-critical facts.
Use the overall product dimensions, manufacturer-listed cutout dimensions, and current FORNO documentation for installation planning.
Certifications and Compliance
| Safety Listing | cETLus |
|---|---|
| ENERGY STAR Certified | Yes, as stated in the supplied product data |
| ISTA 6A | Yes |
| NSF/ANSI 61 Certified | Does Not Apply |
| NSF/ANSI/CAN 372 Certified | Does Not Apply |
| Star-K Certified | N/A |
| CEE Tier Qualified | N/A |
| ADA Compliant | N/A |
| TAA Compliant | N/A |
| UPLR Compliant | N/A |
Manufacturer Warranty
| Warranty Type | Limited |
|---|---|
| Parts | 2 Years |
| Labor | 2 Years |
| Commercial Warranty | No |
Important Warranty Considerations
The supplied manufacturer manual states that the two-year warranty applies to qualifying component or part failures due to materials and/or workmanship under ordinary residential, non-commercial use, subject to the complete manufacturer warranty terms and exclusions.
The manual also describes a 30-day cosmetic warranty and instructs purchasers to inspect the refrigerator at delivery and retain proof of original purchase.
FORNO FFFFD1766-24LS Manuals and Documentation
Review the manufacturer documentation before finalizing the appliance opening, door clearances, electrical connection, water supply, ventilation, or installation.
Frequently Asked Questions About the FORNO FFFFD1766-24LS
Is the FORNO FFFFD1766-24LS door reversible?
No. The FFFFD1766-24LS is the dedicated left-swing configuration and the model-specific specification sheet lists the doors as non-reversible. Do not choose this model if your installation requires a right-swing door.
Is the FORNO FFFFD1766-24LS a built-in refrigerator?
No. FORNO classifies the FFFFD1766-24LS as a freestanding, counter-depth refrigerator. Do not install it as a fully enclosed built-in appliance without maintaining the required ventilation and clearances.
Does the FORNO FFFFD1766-24LS need a water line?
Yes, if the automatic ice maker will be used. The refrigerator's water connection must be connected to the home's water supply for automatic ice production.
Does the FFFFD1766-24LS have an external water or ice dispenser?
No. The refrigerator has an internal automatic ice maker but no external water or ice dispenser. Choose another refrigerator if through-the-door dispensing is required.
Does the FORNO FFFFD1766-24LS require manual defrosting?
Routine manual freezer defrosting should not be necessary under normal use because the refrigerator uses Total No Frost cooling. Recurring heavy ice buildup should prompt a check of the door seal and installation.
How much freezer space does the FORNO FFFFD1766-24LS provide?
The bottom freezer provides 3.0 cu. ft. of capacity with three drawers. Choose a larger refrigerator if your household requires substantially more frozen-food storage.
Expert Buying Guidance
The FORNO Custodia FFFFD1766-24LS is best matched to a kitchen where three requirements are already clear: you need a narrow 24-inch counter-depth profile, a dedicated left-swing refrigerator, and an internal automatic ice maker.
Its 10.3 cu. ft. total capacity is divided between 7.3 cu. ft. of refrigerator storage and a comparatively compact 3.0 cu. ft. freezer. This makes the model particularly relevant when space efficiency and door orientation are more important than maximum food-storage capacity.
Before ordering, verify the 23.43"W × 22.81"D × 73.25"H appliance dimensions, left-swing door clearance, required ventilation, 115V/60Hz electrical connection, and access to a household water supply if the automatic ice maker will be used.
By buying from us you qualify for the full manufacturer warranty, save time and money!
We ship directly to your door from the manufacturer's warehouse.
