FORNO Custodia Collection
FORNO Custodia FFFFD1766-24BLK-LS 24-Inch Counter-Depth Bottom Freezer Refrigerator with Ice Maker, Left Swing – Black & Antique Brass
The FORNO Custodia FFFFD1766-24BLK-LS is a 24-inch counter-depth freestanding bottom-freezer refrigerator designed for kitchens where a narrow footprint and a factory left-swing door configuration are required. It provides 10.3 cu. ft. of total capacity, Total No Frost cooling, an internal automatic ice maker, touch controls, Fast Cool and Fast Freeze functions, and a distinctive black exterior with Antique Brass handles.
Storage is divided between a 7.3 cu. ft. fresh-food compartment and a 3.0 cu. ft. bottom freezer. The refrigerator includes four glass shelves, three standard door bins, one fresh-food drawer, and LED interior lighting, while the freezer uses three drawers for organized frozen-food storage.
Interior touch controls provide access to refrigerator and freezer temperature adjustment, Sabbath Mode, Vacation Mode, Energy Saver / Eco Mode, Fast Cool, and Fast Freeze. FORNO publishes a sound rating of 41 dB(A) for this model.
FORNO FFFFD1766-24BLK-LS: Quick Decision Summary
Choose the FORNO Custodia FFFFD1766-24BLK-LS when you need a narrow counter-depth refrigerator with a fixed left-swing door, automatic internal ice production, and a distinctive black-and-Antique-Brass finish. It combines compact dimensions with Total No Frost cooling, three-drawer freezer storage, touch controls, and multiple temperature-management modes.
| Best For | Compact residential kitchens, narrow refrigerator openings, counter-depth layouts, left-swing installations, and buyers who want black appliance styling with Antique Brass hardware. |
|---|---|
| Product Type | Freestanding counter-depth bottom-freezer refrigerator. |
| Capacity | 10.3 cu. ft. total: 7.3 cu. ft. refrigerator and 3.0 cu. ft. freezer. |
| Door Configuration | Factory left swing; non-reversible. |
| Key Advantage | Compact counter-depth footprint with internal automatic ice maker, Total No Frost cooling, three freezer drawers, touch controls, Fast Cool, Fast Freeze, and premium Antique Brass accents. |
Things to Know Before Ordering
- The refrigerator is factory configured for left-swing operation.
- The doors are non-reversible.
- This model is counter-depth but classified as freestanding, not built-in.
- The automatic ice maker requires a household water connection.
- There is no external water or ice dispenser.
- The freezer provides 3.0 cu. ft. of capacity across three drawers.
- Required ventilation and installation clearances must be maintained.
Quick Product Facts
| Brand | FORNO |
|---|---|
| Collection | Alta Qualita |
| Series | Custodia |
| Model | FFFFD1766-24BLK-LS |
| UPC | 686136917780 |
| Product Type | Bottom Freezer Refrigerator |
| Installation Type | Freestanding |
| Depth Type | Counter-Depth |
| Advertised Width | 24 Inches |
| Total Capacity | 10.3 cu. ft. |
| Refrigerator Capacity | 7.3 cu. ft. |
| Freezer Capacity | 3.0 cu. ft. |
| Door Swing | Left |
| Reversible Door | No |
| Finish | Black |
| Handle Finish | Antique Brass |
| Cooling | Total No Frost |
| Ice Maker | Internal Automatic Ice Maker |
| External Dispenser | No |
| Noise Level | 41 dB(A) |
| ENERGY STAR Certified | Yes |
| Warranty | 2-Year Limited Parts & Labor Warranty |
Key Features of the FORNO Custodia FFFFD1766-24BLK-LS
24-Inch Space-Saving Width
At approximately 23.43 inches wide, the Custodia provides a compact refrigeration solution for kitchens where appliance width is limited while still maintaining separate refrigerator and bottom-freezer compartments.
Counter-Depth Freestanding Design
Counter-depth proportions help reduce how far the refrigerator projects into the kitchen. FORNO classifies the appliance as freestanding rather than built-in, so documented ventilation and installation clearances must remain available.
Factory Left-Swing Door
This model is configured specifically for left-swing operation and is intended for layouts where the refrigerator door needs to open toward the left.
Because FORNO identifies the doors as non-reversible, the correct swing direction should be selected before purchase.

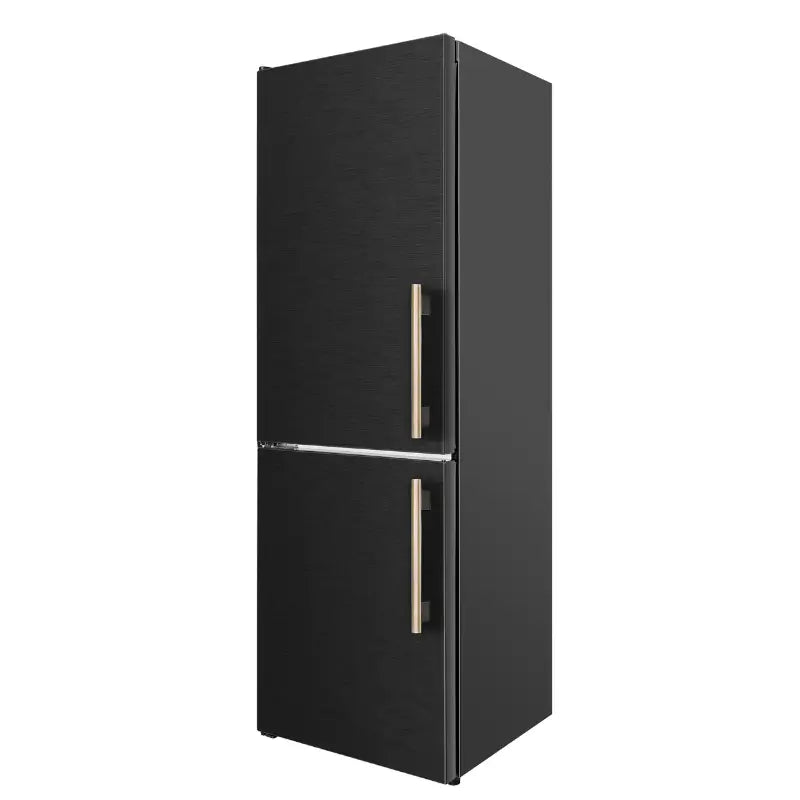

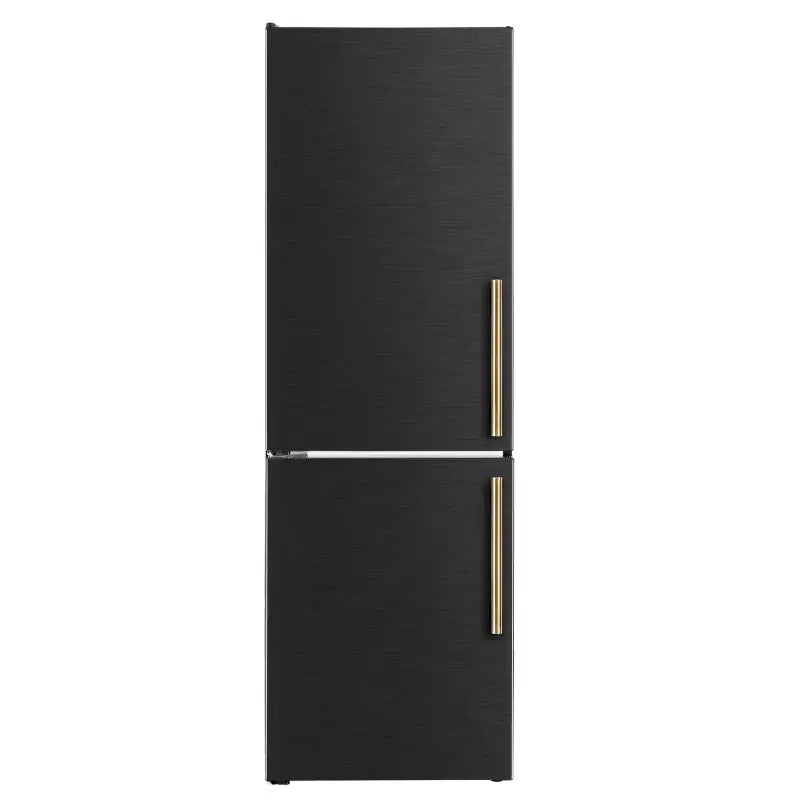

Black Finish with Antique Brass Handles
The black exterior is paired with Antique Brass handles, giving this Custodia configuration a warmer decorative appearance than the stainless steel variants.
10.3 Cu. Ft. Total Capacity
Storage is divided between a 7.3 cu. ft. fresh-food compartment and a 3.0 cu. ft. bottom freezer.
Total No Frost Cooling
Total No Frost technology is designed to reduce heavy frost buildup and minimize the need for routine manual freezer defrosting during normal use.
Internal Automatic Ice Maker
The internal automatic ice maker produces cube ice and includes automatic ice-level control and a removable ice bucket without adding an exterior dispenser to the refrigerator door.
Fast Cool and Fast Freeze
Dedicated rapid-cooling functions provide temporary accelerated cooling or freezing when faster temperature recovery is required.
41 dB(A) Published Sound Rating
FORNO lists a 41 dB(A) sound rating for this model, providing a manufacturer-published specification for refrigerator noise.
Who Is the FORNO FFFFD1766-24BLK-LS Best For?

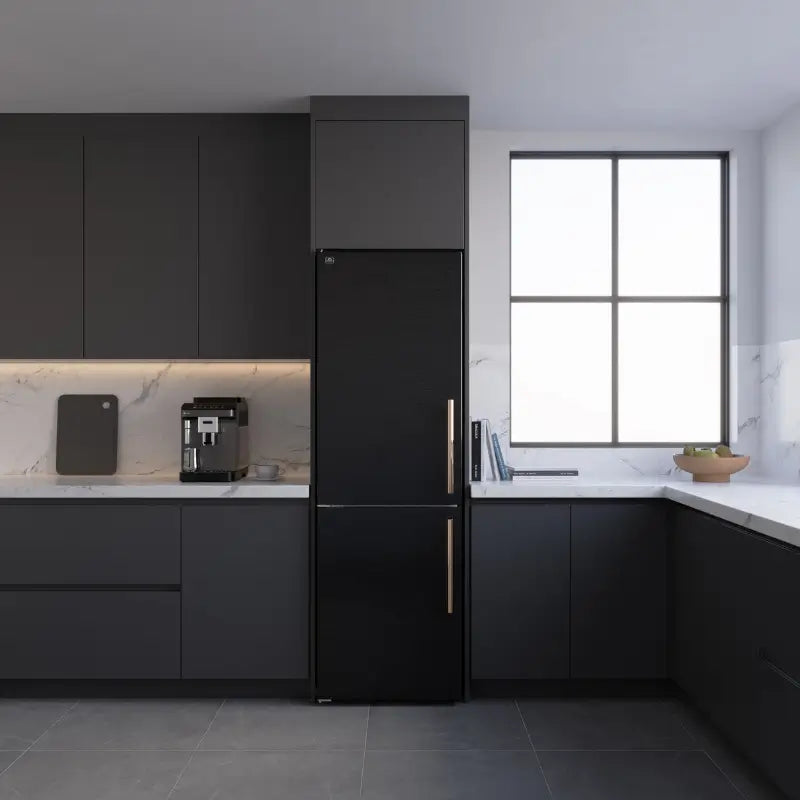

Compact Residential Kitchens
The approximately 23.43-inch width makes this model useful in layouts where a conventional wider refrigerator cannot be accommodated.
Counter-Depth Installations
The appliance provides a shallower counter-depth profile while remaining a freestanding refrigerator.
Left-Swing Kitchen Layouts
This SKU is appropriate when a factory left-hand opening works correctly with surrounding walls, counters, cabinets, and traffic flow.
Buyers Who Want Automatic Ice
The internal automatic ice maker provides automatic cube ice without requiring an exterior through-the-door dispenser.
Designs Using Black and Warm Metal Finishes
The black exterior with Antique Brass hardware is particularly suitable for kitchens using black cabinetry, darker appliance finishes, or warm metallic accents.
When This Refrigerator May Not Be the Right Choice
- Your kitchen requires a right-swing refrigerator door.
- You need a reversible door configuration.
- You want a zero-clearance or fully integrated built-in refrigerator.
- You require an exterior water dispenser.
- You require an exterior ice dispenser.
- You need substantially more than 10.3 cu. ft. of food-storage capacity.
- You require commercial-use warranty coverage.
Important Buyer Considerations
Verify the Door Swing
The FFFFD1766-24BLK-LS is the factory left-swing model. FORNO lists the doors as non-reversible, so verify the required opening direction before ordering.
Plan for a Water Connection
The internal automatic ice maker requires connection to the household water supply. The supplied product information states that a water pipe is included.
This Is a Freestanding Refrigerator
Although the appliance is counter-depth, it is classified as freestanding. Do not treat it as a zero-clearance built-in refrigerator.
Measure the Installation Area Carefully
The refrigerator measures approximately 23.43" W × 22.81" D × 73.25" H. Account for required clearances, door opening, handles, plumbing, and electrical access before ordering.

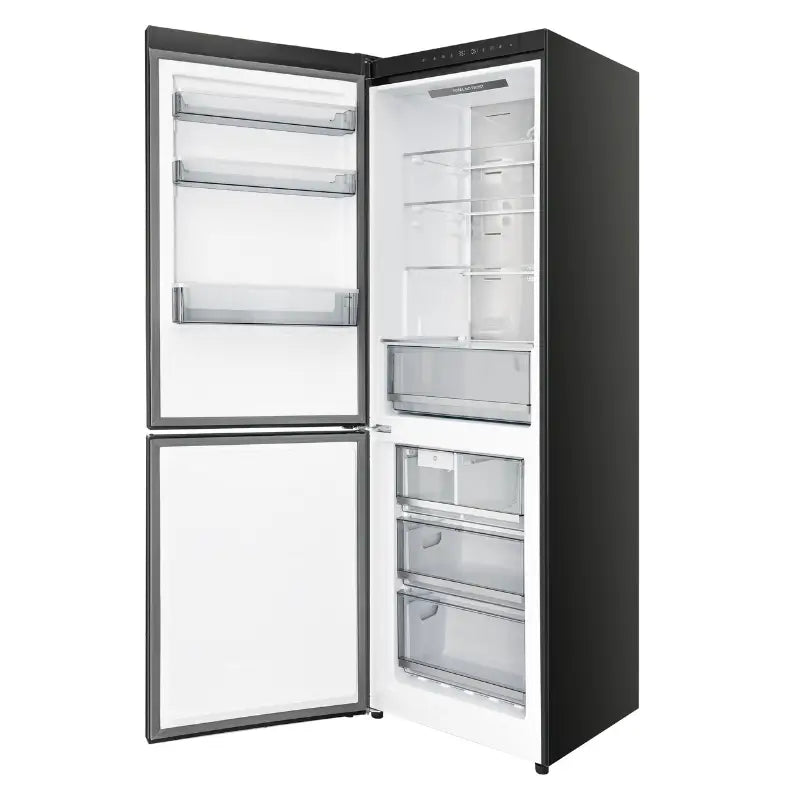

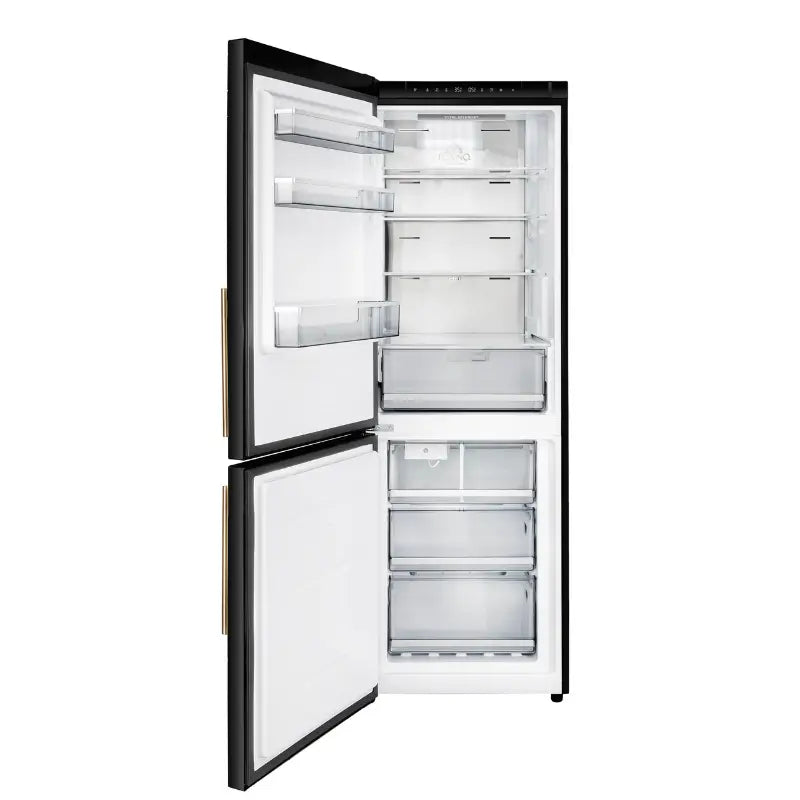

10.3 Cu. Ft. Refrigerator and Freezer Storage

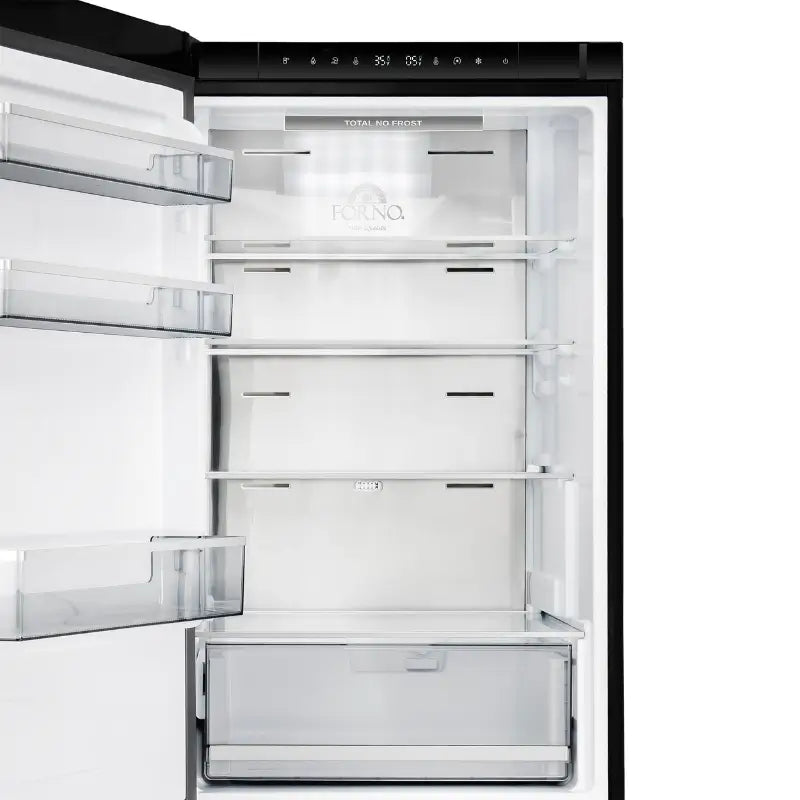

7.3 Cu. Ft. Fresh-Food Compartment
The upper refrigerator compartment provides dedicated fresh-food storage within the compact overall cabinet.

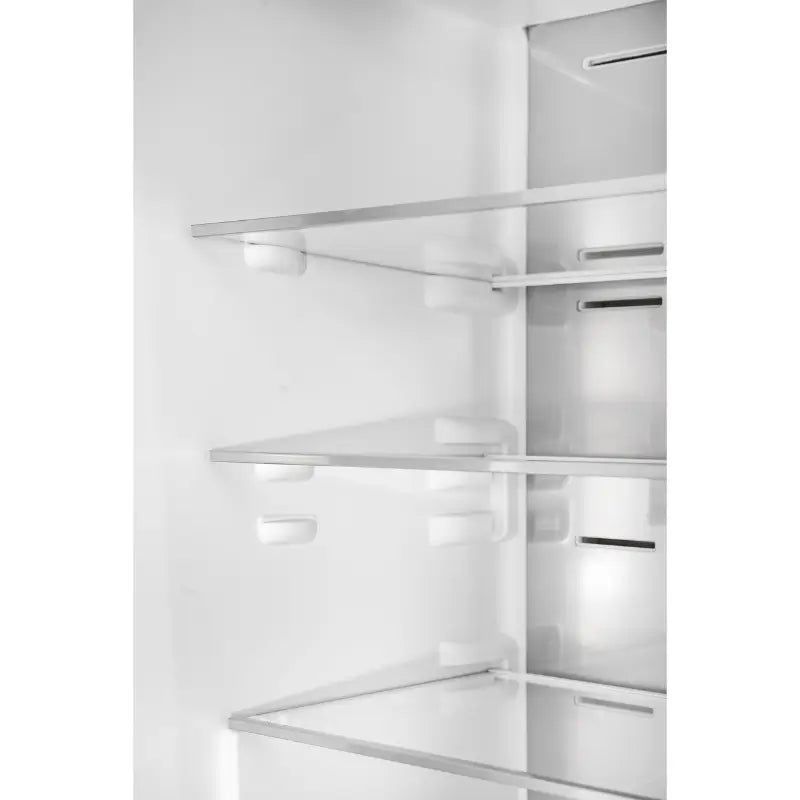

4 Fresh-Food Shelves
Four shelves provide multiple levels for food and beverage organization, including three adjustable shelves.

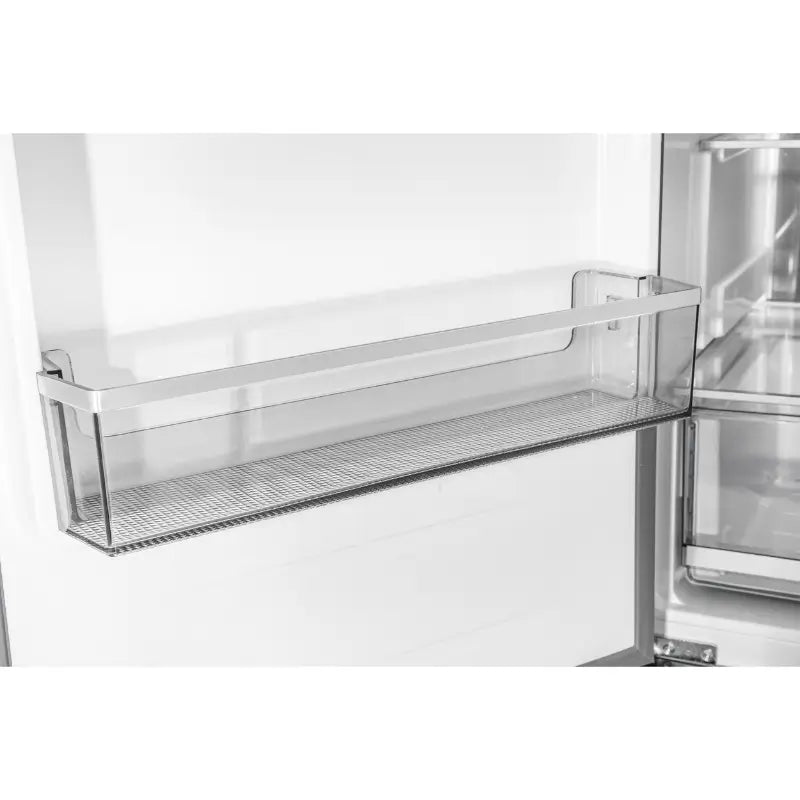

3 Door Bins
Standard door bins provide additional storage for smaller refrigerated items.

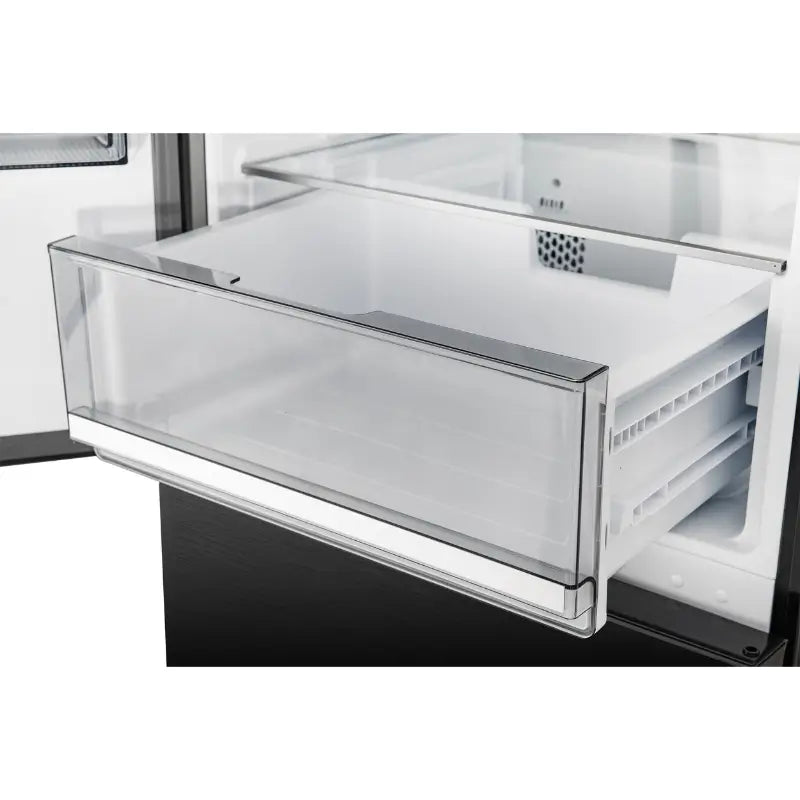

Fresh-Food Drawer
One dedicated fresh-food drawer provides another separated storage zone.
3.0 Cu. Ft. Bottom Freezer
The lower freezer provides dedicated frozen-food storage within three individual drawers.
Automatic Ice Storage
The freezer also accommodates the internal automatic ice maker and removable ice bucket.
Cooling and Temperature Management
Refrigerator Temperature Range
The fresh-food compartment can be adjusted from approximately 34°F to 43°F (1°C to 6°C).
Freezer Temperature Range
The freezer can be adjusted from approximately -9°F to 5°F (-23°C to -15°C).
Total No Frost
The Total No Frost system is designed to reduce heavy ice accumulation during normal operation. Under normal use, routine manual freezer defrosting should not be required.
Fast Cool
Fast Cool temporarily increases refrigerator cooling performance. The manufacturer's operating instructions state that the function operates at approximately 36°F (2°C) and exits automatically after 24 hours.
Fast Freeze
Fast Freeze temporarily lowers the freezer setting for rapid freezing and automatically exits after approximately 24 hours.

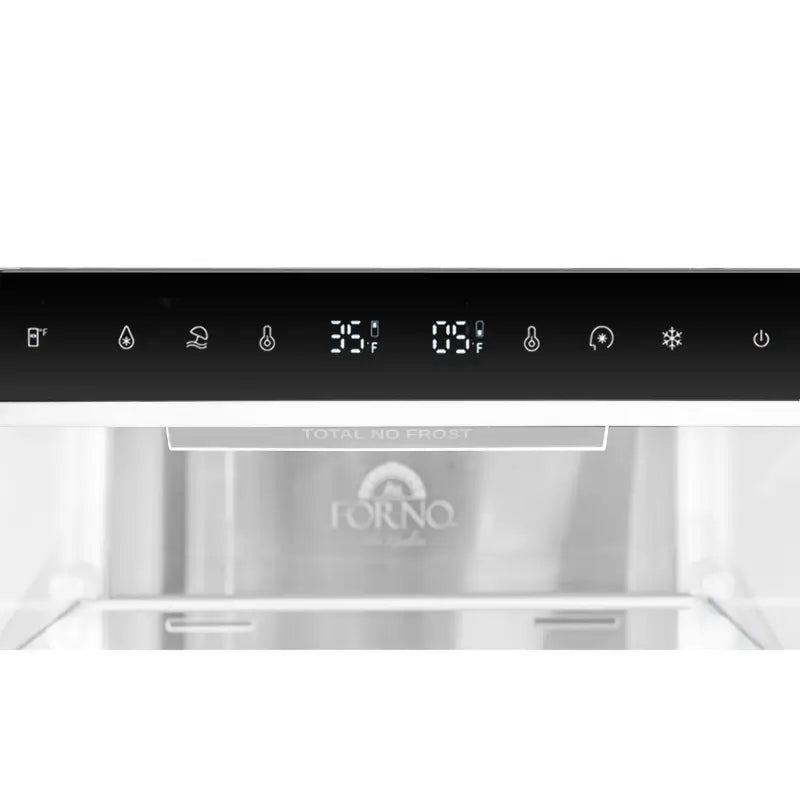

Touch Controls and Utility Modes
Electronic Temperature Control
Yes
Control Location
Interior Top
Fast Cool
Yes
Fast Freeze
Yes
Sabbath Mode
Yes
Vacation Mode
Yes
Energy Saver / Eco Mode
Yes
Door Alarm
Yes
Interior LED Lighting
Yes
Temperature Memory
No
Clock
No
Air Filtration
No

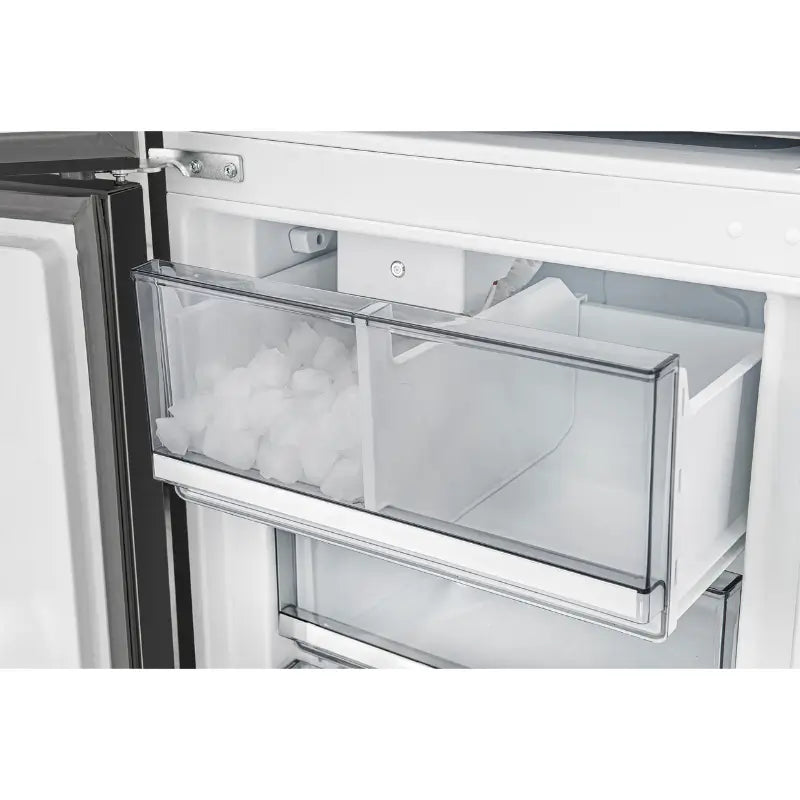

Internal Automatic Ice Maker
The FFFFD1766-24BLK-LS includes an internal automatic cube-ice maker rather than an exterior door dispenser. This keeps the front of the refrigerator visually clean while still providing automatic ice production.
| Ice Maker | Yes |
|---|---|
| Ice Maker Type | Single |
| Ice Type | Cube Ice |
| Daily Ice Production | Approximately 1.76 lb. |
| Automatic Ice-Level Control | Yes |
| Removable Ice Bucket | Yes |
| Filtered Ice | No |
| External Ice Dispenser | No |
| Water Dispenser | No |
| Water Connection Required | Yes, for automatic ice production |
| Water Pipe Included | Yes |
| Listed Water Pipe Length | 4.90 ft. |
| Replacement Water Filter | None Listed |
Dimensions and Installation Requirements
Product Dimensions
| Product Dimensions | 23.43" W × 22.81" D × 73.25" H |
|---|---|
| Product Weight | 146 lb. |
| Depth Without Handles | 22.80" |
| Depth With Handles | 25.25" |
| Depth With Door Open 90° | 45" |
| Depth With Drawers Open | 45.87" |
| Height to Top of Door | 71.37" |
| Height to Top of Door Hinge | 73.25" |
| Manufacturer-Listed Cutout Dimensions | 27.4" W × 22.46" D × 77.1" H |
Minimum Listed Clearances
| Top Clearance | 4" |
|---|---|
| Back Clearance | 2" |
| Side Clearance | 2" on each side |
Ventilation Is Required
FORNO's installation instructions emphasize that adequate ventilation is important for proper refrigeration performance. Improper ventilation can increase energy consumption and contribute to cooling-system or compressor problems.
First-Use Planning
- Verify that the refrigerator dimensions and listed clearances fit the intended location.
- Confirm that the factory left-swing door clears adjacent cabinets, counters, walls, and appliances.
- Plan a household water connection if the automatic ice maker will be used.
- Provide adequate ventilation around the refrigerator.
- Ensure the appliance is level and stable before operation.
- Do not install the refrigerator immediately adjacent to significant heat sources or in a damp location.
- Allow the refrigerator to stand upright and undisturbed for 24 hours before connecting it to power following installation.
- If the appliance has been switched off, FORNO instructs users to wait approximately five minutes before switching it on again.
Electrical Specifications
| Voltage / Frequency | 115V / 60Hz |
|---|---|
| Amperage | 1.6A |
| Receptacle / Plug Type | NEMA 5-15P |
| Power Cord Length | 7.5 ft. |
| Number of Power Cords | 1 |

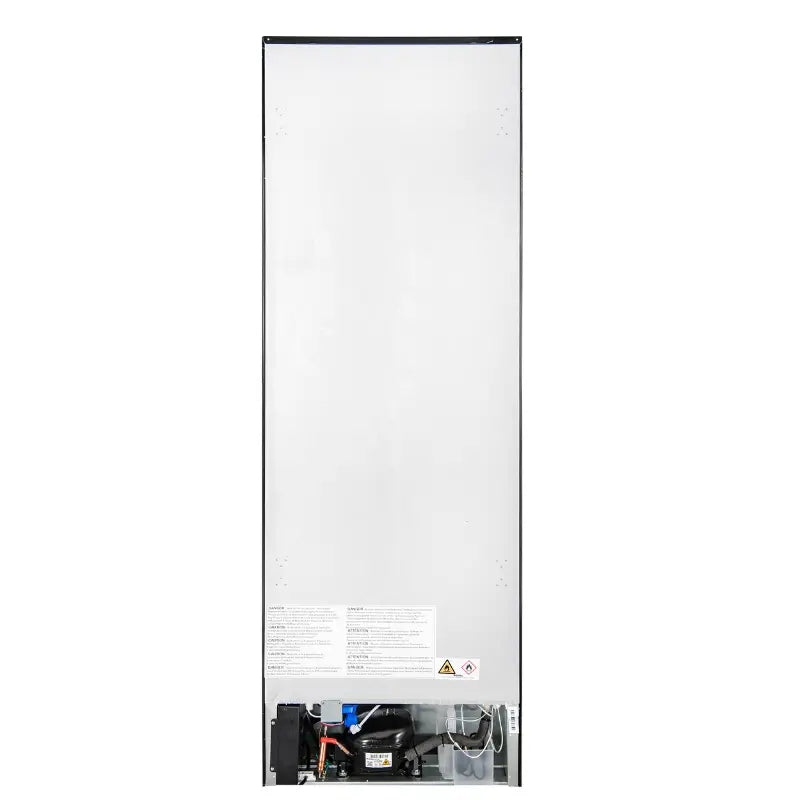

| Power Cord Location | Lower Back |
| Cooling Wattage | 100W |
| Defrost Wattage | 160W |
| Compressor Type | Inverter Compressor |
| Refrigerant | R600a |
| Sound Rating | 41 dB(A) |
Complete Technical Specifications
General and Appearance
| Brand | FORNO |
|---|---|
| Collection | Alta Qualita |
| Series | Custodia |
| Model Number | FFFFD1766-24BLK-LS |
| UPC | 686136917780 |
| Market | Canada, USA |
| Product Type | Bottom Freezer Refrigerator |
| Built-In / Freestanding | Freestanding |
| Counter-Depth | Yes |
| Convertible Refrigerator / Freezer | No |
| Overall Capacity | 10.3 cu. ft. |
| Cooling Type | Total No Frost |
| Primary Material | Metal / Plastic |
| Cabinet Material | VCM |
| Flat-Back Design | Yes |
| Door Color | Black |
| Door Texture | Smooth |
| Door Style | Flat |
| Door Swing | Left |
| Reversible Door | No |
| Handle Finish | Antique Brass |
| Cabinet Color | White |
| Door Liner Color | Gray |
| Door Liner Material | HIPS |
| Fingerprint Resistant | Yes |
Fresh-Food Compartment
| Fresh Food Capacity | 7.3 cu. ft. |
|---|---|
| Temperature Range | 34°F to 43°F / 1°C to 6°C |
| Fresh Food Shelves | 4 |
| Adjustable Shelves | 3 |
| Shelf Material | Glass with Silver Trim |
| Spill-Proof Shelves | Yes |
| Standard Door Bins | 3 |
| Gallon / 4-Liter Door Bins | 0 |
| Adjustable Door Storage | Yes |
| Fresh Food Drawers | 1 |
| Humidity-Controlled Drawer | No |
| Temperature-Controlled Drawer | No |
| Pantry Drawer | Yes |
| Interior Light | Yes |
| Interior Light Type | LED |
Freezer Compartment
| Freezer Capacity | 3.0 cu. ft. |
|---|---|
| Temperature Range | -9°F to 5°F / -23°C to -15°C |
| Freezer Layout | Freezer Drawers |
| Number of Freezer Drawers | 3 |
| Freezer Baskets | 0 |
| Freezer Door Storage | No |
| Extra Freezer Tray | No |
| Freezer Light | No |
| Fast Freeze | Yes |
Controls and Convenience
| Control Type | Touch Control |
|---|---|
| Control Location | Interior Top |
| Electronic Temperature Control | Yes |
| Fast Cool | Yes |
| Fast Freeze | Yes |
| Sabbath Mode | Yes |
| Vacation Mode | Yes |
| Energy Saver / Eco Mode | Yes |
| Door Alarm | Yes |
| Temperature Memory | No |
| Clock | No |
| Air Filtration | No |
| Dual Evaporator Cooling | No |
| External Dispenser | No |
| Water Dispenser | No |
Energy and Certifications
| ENERGY STAR Certified | Yes |
|---|---|
| Energy Consumption | 468 kWh/year |
| Estimated Annual Operating Cost | $66 |
| Safety Listing | cETLus |
| ISTA 6A | Yes |
| NSF/ANSI 61 Certified | Does Not Apply |
| NSF/ANSI/CAN 372 Certified | Does Not Apply |
| CEE Tier Qualified | N/A |
| Star-K Certified | N/A |
| ADA Compliant | N/A |
| TAA Compliant | N/A |
Residential Warranty
The FORNO FFFFD1766-24BLK-LS is intended for residential use. The supplied warranty information excludes non-residential/commercial applications.
| Warranty Type | Limited |
|---|---|
| Warranty Length | 2 Years |
| Parts Warranty | 2 Years |
| Labor Warranty | 2 Years |
| Commercial Warranty | No |
FORNO states that qualifying defects in materials and/or workmanship are covered for two years from the original retail purchase date under ordinary residential, non-commercial use, subject to the manufacturer's complete warranty conditions and exclusions.
Retain proof of original purchase and review the complete manufacturer warranty before requesting service.
FORNO FFFFD1766-24BLK-LS Manuals and Documentation
Review the manufacturer documentation before installation, operation, servicing, or finalizing the appliance opening, water connection, electrical service, and ventilation.
Frequently Asked Questions About the FORNO FFFFD1766-24BLK-LS
Is the FORNO FFFFD1766-24BLK-LS door reversible?
No. The FFFFD1766-24BLK-LS is the factory left-swing configuration, and FORNO lists the doors as non-reversible. Choose the correct swing direction before ordering.
Is the FORNO FFFFD1766-24BLK-LS a built-in refrigerator?
No. FORNO classifies the FFFFD1766-24BLK-LS as a freestanding counter-depth refrigerator. Do not install it as a zero-clearance built-in appliance; maintain the required ventilation clearances.
Does the FORNO FFFFD1766-24BLK-LS have an automatic ice maker?
Yes. It includes an internal automatic cube ice maker with automatic ice-level control and a removable ice bucket. It does not have an exterior ice or water dispenser.
Does the ice maker require a water connection?
Yes. The automatic ice maker requires connection to the household water supply. Plan the water connection before installation if automatic ice production will be used.
How much space does the FORNO FFFFD1766-24BLK-LS require?
The refrigerator measures approximately 23.43" W × 22.81" D × 73.25" H, and FORNO lists cutout dimensions of 27.4" W × 22.46" D × 77.1" H. Verify ventilation, door opening, handles, water, and electrical access before ordering.
Is the FORNO FFFFD1766-24BLK-LS suitable for commercial use?
No. The supplied FORNO warranty is for ordinary residential, non-commercial use and excludes commercial applications. Do not select this model when commercial warranty coverage is required.
Expert Buying Guidance
The FORNO Custodia FFFFD1766-24BLK-LS is best suited to buyers who specifically need a narrow 24-inch-class, counter-depth bottom-freezer refrigerator with a factory left-swing door and automatic ice production without an exterior dispenser.
Its black finish with Antique Brass handles, Total No Frost cooling, three freezer drawers, touch controls, Fast Cool and Fast Freeze functions, and 41 dB(A) published sound rating create a distinctive combination for compact residential kitchens.
Before ordering, verify two items carefully: the required door-opening direction and the available installation space. The doors are not reversible, and adequate ventilation plus a household water connection are required for proper installation and automatic ice production.
By buying from us you qualify for the full manufacturer warranty, save time and money!
We ship directly to your door from the manufacturer's warehouse.
