FORNO Custodia Collection
FORNO Custodia FFFFD1766-24BLK-RS 24-Inch Counter-Depth Bottom Freezer Refrigerator, 10.3 Cu. Ft., Right Swing – Black with Antique Brass Handles
The FORNO Custodia FFFFD1766-24BLK-RS is a 24-inch freestanding counter-depth bottom freezer refrigerator designed for kitchens where efficient use of space, organized food storage, and distinctive appliance styling are important. Its slim profile combines 10.3 cu. ft. of total capacity with a black exterior, Antique Brass handles, and a fixed right-hand door swing.
Inside, the refrigerator provides 7.3 cu. ft. of fresh-food capacity with four glass shelves, three door bins, and one fresh-food drawer. The 3.0 cu. ft. bottom freezer uses three drawers to organize frozen foods while keeping them accessible.
Total No Frost cooling helps control frost buildup, while Fast Cool and Fast Freeze provide dedicated temporary cooling modes. Interior touch controls also provide access to Sabbath, Vacation/Holiday, and Energy Saver/Eco settings. The refrigerator is rated at 41 dB(A) and uses an inverter compressor.
FORNO FFFFD1766-24BLK-RS: Quick Decision Summary
Choose the FORNO Custodia FFFFD1766-24BLK-RS when you need a narrow counter-depth refrigerator with a fixed right-swing door, bottom-freezer storage, and distinctive black-and-Antique-Brass styling. It combines a compact footprint with Total No Frost cooling, touch controls, Fast Cool, Fast Freeze, and three-drawer freezer organization.
| Best For | Compact residential kitchens, narrow refrigerator openings, counter-depth layouts, right-swing installations, and kitchens using black appliances with warm metal accents. |
|---|---|
| Product Type | Freestanding counter-depth bottom freezer refrigerator. |
| Capacity | 10.3 cu. ft. total: 7.3 cu. ft. refrigerator and 3.0 cu. ft. freezer. |
| Door Configuration | Fixed right swing; non-reversible. |
| Key Advantage | Narrow counter-depth footprint with Total No Frost cooling, three freezer drawers, multiple operating modes, and Antique Brass hardware. |
Things to Know Before Ordering
- The refrigerator door is right-swing and non-reversible.
- This model is counter-depth but classified as freestanding, not built-in.
- The refrigerator does not include an automatic ice maker.
- There is no water dispenser.
- The freezer provides 3.0 cu. ft. of capacity across three drawers.
- Required ventilation and installation clearances must be maintained.
- The manufacturer specifies a 24-hour upright rest period before power connection after installation.
Quick Product Facts
| Brand | FORNO |
|---|---|
| Collection | Alta Qualita |
| Series | Custodia |
| Model | FFFFD1766-24BLK-RS |
| UPC | 686136917797 |
| Product Type | Bottom Freezer Refrigerator |
| Installation Type | Freestanding |
| Depth Type | Counter Depth |
| Width Class | 24 Inch |
| Actual Width | 23.43 in. |
| Total Capacity | 10.3 cu. ft. |
| Fresh Food Capacity | 7.3 cu. ft. |
| Freezer Capacity | 3.0 cu. ft. |
| Door Swing | Right |
| Reversible Door | No |
| Finish | Black |
| Handle Finish | Antique Brass |
| Cooling System | Total No Frost |
| Noise Rating | 41 dB(A) |
| Ice Maker | No |
| Water Dispenser | No |
| ENERGY STAR Certified | Yes |
| Application | Residential |
| Market | USA & Canada |
| Warranty | 2-Year Limited Parts & Labor Warranty |
Key Features of the FORNO Custodia FFFFD1766-24BLK-RS
24-Inch Counter-Depth Profile
At 23.43 inches wide, the Custodia provides a narrow refrigeration solution for kitchens where a conventional full-width refrigerator would occupy too much space. Its counter-depth design helps reduce projection into the surrounding kitchen area.
This is a freestanding refrigerator, not a built-in model, so all manufacturer ventilation and installation requirements still apply.
10.3 Cu. Ft. Total Capacity
The appliance combines 7.3 cu. ft. of fresh-food storage with a 3.0 cu. ft. bottom freezer, providing separate refrigerated and frozen-food storage within its narrow footprint.
Total No Frost Cooling
The Total No Frost system is designed to limit heavy ice accumulation and reduce the need for routine manual freezer defrosting under normal operating conditions.
Fast Cool
Fast Cool temporarily lowers the refrigerator setting to approximately 36°F (2°C). According to the manufacturer manual, the function automatically exits after approximately 24 hours.
Fast Freeze
Fast Freeze temporarily operates the freezer at approximately -13°F (-25°C) and automatically exits after approximately 24 hours.
41 dB(A) Published Sound Rating
FORNO rates this refrigerator at 41 dB(A), providing a specific manufacturer sound rating for buyers comparing appliance noise levels.

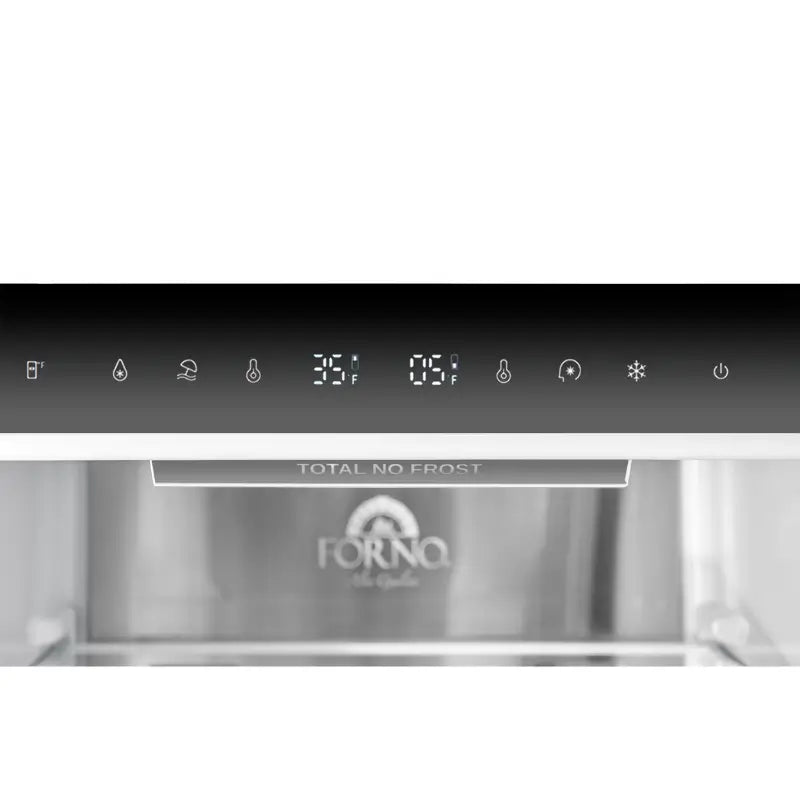

Electronic Touch Controls
Interior touch controls provide access to refrigerator and freezer temperature settings along with Fast Cool, Fast Freeze, Sabbath, Vacation/Holiday, and Energy Saver/Eco operating modes.

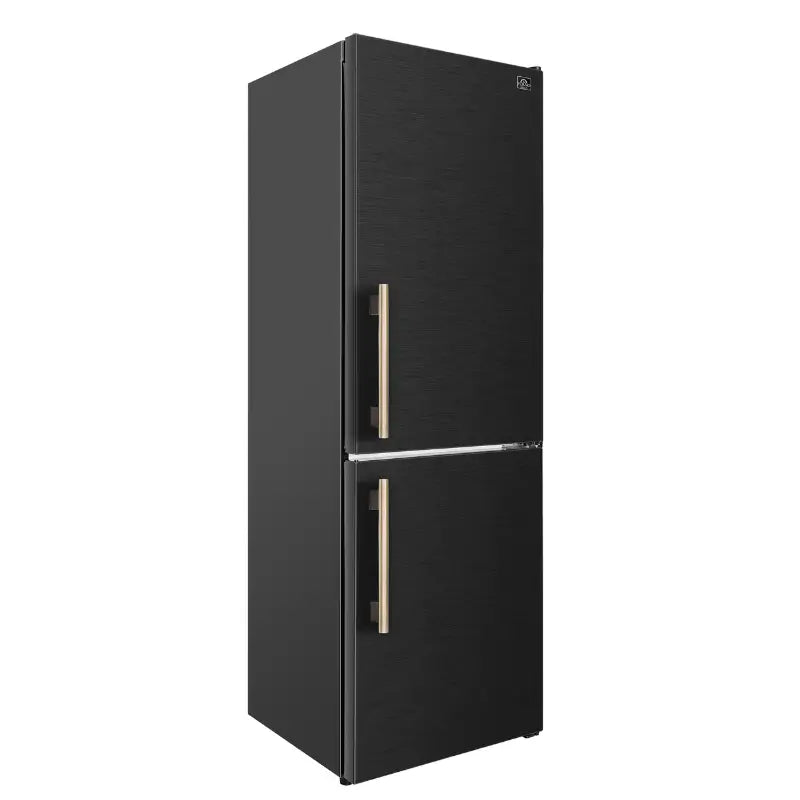

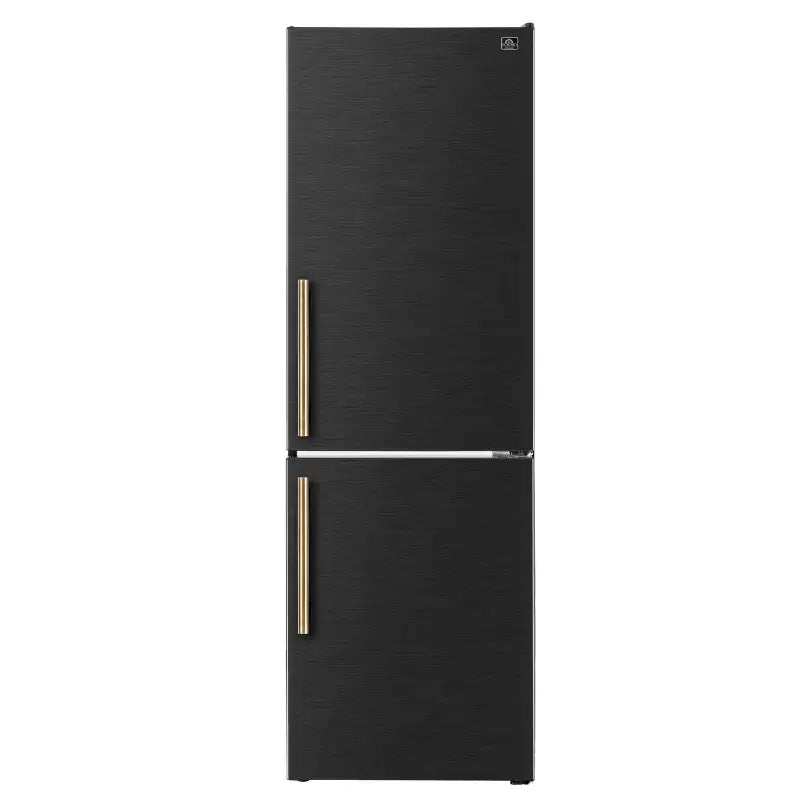

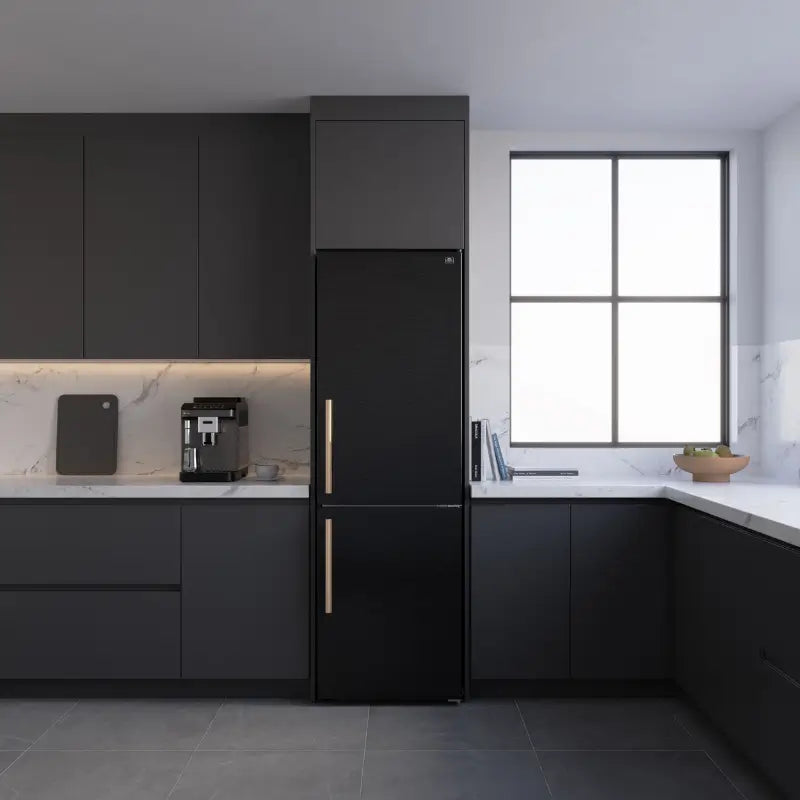

Black Finish with Antique Brass Handles
A black exterior is paired with contrasting Antique Brass handles, creating a warmer hardware finish than conventional stainless-steel or black appliance handles.

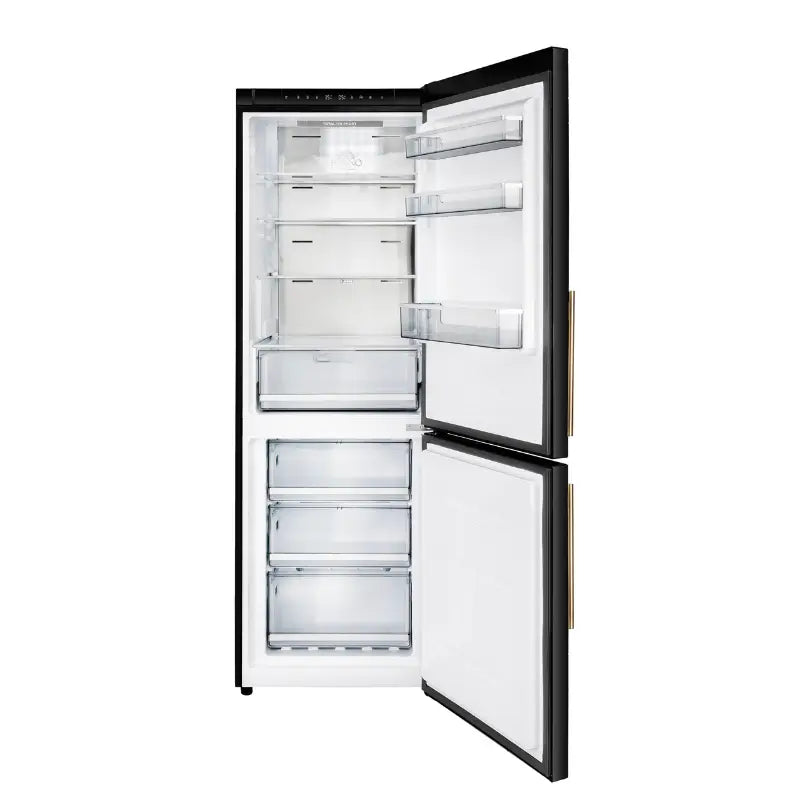

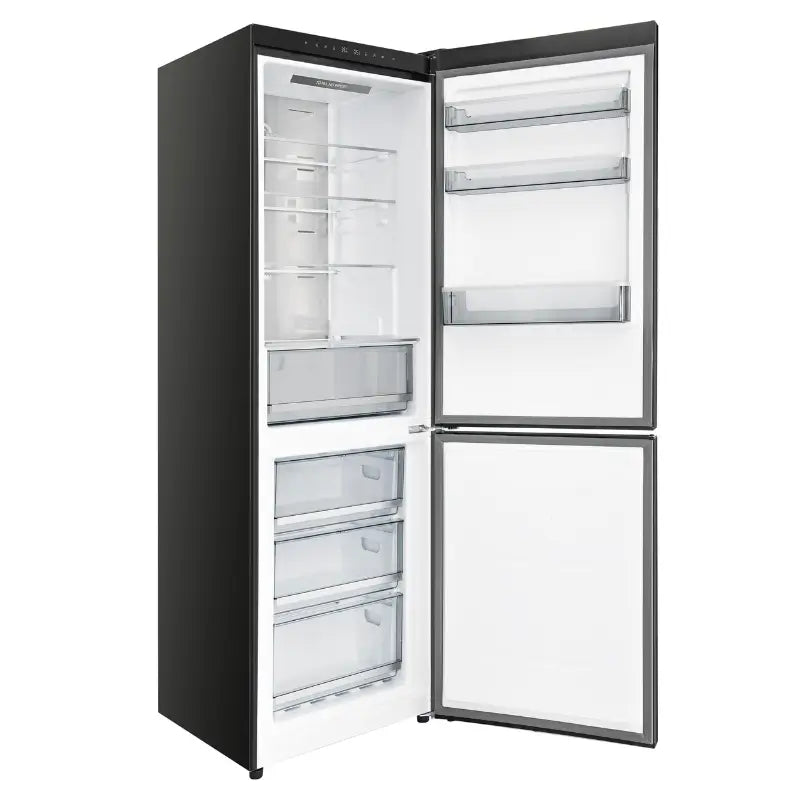

Refrigerator and Freezer Storage

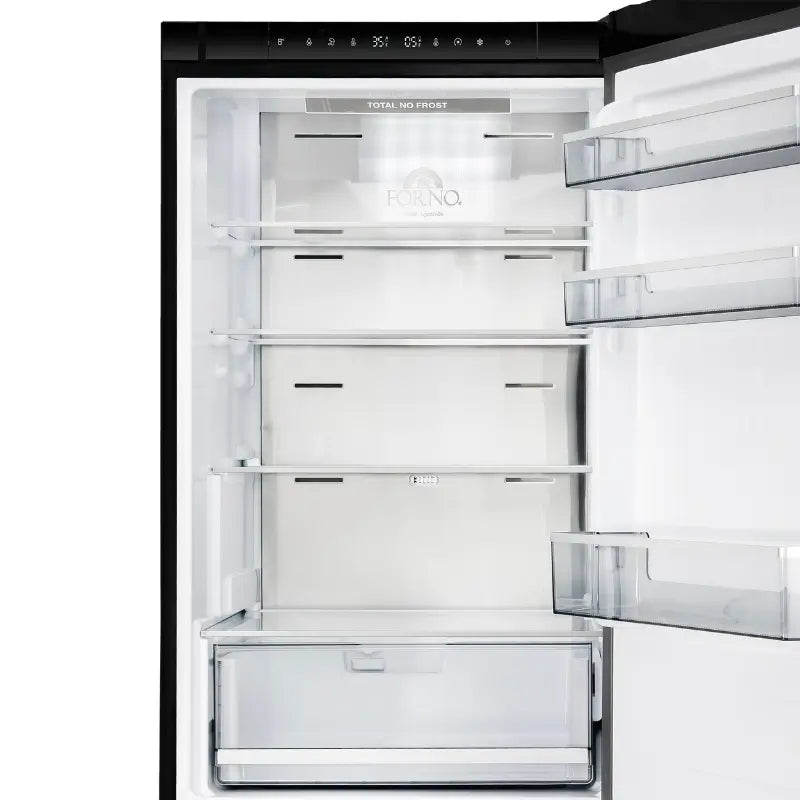

Fresh-Food Storage
The fresh-food compartment provides 7.3 cu. ft. of capacity with flexible shelving and door storage for everyday groceries.

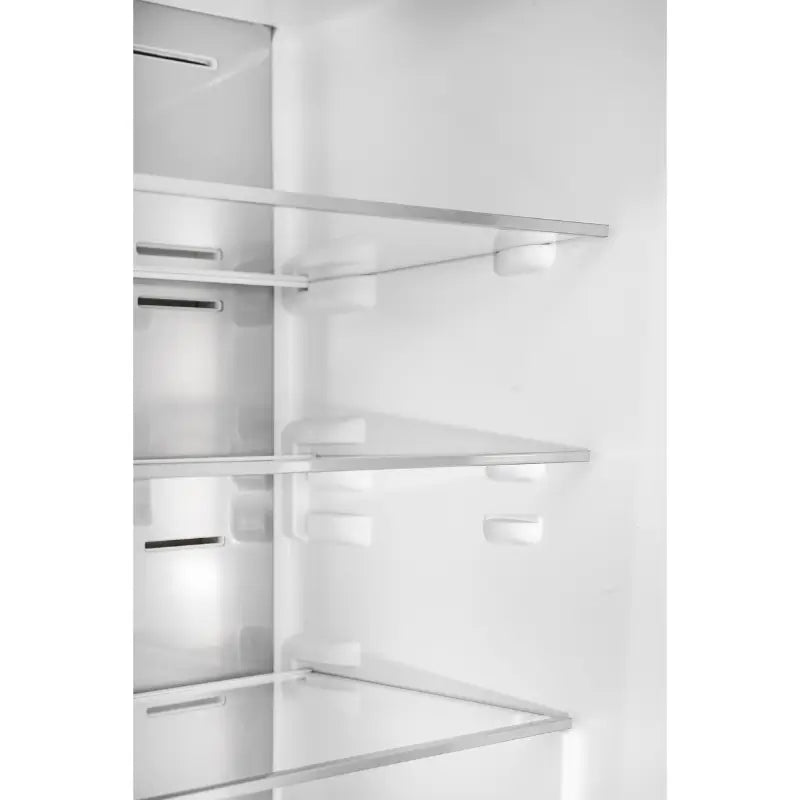

4 Glass Shelves
Four glass shelves with silver trim provide multiple levels for food and beverage organization.
3 Adjustable Shelves
Three refrigerator shelves can be adjusted to accommodate different food and container heights.

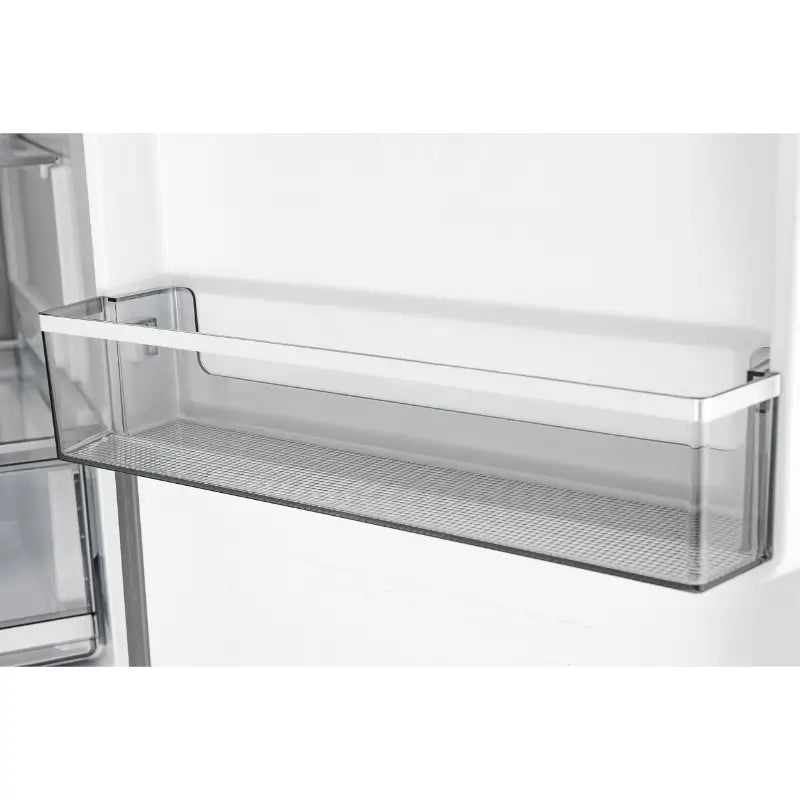

3 Door Bins
Three standard door bins provide additional storage for smaller refrigerated items.

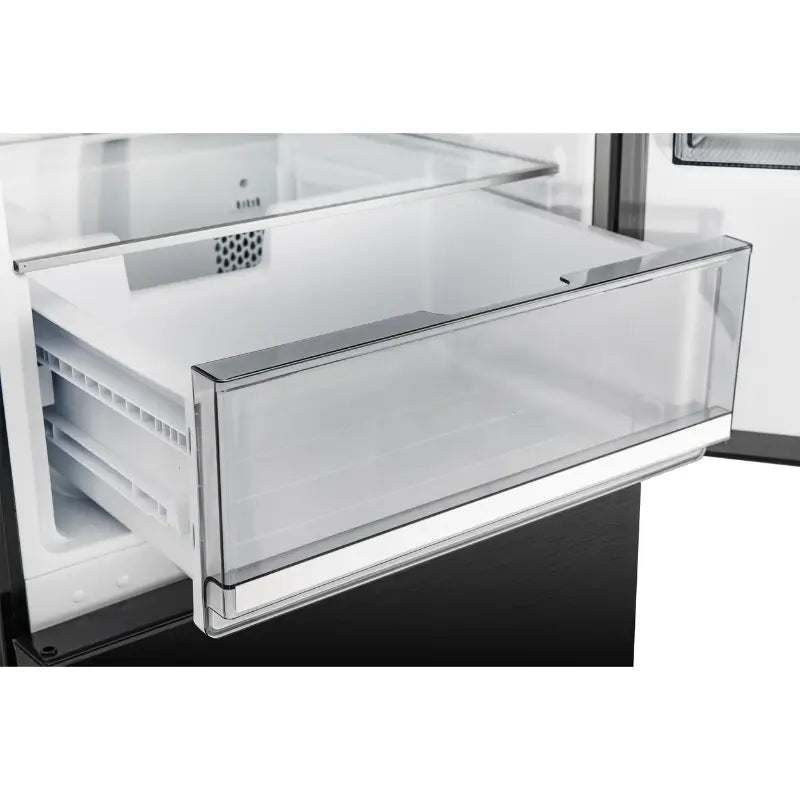

Fresh-Food Drawer
One dedicated fresh-food drawer provides a separate storage area.
Spill-Proof Shelves
Spill-proof shelf construction is designed to help contain accidental spills within the refrigerator compartment.
LED Interior Lighting
LED lighting provides illumination throughout the fresh-food compartment.
| Fresh Food Capacity | 7.3 cu. ft. |
|---|---|
| Temperature Range | 34°F to 43°F / 1°C to 6°C |
| Total Shelves | 4 |
| Adjustable Shelves | 3 |
| Shelf Material | Glass with Silver Trim |
| Standard Door Bins | 3 |
| Door Bin Material | Plastic |
| Door Bin Color | Transparent Gray with Silver Trim |
| Gallon Door Bins | None |
| Fresh Food Drawers | 1 |
| Adjustable Door Storage | Yes |
| Spill-Proof Shelves | Yes |
| Interior Lighting | LED |
Three-Drawer Bottom Freezer
The lower freezer provides 3.0 cu. ft. of storage and uses three freezer drawers to separate frozen foods instead of relying on one open freezer compartment.
| Freezer Capacity | 3.0 cu. ft. |
|---|---|
| Freezer Configuration | Bottom Freezer |
| Freezer Storage Layout | Freezer Drawers |
| Number of Freezer Drawers | 3 |
| Temperature Range | -9°F to 5°F / -23°C to -15°C |
| Fast Freeze | Yes |
| Freezer Door Storage | No |
| Freezer Light | No |
| Ice Maker | No |
| Automatic Ice Level Control | No |
Cooling, Controls and Utility Modes
Sabbath Mode
Sabbath Mode changes the appliance's lighting and display behavior. Follow the control sequence in the FORNO user manual when activating or deactivating this setting.
Vacation / Holiday Mode
The manufacturer manual specifies approximately 63°F (17°C) for the refrigerator compartment and approximately 0°F (-18°C) for the freezer while Holiday mode is active.
Energy Saver / Eco Mode
Eco mode operates the refrigerator at approximately 41°F (5°C) and the freezer at approximately 0°F (-18°C).
Door Alarm
The refrigerator includes a door alarm. The user manual states that an alarm sounds after a door has remained open for approximately 60 seconds.
Who Is the FORNO FFFFD1766-24BLK-RS Best For?
Narrow Kitchen Layouts
The approximately 23.43-inch width makes this model useful where a conventional full-width refrigerator cannot be accommodated.
Counter-Depth Kitchens
The shallower cabinet profile is suited to buyers who want reduced projection into the room while retaining a freestanding refrigerator configuration.
Right-Swing Installations
This model is specifically suited to kitchens where a fixed right-hand refrigerator door works with the surrounding layout.
Bottom-Freezer Buyers
Buyers who prefer fresh food above and divided freezer storage below may appreciate the three-drawer freezer configuration.
Black and Warm-Metal Kitchen Designs
The black exterior with Antique Brass handles is particularly relevant to kitchens using black finishes, warm metallic fixtures, or brass decorative accents.
When This Refrigerator May Not Be the Right Choice
- Your kitchen requires a left-hand door swing.
- You require a reversible refrigerator door.
- You need a true built-in refrigerator.
- You require an automatic ice maker.
- You require an integrated water dispenser.
- You need gallon-size door bins.
- You need substantially more than 10.3 cu. ft. of total capacity.
- You require commercial-use warranty coverage.
Important Buyer Considerations
Confirm the Right-Hand Door Swing
The model-specific specification sheet identifies FFFFD1766-24BLK-RS as a right-swing refrigerator with non-reversible doors. Confirm that the opening direction works with surrounding walls, counters, islands, and cabinetry before purchasing.
Counter-Depth Does Not Mean Built-In
This appliance is classified as counter-depth and freestanding. Do not plan it as a zero-clearance or fully integrated built-in refrigerator.
No Ice Maker or Water Dispenser
This model does not include an automatic ice maker, water dispenser, water pipe, or replacement water filter.
Confirm Available Storage Capacity
Total storage is 10.3 cu. ft.. Buyers accustomed to conventional full-width refrigerators should compare usable storage volume before ordering.
Dimensions and Installation Requirements
Proper dimensions, door clearance, ventilation, and electrical access should be verified before ordering the refrigerator. Do not plan the installation from the nominal 24-inch width alone.
Overall Product Dimensions
Manufacturer-Listed Cutout Dimensions
| Product Width | 23.43 in. |
|---|---|
| Product Depth | 22.81 in. |
| Product Height | 73.25 in. |
| Depth Without Handles | 22.80 in. |
| Depth With Handles | 25.25 in. |
| Depth With Door Open 90° | 45 in. |
| Depth With Drawer Open | 45.87 in. |
| Height to Top of Door | 71.37 in. |
| Height to Top of Door Hinge | 73.25 in. |
| Product Weight | 141.5 lb. |
| Packing Dimensions | 26.37 in. W × 26.75 in. D × 75.47 in. H |
| Shipping Weight | 159 lb. |
Ventilation Is Required
FORNO's installation manual states that inadequate ventilation can contribute to excessive power consumption, premature compressor failure, or system failure and may affect applicable warranty coverage.
The installation diagram specifies at least 100 mm (3 15/16 in.) of ventilation clearance above the refrigerator when installed within cabinetry.
Before Connecting Power
After positioning the appliance, FORNO instructs users to allow the refrigerator to remain upright and undisturbed for 24 hours before connecting it to a power source.
Electrical and Cooling Specifications
| Voltage | 115V |
|---|---|
| Frequency | 60Hz |
| Amperage | 1.6A |
| Receptacle / Plug Type | NEMA 5-15P |
| Power Cord Length | 7.5 ft. |

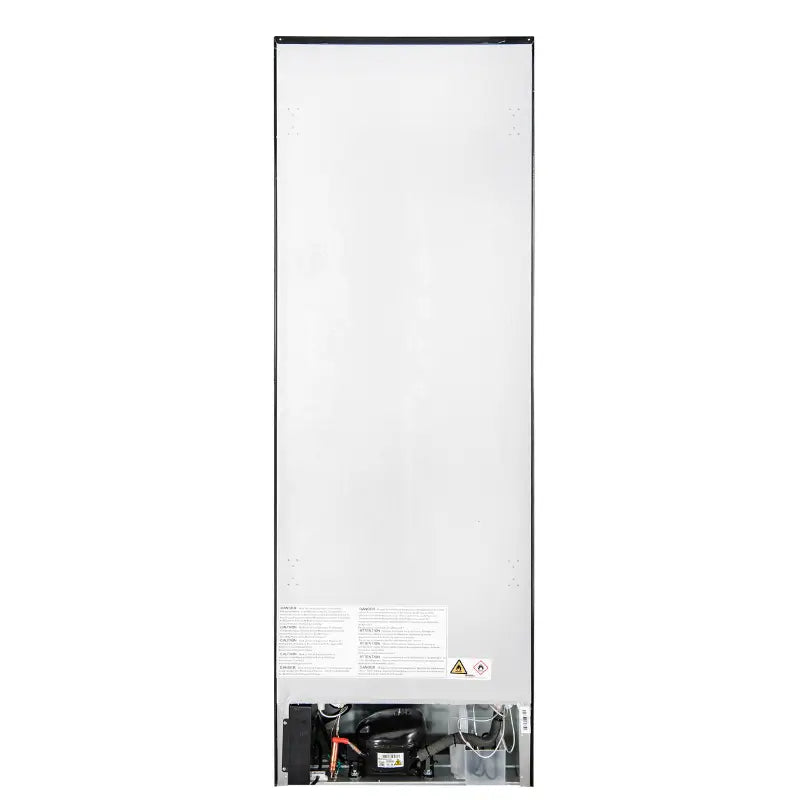

| Power Cord Location | Lower Back |
| Compressor Type | Inverter Compressor |
| Refrigerant | R600a |
| Cooling Wattage | 100W |
| Defrost Wattage | 160W |
| Cooling Type | Total No Frost |
| Dual Evaporator Cooling System | No |
| Noise Level | 41 dB(A) |
Energy and Certifications
| ENERGY STAR Certified | Yes |
|---|---|
| Annual Energy Consumption | 384 kWh/year |
| Estimated Annual Operating Cost | $54 |
| Safety Listing | cETLus |
| ISTA 6A | Yes |
| NSF/ANSI 61 Certified | Does Not Apply |
| NSF/ANSI/CAN 372 Certified | Does Not Apply |
| CEE Tier Qualified | N/A |
Additional Technical Specifications
| Color / Finish | Black |
|---|---|
| Handle Color / Finish | Antique Brass |
| Control Location | Interior Top |
| Control Type | Touch Control |
| Electronic Temperature Control | Yes |
| Fast Cool Function | Yes |
| Fast Freeze Function | Yes |
| Sabbath Mode | Yes |
| Vacation / Holiday Mode | Yes |
| Energy Saver / Eco Mode | Yes |
| Door Alarm | Yes |
| Interior Light | Yes |
| Interior Light Type | LED |
| Number of Lights | 1 |
| Primary Material | Metal / Plastic |
| Cabinet Material | VCM |
| Cabinet Color | White |
| Door Liner Material | HIPS |
| Door Liner Color | Gray |
| Door Style | Flat |
| Door Texture | Smooth |
| Fingerprint Resistant | Yes |
| Flat Back Design | Yes |
| Pantry Drawer | Yes |
| Humidity-Controlled Drawer | No |
| Temperature-Controlled Drawer | No |
| Air Filtration | No |
| Temperature Memory Function | No |
| External Dispenser | No |
| Water Dispenser | No |
| Water Pipe Included | No |
| Matching Replacement Water Filter | No |
| Ice Maker | No |
| Ice Maker Type | N/A |
| Daily Ice Production | 0 lb. |
| See-Through Door | No |
Included Components and Feature Limitations
Included Storage
- Refrigerator compartment
- Bottom freezer compartment
- 4 refrigerator shelves
- 3 refrigerator door bins
- 1 fresh-food drawer
- 3 freezer drawers
Included Appliance Components
- Antique Brass handles
- LED refrigerator lighting
- Power cord
- Integrated touch controls
Not Equipped
- Automatic ice maker
- Water dispenser
- Water pipe
- Replacement water filter
- Gallon-size door bins
- Freezer door storage
- Freezer interior light
Care and Everyday Operation
Maintain Air Circulation
FORNO recommends leaving sufficient space between foods so cool air can circulate and avoiding excessive overfilling of the compartments.
Avoid Adding Hot Food
Allow hot foods to cool appropriately before placing them directly into the refrigerator or freezer.
Reduce Unnecessary Door Opening
For energy-conscious operation, the manufacturer recommends minimizing unnecessary door opening and keeping the appliance away from major heat sources and direct sunlight.
Clean With Mild Materials
Before cleaning or maintenance, disconnect the refrigerator from power. FORNO recommends bicarbonate of soda and lukewarm water and advises against abrasive products or detergents.
Important Safety Information
R600a Refrigerant
This refrigerator uses flammable R600a refrigerant. Do not puncture or damage the refrigerant tubing. Follow all manufacturer safety, handling, service, installation, and disposal instructions contained in the user manual.
Always review the complete manufacturer documentation before installing, operating, cleaning, moving, maintaining, or servicing the appliance.
FORNO 2-Year Limited Warranty
The FORNO FFFFD1766-24BLK-RS is covered by a two-year limited warranty, subject to FORNO's stated conditions, exclusions, and warranty procedures.
The manufacturer warranty documentation states that qualifying components or parts that fail because of defects in materials and/or workmanship are covered for two years from the original retail purchase under conditions of ordinary residential, non-commercial use. Qualifying repair or replacement includes labor at standard rates under the terms stated in the warranty.
Commercial Use
FORNO's warranty documentation excludes use of the product in a non-residential commercial application. This refrigerator should therefore be treated as a residential appliance for product filtering and buyer guidance.
FORNO FFFFD1766-24BLK-RS Manuals and Documentation
Review the official manufacturer documents before installation and operation. The specification sheet is specific to FFFFD1766-24BLK-RS, while the user manual covers the FFFFD1766-24RS, FFFFD1766-24WHT-RS, and FFFFD1766-24BLK-RS series.
Frequently Asked Questions About the FORNO FFFFD1766-24BLK-RS
Is the FORNO FFFFD1766-24BLK-RS a counter-depth refrigerator?
Yes. FORNO identifies the FFFFD1766-24BLK-RS as a counter-depth, freestanding refrigerator. It is not classified as a built-in refrigerator.
Can the door on the FORNO FFFFD1766-24BLK-RS be reversed?
No. The FFFFD1766-24BLK-RS has a right-hand door swing, and the model-specific specification sheet identifies the doors as non-reversible.
Does the FORNO FFFFD1766-24BLK-RS have an ice maker or water dispenser?
No. This refrigerator does not include an ice maker or water dispenser. Choose another refrigerator if either feature is required.
How much capacity does the FORNO FFFFD1766-24BLK-RS have?
The refrigerator provides 10.3 cu. ft. of total capacity, consisting of 7.3 cu. ft. of fresh-food storage and 3.0 cu. ft. of freezer storage.
What are the dimensions of the FORNO FFFFD1766-24BLK-RS?
The refrigerator measures 23.43 in. W × 22.81 in. D × 73.25 in. H. Do not size the installation from appliance dimensions alone; required ventilation, cutout dimensions, and door clearance must also be verified.
How much ventilation does the FORNO FFFFD1766-24BLK-RS require?
FORNO's installation diagram specifies at least 100 mm (3 15/16 in.) of ventilation clearance above the refrigerator when installed within cabinetry. Do not obstruct the required ventilation around the appliance.
What electrical connection does the FORNO FFFFD1766-24BLK-RS require?
The refrigerator is specified for 115V / 60Hz, 1.6A operation with a NEMA 5-15P connection. Verify the installation location has an appropriate electrical connection before delivery.
Does the FORNO FFFFD1766-24BLK-RS need manual defrosting?
Under normal use, the Total No Frost system is designed so routine manual freezer defrosting should not be necessary. Persistent heavy ice buildup should be investigated because it may indicate a door-sealing or installation issue.
Is the FORNO FFFFD1766-24BLK-RS designed for commercial use?
No. FORNO's warranty specifies ordinary residential, non-commercial use and excludes non-residential commercial applications.
How long should the refrigerator stand before being plugged in?
FORNO instructs users to leave the appliance upright and undisturbed for 24 hours before connecting it to power after positioning it for installation.
Expert Buying Guidance
The FORNO Custodia FFFFD1766-24BLK-RS is best suited to buyers who specifically need a narrow 24-inch-class, counter-depth bottom-freezer refrigerator with a fixed right-hand door and distinctive Black with Antique Brass styling.
Its combination of a 23.43-inch width, 10.3 cu. ft. total capacity, three-drawer freezer, Total No Frost cooling, Fast Cool and Fast Freeze functions, inverter compressor, and published 41 dB(A) sound rating makes compact, design-conscious refrigeration the main reason to consider this model.
Choose another configuration if your installation requires a left-hand or reversible door, built-in refrigeration, automatic ice production, a water dispenser, or substantially greater food-storage capacity.
By buying from us you qualify for the full manufacturer warranty, save time and money!
We ship directly to your door from the manufacturer's warehouse.
