Breezaire WKCE Series Cabinet Wine Cooling System
Breezaire WKCE 2200 Cabinet Wine Cooling System
The Breezaire WKCE 2200 is a compact cabinet wine cooling system designed for enclosed wine cabinets, built-in wine storage furniture, and constricted wine storage enclosures. It is engineered for applications where a traditional walk-in wine cellar cooling system is not the right fit.
The WKCE 2200 is a direct replacement for WKC 2200 and OEM 2200.
Designed for wine cabinets up to 265 cu. ft.
Direct replacement for WKC 2200 and OEM 2200
Built for wine cabinets and constricted enclosures
Bottom cold-air discharge configuration
2200 BTU cooling capacity
115V, 60Hz, 4A electrical requirement
Automatic humidity control
Rear exhaust direction
Cabinet Wine Cooling for Enclosures up to 265 Cubic Feet
This model is designed for cabinet applications up to 265 cubic feet and uses a bottom cold-air discharge configuration that supports compact cabinet installations. Unlike standard refrigeration equipment, Breezaire cooling systems are made to help maintain the controlled temperature and humidity conditions required for proper wine storage.
The WKCE 2200 is designed to cool approximately 25°F below the ambient temperature on the venting side of the unit. Proper cabinet construction, insulation, ventilation, and airflow clearance are essential for reliable performance.
Quick Specifications
Model
WKCE 2200
Replacement For
WKC 2200 & OEM 2200
Application
Wine cabinets and constricted enclosures
Capacity
Up to 265 cu. ft.
Installation Type
Through-the-wall
Cooling Capacity
2200 BTU
Electrical Requirements
115V, 60Hz, 4A
Controls
Electronic controls with digital temperature display
Humidity Control
Automatic
Exhaust Direction
Rear
Weight
55 lbs
Warranty
1 year labor / 5 years parts
Ideal Applications
Custom wine cabinets
Built-in wine storage furniture
Residential wine cabinet projects
Compact enclosed wine storage spaces
Replacing an existing WKC 2200 or OEM 2200 unit
Wine cabinet enclosures up to 265 cubic feet
Not Recommended For
Walk-in wine cellars
Large wine rooms
Commercial wine storage facilities
Standard refrigeration applications
Unsealed or poorly insulated enclosures
Installations with restricted rear exhaust airflow
Product Overview
The Breezaire WKCE 2200 is built for cabinet-style wine storage where compact size, controlled airflow, and stable cooling performance are important. Because this unit discharges cold air from the bottom, it is especially suited for cabinets and other constrained enclosures where a conventional cellar cooling system may be oversized or impractical.
By design, Breezaire wine cooling systems help create a stable environment for products that are sensitive to changes in temperature and humidity. This makes the WKCE 2200 appropriate for wine storage applications, but not for general refrigeration or food storage.
Performance depends heavily on installation conditions. Improper placement, restricted airflow, insufficient cabinet insulation, or high ambient temperatures can reduce cooling effectiveness. Before installation, verify that the enclosure is properly sealed, the venting side has adequate airflow, and the electrical supply matches the unit requirements.
Humidity Guidance
Wine cabinet cooling units help maintain a stable humidity level that is generally lower than the surrounding ambient humidity. In areas with high ambient humidity, the WKCE 2200 can help lower humidity toward suitable wine storage conditions.
In very dry environments, the desired enclosure humidity may not be achieved without adding moisture. If additional moisture is needed, use slow natural evaporation from a small porous water container.
Do not use a humidifier inside the wine cabinet.
Key Features & Benefits
Adjustable Temperature Control
The adjustable thermostat allows the cabinet temperature to be set within the ideal wine storage range of 50°F to 60°F.
Automatic Humidity Control
The gentle cooling action helps maintain relative humidity in the 50% to 75% range under suitable cabinet and ambient conditions. Additional moisture may be required in extremely dry climates.
Vibration Control
Breezaire cooling systems are engineered with dampening mounts throughout the system to help control vibration and protect wine during storage.
Ultra-Quiet Operation
The WKCE 2200 is designed to operate quietly and unobtrusively, supporting the refined atmosphere expected in premium wine storage spaces.
Attractive Metal Cabinet
The metal cabinet is designed to blend with the surrounding wine storage area and can be flush mounted to a wall or cabinet opening when properly installed.
Ease of Installation
No plumbing, complicated wiring, or on-site refrigerant installation is required. The unit is factory charged and ready for installation when mounted correctly and connected to a 115V AC power source.
Comprehensive Warranty Coverage
The WKCE 2200 includes warranty coverage with 1 year labor and 5 years parts.
WKCE Cabinet Cooling Capacity Options
Model
Recommended Cabinet Size
Best Use
WKCE 1060
Up to 140 cu. ft.
Smaller wine cabinet applications
WKCE 2200
Up to 265 cu. ft.
Larger wine cabinet applications
Available in WKCE 1060 for 140 cu. ft. cabinet applications and WKCE 2200 for 265 cu. ft. cabinet applications.
Installation Requirements
Installation Type
Through-the-wall
Application
Wine cabinets and constricted enclosures
Electrical Requirements
115V, 60Hz, 4A
Exhaust Direction
Rear
Cooling Differential
Approximately 25°F below ambient temperature on the venting side
Plumbing Required
No
On-Site Refrigerant Work
No
Technical Specifications
Dimensions H x W x D
10.50" x 18" x 16.50"
Capacity
Up to 265 cu. ft.
Installation
Through-the-wall
High-Temperature Alarm
No
Electronic Controls
Yes
Digital Temperature Display
Yes
Humidity Control
Automatic
Defrost System
Automatic
Exhaust Direction
Rear
Electrical
4 AMP
Electrical Requirements
115V, 60Hz, 4A
BTU Cooling
2200
Weight
55 lbs
Warranty
1 year labor / 5 years parts
Sentry III+ Digital Control System
Each Breezaire wine cooling unit comes equipped with Breezaire's Sentry III digital electronic control system. The system includes a control panel with an easy-to-read green LED display and provides accurate temperature adjustment with continuous cabinet temperature display.
Sentry III+ Features
Large, easy-to-read cool green display
Accurate temperature set point adjustment
Continuous cabinet temperature display
Power outage protection
Blocked airflow protection that can shut down the unit in high-temperature conditions caused by condenser blockage or fan failure
Temperature control by enclosure air sensors or optional bottle probe
Factory-charged operation when mounted and connected to a 115V AC power source
Intelligent temperature and fan speed monitoring
Control System Video
Warning: UNPLUG the unit before changing Sentry III.
Optional Bottle Probe
The Breezaire Bottle Probe can be used on all models. It is used when you want the cooling system to control temperature based on the liquid inside the bottle rather than only the air temperature inside the wine cabinet.
When the bottle probe is plugged into the unit, it replaces the internal air sensor. The temperature displayed is the temperature of the liquid in the bottle. Unplugging the bottle probe returns the unit to the internal air sensor and cabinet air temperature reading.
Allow the enclosure to stabilize at the desired temperature for approximately 72 hours. Use a normal-size wine bottle, clean it, fill it with water, insert the bottle probe into the bottle, and place it inside the enclosure. Do not connect the bottle probe to the unit until the bottle has cooled to the enclosure temperature. Once connected, the on and off operation of the unit is controlled by the liquid temperature in the bottle. The bottle probe cord is 5 feet long.
The Breezaire WKCE 2200 is best suited for larger custom wine cabinet applications where a compact cabinet cooling system is required instead of a full wine cellar cooling unit. It is a strong choice when replacing a WKC 2200 or OEM 2200, or when the wine cabinet requires cooling support for an enclosure up to 265 cubic feet.
Do not use the WKCE 2200 for walk-in wine rooms, standard refrigeration, or unsealed cabinet spaces. For best results, confirm cabinet dimensions, insulation quality, electrical requirements, and rear exhaust ventilation before installation.
Need Help Choosing the Right Wine Cooling System?
Need assistance? Talk to an expert at +1 (800) 583-0045 or email support@luxuryappliancesdirect.com to get the best-suited wine cooling system for your needs.
Buy Breezaire WKCE Series Cooling System Wine Fridge WKCE 2200 today.
By buying from us you qualify for the full manufacturer warranty, save time and money!
We ship directly to your door from the manufacturer's warehouse.
Recently viewed
📚 Frequently Asked Questions (FAQs)
The Breezaire WKCE 2200 is designed to cool wine cellars or cabinets up to 265 cubic feet, making it perfect for compact or medium-sized wine storage spaces.
The WKCE 2200 is part of Breezaire’s cabinet-style cooling series, engineered for smaller enclosures or built-in installations. It combines quiet performance with dependable temperature control for premium wine preservation.
Yes. The Breezaire WKCE 2200 replaces the discontinued OEM 2200 and WKC 2200 units, offering improved efficiency, better airflow, and modernized components.
This unit maintains a consistent wine storage temperature between 48°F and 63°F, ensuring optimal conditions for aging and preserving your wine collection.
Yes. It maintains humidity levels between 50% and 75% relative humidity, preventing corks from drying and labels from peeling.
The WKCE 2200 operates whisper-quietly, making it ideal for living spaces, wine cabinets, and built-in cellars where noise must be minimized.
Yes, it is a self-contained through-the-wall unit that requires no refrigeration technician. However, proper ventilation and installation per Breezaire’s guidelines are crucial for optimal performance.
The WKCE 2200 features Breezaire’s advanced Sentry III+ control system, offering digital temperature display, power failure protection, and optional bottle probe control for precise cellar management.
Yes. The optional Breezaire Bottle Probe allows temperature regulation based on the liquid inside the bottle, ensuring exact wine preservation conditions.
This model is ideal for built-in wine cabinets, small walk-in cellars, and enclosed wine storage areas where space efficiency and quiet operation are priorities.
No. Wine Coolers Empire offers NO SALES TAX, even for customers in California.
5 stars: 7 (88%)
4 stars: 1 (13%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)
J
Jim Miller
WKCE 2200 is a very solid unit

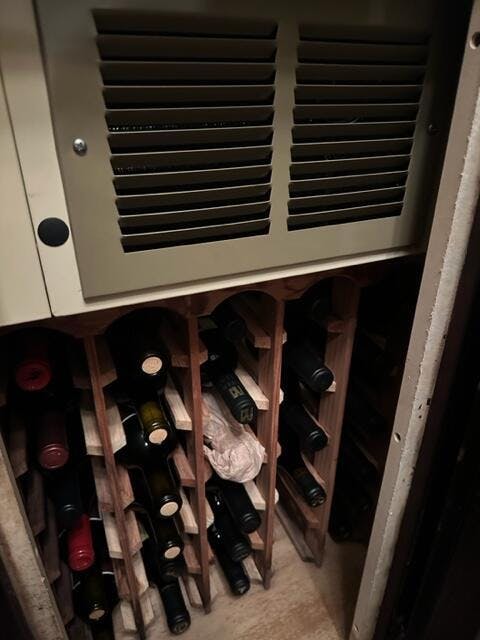

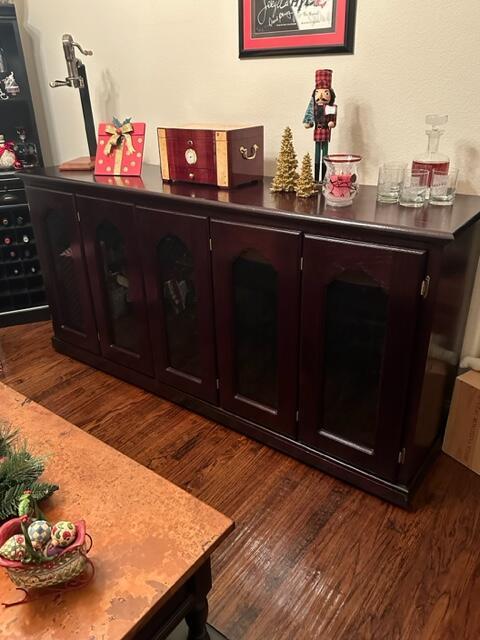

I purchased the WKCE 2200 as a replacement suit for the WKCE 1060 for my cooler (See Picture). The unit keeps the weir at the perfectly set temperature. The only reason I didn't;t give it a 5 is the noise, it is louder tat the 1060 I had. Love the unit, hoping it will out last the my last one.
