Professional Fully Integrated Dishwasher
ASKO DWC6432FIXXLU Professional Fully Integrated Dishwasher
The ASKO DWC6432FIXXLU is a professional fully integrated, panel-ready dishwasher built for demanding residenti![]()
al and commercial installations.
Designed with ASKO’s durable 8 Steel™ construction, acid-proof stainless steel tub, XXL capacity, 3 racks, 16 place settings, and quiet 42 dB(A) operation, this model is ideal for luxury kitchens, care environments, offices, hospitality spaces, and high-use homes.
Certified according to NSF 184, UL 749, and DIN EN 17735, it supports high-hygiene washing with SANI programs, Turbo Combi Drying™, Power Zones, SANI Lock, floor projection status display, Wi-Fi connectivity, and external automatic dosing preparation.
Quick Product Snapshot
| Brand |
ASKO |
| Model |
DWC6432FIXXLU |
| Product Type |
Professional dishwasher |
| Product Code |
744963 |
| Installation |
Panel ready / fully integrated |
| Size |
XXL |
| Place Settings |
16 |
| Number of Racks |
3 |
| Noise Level |
42 dB(A) |
| Water Consumption |
3.3 gal |
| Certifications |
NSF 184, UL 749, DIN EN 17735 |
| Wi-Fi |
Yes |
| External Auto Dosing |
Ready |
Who the ASKO DWC6432FIXXLU Is Best For
Best For
- Luxury residential kitchens needing panel-ready integration
- Large households with high daily dishwashing volume
- Care homes and healthcare-adjacent spaces
- Nurseries and childcare facilities
- Offices, hospitality spaces, and shared kitchens
- Wine rooms and tasting spaces that need glassware support
Choose Another Dishwasher If
- You only need a basic dishwasher for occasional residential use
- You do not need professional sanitizing capability
- Your installation cannot support 30 A electrical requirements
- You do not need external dosing compatibility
- You prefer a finished stainless steel front instead of panel-ready integration
Professional Recommendation: The ASKO DWC6432FIXXLU is recommended for buyers who want fully integrated styling with professional durability, sanitizing capability, quiet operation, and advanced loading flexibility.
Key Features
8 Steel™ Construction
Uses stainless steel in key dishwasher components for long-term durability.

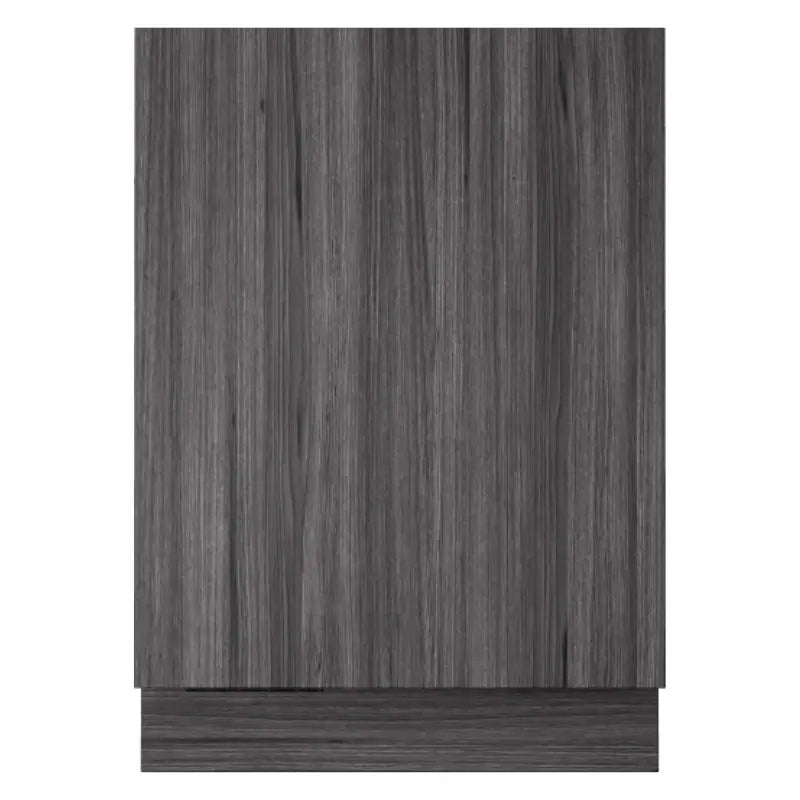

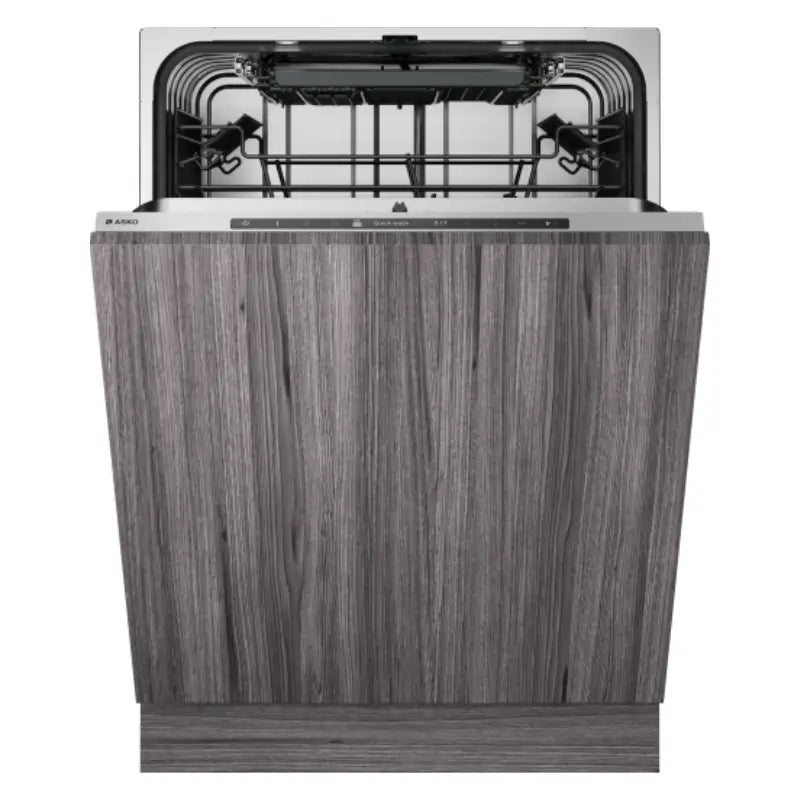

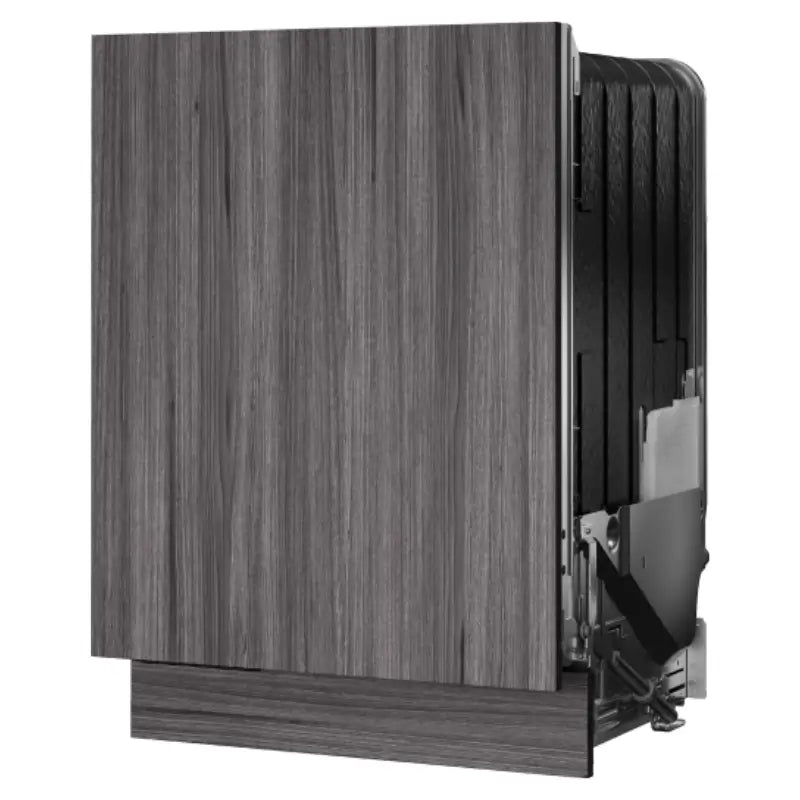

Panel-Ready Design
Disappears into luxury cabinetry with a custom cabinet panel.
XXL Capacity
Supports 16 place settings and large mixed daily loads.
Turbo Combi Drying™
Combines fan-assisted moisture evacuation with Auto Door Opening.
Power Zones
Jet Spray™ supports bottles and decanters, while Wide Spray™ supports larger dishes.
ConnectLife Pro
Supports monitoring, maintenance notifications, and connected ASKO appliance management.
Professional Cleaning and Safety Features
Certified Sanitizing Performance
This dishwasher is certified according to NSF 184, UL 749, and DIN EN 17735. NSF sanitizing performance applies to qualifying sanitizing cycles only and requires proper setup and operation according to the official ASKO manual.
SANI Lock
SANI Lock prevents the door from opening during high-temperature sanitizing phases. This is important for environments where safety and sanitation control matter.
External Auto Dosing Ready
This dishwasher can connect to an external automatic dosing system for commercial detergent and rinse aid. This supports consistent detergent use in high-volume environments.
Floor Projection Status Display
The floor projection displays remaining wash time, temperature, lock status, and program progress. Blue means additional loading is still possible, red means do not load, and green means the program is complete.
Wash Programs
| Program |
Best For |
| Quick Wash |
Lightly soiled glasses, cups, and porcelain. Shortest program time: 17 minutes. |
| SANI Quick |
Fast high-hygiene washing. Shortest SANI program: 29 minutes. |
| SANI |
Loads requiring elevated hygiene performance and high-temperature rinsing. |
| Sanitize NSF |
Sanitizing performance aligned with NSF/ANSI 184 requirements when used correctly. |
| Crystal Glass |
Delicate glassware, crystal, and lightly soiled fragile items. |
| Universal Programme |
General-purpose dishwashing for everyday mixed loads. |
| Standard |
Typical dishwashing loads. |
| Intensive |
Heavily soiled pots, pans, casserole dishes, and cookware. |
| Self Cleaning |
Cleaning the dishwasher tub, spray arms, and internal components without dishes. |
| Rinse and Hold |
Rinsing dishes before a full wash load is ready. |
Technical Specifications
General
| Brand |
ASKO |
| Model |
DWC6432FIXXLU |
| Product Type |
Professional dishwasher |
| Product Code |
744963 |
| Installation |
Panel ready / fully integrated |
| Size |
XXL |
| Number of Racks |
3 |
| Number of Place Settings |
16 |
| Noise Level |
42 dB(A) |
| Water Consumption |
3.3 gal |
| EAN Code |
3838782958854 |
Construction
| Installation |
Panel ready |
| Tub |
Acid-proof steel |
| 8 Steel™ Construction |
Yes |
| Plug Type |
USA NEMA 14-30 |
| Adjustable Base |
Vertical |
| Max Height Adjustment |
2 1/16 in. |
| From-Front Adjustable Rear Foot |
Yes |
| Hidden Heating Element |
Yes |
Electrical Requirements
| Frequency |
60 Hz |
| Connected Load |
2850 W |
| Fuse |
30 A |
| Voltage |
2N 120/208-240 V |
| Length of Electrical Cord |
71 7/16 in. |
| Heater Power |
2750 W |
| Supply Voltage 2 |
120 V |
| Number of Phases |
2 |

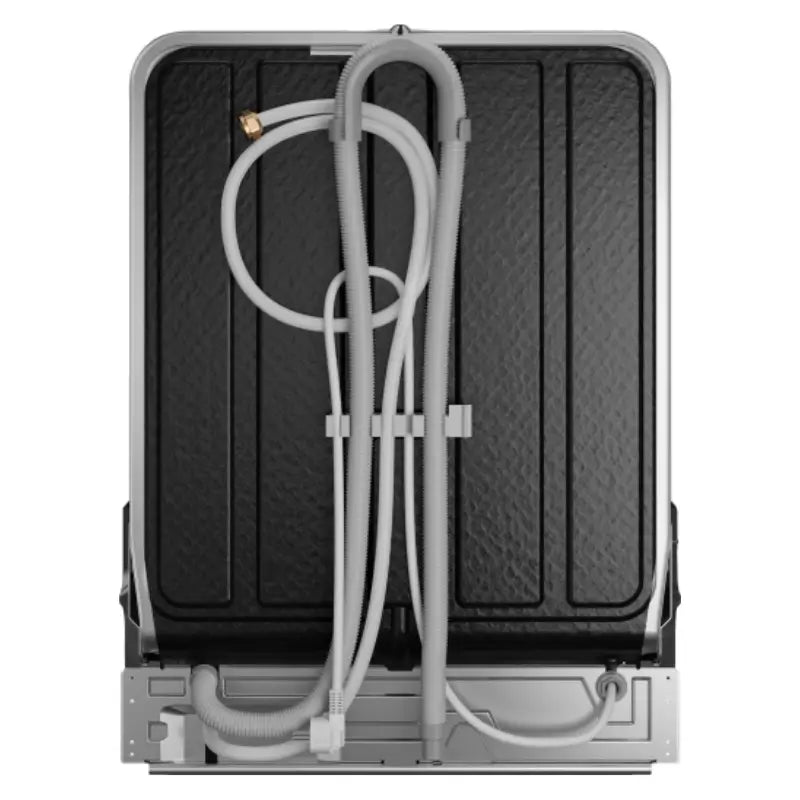

Water Connection and Drainage
| Water Connection |
Hot and cold |
| Required Inlet Water Pressure |
15–140 psi according to installation instructions |
| Automatic Water Softener |
Yes |
| Maximum Inflow Water Temperature |
140°F |
| Length of Inlet Hose |
64 3/16 in. |
| Length of Outlet Hose |
90 9/16 in. |
| Aqua Safe™ |
Yes |
Aqua Safe™ Protection
- Anti Block™ self-cleaning drain pump
- Light and sound alarm
- Maximum time for water intake
- Extra durable PEX inlet hose
- Stand-by water protection
- Aqua Level™ sensor
- Aqua Detect™ leakage recognition
- Detection of water leakage on the bottom plate
- Waterproof bottom plate
- Extra durable stainless steel container
- Sealing points outside container
Controls, Drying, and Performance
Controls
| Control Type |
TouchControl |
| Delayed Start |
Continuous |
| Delayed Start Range |
Up to 24 hours |
| Remaining Time Indication |
Yes |
| Display |
Fully integrated top-door display |
| Wi-Fi Indicator |
Yes |
Performance
| Number of Programs |
10 |
| Number of Wash Temperatures |
4 |
| Wash End Indication |
Displayed with sound and light |
| Salt Refill Indicator |
Notification in display |
| Rinse Aid Indicator |
Notification in display |
| Interior Light |
Yes, 2 LED lights |
| Aqua Safe™ System |
Yes |
| Child Safety |
Child lock and SANI Lock |
| Shortest Program Time |
Quick 17 min |
| Shortest SANI Program |
SANI Quick 29 min |
| Final Rinse Temperature |
185°F for 4 minutes |
Dimensions and Energy Information
Dimensions
| Width |
23 15/16 in. |
| Height |
33 13/16 in. |
| Depth |
22 5/16 in. |
| Depth Including Wall Spacing |
22 3/8 in. |
| Minimum Niche Width |
24 in. |
| Minimum Niche Height |
33 7/8 in. |
| Maximum Product Height |
35 7/8 in. |
| Net Weight |
98.3 lb |
| Gross Weight |
106.7 lb |
| Adjustable Kick Plate |
30-94/0 |
Energy Information
| Estimated Yearly Energy Consumption |
250 kWh |
| Estimated Annual Water Consumption |
710.1 gal |
| Power Consumption in Standby Mode |
0.5 W |
| Duration of Standard Programme |
240 min |
Installation Notes
This dishwasher should be installed by qualified professionals. Electrical, water, and drain connections must follow local codes and the official ASKO installation instructions.
- Panel-ready fully integrated installation
- Minimum niche width: 24 in.
- Minimum niche height: 33 7/8 in.
- Voltage: 2N 120/208-240 V
- Frequency: 60 Hz
- Fuse: 30 A
- Plug type: USA NEMA 14-30
- Hot and cold water connection supported
- Professional installation recommended
- Cabinetry should be resistant to condensation
Care and Maintenance
For best long-term performance, clean the filters regularly, inspect spray arms for blockages, use the Self Cleaning program when needed, maintain rinse aid and salt levels, and follow ASKO guidance for automatic dosing systems.
| Maintenance Item |
Recommended Action |
| Coarse and fine filters |
Clean regularly depending on usage. |
| Spray arms |
Remove debris from holes and bearings when needed. |
| Water softener |
Set according to local water hardness. |
| Salt compartment |
Refill when the display indicates low salt. |
| Rinse aid |
Refill or adjust dosage if drying performance changes. |
| Self Cleaning |
Run without dishes to clean the tub, spray arms, and spray pipes. |
Expert Recommendation
The ASKO DWC6432FIXXLU is a strong choice for high-use homes, shared kitchens, care environments, offices, and hospitality spaces where fully integrated design, professional durability, and certified hygiene performance matter.
