Built-In White Dishwasher

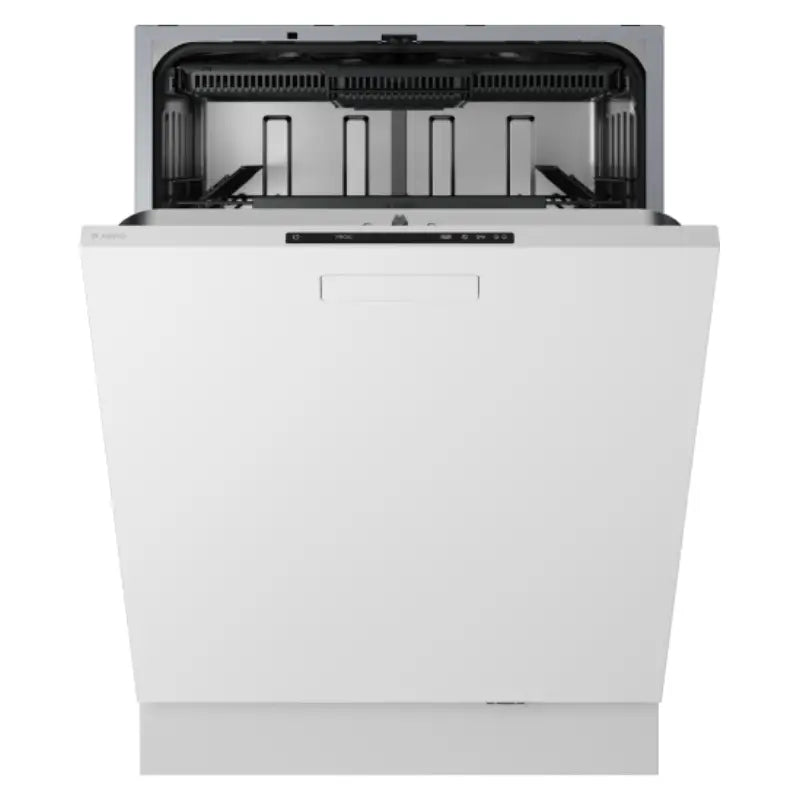

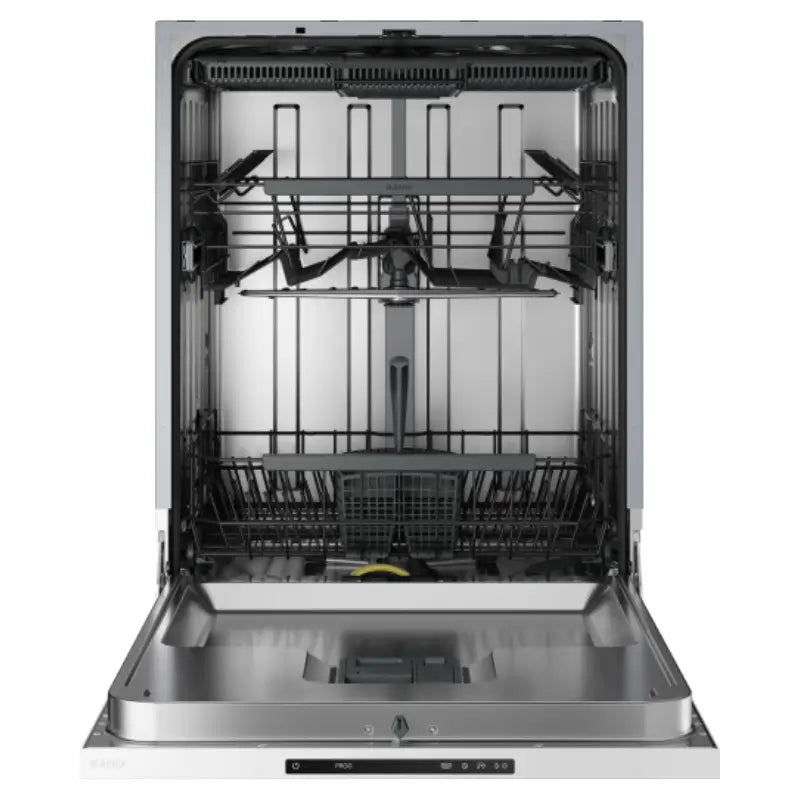

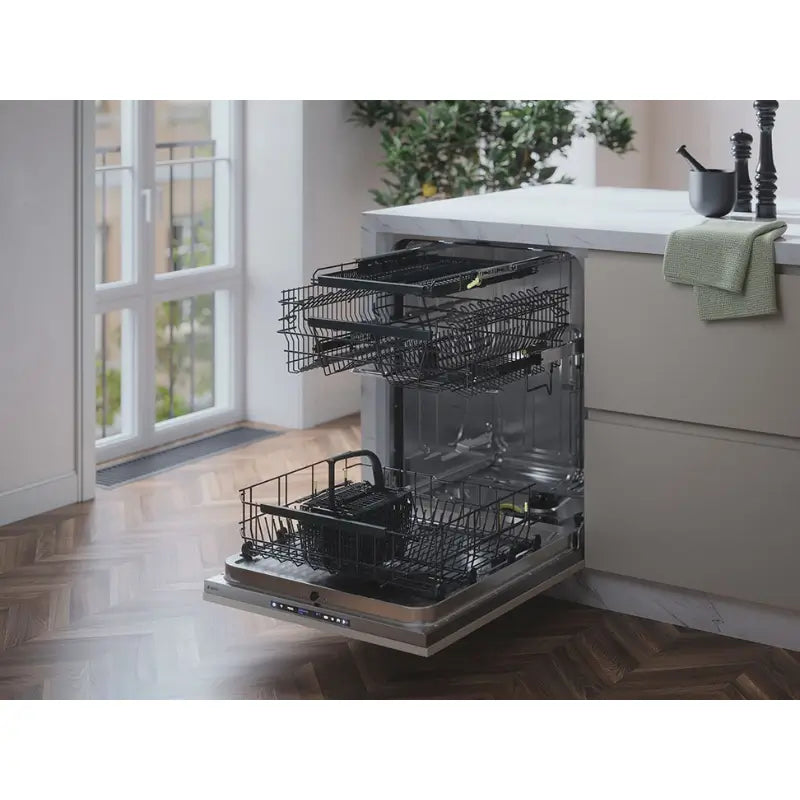

ASKO 24" 30 Series Built-In Dishwasher with XXL Tub, Pocket Handle, White – DBI563IXXLW
The ASKO DBI563IXXLW is a premium 24-inch built-in dishwasher designed for luxury kitchens that need quiet operation, flexible loading, and a clean white finish.
With an XXL tub, 14 place settings, 3 racks, 8 Spray™ cleaning zones, Super Cleaning System™, Auto Door Open Drying™, and a quiet 42 dB(A) noise rating, this 30 Series dishwasher is built for everyday performance in modern homes.
Quick Product Snapshot
| Brand |
ASKO |
| Series |
30 Series |
| Model |
DBI563IXXLW |
| Product Code |
746937 |
| Appliance Type |
Built-In Dishwasher |
| Size |
24 Inch |
| Tub Size |
XXL |
| Finish |
White |
| Handle Style |
Pocket Handle |
| Place Settings |
14 |
| Number of Racks |
3 |
| Noise Level |
42 dB(A) |
| Wi-Fi |
No |
| ADA Compliant |
No |
Who the ASKO DBI563IXXLW Is Best For
Best For
- Luxury residential kitchens
- Open-concept homes where quiet operation matters
- Families needing flexible loading capacity
- Homeowners who wash large plates and cookware
- Kitchen remodels requiring a white built-in dishwasher
- Designs where a pocket handle is preferred over a protruding handle
Consider Another Model If
- You need Wi-Fi connectivity
- You need ADA-compliant sizing
- You want a panel-ready dishwasher
- You need automatic detergent dosing
- You require a commercial-use dishwasher
Why Choose the ASKO DBI563IXXLW Dishwasher?
The ASKO DBI563IXXLW is built for buyers who want a premium dishwasher that focuses on durability, quiet performance, and usable capacity. Its XXL interior gives more vertical loading space than a standard dishwasher, making it easier to wash large plates, cookware, bowls, and serving pieces.
The white finish and pocket handle create a clean, understated appearance that works well in bright kitchens, transitional layouts, laundry-adjacent prep areas, and utility-focused luxury spaces.
Expert Product Overview: Choose this model if you want a white built-in dishwasher with a larger-than-standard interior, quiet operation, and automatic door opening for better drying. Do not choose this model if you need Wi-Fi connectivity, a panel-ready front, ADA-compliant sizing, or an automatic detergent dosing system.
Key Features

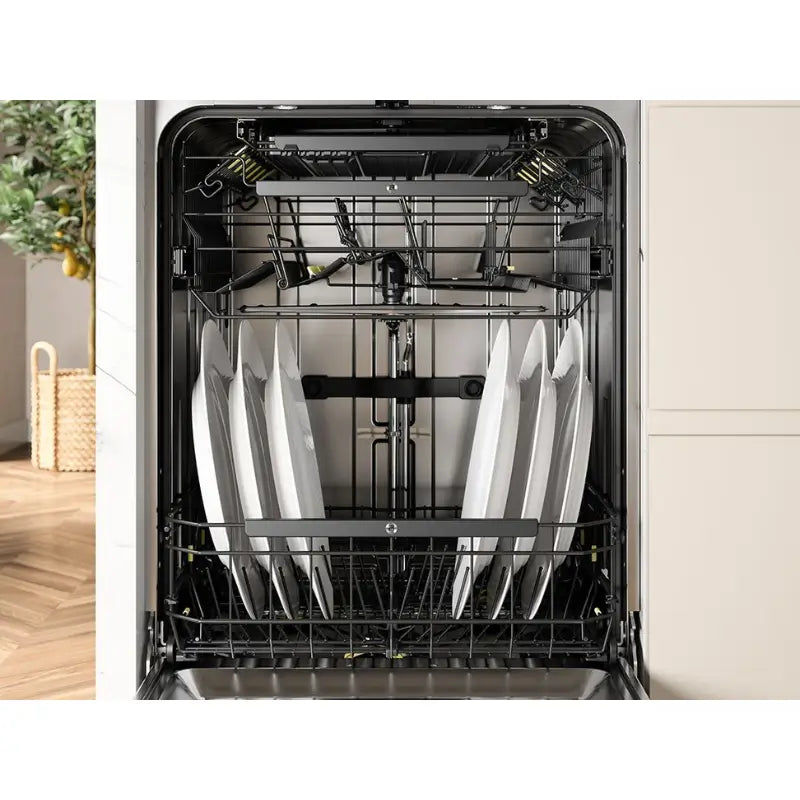

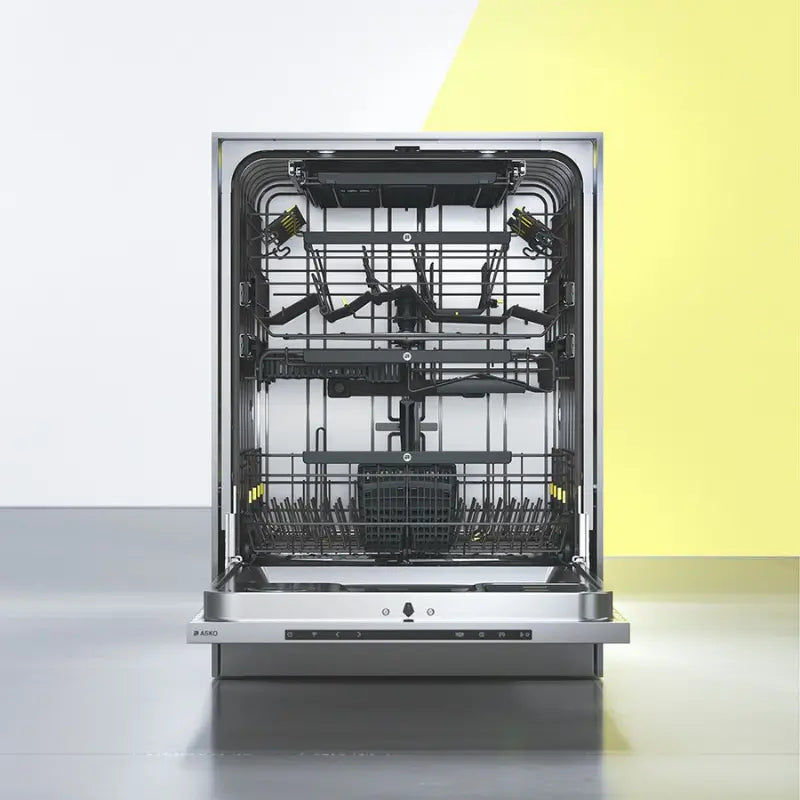

XXL Tub
Provides generous interior height and supports up to 14 place settings.
Super Cleaning System™
Helps rinse dishes and clean the dishwasher interior before the main wash.

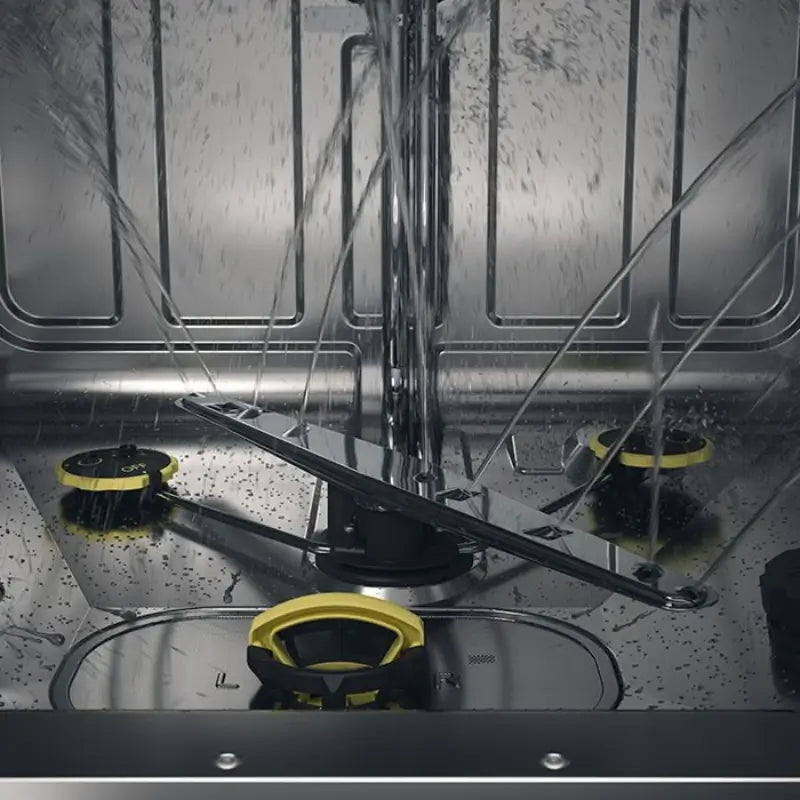

8 Spray™ System
Uses multiple spray zones to improve coverage throughout the tub.
42 dB(A) Operation
Quiet enough for open-concept kitchens, dining areas, and living spaces.
Auto Door Open Drying™
Automatically opens the door during the drying phase to improve drying.

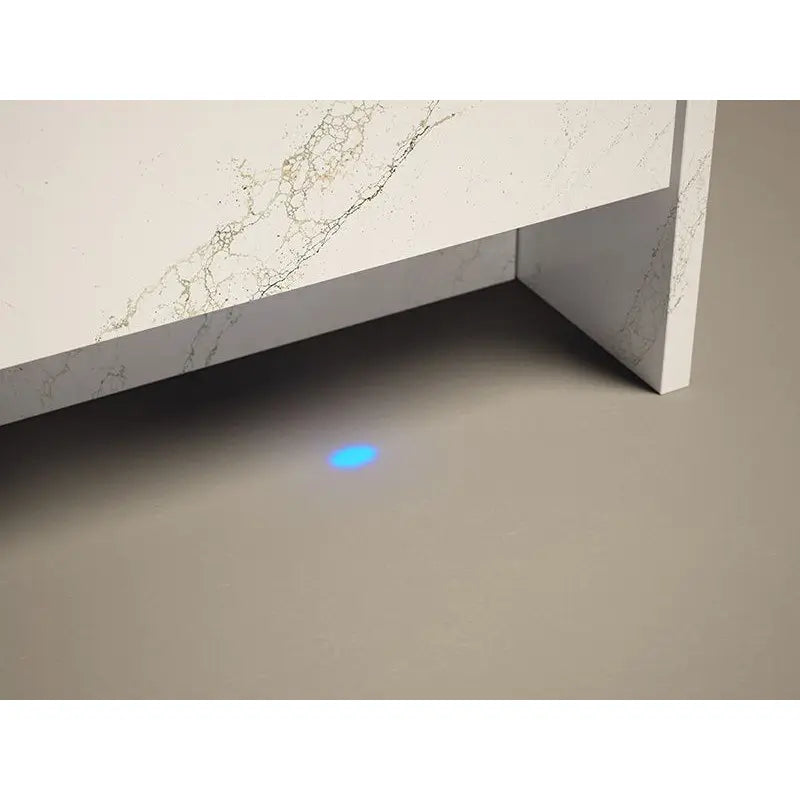

Status Light™
Projects cycle status on the floor using blue, red, and green indicators.
Product Specifications
Performance
| Noise Level |
42 dB(A) |
| Night Mode Noise Level |
40 dB(A) |
| Place Settings |
14 |
| Number of Racks |
3 |
| Number of Spray Arms |
3 |
| Number of Spray Zones |
8 |
| Cleaning System |
Super Cleaning System™, Sensi Clean™ Sensor, Aqua Level™ Sensor, 2 x WideClean |
| Drying System |
Auto Door Open Drying™ and residual heat |

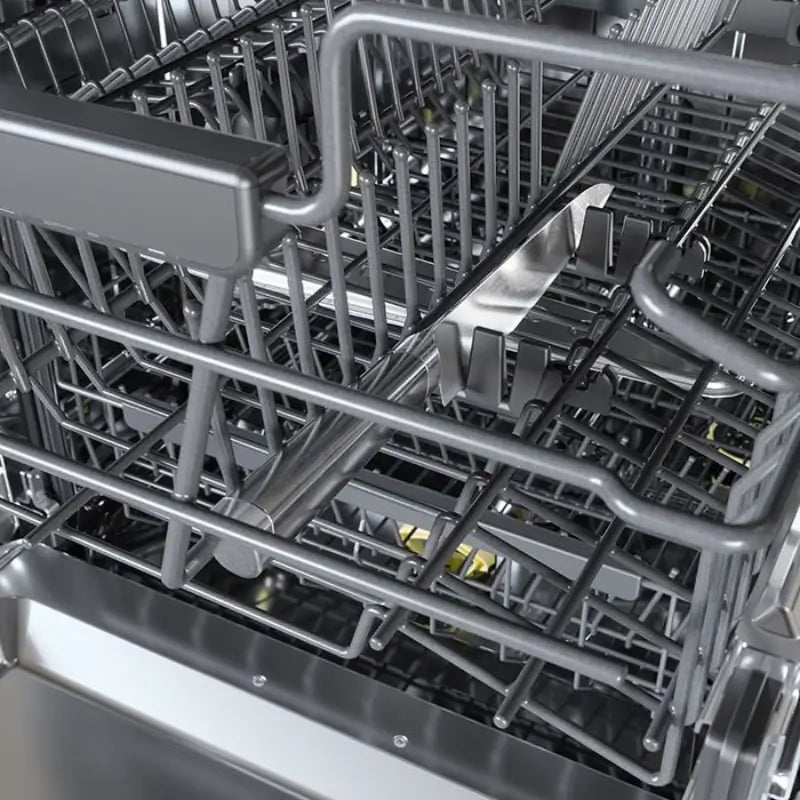

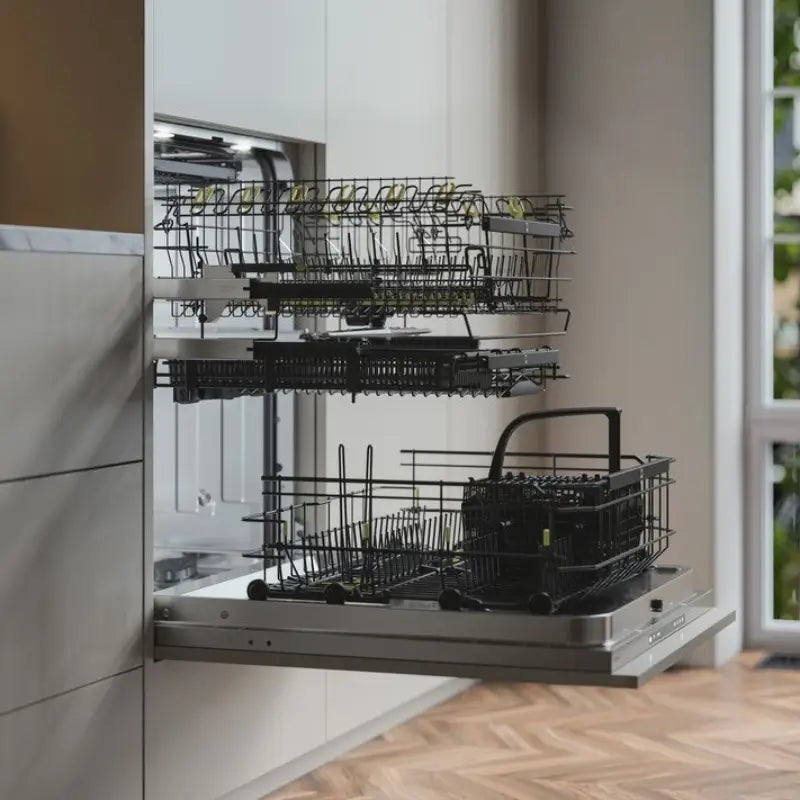

Rack System

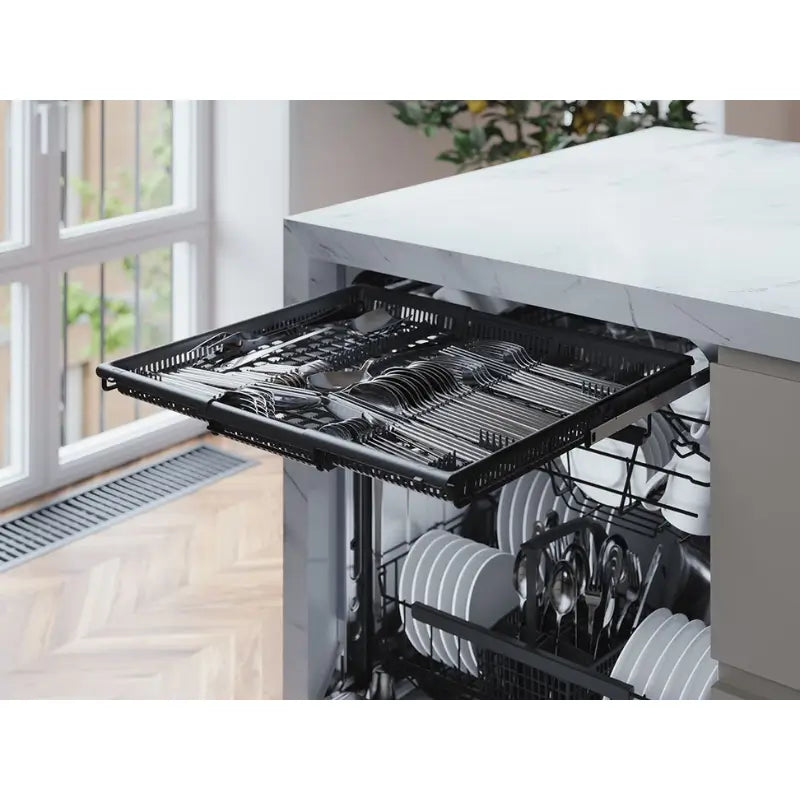

| Top Tray |
Dividable and removable top cutlery tray with telescopic rails |
| Upper Rack Type |
Core Premium |
| Upper Basket System |
Click-Clack system |
| Upper Basket Features |
Foldable wine shelves, fixed pin rows, fixed glass support, knife stand, telescopic rails |
| Middle Basket |
Without middle basket |
| Lower Rack Type |
Core Premium |
| Lower Rack Features |
Cutlery basket, foldable/divisible rear pin row, small basket thread spacing |
| Interior Light |
No |
| Automatic Dosing |
No |
Programs and Modes
| Wash Programs |
Self Cleaning, Rinse and Hold, Time Program, Standard, Intensive, Quick Wash, Auto Wash, Sanitize |
| Delay Start |
Up to 24 hours |
| Program Modes |
Night Mode, Speed Mode, Time Set, Super Rinse™, Enable/Disable Automatic Door Opening |
| Remaining Time Indication |
Yes |
| Wash End Indication |
Displayed with sound and light |
| Display Type |
LCD Display |
Energy, Water, and Electrical
| Water Connection |
Hot or cold |
| Maximum Inflow Water Temperature |
140°F |
| Estimated Yearly Energy Consumption |
205 kWh |
| Normal Program Energy Consumption |
0.9 kWh |
| Estimated Annual Water Consumption |
647.5 gallons |
| Water Consumption |
3 gallons |
| Standby Power Consumption |
1.7 W |
| Connected Load |
1300 W |
| Voltage |
120 V |
| Phase |
1 |
| Fuse |
15 A |
| Frequency |
60 Hz |
| Plug Type |
USA |
Dimensions and Installation Requirements
Dimensions
| Width |
23 13/16" |
| Height |
33 11/16" |
| Maximum Product Height |
35 11/16" |
| Depth |
21 7/8" |
| Depth with Door Open |
48 1/2" |
| Net Weight |
75.8 lb |
| Packaging Width |
25 3/16" |
| Packaging Height |
36 1/4" |
| Packaging Depth |
27 3/16" |
| Gross Weight |
79.8 lb |
Installation Requirements
| Minimum Niche Width |
24" |
| Minimum Niche Height |
33 7/8" |
| Depth Including Wall Spacing |
21 7/8" |
| Maximum Height Adjustment |
1 15/16" |
| Adjustable Kick Plate |
50-100 / 90-120 |
| Front Adjustable Rear Foot |
Yes |
| From Front Adjustable Door Spring |
No |
| Possible Elevated Installation |
Yes |
| Sliding Door |
No |
| Electrical Cord Length |
71 7/16" |
| Inlet Hose Length |
63 3/4" |
| Outlet Hose Length |
90 9/16" |
Installation Guidance: The ASKO DBI563IXXLW is intended for built-in installation under a countertop. Electrical, water, and drain connections should be completed according to applicable codes and manufacturer instructions.
Wash Programs Explained
Standard / Normal
Use for daily loads with normally soiled plates, cups, glasses, and serving dishes.
Auto Wash
Measures soil level and adjusts water consumption and temperature.
Intensive
Use for heavily soiled cookware, greasy pans, casserole dishes, and oven dishes.
Quick Wash
Designed for lightly soiled dishes or slightly dried leftovers.
Sanitize
Recommended when additional sanitation is required for baby bottles or cutting boards.
Self Cleaning
Use with no dishes inside to help clean the dishwasher tub, spray arms, and spray pipes.
Care and Maintenance
Clean the Filters
Clean the coarse and fine filters regularly depending on usage. Incorrectly installed filters can affect dishwashing results.
Clean the Spray Arms
Remove debris from the spray arm holes and bearings when necessary. Blocked spray arms reduce cleaning performance.
Use Rinse Aid
Rinse aid improves drying performance and helps reduce water marks. Increase or reduce the rinse aid dosage depending on results.
Run Self Cleaning
Run the Self Cleaning program when the dishwasher needs internal cleaning. In hard water areas, citric acid or dishwasher cleaner may help remove limescale deposits.
Do Not Use Harsh Chemical Cleaners
Do not use anti-freeze, Draino®, CLR®, or other chemical cleaners inside the dishwasher.
Product Resources
Review the official ASKO documents below for full technical information, installation details, dimensions, operation guidance, and care instructions.
