ADA Built-In Dishwasher

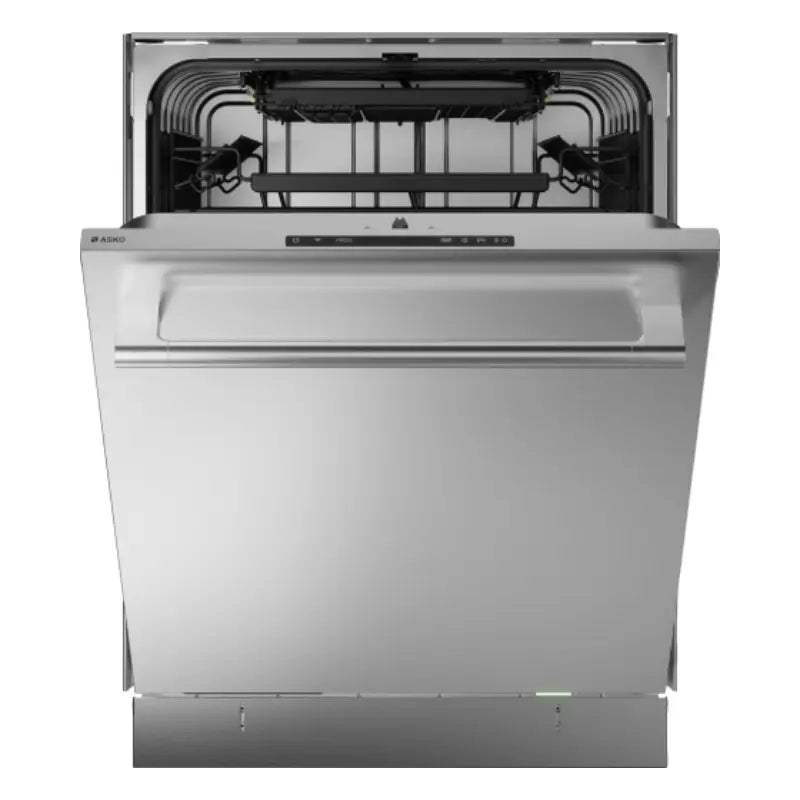

ASKO 24-Inch ADA Built-In Dishwasher with Pro Handle, Turbo Combi Drying™ and 42 dBA – DBI564PS
The ASKO DBI564PS is a 24-inch, ADA-compliant, built-in 40 Series XL dishwasher designed for premium kitchens that need quiet performance, flexible loading, and durable construction.
Finished in stainless steel with an ASKO Professional handle, this model offers 16 place settings, three rack levels, Turbo Combi Drying™, Status Light™, Aqua Safe™, Adjustable Power Zones, and quiet 42 dBA operation.
Quick Product Snapshot
| Brand |
ASKO |
| Model |
DBI564PS |
| Product Code |
742941 |
| Product Type |
Built-In Dishwasher |
| Series |
40 Series |
| Size |
24 Inch |
| Dishwasher Size |
XL |
| Finish |
Stainless Steel |
| Handle Style |
ASKO Pro Handle |
| ADA Compliant |
Yes |
| Place Settings |
16 |
| Number of Racks |
3 |
| Noise Level |
42 dBA |
| Drying System |
Turbo Combi Drying™ with Auto Door Opening |
| Wi-Fi |
No |
| Automatic Dosing |
No |
Who the ASKO DBI564PS Is Best For
Best For
- ADA-height kitchen installations
- Luxury remodels requiring quiet operation
- Open-concept kitchens near living or dining spaces
- Homes needing 16-place-setting capacity
- Buyers who prefer stainless steel construction in key components
- Households that wash wine glasses, cookware, cutlery, and stemware
Consider Another Model If
- You need Wi-Fi connectivity
- You need automatic detergent dosing
- You need a built-in water softener
- You want a panel-ready exterior
- You need a taller XXL dishwasher installation
Expert Product Summary: The DBI564PS is designed for buyers who want quiet operation, accessible ADA-height installation, and high loading capacity in one premium dishwasher.
Key Product Highlights
Quiet 42 dBA
Helps reduce noise disruption in open-concept and luxury kitchen layouts.
ADA-Compliant XL Design
Fits reduced-height installations while still providing room for 16 place settings.
Turbo Combi Drying™
Uses fan-assisted drying and automatic door opening to improve drying performance.
8 Steel™ Construction
Uses steel or stainless steel in important dishwasher components for durability.
Super Cleaning System™
Helps clean the dishwasher interior and dishes before the main wash begins.
9 Spray™ Wash System
Uses multiple spray zones to help reach dishes throughout the dishwasher.
Core Features
ADA-Compliant Built-In Installation
The DBI564PS is ADA compliant and designed for built-in installation under a countertop. It is a strong option when the kitchen design requires reduced installation height without giving up premium rack flexibility or a large 16-place-setting capacity.
Turbo Combi Drying™
Turbo Combi Drying™ combines fan-assisted drying with automatic door opening. The fan-assisted system begins the drying process by helping evacuate moisture, while the automatic door opening allows indoor air to finish the drying cycle.
8 Steel™ Construction
The 8 Steel™ design uses steel or stainless steel in eight important dishwasher areas: the container, loading racks, spray pipe, spray arms, strainers, outer base, feet, and inner door.
Aqua Safe™ Leak Protection
Aqua Safe™ is designed to help protect against leaks through multiple safety measures, including leakage detection, water level sensing, a waterproof bottom plate, a durable PEX inlet hose, and monitoring of water intake.
Adjustable Power Zones
The adjustable power zones allow the dishwasher to focus spray power where it is needed. They can be adjusted for pots and pans, bottles and vases, or turned off when they are not needed.
Rack System and Loading Flexibility

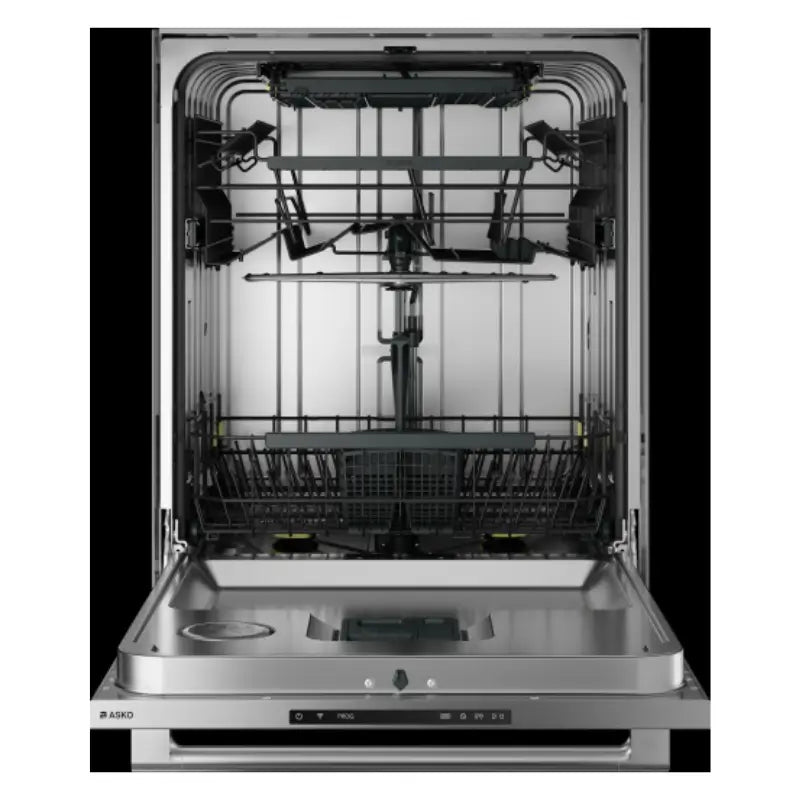

The DBI564PS includes a three-level rack system with a removable top cutlery tray, premium upper rack, and lower rack with cutlery basket. This layout helps organize cutlery, plates, bowls, cookware, glassware, and utensils across multiple loading zones.
Top Cutlery Tray
Designed for cutlery, ladles, whisks, and small utensils. It is removable for easier unloading.
Upper Rack Flexibility
Includes fixed tines, foldable wine shelves, fixed glass support, and a knife stand.
Lower Rack Capacity
Designed for plates, serving dishes, pots, pans, bowls, and cutlery.
Knife Holders
Helps keep sharp items steady during the wash cycle when loaded properly.
Telescopic Rails
Ball-bearing guide rails help racks glide smoothly and quietly.
Stemware Support
Foldable wine shelves and fixed glass support help with wine glasses and delicate stemware.
Wash Programs Explained
| Standard / Normal |
Best for daily, regular, or typical use with normally soiled dishes. |
| Light Wash |
Best for lightly soiled dishes or slightly dried leftovers. |
| Intensive Program |
Best for heavily soiled cookware, pans, casseroles, and greasy dishes. |
| Quick Wash |
Best for faster cleaning of lightly dried leftovers. |
| Sanitize |
Best for baby bottles, cutting boards, and items needing higher-temperature sanitation. |
| Time Program |
Lets the user set a cycle duration based on how dirty the dishes are. |
| Rinse and Hold |
Rinses dishes while waiting for a full load. |
| Self Cleaning |
Runs a cleaning cycle for the dishwasher tub, spray arms, and spray pipes. |
| Anti Odor |
Helps prevent odor from dirty dishes left in the dishwasher. |
Program Modes and Options
| Speed Mode |
Shortens the program time and uses more energy. |
| Night Mode |
Lowers noise level and extends the program time. |
| Heat Boost Mode |
Uses higher temperature for very dirty dishes and greasy cookware. |
| Super Rinse™ |
Adds two extra rinses. |
| Delayed Start |
Allows the dishwasher start time to be delayed up to 24 hours. |
| Auto Door Opening |
Can be enabled or disabled depending on drying preference. |
Installation Requirements
The ASKO DBI564PS is intended for built-in undercounter installation. Electrical, water, and drain connections should be completed by a qualified professional and must follow applicable codes.
| Installation Type |
Built-In |
| Minimum Niche Width |
24" |
| Minimum Niche Height |
32 11/16" |
| Depth Including Wall Spacing |
21 7/8" |
| Maximum Height Adjustment |
2 1/16" |
| Possible Elevated Installation |
Yes |
| Sliding Door |
No |
| Adjustable Kick Plate |
No |
| From Front Adjustable Rear Foot |
Yes |
| Trim Kit |
Included |
| Steam Protection Strip |
Included |
| Integrated Anti-Siphon |
Yes |
| Multi-Fit Outlet Hose |
Yes |
Installation Note: Confirm the cabinet opening, water connection, drain routing, and electrical requirements before installation. Professional installation is recommended.
Product Dimensions and Requirements
Product Dimensions
| Width |
23 15/16" |
| Height |
32 11/16" |
| Maximum Product Height |
34 13/16" |
| Depth |
21 13/16" |
| Depth with Door Open |
46 7/8" |
| Net Weight |
90.4 lb |
Electrical Requirements
| Voltage |
120 V |
| Frequency |
60 Hz |
| Number of Phases |
1 |
| Fuse |
15 A |
| Connected Load |
1300 W |
| Plug Type |
USA |
| Length of Electrical Cord |
71 7/16" |
| Standby Power Consumption |
0.5 W |
Water and Drain Requirements
| Water Connection |
Hot or Cold |
| Maximum Inflow Water Temperature |
140°F |
| Required Inlet Water Pressure |
0.03-1 MPa / 4.2-140 psi |
| Length of Inlet Hose |
64 3/16" |
| Length of Outlet Hose |
90 9/16" |
| Water Consumption |
3 gal |
| Estimated Annual Water Consumption |
647.5 gal |
Construction and Performance Specifications
| 8 Steel™ Construction |
Yes |
| Super Cleaning System™ |
Yes |
| Automatic Water Softener |
No |
| Number of Spray Arms |
3 |
| Number of Spray Zones |
9 |
| Cleaning Systems |
Adjustable Power Zones, stainless steel spray arms, Aqua Level™ Sensor, Super Cleaning System™, Cutlery Spray™ |
| Exterior Handle |
Pro Series |
| Number of Place Settings |
16 |
| Number of Racks |
3 |
| Interior Light |
No |
| Automatic Dosing System |
No |
Control, Safety, and Maintenance Features
| Wi-Fi |
No |
| Display Type |
LCD Display |
| Status Light™ |
Yes, spot on floor |
| Remaining Time Indication |
Yes |
| Wash End Indication |
Displayed with sound and light |
| Aqua Safe™ System |
Yes |
| Anti Block™ Self-Cleaning Drain Pump |
Yes |
| Child Safety |
Kid Safe™ lockable controls |
| Low Rinse Aid Indicator |
Notification in display |
Maintenance Guide
Regular maintenance helps keep the DBI564PS performing properly. Clean the coarse and fine filters as needed, check the spray arms for blockages, wipe the door seal, refill rinse aid when indicated, and run the Self Cleaning program when buildup or odor appears.
Filter Cleaning
The coarse filter traps larger food particles and should be emptied when needed. The fine filter should also be cleaned regularly based on dishwasher use. Do not operate the dishwasher without the filters correctly installed.
Spray Arm Cleaning
If cleaning performance drops, inspect the spray arms for blocked holes or restricted movement. Debris can be removed carefully, and the spray arms should be securely reinstalled before running the dishwasher.
Best Drying Results
For best drying performance, fully load the dishwasher without blocking airflow, angle cups and bowls so water can drain off, refill rinse aid, activate Auto Door Opening, and allow dishes to cool before unloading.
Troubleshooting Highlights
| Dishes Are Not Clean |
Check spray arm rotation, loading position, detergent dosage, filter installation, and program selection. |
| Dishes Are Not Dry Enough |
Activate Auto Door Opening, refill rinse aid, and avoid closing the door before drying is complete. |
| Water Remains in Dishwasher |
Check filters, drain pump, drain hose, and drain hose routing. |
| White Film or Spots |
Adjust rinse aid dosage, review detergent type, and check water hardness. |
| Bad Odor |
Clean seals, run a higher-temperature program, or use the Self Cleaning program. |
| Dishwasher Does Not Start |
Check the door, power connection, delayed start setting, and control lock status. |
What’s Included
| Included |
ASKO DBI564PS Dishwasher |
| Included |
Trim Kit |
| Included |
Steam Protection Strip |
| Included |
Toe Kick |
| Included |
User Manual and Warranty Information |
Expert Recommendation
The ASKO DBI564PS is a strong premium dishwasher choice for homeowners who need ADA compliance, quiet operation, flexible loading, and durable stainless-steel construction.
