50 Series Built-In Dishwasher

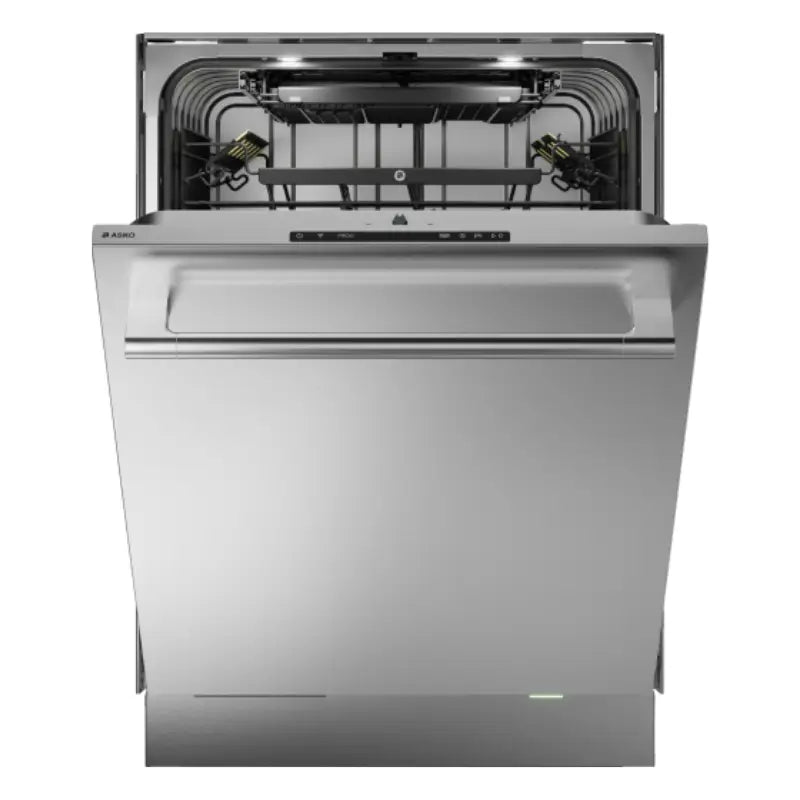

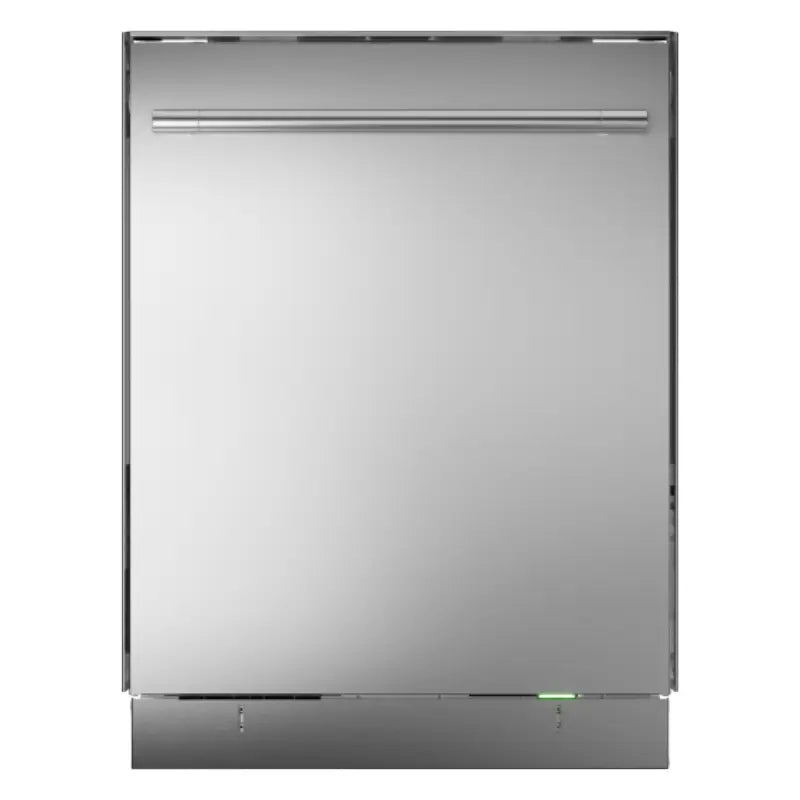

ASKO 24-Inch Built-In Dishwasher, 50 Series XXL Tall Tub, Stainless Steel, Pro Handle, 40 dBA – DBI565PXXLS
The ASKO DBI565PXXLS is a premium 24-inch built-in dishwasher from the ASKO 50 Series, designed for quiet performance, flexible loading, and a refined stainless steel appearance.
With a 40 dBA noise level, XXL tall tub capacity, 16 place settings, three racks, WiFi connectivity, Turbo Combi Drying™ with Auto Door Opening, and ASKO Pro Handle styling, this dishwasher is built for luxury kitchens that need both performance and discretion.
Quick Product Snapshot
| Brand |
ASKO |
| Model |
DBI565PXXLS |
| Product Code |
742930 |
| Series |
50 Series |
| Type |
Built-In Dishwasher |
| Width Class |
24-Inch |
| Finish |
Stainless Steel |
| Handle Style |
ASKO Pro Handle |
| Noise Level |
40 dBA |
| Capacity |
16 Place Settings |
| Number of Racks |
3 |
| Size |
XXL Tall Tub |
| WiFi |
Yes |
| ADA Compliant |
No |
Who the ASKO DBI565PXXLS Is Best For
Best For
- Luxury residential kitchens
- Open-concept homes where quiet operation matters
- Homeowners who want a stainless steel dishwasher with a professional handle
- Families needing a 16-place-setting dishwasher
- Buyers who frequently wash wine glasses, large plates, pots, pans, and utensils
- Homes that benefit from smart appliance monitoring through WiFi
Not Recommended For
- 18-inch compact dishwasher installations
- Projects requiring ADA-compliant dishwasher height
- Panel-ready custom cabinet integration
- Cabinet openings that cannot support a 24-inch built-in installation
- Portable dishwasher applications
Why Choose the ASKO DBI565PXXLS?
The ASKO DBI565PXXLS is best for buyers who want a quiet, premium dishwasher that fits a standard 24-inch built-in opening while offering more interior loading flexibility than a basic dishwasher. Its 40 dBA sound rating makes it a strong choice for open-concept kitchens, entertaining spaces, and homes where the dishwasher may run while people are nearby.
The XXL tall tub and three-rack layout give this model excellent usable capacity. The top cutlery tray helps organize utensils and smaller items, while the adjustable upper and lower racks support plates, bowls, cookware, glassware, wine glasses, bottles, and larger serving pieces.
This dishwasher also includes WiFi connectivity through ConnectLife, allowing users to monitor and control the appliance from a smartphone or tablet.
Key Features
40 dBA Quiet Operation
Suitable for premium homes where noise control matters.
XXL Tall Tub
Provides more usable interior height for large plates, cookware, and tall items.
16 Place Settings
Built for daily family use, larger dish loads, and entertaining.

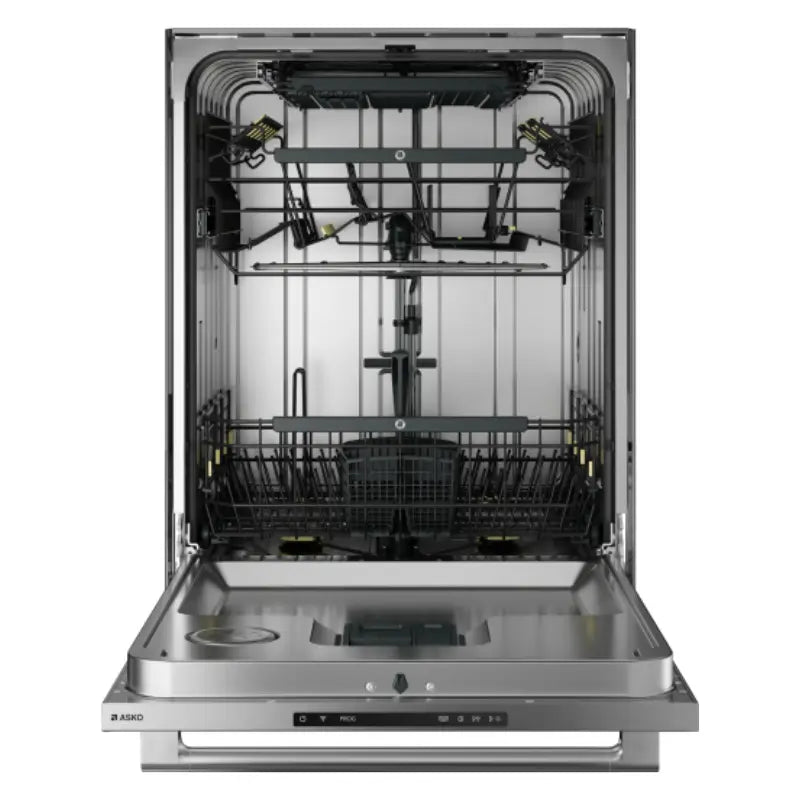

Three-Rack System
Includes a top cutlery tray, upper basket, and lower rack.
Turbo Combi Drying™
Uses fan-assisted moisture evacuation with Auto Door Opening.
ConnectLife WiFi
Allows remote monitoring and control from a smartphone or tablet.
Premium Performance Features
8 Steel™ Construction
ASKO uses stainless steel in key dishwasher components to improve long-term durability. Important parts such as the tub, racks, spray arms, filters, base, feet, and inner door use steel instead of relying heavily on plastic.
Super Cleaning System™
Super Cleaning System™ is designed to reduce the need for pre-rinsing. For best results, scrape large food particles before loading instead of rinsing dishes under running water.
Adjustable Power Zones
The adjustable power zones support targeted cleaning for pots and pans or for tall narrow items such as bottles and vases. They can also be turned off when stronger lower spray arm pressure is preferred.
Aqua Safe™ System
Aqua Safe™ includes multiple water protection features designed to reduce leak risk, including leak detection, water level monitoring, durable inlet hose design, and protective bottom plate features.
Status Light™
Status Light™ provides visual cycle feedback. Blue indicates that more items can still be added, red means loading should not continue, and green indicates the cycle is complete.
Interior LED Lighting
Two LED interior lights improve visibility inside the dishwasher, making loading and unloading easier in kitchens with dim ambient lighting.
Wash Programs
| Normal |
Daily, regular, or typical full loads of normally soiled dishes. |
| Auto |
Automatically adjusts water use and temperature based on soil level. |
| Intensive |
Heavily soiled dishes, greasy cookware, pans, casserole dishes, and oven dishes. |
| Quick Pro |
Fast cleaning for slightly dried leftovers. |
| Time Program |
Allows washing time to be selected based on soil level. |
| Sanitize |
High-temperature program for items needing additional sanitation. |
| Rinse and Hold |
Rinses dishes while waiting for a full load. |
| Self Cleaning |
Cleans the dishwasher tub, spray arms, and spray pipes with no dishes loaded. |
| Anti-Odor |
Helps prevent odors from dirty dishes left in the dishwasher. |
Program Modes and Options
| Speed Mode |
Shortens program time while using more energy. |
| Green Mode |
Uses less energy and water with a longer program time. |
| Night Mode |
Lowers noise level and extends the program time. |
| Heat Boost Mode |
Raises temperature for greasy or heavily soiled dishes. |
| Super Rinse™ |
Adds two extra rinses. |
| Delayed Start |
Delays start up to 24 hours. |
| Auto Door Open |
Automatically opens the dishwasher door during drying. |
| Light Sabbath Mode |
Supports use in accordance with traditional Sabbath rules. |
Smart Connectivity
The ASKO DBI565PXXLS supports WiFi connectivity through the ConnectLife app. Once connected, users can monitor the dishwasher, change settings, and use remote control features from a smartphone or tablet.
| WiFi |
Yes |
| App |
ConnectLife |
| Remote Monitoring |
Yes |
| Remote Start |
Yes |
| Remote Stop / Pause |
Yes |
| Network Requirement |
2.4 GHz WiFi network |
Technical Specifications
| Brand |
ASKO |
| Model |
DBI565PXXLS |
| Product Code |
742930 |
| EAN Code |
3838782774546 |
| Series |
50 Series |
| Installation Type |
Built-In |
| Finish |
Stainless Steel |
| Exterior Handle |
Pro Series |
| Noise Level |
40 dBA |
| Place Settings |
16 |
| Number of Racks |
3 |
| Top Tray |
Easy height adjustment, telescopic rails, removable |
| Upper Rack Type |
Exclusive, foldable tines, wine shelves, Light Lock™ |
| Lower Rack Type |
Exclusive |
| Interior Light |
Yes, 2 LED lights |
| Display |
LCD Display |
| Status Light™ |
Yes, spot on floor |
| Automatic Dosing System |
No |
| Automatic Water Softener |
No |
| ADA Compliant |
No |
Cleaning, Electrical, and Water Specifications
Cleaning and Performance
| 8 Steel™ Construction |
Yes |
| Super Cleaning System™ |
Yes |
| Number of Spray Arms |
3 |
| Number of Spray Zones |
9 |
| Cutlery Spray™ |
Yes |
| Aqua Level™ Sensor |
Yes |
| Sensi Clean™ Sensor |
Yes |
| Stainless Steel Spray Arms |
Yes |
| Adjustable Power Zones |
Yes |
Electrical and Water
| Water Connection |
Hot or cold water |
| Maximum Inflow Water Temperature |
140°F |
| Required Water Pressure |
4.2–140 psi |
| Estimated Yearly Energy Consumption |
220 kWh |
| Energy Consumption - Normal Program |
1 kWh |
| Estimated Annual Water Consumption |
647.5 gal |
| Water Consumption |
3 gal |
| Power Consumption in Standby Mode |
0.5 W |
| Plug Type |
USA |
| Connected Load |
1300 W |
| Voltage |
120 V |
| Number of Phases |
1 |
| Fuse |
15 A |
| Frequency |
60 Hz |
Dimensions and Installation Requirements
Dimensions
| Width |
23 15/16 in |
| Height |
34 5/16 in |
| Maximum Product Height |
36 3/8 in |
| Depth |
21 13/16 in |
| Depth with Door Open |
48 7/16 in |
| Length of Electrical Cord |
71 7/16 in |
| Length of Inlet Hose |
64 3/16 in |
| Length of Outlet Hose |
90 9/16 in |
| Net Weight |
97.4 lb |
Installation Requirements
The ASKO DBI565PXXLS is designed for built-in installation under a countertop. Electrical, water, and drain connections should be completed by a qualified professional according to local codes and ASKO installation instructions.
| Minimum Niche Width |
24 in |
| Minimum Niche Height |
34 1/4 in |
| Depth Including Wall Spacing |
21 7/8 in |
| Maximum Height Adjustment |
2 1/16 in |
| Adjustable Kick Plate |
30–94/0 |
| From Front Adjustable Rear Foot |
Yes |
| Sliding Door |
No |
| Elevated Installation |
Possible |

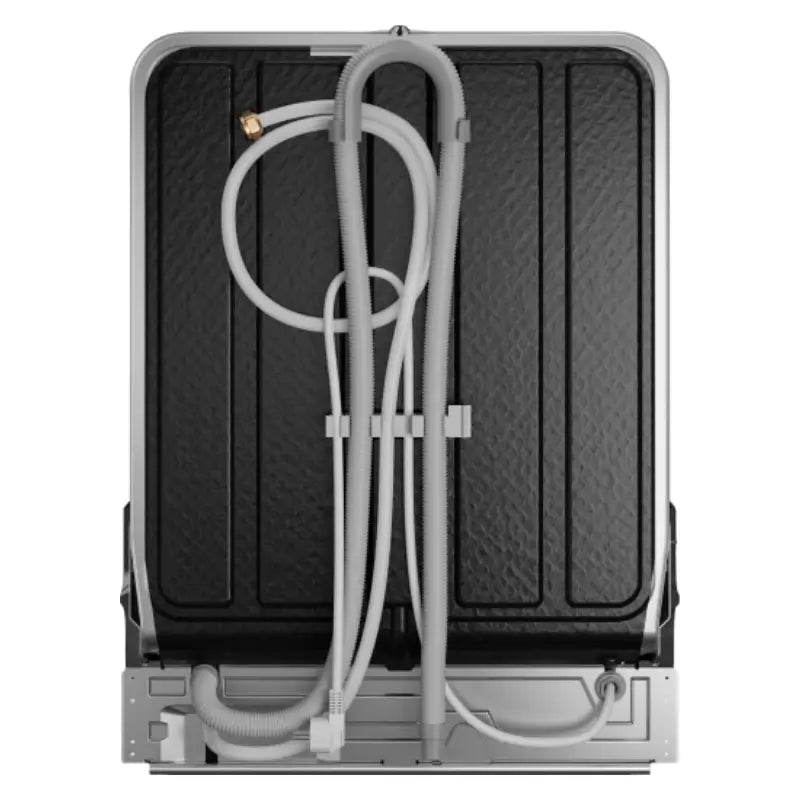

| Drain System |
Integrated anti-siphon with multi-fit outlet hose |
| Trim Kit |
Included |
| Steam Protection Strip |
Included |
Important Installation Notes: Connections to electricity, water, and drain must be performed by a qualified professional. The dishwasher must be grounded, and an extension cord must not be used.
Care, Maintenance, and Troubleshooting
Proper maintenance helps preserve cleaning performance, drying performance, and drainage reliability. The coarse and fine filters should be cleaned regularly depending on use. Spray arms should be inspected for blocked holes, and the Self Cleaning program should be used when the tub requires cleaning.
Troubleshooting Guidance
| Dishes are not clean |
Check spray arm rotation, filter condition, detergent dosage, loading position, and selected program. |
| Dishes are not dry enough |
Activate Auto Door Open, fill rinse aid, fully load correctly, and allow dishes to cool before unloading. |
| Water remains in the dishwasher |
Clean filters, inspect the drain pump, and check the drain hose for kinks or blockages. |
| Bad odor |
Clean seals, run a high-temperature program, or use the Self Cleaning program. |
| WiFi connection issue |
Confirm the dishwasher is connected to a visible 2.4 GHz WiFi network and that the router has internet access. |
Official Product Resources
Expert Recommendation
The ASKO DBI565PXXLS is a strong choice for premium kitchens where quiet operation, stainless steel styling, flexible loading, smart connectivity, and drying performance are priorities.
