Panel Ready Dishwasher

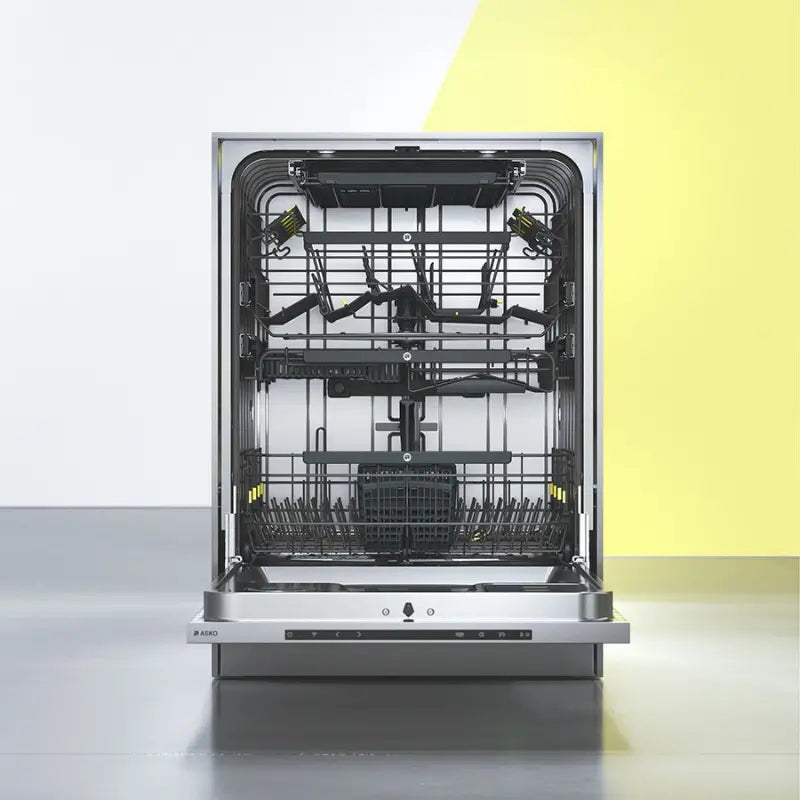

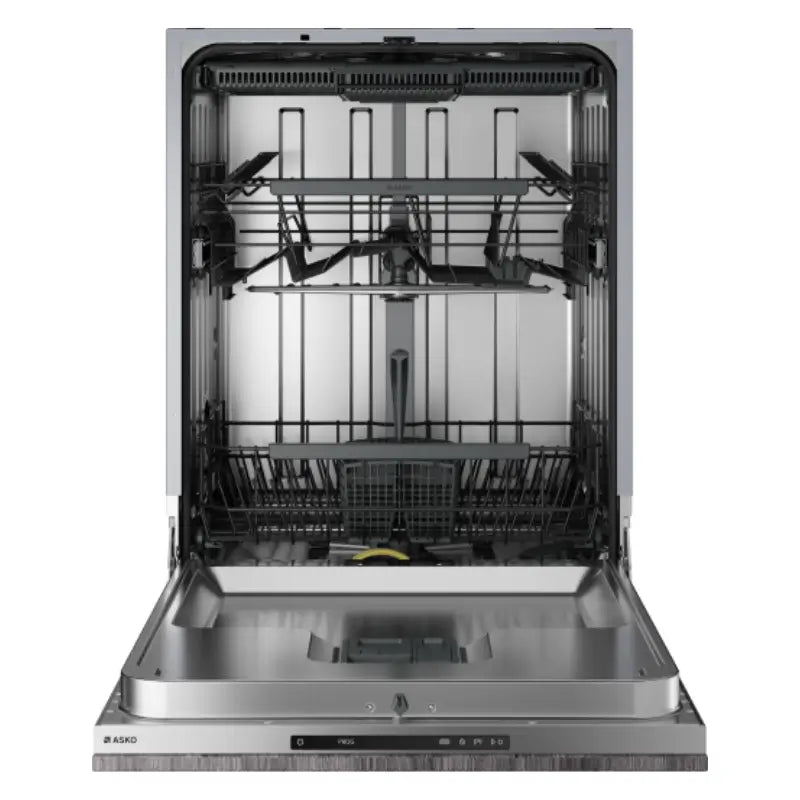

ASKO 24" 30-Series XXL Tub Panel Ready Dishwasher DFI563XXL
The ASKO DFI563XXL is a 24-inch fully integrated, panel ready dishwasher designed for premium kitchens that require a seamless built-in look, quiet operation, flexible loading, and dependable everyday cleaning performance.
With an XXL tub, 14 place setting capacity, 42 dB(A) noise level, Super Cleaning System™, Auto Door Open Drying™, and an advanced 8 Spray™ wash system, this dishwasher is built for homeowners who want clean design and practical performance in one appliance.
Quick Product Snapshot
| Model |
ASKO DFI563XXL |
| Series |
30-Series |
| Installation Type |
Fully integrated panel ready |
| Size |
24-inch XXL dishwasher |
| Capacity |
14 place settings |
| Noise Level |
42 dB(A) |
| Rack System |
3 racks with top cutlery tray |
| Drying System |
Auto Door Open Drying™ with residual heat |
| Wash System |
3 spray arms and 8 spray zones |
| Status Indicator |

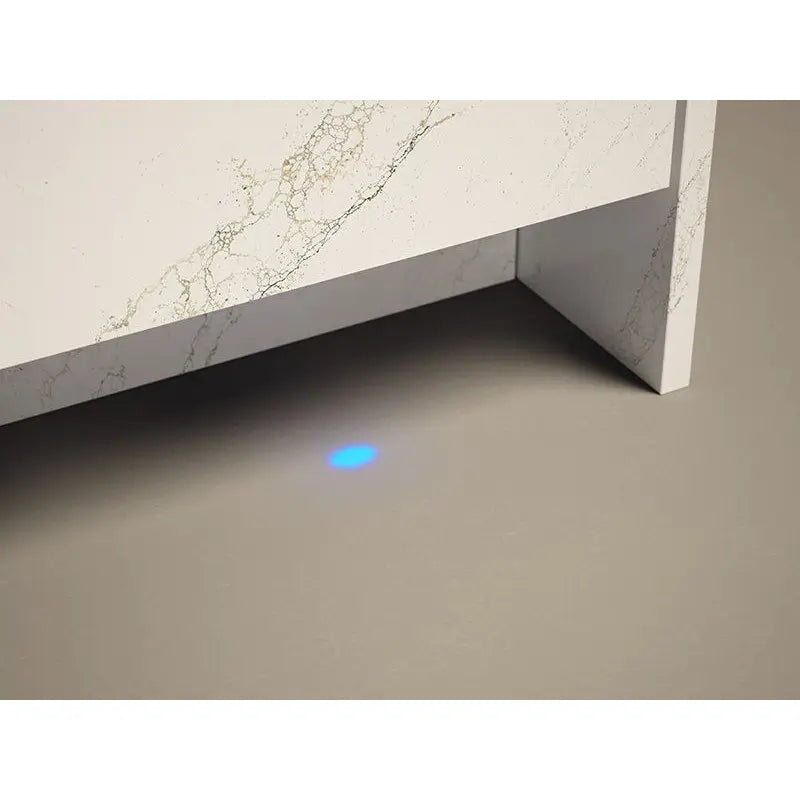

Status Light™ spot on floor |
| Display |
LCD display with remaining time indication |
| Wi-Fi |
No |
| ADA Compliant |
No |
Who the ASKO DFI563XXL Is Best For
Best For
- Luxury residential kitchens with custom cabinetry
- Open-concept spaces where quiet operation matters
- Homeowners who want a concealed panel ready dishwasher
- Families needing 14 place setting capacity
- Designers, builders, and remodelers specifying integrated appliances
Consider Another Model If
- You need an ADA-compliant dishwasher
- You want built-in Wi-Fi connectivity
- You need a finished stainless steel front panel included
- You require a sliding door installation
- Your cabinet opening does not meet the required niche dimensions
Expert Note: This model is panel ready and does not include a finished front panel. Confirm cabinet opening, custom door panel size, water connection, drain routing, and electrical requirements before ordering.
Why Choose the ASKO DFI563XXL?
The DFI563XXL combines Scandinavian-style integration with practical dishwashing performance. The Super Cleaning System™ reduces the need to pre-rinse dishes, while the Sensi Clean™ Sensor helps measure soil level and adjust performance.
The 8 Spray™ system delivers targeted wash coverage through multiple spray zones, including power zones designed for heavily soiled items.
For drying, Auto Door Open Drying™ automatically opens the dishwasher door during the drying phase to help improve drying performance. The Status Light™ provides clear program feedback using color indicators.
Key Features and Benefits

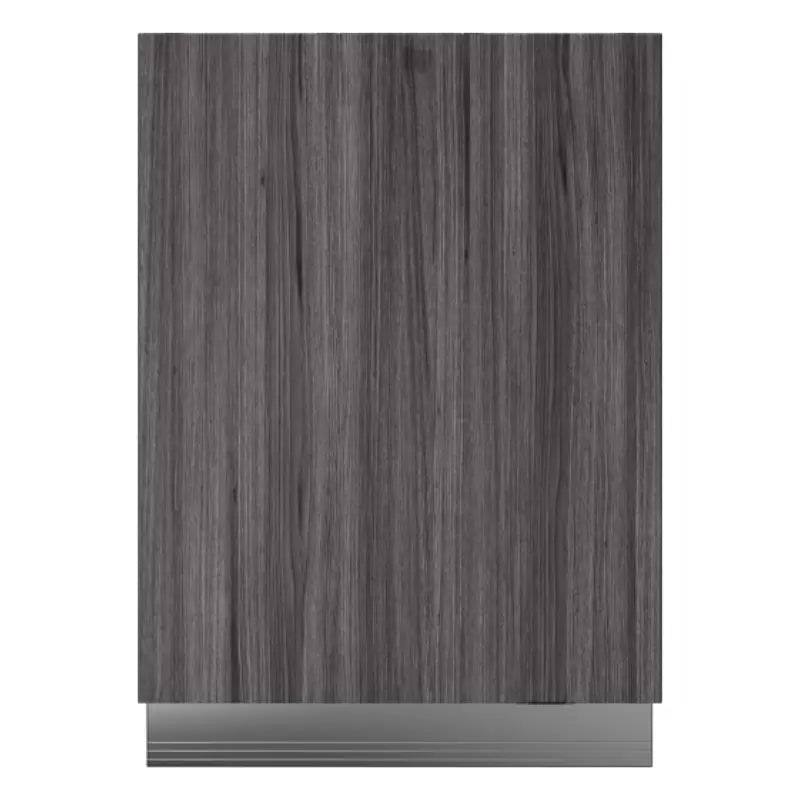

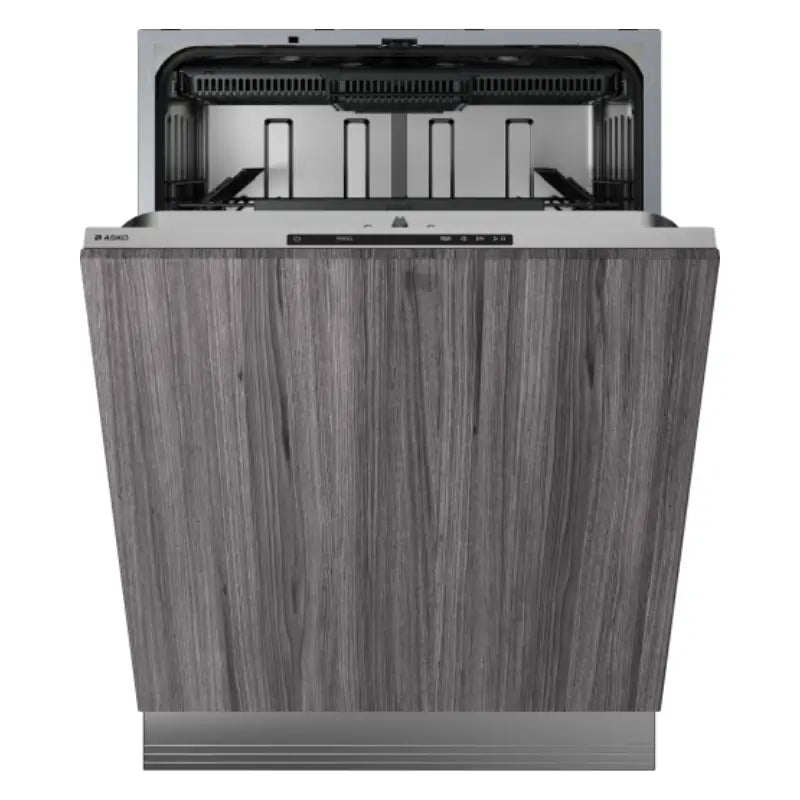

Panel Ready Design
Accepts a custom cabinet panel for a fully integrated luxury kitchen look.
XXL Tub Capacity
Supports up to 14 place settings with added interior loading height.
Super Cleaning System™
Helps reduce the need to pre-rinse dishes before loading.

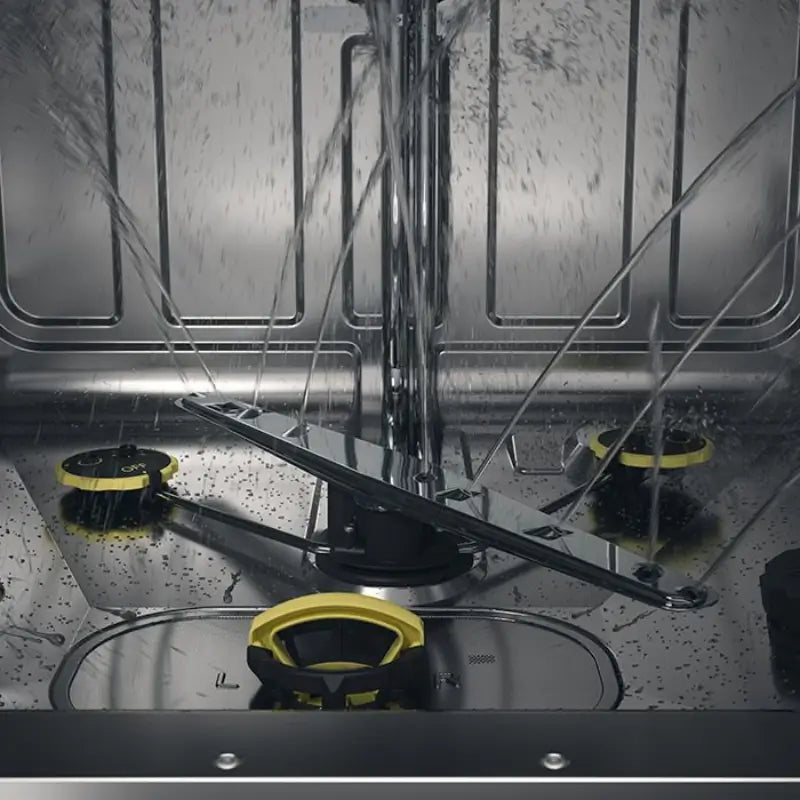

8 Spray™ Wash System
Uses 3 spray arms and 8 spray zones for strong wash coverage.
Auto Door Open Drying™
Opens the door during drying to help improve drying results.
Quiet 42 dB(A)
Designed for quiet use in open kitchens and evening operation.
Installation Considerations
This dishwasher should be installed according to ASKO’s official installation instructions and local code requirements. Connections to electricity, water, and drain should be performed by a qualified professional.
| Installation Type |
Panel ready, fully integrated |
| Minimum Niche Width |
24" |
| Minimum Niche Height |
33 7/8" |
| Depth Including Wall Spacing |
21 7/8" |
| Custom Door Size |
700–800 mm |
| Water Connection |
Hot or cold water |
| Maximum Inflow Water Temperature |
140°F |
| Possible Elevated Installation |
Yes |
| Sliding Door |
No |
Installation Warning: Do not assume this model will fit every 24-inch dishwasher opening. Confirm height, depth, water access, drain path, electrical location, and custom panel dimensions before installation.
Technical Specifications
General Specifications
| Brand |
ASKO |
| Model |
DFI563XXL |
| Product Code |
746935 |
| Series |
30-Series |
| Installation |
Panel ready |
| Size |
XXL |
| Place Settings |
14 pcs |
| Number of Racks |
3 |
| ADA Compliant |
No |
| Wi-Fi |
No |
Performance Specifications
| Noise Level |
42 dB(A) |
| Spray Arms |
3 pcs |
| Spray Zones |
8 |
| Cleaning Systems |
Stainless steel spray arms, Aqua Level™ Sensor, Super Cleaning System™, Sensi Clean™ Sensor, 2 x WideClean |
| Drying |
Auto Door Open Drying™ and residual heat |
| Standard Program Duration |
120 minutes |
| Estimated Yearly Energy Consumption |
205 kWh |
| Energy Consumption Normal Program |
0.9 kWh |
| Estimated Annual Water Consumption |
647.5 gal |
| Water Consumption |
3 gal |
Electrical Specifications
| Plug Type |
USA |
| Connected Load |
1300 W |
| Voltage |
120 V |
| Number of Phases |
1 |
| Fuse |
15 A |
| Frequency |
60 Hz |
| Standby Power Consumption |
1.7 W |
Dimensions
| Width |
23 13/16" |
| Height |
33 11/16" |
| Depth |
21 7/8" |
| Maximum Product Height |
35 11/16" |
| Depth with Door Open |
48 1/2" |
| Electrical Cord Length |
71 7/16" |
| Inlet Hose Length |
63 3/4" |
| Outlet Hose Length |
90 9/16" |
| Net Weight |
71.7 lb |
| Gross Weight |
75.6 lb |
Wash Programs and Modes
| Program |
Best For |
| Standard / Normal |
Daily, regular, or typical full loads of normally soiled dishes. |
| Auto Wash |
Loads where the dishwasher should adjust performance based on soil level. |
| Intensive |
Heavily soiled pans, casseroles, oven dishes, and greasy cookware. |
| Quick Wash |
Lightly soiled items or slightly dried leftovers. Not intended for burnt-on food. |
| Time Program |
Loads where the user wants to set a specific running time. |
| Sanitize |
Baby bottles, cutting boards, or loads requiring higher-temperature sanitation. |
| Rinse and Hold |
Rinsing dishes while waiting to build a full load. |
| Self Cleaning |
Cleaning the dishwasher tub, spray arms, and spray pipes without dishes inside. |
Options and Modes
-
Night Mode: Lowers noise level and extends program time.
-
Speed Mode: Shortens program time and uses more energy.
-
Time Set: Allows program timing adjustment.
-
Super Rinse™: Adds two extra rinses.
-
Delayed Start: Can delay start up to 24 hours.
-
Auto Door Open: Can be enabled or disabled.

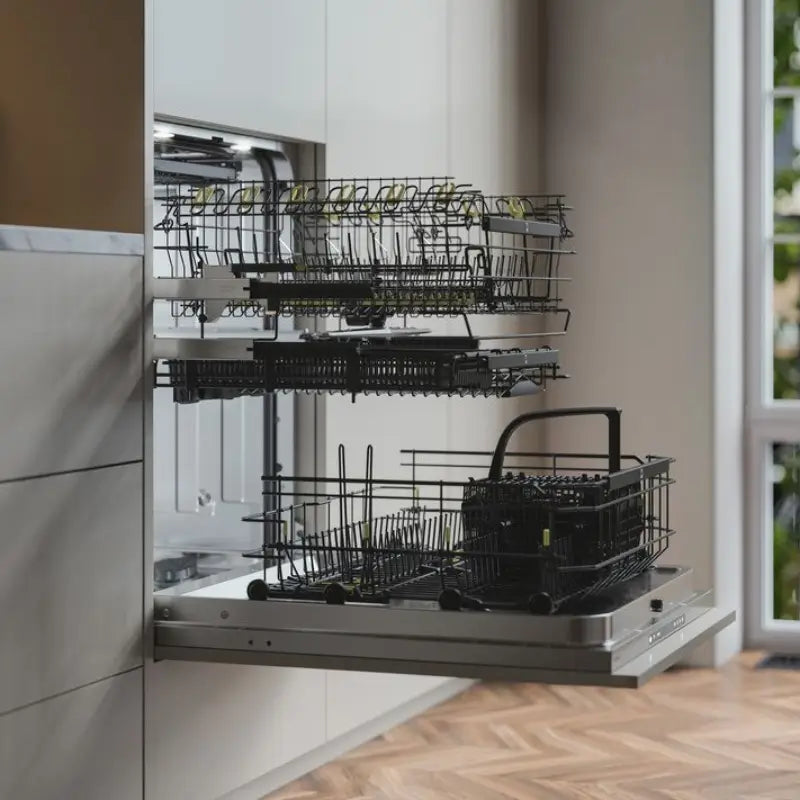

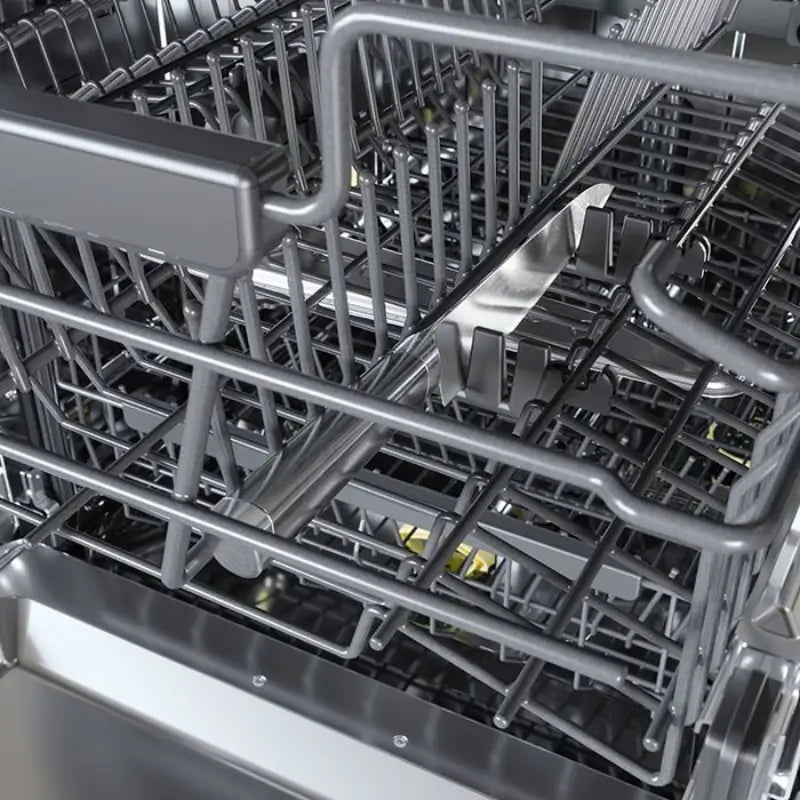

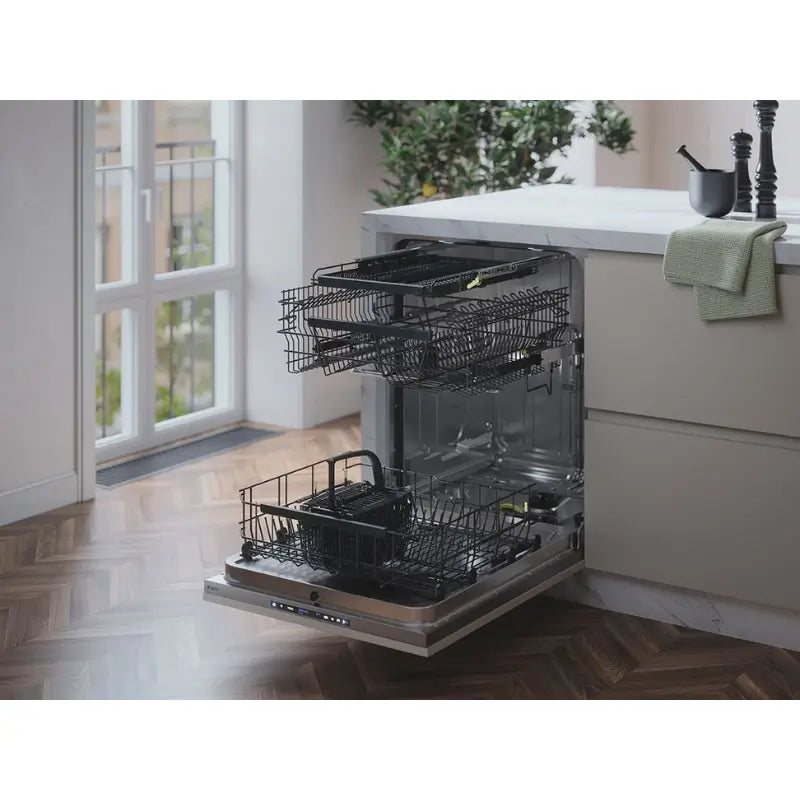

Rack System and Loading Flexibility
The DFI563XXL is built around a flexible three-level rack system that helps users adapt the interior to daily dishwashing needs.

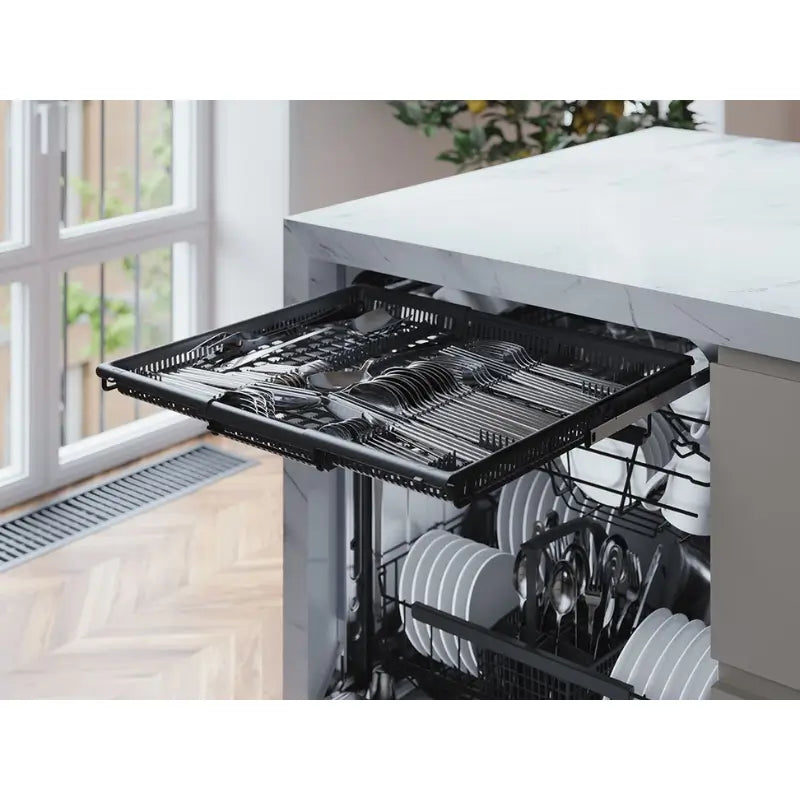

| Top Tray |
Dividable, removable, with telescopic rails and handle |
| Upper Rack Type |
Core Premium with Click-Clack system |
| Upper Rack Features |
Foldable wine shelves, fixed pin rows, fixed glass support, knife stand, telescopic rails |
| Middle Basket |
Without middle basket |

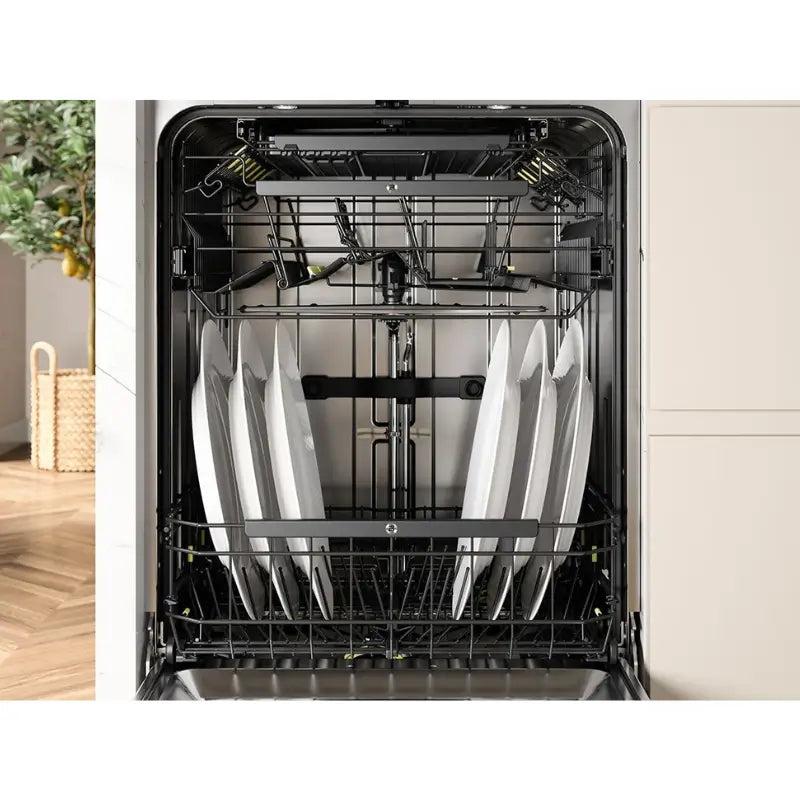

| Lower Rack Type |
Core Premium |
| Lower Rack Features |
Cutlery basket, foldable/divisible rear pin row, small basket thread spacing |
Safety and Protection Features
- Aqua Level™ Sensor for optimized water level
- Aqua Detect™ for leakage recognition in the motor compartment
- Detection of water leakage on the bottom plate
- Waterproof bottom plate
- Extra durable PEX inlet hose
- Stand-by water protection for leakage detection when the machine is off
- Anti Block™ self-cleaning drain pump
- Light and sound alarm
- Kid Safe™ lockable controls
- Low rinse-aid notification in display
Maintenance and Care
Proper maintenance helps the DFI563XXL maintain strong cleaning and drying performance. ASKO recommends regular attention to filters, spray arms, rinse aid, and the dishwasher tub.
Clean the Filters
Clean the coarse and fine filters at regular intervals depending on dishwasher use. Incorrectly installed or clogged filters can reduce dishwashing performance.
Clean the Spray Arms
Spray arm holes and bearings can become blocked. Remove debris with a needle or similar item and reinstall the spray arms securely after cleaning.
Run Self Cleaning
Use the Self Cleaning program without dishes inside the dishwasher. If hard water causes limescale buildup, ASKO recommends using citric acid or a dishwasher cleaner suitable for this purpose.
Use Rinse Aid Correctly
Rinse aid improves wash and dry performance and helps reduce water marks. Adjust the rinse aid dosage if dishes show marks, streaking, or sticky white-blue film.
Product Resources
Download the official ASKO documentation for this dishwasher. These are the only resource links provided for this product.
Summary
The ASKO DFI563XXL is a 24-inch fully integrated panel ready dishwasher with a 30-Series design, XXL tub, 14 place setting capacity, 42 dB(A) quiet operation, Super Cleaning System™, Auto Door Open Drying™, 3 racks, a top cutlery tray, 8 spray zones, LCD display, and Status Light™ floor indication.
